Abstract
The utility model discloses a mounting structure of a waterproof and dustproof cover of a motor, comprising a motor main body and the waterproof and dustproof cover. The mounting structure is characterized in that a shell of the motor main body is provided with a bulge and the bulge is sleeved with a rubber sleeve; and after the waterproof and dustproof cover is sleeved, the rubber sleeve and a cover wall of the waterproof and dustproof cover are mutually extruded and fastened under the supporting of the bulge. Compared with the prior art, the mounting structure has the advantages that the structure is simple and the installation is convenient; the motor has waterproof and dustproof functions; and the service life of the motor is greatly prolonged.
Description
Technical field
The utility model relates to a kind of motor, is specifically related to a kind of mounting structure of motor waterproof dust cover.
Background technology
The casing of conventional motors and end cap all are to expose outside, without any protection, meet external dust, water, easily are subjected to have a strong impact on useful life in infringement.If adopt common mounting means, be nothing but by screw the water proof and dust proof cover to be locked on the motor main body, screw easily gets rusty, and also easily comes off, and is extremely unstable in the use procedure.
The utility model content
The utility model is in order to solve above-mentioned deficiency, a kind of mounting structure of motor waterproof dust cover to be provided.
Above-mentioned purpose of the present utility model realizes by following technical scheme: a kind of mounting structure of motor waterproof dust cover, comprise motor main body and water proof and dust proof cover, it is characterized in that: described motor main body cover is provided with projection, overlap rubber sleeve on the projection, after the water proof and dust proof enclosure entered, rubber sleeve pushed fastening with water proof and dust proof cover cover wall under the support of projection mutually.
Described motor lower body part is provided with O type groove, is provided with the O RunddichtringO in the described O type groove, and water proof and dust proof cover lower port is pushed mutually with the O RunddichtringO, realizes that sealing is with fastening.
Described motor main body is provided with motor output lid and lead-out wire, and lead-out wire passes from the hole that motor output covers, and the intersection that lead-out wire and motor main body, motor output are covered is equipped with waterproof jacket.
The utility model advantage compared with prior art is: of the present utility model simple in structure, install conveniently, and so that motor has had function dustproof, waterproof, greatly prolong motor useful life.
Description of drawings

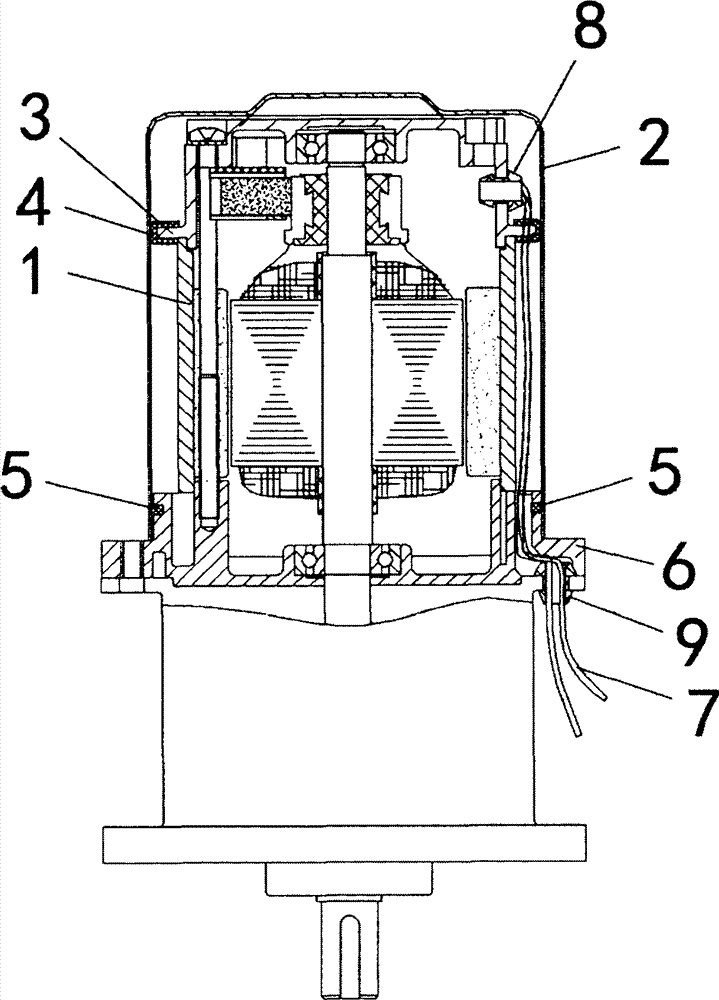

Fig. 1 is structural representation of the present utility model.
Embodiment
Below in conjunction with accompanying drawing the utility model is described in further detail:
As shown in Figure 1, a kind of mounting structure of motor waterproof dust cover, comprise motor main body 1 and water proof and dust proof cover 2, it is characterized in that: described motor main body 1 shell is provided with projection 3, cover rubber sleeve 4 on the projection 3, after water proof and dust proof cover 2 was inserted in, rubber sleeve 4 pushed fastening with water proof and dust proof cover 2 cover walls under the support of projection 3 mutually; Described motor main body 1 bottom is provided with O type groove, is provided with O RunddichtringO 5 in the described O type groove, and water proof and dust proof cover 2 lower port are pushed mutually with O RunddichtringO 5, realizes that sealing is with fastening; Described motor main body 1 is provided with motor output and cover 6 and lead-out wire 7, and the hole that lead-out wire 7 cover on 6 from motor output passes, and lead-out wire 7 and motor main body 1, motor are exported and covered 6 intersection and be respectively equipped with waterproof jacket 8 and waterproof jacket 9.
The above only is embodiment of the present utility model; be not so limit claim of the present utility model; every equivalent structure or equivalent flow process conversion that utilizes the utility model specification and accompanying drawing content to do; or directly or indirectly be used in other relevant technical fields, all in like manner be included in the scope of patent protection of the present utility model.
Claims (3)
1. the mounting structure of a motor waterproof dust cover, comprise motor main body and water proof and dust proof cover, it is characterized in that: described motor main body cover is provided with projection, overlaps rubber sleeve on the projection, after the water proof and dust proof enclosure entered, rubber sleeve pushed fastening with water proof and dust proof cover cover wall under the support of projection mutually.
2. the mounting structure of a kind of motor waterproof dust cover according to claim 1, it is characterized in that: described motor lower body part is provided with O type groove, be provided with the O RunddichtringO in the described O type groove, water proof and dust proof cover lower port is pushed mutually with the O RunddichtringO, realizes that sealing is with fastening.
3. the mounting structure of a kind of motor waterproof dust cover according to claim 1, it is characterized in that: described motor main body is provided with motor output lid and lead-out wire, lead-out wire passes from the hole that motor output covers, and the intersection that lead-out wire and motor main body, motor output are covered is equipped with waterproof jacket.
