Abstract
本实用新型公开了一种管型电缆，电缆芯为管型导体，管型导体外层依次有内屏蔽层、绝缘层、外屏蔽层、护套层，在金属屏蔽层上加装接地引线，由于采用铜管、铝管或合金管作为电缆芯，扩大了电缆的截面积，使其载流量增大，解决了高低电压等级(0.4kV～110kV)大电流导线与绝缘体设备的接口以及大电流输配电安全可靠性更高的问题，适应各种供电领域和污秽等级高的恶劣复杂环境的使用。
The utility model discloses a tubular cable. The cable core is a tubular conductor, and the outer layer of the tubular conductor has an inner shielding layer, an insulating layer, an outer shielding layer and a sheath layer in turn, and a grounding lead is installed on the metal shielding layer. Due to the use of copper tubes, aluminum tubes or alloy tubes as the cable core, the cross-sectional area of the cable is enlarged, and the current carrying capacity is increased. The problem of higher safety and reliability of power transmission and distribution is suitable for use in various power supply fields and harsh and complex environments with high pollution levels.
Description
技术领域 technical field
本申请涉及一种大电流硬性电缆。This application relates to a high current rigid cable.
背景技术 Background technique
目前，国内母线在技术上和结构上越来越难满足母线发热和短路电动力的要求，由此引起附加损耗、集肤效应系数的增大，造成载流能力的下降、电流分布不均匀。尤其是大电流的出线，不仅有母线桥本身的电动力问题、发热问题，还有母线桥支柱绝缘子、钢构架以及母线桥附近混凝土柱、基础内的钢筋在电磁场中感应涡流引起的发热问题。传统电缆截面小，其载流量小，不适合用于大电流输配电。At present, it is becoming more and more difficult for domestic busbars to meet the requirements of busbar heating and short-circuit electromotive force technically and structurally, which will cause additional loss, increase of skin effect coefficient, decrease of current carrying capacity and uneven current distribution. Especially for the outgoing line of large current, there are not only the electrodynamic problems and heating problems of the bus bridge itself, but also the heating problems caused by the eddy current induced in the electromagnetic field by the insulators of the bus bridge pillars, the steel frame, the concrete columns near the bus bridge, and the steel bars in the foundation. Traditional cables have a small cross-section and a small carrying capacity, making them unsuitable for high-current power transmission and distribution.
发明内容 Contents of the invention
为了克服现有技术中安装复杂、不适用大电流输配电的问题，本申请提供了一种应用领域更广、安全可靠性更高的大电流硬性电缆。In order to overcome the problems of complicated installation and unsuitability for high-current power transmission and distribution in the prior art, the present application provides a high-current rigid cable with wider application fields and higher safety and reliability.
本申请提供一种管型电缆，其电缆芯为管型导体，管型导体外层依此有内屏蔽层、绝缘层、外屏蔽层、金属屏蔽层、护套层，在金属屏蔽层上加装接地引线。The application provides a tubular cable, the cable core is a tubular conductor, and the outer layer of the tubular conductor has an inner shielding layer, an insulating layer, an outer shielding layer, a metal shielding layer, and a sheath layer. Install the ground lead.
优选地，管形导体采用铜管、铝管或合金管。Preferably, the tubular conductor is a copper tube, an aluminum tube or an alloy tube.
优选地，内屏蔽层与外屏蔽层采用半导电材料。Preferably, the inner shielding layer and the outer shielding layer are made of semi-conductive materials.
优选地，绝缘层采用氯磺化聚乙烯橡胶和聚四氟乙烯材料。Preferably, the insulating layer is made of chlorosulfonated polyethylene rubber and polytetrafluoroethylene.
优选地，护套层分为内护套层和外护套层。Preferably, the sheath layer is divided into an inner sheath layer and an outer sheath layer.
本实用新型由于采用铜管、铝管或合金管作为电缆芯，扩大了电缆的截面积，使其载流量增大，交、直流电阻比值变大，解决了高低电压等级(0.4kV～110kV)大电流导线与绝缘体设备的接口以及大电流输配电安全可靠性更高的问题，适应各种供电领域和污秽等级高的恶劣复杂环境的使用。Because the utility model adopts copper tube, aluminum tube or alloy tube as the cable core, the cross-sectional area of the cable is enlarged, the carrying capacity is increased, the ratio of AC and DC resistance is increased, and the high and low voltage levels (0.4kV～110kV) are solved. The interface between high-current wires and insulator equipment and the higher safety and reliability of high-current transmission and distribution are suitable for use in various power supply fields and harsh and complex environments with high pollution levels.
附图说明 Description of drawings

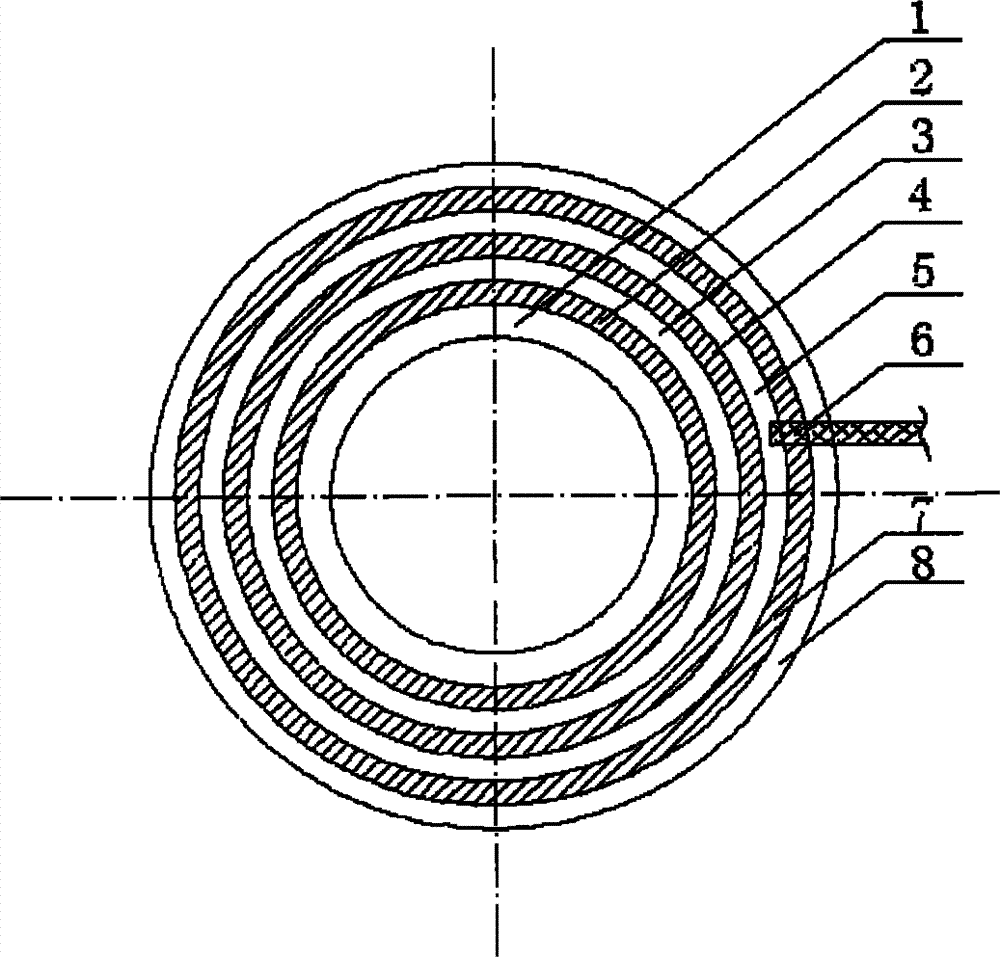

图1为本实用新型的结构示意图。Fig. 1 is the structural representation of the utility model.
具体实施方式 Detailed ways
下面结合附图对本实用新型的具体实施方式做进一步说明。Below in conjunction with accompanying drawing, the specific embodiment of the present utility model is described further.
参考图1，一种管型电缆，电缆芯为管型导体1，管型导体1外层依此有内屏蔽层2、绝缘层3、外屏蔽层4、金属屏蔽层5、内护套层7和外护套层8，在金属屏蔽层5上加装接地引线6。Referring to Figure 1, a tubular cable, the cable core is a tubular conductor 1, and the outer layer of the tubular conductor 1 has an inner shielding layer 2, an insulating layer 3, an outer shielding layer 4, a metal shielding layer 5, and an inner sheath layer 7 and the outer sheath layer 8, and the grounding lead 6 is installed on the metal shielding layer 5.
作为电缆芯的管形导体1采用铜管、铝管及合金管，流散热条件好，温升低，损耗小，导电能力强、载流量大、机械强度高。The tubular conductor 1 used as the cable core adopts copper tube, aluminum tube and alloy tube, which has good flow and heat dissipation conditions, low temperature rise, small loss, strong conductivity, large carrying capacity and high mechanical strength.
在导体表面加一层半导电材料的内屏蔽层2，与被屏蔽的导体等电位，并与绝缘层良好接触，从而可避免在导体与绝缘层之间发生的局部放电。Add a layer of inner shielding layer 2 of semi-conductive material on the surface of the conductor, which has the same potential as the shielded conductor and is in good contact with the insulating layer, so that partial discharge between the conductor and the insulating layer can be avoided.
绝缘层3主要采用氯磺化聚乙烯橡胶和聚四氟乙烯材料，绝缘性能优越，耐酸碱、耐磨，阻燃性能良好，介电损耗小，拥有很好的耐高低温性能和化学稳定性。Insulation layer 3 is mainly made of chlorosulfonated polyethylene rubber and polytetrafluoroethylene material, which has excellent insulation performance, acid and alkali resistance, wear resistance, good flame retardancy, low dielectric loss, good high and low temperature resistance and chemical stability sex.
在绝缘层3表面加一层半导电材料的外屏蔽层4，它与被屏蔽的绝缘层有良好接触，与铠装层等电位，从而可避免在绝缘层与护套层之间发生局部放电。Add a layer of outer shielding layer 4 of semi-conductive material on the surface of insulating layer 3, which has good contact with the shielded insulating layer, and has the same potential as the armor layer, so as to avoid partial discharge between the insulating layer and the sheath layer .
外屏蔽层4外包绕的金属带作为金属屏蔽层5，起到在正常运行时通过电容电流，屏蔽电场的作用。The metal strip wrapped around the outer shielding layer 4 is used as the metal shielding layer 5 to pass capacitive current and shield the electric field during normal operation.
在外屏蔽层4安装一条软导线作为接地引线6引出接地，它将外屏蔽层的电容电流传输接地，从而使电缆达到真正的表面电位为0。Install a flexible wire on the outer shielding layer 4 as the grounding lead 6 to lead out to the ground, which transmits the capacitive current of the outer shielding layer to the ground, so that the cable reaches a true surface potential of 0.
内护套层7阻止水分、潮气及其他有害物质侵入绝缘层，以确保绝缘层性能不变。The inner sheath layer 7 prevents moisture, moisture and other harmful substances from invading the insulating layer, so as to ensure that the performance of the insulating layer remains unchanged.
外护套层8有效的减少电缆在运输、安装及运行过程中的机械损伤及抗紫外线老化。The outer sheath layer 8 effectively reduces the mechanical damage and anti-ultraviolet aging of the cable during transportation, installation and operation.
由于本实用新型既具有绝缘管母线集肤效应低、载流量大、中空对流散热好等优点，又具有电缆绝缘强度高的特征，能满足各种电压等级的要求，适用于发电站、变电站以及石化、冶金、新能源、城市建设等行业的高压、大电流、高污秽场合的供电领域。Because the utility model not only has the advantages of low skin effect, large carrying capacity, and good hollow convection heat dissipation, but also has the characteristics of high cable insulation strength, it can meet the requirements of various voltage levels, and is suitable for power stations, substations and Power supply field of high voltage, high current, high pollution occasions in petrochemical, metallurgy, new energy, urban construction and other industries.
