Abstract
The utility model belongs to the technical field of liquid level metering and particularly relates to a simple liquid level meter applicable to a seal pot. The liquid level meter comprises a floating object that floats on liquid in a seal pot body, wherein a liquid level indicating device is arranged outside the seal pot body; and the floating object is connected with the liquid level indicating device through a rope-shaped object that penetrates through the seal pot body. A dividing rule matched with the liquid level indicating device is arranged on a side wall of the seal pot body; the scale range of the dividing rule corresponds to the fluctuation range of the liquid level in the seal pot body; and scale marks on the dividing rule are distributed uniformly within the scale range of the dividing rule. The device is simple in structure, convenient to use and maintain, low in maintenance cost, simple to operate and good in liquid level measuring effect, operates reliably and has few equipment overhaul points. The device occupies a small space, and the storage of the liquid in the seal pot body is not influenced.
Description
Technical field
The utility model belongs to the level gauging technical field, is specifically related to a kind of simple and easy liquid level metering instrument that is applicable to sealable tank.
Background technology
Level gauging is very general in commercial production, and application is also very wide.For example: the measurement of tap water water level and control; The measurement of the oil tank of oil field, refinery and oil storage tank oil level etc.As the important means of production monitoring, the level gauging technology is very crucial for the normal operation that guarantees various devices in the production run.Level gauging can instruct production, enhances productivity, reduce cost consumption accurately.It is dynamic in time to monitor the liquid level of the various devices in production scene by level gauging accurately simultaneously, guarantees safety in production, improves the quality of products.And because the various medicament tank body volumes of production scene are larger, highly also higher, therefore be difficult to judge liquid level in the medicament tank body by existing liquid level emasuring device, therefore how by a kind of comparatively easy mode and learn that comparatively exactly the liquid level condition in each sealable tank is a technical matters that needs to be resolved hurrily.
The utility model content
The purpose of this utility model provides a kind of simple and easy liquid level metering instrument, and the Ben Jianyi liquid level metering instrument is not only simple in structure, and easy to use, and indicating effect is comparatively accurate simultaneously.
For achieving the above object, the utility model has adopted following technical scheme: a kind of simple and easy liquid level metering instrument, this liquid level metering instrument comprises and swims in the floating thing on the liquid level in the sealed shell of tank, the arranged outside of sealed shell of tank has the liquid level indicating device, and described floating thing is linked together by ropy and the described liquid level indicating device that passes sealed shell of tank.
The utility model can also be able to further realization in the following manner simultaneously:
Preferably, the top of described sealed shell of tank is installed with pulley, and described ropy is walked around the groove on the pulley and floating thing and liquid level indicating device are linked together.
Preferably, described floating thing is the buoy ball of being made by anti-corrosion material.
Preferably, described pulley overhangs in the sidewall outside of sealed shell of tank.
Preferably, described liquid level indicating device is cone shape vertical body.
Further, be provided with the rule that matches with the liquid level indicating device on the sidewall of described sealed shell of tank, the meter full scale of described rule is corresponding with the fluctuation range of liquid level in the sealed shell of tank, and the scale mark on the rule evenly distributes in the meter full scale of rule.
The beneficial effects of the utility model:
1), the utility model has used the interaction relation of buoy ball and vertical body dexterously,, effectively saved and measured cost and improved the work efficiency of production scene so that the liquid level in the sealed shell of tank shows comparatively significantly by the position conversion of buoy ball and vertical body.
2), be provided with the rule that matches with the vertical body in the utility model, thereby make operating personnel to the liquid level condition in the sealed shell of tank more intuitively understanding arranged, also improved the accuracy that liquid level in the sealed shell of tank is shown simultaneously.
3), the utility model is simple in structure, working service is convenient, reliable operation, overhaul of the equipments point less, maintenance cost is low; And the utility model is simple to operate, level gauging effective.
4), the utility model takes up space littlely, can not affect the fluid storage in the sealed shell of tank.
Description of drawings

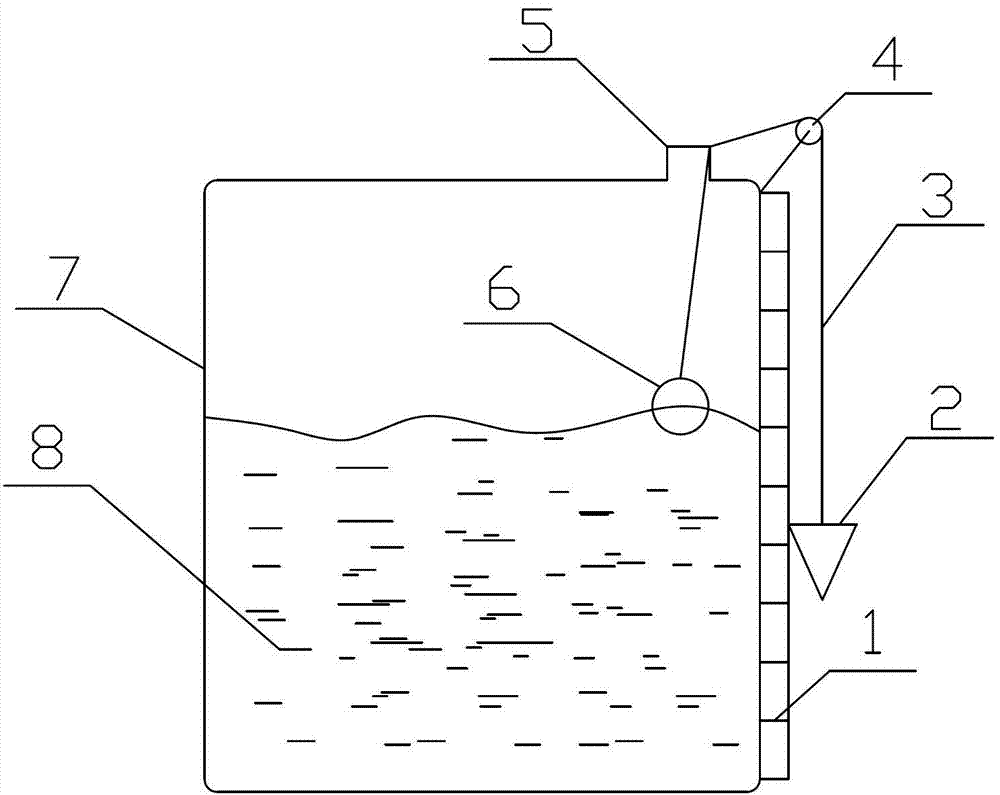

Fig. 1 is structural representation of the present utility model.
The implication of label symbol is as follows among the figure:
1-rule, 2-liquid level indicating device, 3-rope, 4-pulley
5-perforate, 6-floating thing, 7-sealed shell of tank, 8-liquid
Embodiment
As shown in Figure 1, a kind of simple and easy liquid level metering instrument, this liquid level metering instrument comprises and swims in the floating thing on the liquid level 6 in the sealed shell of tank 7, the arranged outside of sealed shell of tank 7 has liquid level indicating device 2, and described floating thing 6 is linked together by ropy and the described liquid level indicating device 2 that passes sealed shell of tank 7.
Preferably, the top of described sealed shell of tank 7 is installed with pulley 4, and described ropy is walked around the groove on the pulley 4 and floating thing 6 and liquid level indicating device 2 are linked together.
Preferably, described floating thing 6 is the buoy ball of being made by anti-corrosion material.
Described pulley 4 overhangs in the sidewall outside of sealed shell of tank 7, then when ropy is walked around the groove on the pulley 4 and floating thing 6 and liquid level indicating device 2 is linked together, ropy can reduce the friction with sealed shell of tank 7 sidewalls as far as possible, thereby can be more fast and indicate intuitively liquid level condition in the sealed shell of tank 7.
Preferably, described liquid level indicating device 2 is cone shape vertical body.
Further, be provided with the rule 1 that matches with liquid level indicating device 2 on the sidewall of described sealed shell of tank 7, the meter full scale of described rule 1 is corresponding with the fluctuation range of sealed shell of tank 7 interior liquid levels, and the scale mark on the rule 1 evenly distributes in the meter full scale of rule 1.
Below in conjunction with Fig. 1 the course of work of the present utility model is described further.
Sealed shell of tank 7 inside are filled with a certain amount of liquid 8.The upper end of sealed shell of tank 7 is provided with perforate 5, and the side of perforate 5 is installed a fixed block 4, and described pulley 4 overhangs in the sidewall outside of sealed shell of tank 7.The upright side walls that is provided with pulley 4 one sides at sealed shell of tank 7 is pasted with a rule 1.The ropy that is suspended on rule 1 one sides also is that rope 3 passes fixed block 4 and described perforate 5 successively, and it also is that vertical body and floating thing 6 also are the buoy ball that the two ends of rope 3 are connecting respectively liquid level indicating device 2.
The scale of rule 1 is that the difference according to the sealed shell of tank height changes.When the liquid of sealed shell of tank 7 inside is filled; the buoy ball swims in the top of sealed shell of tank 7 inside; then indicate on rule 1 full scale bottom with the vertical body that the buoy ball connects together, the height of supposing sealable tank is 100, then the indicated liquid level of vertical body this moment is exactly 100; When sealed shell of tank 7 inside do not have liquid, also be that liquid is 0 o'clock, the position of vertical body is on rule 10 scale topmost, and the indicated liquid level of vertical body this moment is exactly 0.Scale mark on the rule 1 evenly distributes from top to bottom at the center section between full scale and 0 scale, and the height of sealed shell of tank 7 interior liquid levels just can read out by vertical body indicated position on rule 1 at any time like this.
Claims (6)
1. simple and easy liquid level metering instrument, it is characterized in that: this liquid level metering instrument comprises the floating thing (6) that swims on the middle liquid level of sealed shell of tank (7), the arranged outside of sealed shell of tank (7) has liquid level indicating device (2), and described floating thing (6) is linked together by ropy and the described liquid level indicating device (2) that passes sealed shell of tank (7).
2. simple and easy liquid level metering instrument according to claim 1, it is characterized in that: the top of described sealed shell of tank (7) is installed with pulley (4), and described ropy is walked around the groove on the pulley (4) and floating thing (6) and liquid level indicating device (2) are linked together.
3. simple and easy liquid level metering instrument according to claim 2 is characterized in that: the buoy ball of described floating thing (6) for being made by anti-corrosion material.
4. simple and easy liquid level metering instrument according to claim 2 is characterized in that: described pulley (4) overhangs in the sidewall outside of sealed shell of tank (7).
5. simple and easy liquid level metering instrument according to claim 2, it is characterized in that: described liquid level indicating device (2) is cone shape vertical body.
6. each described simple and easy liquid level metering instrument according to claim 1～4, it is characterized in that: be provided with the rule (1) that matches with liquid level indicating device (2) on the sidewall of described sealed shell of tank (7), the meter full scale of described rule (1) is corresponding with the fluctuation range of the interior liquid level of sealed shell of tank (7), and the scale mark on the rule (1) evenly distributes in the meter full scale of rule (1).
