Abstract
The utility model relates to furniture, and particularly relates to a steel leisure chair. The steel leisure chair comprises a chair body, a chair surface, a backrest, an armrest, and supporting legs. The steel leisure chair is characterized by being formed by inwards concaving a semi-spherical body with a hollow block on the hollow surface; the chair surface, the armrest and the backrest are formed at an inwards concave part of the semi-spherical body; the supporting legs are formed at the lower part of the semi-spherical body; and the chair body, the chair surface, the backrest, the armrest and the supporting legs are in an integrated structure. The utility model aims to provide the steel leisure chair with a simple structural and technical design, high comfort and good quality.
Description
Technical field
The utility model relates to a kind of furniture, specifically is a kind of steel leisure chaise longue.
Background technology
Along with the development of society, the raising of people's living standard, people are also more and more higher to the requirement of seat, emerge on the market a large amount of different cultivars, the chair of various patterns, on the market common to leisure chaise longue generally be that metal and rattan plaited material are combined, to reach practical, attractive in appearance purpose.And common leisure chaise longue is in order to control cost, and quality is of rude workmanship, and structure is relatively simple, and after a period of time, people take and will feel that the chair pin is loose insecure, can affect people's safety when shaking.
Summary of the invention
The purpose of this utility model is to overcome above shortcomings in the prior art, and a kind of structure technology simplicity of design, comfortable, the measured steel leisure chaise longue of matter are provided.
The technical scheme in the invention for solving the above technical problem is: a kind of steel leisure chaise longue, comprise chair body, seat, backrest, handrail, feet, it is characterized in that steel leisure chaise longue integral body is made of the hemisphere indent that hollow surface has the hollow out piece, recess forms seat, handrail and backrest in the hemisphere, feet is formed at the hemisphere bottom, and chair body, seat, backrest, handrail, feet are structure as a whole.
The utility model compared with prior art has the following advantages and effect: simple in structure, reasonable in design, the steel leisure chaise longue is made by steel material, and integral body is integrated, and is solid and reliable, surface hollow-out is the cracked ice pattern shape, and convenient the movement and economical with materials guaranteed the quality of chair itself.
Description of drawings

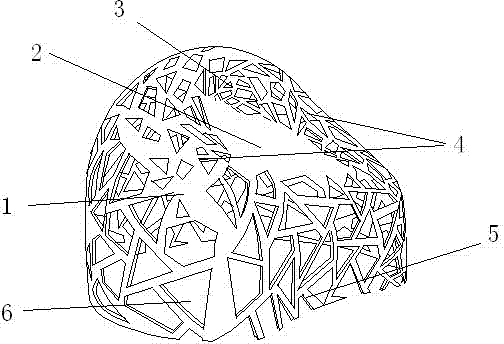

Fig. 1 is the utility model example structure schematic diagram.
The specific embodiment
The utility model is described in further detail below in conjunction with accompanying drawing and by embodiment, and following examples are to explanation of the present utility model and the utility model is not limited to following examples.
Referring to Fig. 1, steel leisure chaise longue in the present embodiment comprises chair body 1, seat 2, backrest 3, handrail 4, feet 5, steel leisure chaise longue integral body is made of the hemisphere indent that hollow surface has hollow out piece 6, and interior recess forms seat 2, handrail 4 and backrest 3, and feet 5 is formed at the hemisphere bottom.Because chair body 1 is to be processed by hemisphere, the hollow out piece 6 that surface hollow-out is the cracked ice pattern shape both can Convenient chair movement, again can economical with materials, backrest 3 and handrail 4 design according to base of principle of human engineering, described steel leisure chaise longue integral body is integrated, firmly safety.In use, both can feel comfortably cool, and can not have no a sense of safety again.
The present embodiment steel leisure chaise longue is not used any attaching parts, all is to be made by steel material, has guaranteed the quality of chair itself.
In addition, need to prove, the specific embodiment described in this specification, the shape of its parts and components, institute's title of being named etc. can be different, and the above content described in this specification only is to the explanation of the utility model structure example.Allly conceive equivalence variation or the simple change that described structure, feature and principle are done according to the utility model patent, be included in the protection domain of the utility model patent.The utility model person of ordinary skill in the field can make various modifications or replenishes or adopt similar mode to substitute described specific embodiment; only otherwise depart from structure of the present utility model or surmount this scope as defined in the claims, all should belong to protection domain of the present utility model.
Claims (1)
1. steel leisure chaise longue, comprise chair body, seat, backrest, handrail, feet, it is characterized in that: steel leisure chaise longue integral body is made of the hemisphere indent that hollow surface has the hollow out piece, recess forms seat, handrail and backrest in the hemisphere, feet is formed at the hemisphere bottom, and chair body, seat, backrest, handrail, feet are structure as a whole.
