本实用新型涉及一种立式超声波洗瓶机，属于一种制药机械设备。本实用新型的立式超声波洗瓶机，其特别之处在于：其包括机床本体以及机床本体上顺次连接的输瓶网袋、清洗槽、储水槽，还有电控系统以及与电控系统相连接的提升装置、机械手和出瓶同步带，清洗槽内设置有进瓶绞龙和超声波换能器，进瓶绞龙与提升装置相连接，机床本体上还设置有喷针。本技术方案的立式超声波洗瓶机能够清除用一般洗瓶工艺难以清除的瓶内、外粘附较牢固的物质，并且不易碎瓶。
The utility model relates to a vertical ultrasonic bottle washing machine, which belongs to pharmaceutical mechanical equipment. The vertical ultrasonic bottle washing machine of the present utility model is special in that it includes the machine tool body and the bottle conveying net bag, cleaning tank, water storage tank connected sequentially on the machine tool body, as well as the electric control system and the electric control system. The connected lifting device, the manipulator and the bottle output timing belt, the bottle feeding auger and the ultrasonic transducer are arranged in the cleaning tank, the bottle feeding auger is connected with the lifting device, and the machine tool body is also provided with a spray needle. The vertical ultrasonic bottle washing machine of the technical solution can remove the solidly adhered substances inside and outside the bottle which are difficult to remove by general bottle washing process, and the bottle is not easy to break.
Description
Technical field
The utility model relates to a kind of pharmaceutical machine equipment, especially relates to a kind of vertical ultrasonic bottle washing machine to small-size glass bottles such as control and molded antibiotic glass bottle, oral liquid glass bottle and ampoule bottles.
Background technology
At present, the plant equipment of bottle washing machine indispensability in pharmaceutical industry is occupied very important position.Bottle washing machine mainly contains two types of vertical bottle-washing machine and horizontal bottle washing machines, horizontal bottle washing machine mainly is applicable to clean ampoule bottle because of the characteristics on its structural design, and do not adapt to for the mould glass tube vial of small dimension and the cleaning of oral liquid bottle, there are the characteristics that bottle-breaking rate is high, cleanliness factor is low. very much
Summary of the invention
The purpose of this utility model is, a kind of new technical scheme is provided, and this technical scheme can solve the problem and shortage that prior art exists.The vertical ultrasonic bottle washing machine of the technical program can be removed the inside and outside adhesion of the bottle material more firmly that is difficult to remove with general bottle-washing, and non-friable bottle.
The technical solution of the utility model is achieved by following technical measures.Vertical ultrasonic bottle washing machine of the present utility model, its special feature is: it comprises active conveying bottle mesh bag, rinse bath, the aqua storage tank that connects in turn on machine body and the described machine body, also have electric-control system and the lifting device that is connected with described electric-control system, manipulator and bottle outlet Timing Belt, be provided with in the described rinse bath into bottle auger and ultrasonic transducer, describedly advance bottle auger and be connected with lifting device, also be provided with nozzle needle on the described machine body.
In order further to improve the beneficial effect of the technical program, the special feature of the utility model vertical ultrasonic bottle washing machine also is: also be provided with compressed air control valve, fresh water control valve, recirculated water control valve, shower water control valve and water for injection control valve on the described machine body, described fresh water control valve enters the groove control valve by fresh water and is connected with described rinse bath, and described compressed air control valve, described recirculated water control valve, described water for injection control valve are connected with described nozzle needle by water pipe respectively.
In order further to improve the beneficial effect of the technical program, the special feature of the utility model vertical ultrasonic bottle washing machine also is: water temperature is 50～60 ℃ in the described aqua storage tank.
The beneficial effects of the utility model are achieved by abovementioned technology.Vertical ultrasonic bottle washing machine of the present utility model adopts ultrasonic cleaning technology, and the mechanical friction power of utilizing the ultrasonic cavitation effect to produce is removed more firmly material of bottle inside and outside adhesion that is difficult to remove with general bottle-washing; Adopt the inner-immersed type ultrasonic transducer, noise is low, is washed container simultaneously and directly passes through from transducer, and synthesis is strong, and power loss is few, and cleaning performance is good; Vertical ultrasonic bottle washing machine of the present utility model adopts water, atmospheric pressure alternating spray to clean, container is in inversion state, jet pipe directly inserts in internal tank, can give full play to like this cleaning fluid and compressed-air actuated souring, effectively the foreign matter in the container and residual water are discharged, each nozzle needle is finished flushing operation separately simultaneously, does not have cross-reference, various cleaning fluids directly pour internal tank by nozzle needle, lose without pressure.
This shows that compared with prior art, the utlity model has outstanding substantive distinguishing features and significant technological progress, the beneficial effect of its enforcement also is apparent.
Description of drawings
Below in conjunction with accompanying drawing, the utility model specific embodiment is described further.

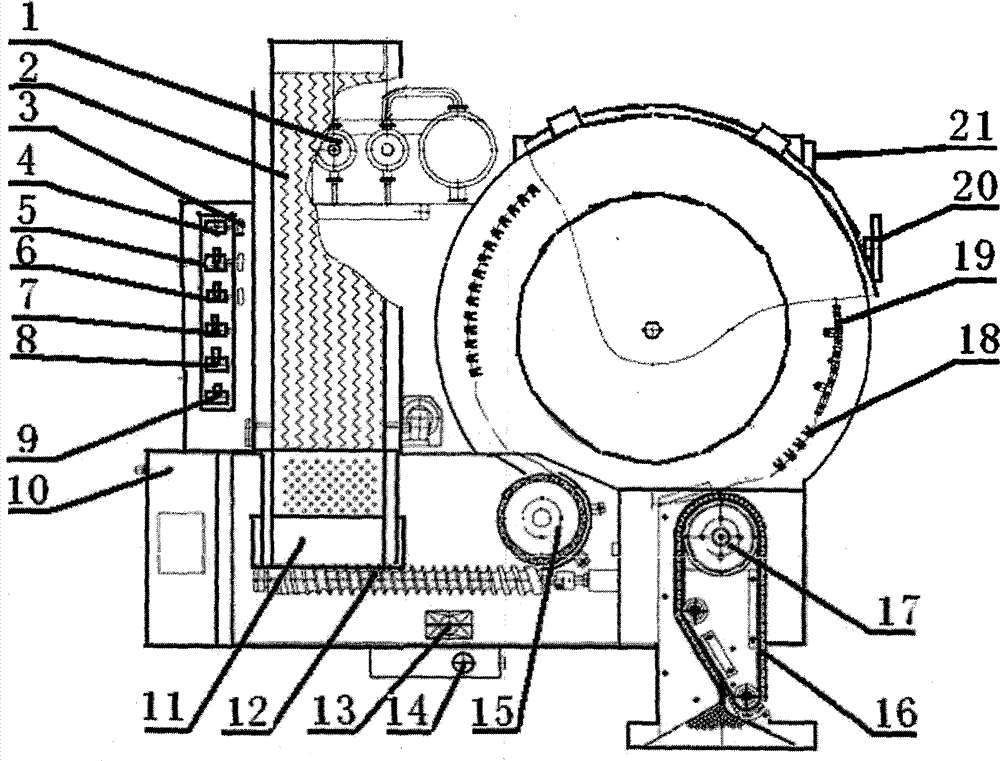

Fig. 1 is the structural representation of the utility model vertical ultrasonic bottle washing machine.
Among the figure, 1 is filter, and 2 is bottle conveying mesh-belt, 3 is Pressure gauge, and 4 is compressed air control valve, and 5 is the fresh water control valve, 6 is the recirculated water control valve, 7 for fresh water enters the groove control valve, and 8 is the shower water control valve, and 9 is the water for injection control valve, 10 is electric-control system, 11 is ultrasonic transducer, and 12 for advancing a bottle auger, and 13 is rinse bath, 14 is aqua storage tank, 15 is lifting device, and 16 is the bottle outlet Timing Belt, and 17 is synchronous pulley, 18 is manipulator, 19 is nozzle needle, and 20 is the lift adjustment handwheel, and 21 is main power switch.
The specific embodiment
For clearly demonstrating the technical characterstic of this programme, below by a specific embodiment, and in conjunction with its accompanying drawing, this programme is set forth.
Can find out by accompanying drawing 1, the utility model vertical ultrasonic bottle washing machine, it is characterized in that: it comprises active conveying bottle mesh bag 2, rinse bath 13, the aqua storage tank 14 that connects in turn on machine body and the machine body, also have electric-control system 10 and the lifting device 15 that is connected with electric-control system 10, manipulator 18 and bottle outlet Timing Belt 16, be provided with in the rinse bath into bottle auger 12 and ultrasonic transducer 11, advance bottle auger 12 and be connected with lifting device 15, also be provided with nozzle needle 19 on the machine body; Also be provided with compressed air control valve 4, fresh water control valve 5, recirculated water control valve 6, shower water control valve 8 and water for injection control valve 9 on the machine body, fresh water control valve 5 enters groove control valve 7 by fresh water and is connected with rinse bath 13, and compressed air control valve 4, recirculated water control valve 6, water for injection control valve 9 are connected with nozzle needle 19 by water pipe respectively; Compressed air control valve 4 is connected with Pressure gauge 3.
The utility model vertical ultrasonic bottle washing machine is mainly used in liquid drugs injection, the powder pin production process cleaning of bottle is cleaned, and can automatically finish from advancing bottle, Ultrasonic Cleaning, washout, wash-in to a complete set of production process of bottle outlet.
At first start main power switch 21, electric-control system 10 is started working; Then open fresh water and enter groove control valve 7, give rinse bath 13 water fillings, after rinse bath 13 is filled with entry, water will overflow in the aqua storage tank 14 automatically, after aqua storage tank water is full, can closes fresh water and enter groove control valve 7.In order to keep water filling cleaning, can the water source with a pipeline between installation filter 1.
Then bottle advances bottle by active conveying bottle mesh bag 2, and bottle is the about 1 minute Ultrasonic Cleaning of process in rinse bath 13.This moment, aqua storage tank 14 water temperatures were controlled at 50～60 ℃, and ultrasonic wave is in the best operating condition.
In rinse bath 13, advance bottle auger 12 with the bottle separation and deliver to lifting device 15 places, the pitches auger is pressed the best curve design, bottle can be sent in the lifting device 15 from advancing bottle auger 12 reposefully, lifting device 15 promotes and delivers to bottle on the manipulator 18 of large rotary drum in water reposefully, lift adjustment handwheel 20 can be regulated the distance between lifting device 15 and the manipulator 18, can realize steady clamping to guarantee bottle.
Bottle is clamped and overturn 180 with the manipulator 18 of chuck, make bottleneck down, in order to enter following flushing station.The first step is by the outer wall of the circulating water to flush cleaning bottle of high pressure, then first group of nozzle needle inserts and rushes recirculated water (or punching press contracting air is discharged recirculated water in the bottle) in the bottle, second group of nozzle needle rushes recirculated water, and the 3rd group of nozzle needle punching press contracting air discharged recirculated water residual in the bottle.The 4th group of nozzle needle rushes water for injection, and the 5th, six group of nozzle needle punching press contracting air discharged residual water in the bottle as far as possible, so that oven dry, last compressed air rushes bottle outer wall, so far finishes all mattings of bottle.
Manipulator 18 is bottle righting, and delivers on the bottle outlet Timing Belt 16, and bottle outlet Timing Belt 16 is released bottle under the effect of synchronous pulley 17, and bottle enters on baking oven or the bottle outlet dish.In like manner, lift adjustment handwheel 20 can be regulated the distance between manipulator 18 and the bottle outlet Timing Belt 16, can realize steady placement to guarantee bottle.
This specification is not explained part in detail, such as electric-control system, manipulator etc., is the known technological means of those skilled in the art.
Protection domain of the present utility model is not limited only to the content that this specification is explained, and with respect to those skilled in the art, does not need any distortion of having done through performing creative labour, all belongs to protection domain of the present utility model.
Claims (3)
1. vertical ultrasonic bottle washing machine, it is characterized in that: it comprises active conveying bottle mesh bag, rinse bath, the aqua storage tank that connects in turn on machine body and the described machine body, also have electric-control system and the lifting device that is connected with described electric-control system, manipulator and bottle outlet Timing Belt, be provided with in the described rinse bath into bottle auger and ultrasonic transducer, describedly advance bottle auger and be connected with lifting device, also be provided with nozzle needle on the described machine body.
2. vertical ultrasonic bottle washing machine according to claim 1, it is characterized in that: also be provided with compressed air control valve, fresh water control valve, recirculated water control valve, shower water control valve and water for injection control valve on the described machine body, described fresh water control valve enters the groove control valve by fresh water and is connected with described rinse bath, and described compressed air control valve, described recirculated water control valve, described water for injection control valve are connected with described nozzle needle by water pipe respectively.
3. it is characterized in that according to claim 1 or 2 described vertical ultrasonic bottle washing machines: water temperature is 50～60 ℃ in the described aqua storage tank.
