Abstract
本实用新型涉及一种喉镜消毒存放架，包括外壳（1），所述外壳（1）是一个中空且带有开口（2）的容器，所述外壳（1）上的开口（2）与喉镜相对应，所述外壳（1）的内腔壁上装有紫外灯（3）。本实用新型采用在密封空间中进行紫外线照射的方式对喉镜进行消毒，保证喉镜存放的空间没有细菌和病毒的污染。该装置结构简单，成本低、容易实现，且可以极为有效地杀灭喉镜表面和存放腔的细菌、病毒，降低受检病人检查时的交叉感染率。
The utility model relates to a laryngoscope disinfection storage rack, comprising a shell (1), the shell (1) is a hollow container with an opening (2), the opening (2) on the shell (1) is connected with Corresponding to the laryngoscope, an ultraviolet lamp (3) is installed on the inner cavity wall of the housing (1). The utility model sterilizes the laryngoscope by ultraviolet irradiation in a sealed space, so as to ensure that the space where the laryngoscope is stored is free from bacteria and viruses. The device is simple in structure, low in cost, easy to implement, and can effectively kill bacteria and viruses on the surface of the laryngoscope and in the storage chamber, thereby reducing the cross-infection rate of patients under examination.
Description
Technical field
This utility model belongs to the disinfection tool technical field, particularly relates to a kind of laryngoscope disinfection storage rack.
Background technology
Laryngoscope is a kind of device that medically be used for to check the bottleneck throat pathological changes, and the throat that during use one end of laryngoscope is stretched into human body carries out morphologic inspection to examiner's throat.Because bottleneck throat exists and comprises in a large number the pathogenic bacteria of staphylococcus aureus, so must guarantee the cleaning of laryngoscope before different patients use laryngoscope.If deal with improperly, laryngoscope very easily becomes the intermediate approach that bacterial disease is propagated.At present, domestic various big hospital directly reveals laryngoscope unsettled being placed on the host mobility frame after using laryngoscope, and the surface exposure of laryngoscope is directly exposed to air in environment.Because the mucus of bottleneck throat is more, when these mucus residue in laryngoscope surperficial, breed bacteria very easily.Although generally all can clean after laryngoscope uses, if do not clean very totally, the surface of laryngoscope will have a large amount of antibacterials when reusing, will cause great threat to tested crowd's health.
The invention provides a kind of laryngoscope storage chamber frame with ultra violet sterilizer, can guarantee to be stored in the higher environment of a cleanliness factor after laryngoscope use and the cleaning, can make laryngoscope in the process of depositing, not be subjected to the pollution of antibacterial in the environment on the one hand, simultaneously, ultraviolet sterilization also can be killed the pathogenic bacteria that laryngoscope surface may be remaining, thereby has guaranteed that the patient's is healthy and safe.
Summary of the invention
Technical problem to be solved in the utility model provides a kind of laryngoscope disinfection storage rack, effectively to the laryngoscope preservation that carries out disinfection.
The technical scheme that its technical problem that solves this utility model adopts is: a kind of laryngoscope disinfection storage rack is provided, a kind of laryngoscope disinfection storage rack, comprise shell, described shell is a hollow and with the container of opening, opening on the described shell is corresponding with laryngoscope, on the internal chamber wall of described shell Burdick lamp is housed.
Flexible of described opening part can closely block main laryngoscope, makes laryngoscope insert inner sealing behind the storage rack.
Described Burdick lamp has several and is distributed on the internal chamber wall of shell hollow.
Described shell profile is the quadrangular shape.
Described storage rack is installed on the movable frame of institute's use laryngoscope equipment.
Beneficial effect
This utility model adopts the mode carry out ultraviolet radiation in seal cavity that laryngoscope is carried out disinfection, and is simple in structure, and low, the easy realization of cost, and can very effectively kill antibacterial, virus on the laryngoscope reduces the cross-infection rate when being examined patient and checking.Can guarantee to be stored in the higher environment of a cleanliness factor after laryngoscope use and the cleaning, can make laryngoscope in the process of depositing, not be subjected to the pollution of antibacterial in the environment on the one hand, simultaneously, ultraviolet sterilization also can be killed the pathogenic bacteria that laryngoscope surface may be remaining, thereby has guaranteed that the patient's is healthy and safe.
Description of drawings

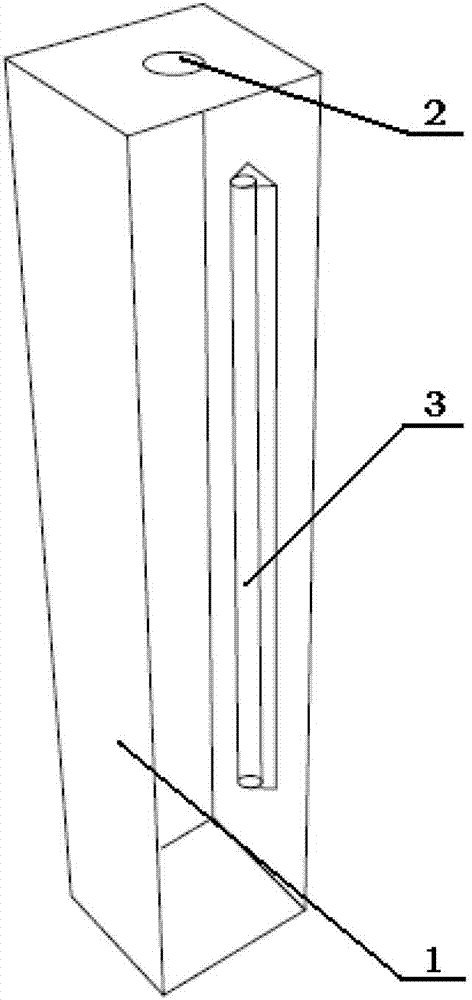

Fig. 1 is this utility model structural representation.
The specific embodiment
Below in conjunction with specific embodiment, further set forth this utility model.Should be understood that these embodiment only are used for explanation this utility model and are not used in the scope of the present utility model that limits.Should be understood that in addition those skilled in the art can make various changes or modifications this utility model after the content of having read this utility model instruction, these equivalent form of values fall within the application's appended claims limited range equally.
As shown in Figure 1, a kind of laryngoscope disinfection storage rack, a kind of laryngoscope disinfection storage rack, comprise shell 1, described shell 1 is a hollow and with the container of opening 2, the opening 2 on the described shell 1 is corresponding with laryngoscope, and Burdick lamp 3 is housed on the internal chamber wall of described shell 1.
Flexible of described opening 2 places can closely block main laryngoscope, make laryngoscope insert inner sealing behind the storage rack.
Described Burdick lamp 3 has several and is distributed on the internal chamber wall of shell 1 hollow.
Described shell 1 profile is the quadrangular shape.
Described storage rack is installed on the movable frame of institute's use laryngoscope equipment.
After laryngoscope use to clean, can directly insert and deposit on this storage rack, and the uviol lamp 2-3 on the device for opening hour, to the sterilization that carries out disinfection of laryngoscope and storage chamber.
Claims (5)
1. laryngoscope disinfection storage rack, comprise shell (1), it is characterized in that described shell (1) is a hollow and with the container of opening (2), opening (2) on the described shell (1) is corresponding with laryngoscope, and uviol lamp (3) is housed on the internal chamber wall of described shell (1).
2. a kind of laryngoscope disinfection storage rack according to claim 1 is characterized in that, described opening (2) is located flexible can closely block laryngoscope, makes laryngoscope insert inner sealing behind the storage rack.
3. a kind of laryngoscope disinfection storage rack according to claim 1 is characterized in that, described uviol lamp (3) has several and is distributed on the internal chamber wall of shell (1) hollow.
4. a kind of laryngoscope disinfection storage rack according to claim 1 is characterized in that, described shell (1) profile is the quadrangular shape.
5. a kind of laryngoscope disinfection storage rack according to claim 1 is characterized in that, described storage rack is installed on the movable frame of institute's use laryngoscope equipment.
