CN202724219U - Self-power bodybuilding massage chair - Google Patents
Self-power bodybuilding massage chair Download PDFInfo
- Publication number
- CN202724219U CN202724219U CN 201220258228 CN201220258228U CN202724219U CN 202724219 U CN202724219 U CN 202724219U CN 201220258228 CN201220258228 CN 201220258228 CN 201220258228 U CN201220258228 U CN 201220258228U CN 202724219 U CN202724219 U CN 202724219U
- Authority
- CN
- China
- Prior art keywords
- driving sprocket
- rotating shaft
- backrest
- massage chair
- self
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
- 230000005540 biological transmission Effects 0.000 claims abstract description 5
- 210000000988 bone and bone Anatomy 0.000 abstract description 4
- 210000003205 muscle Anatomy 0.000 abstract description 4
- 230000009286 beneficial effect Effects 0.000 abstract description 2
- 230000006806 disease prevention Effects 0.000 abstract 1
- 201000010099 disease Diseases 0.000 description 4
- 208000037265 diseases, disorders, signs and symptoms Diseases 0.000 description 4
- 230000017531 blood circulation Effects 0.000 description 1
- 210000002249 digestive system Anatomy 0.000 description 1
- 230000007774 longterm Effects 0.000 description 1
- 230000002040 relaxant effect Effects 0.000 description 1
Images
Landscapes
- Massaging Devices (AREA)
Abstract
一种自力健身按摩椅，包括椅座和靠背，其特征是：在靠背上设置排列的转轴，在各转轴上固定连接多个大小不同的凸轮，在各转轴的一端设置啮合的传动齿轮副，在一根转轴的端部连接驱动链轮，在椅座的下面设置主动链轮和传动链轮，主动链轮、传动链轮和驱动链轮通过链条传动连接，主动链轮连接脚踏板。本实用新型的有益效果是由人本身的力量驱动完成，结构简单，成本低，特别适用于“办公族”，在办公累的时候坐在椅子上脚一蹬就能进行按摩、缓解疲劳、舒活筋骨、预防疾病、强身健体。
A self-supporting fitness massage chair, including a seat and a backrest, is characterized in that: the backrest is provided with arranged rotating shafts, a plurality of cams of different sizes are fixedly connected to each rotating shaft, and a meshing transmission gear pair is arranged at one end of each rotating shaft. The end of a rotating shaft is connected with the driving sprocket, and the driving sprocket and the driving sprocket are arranged under the seat. The driving sprocket, the driving sprocket and the driving sprocket are connected by chain transmission, and the driving sprocket is connected with the pedal. The beneficial effect of the utility model is driven by the power of the person itself. The structure is simple and the cost is low. Active muscles and bones, disease prevention, physical fitness.
Description
Technical field
This utility model belongs to the body-building massage chair of relying on oneself of a kind of massage facilities, particularly a kind of relieving fatigue.
Background technology
At present, although there has been massage armchair than higher gears, its volume is larger, need to take very large space, carries inconvenience, and cost is higher, and power consumption is also not little, always is unwilling to spend large price to buy such massage armchair for most of family.So people expectation provides a kind of body-building massage chair of relying on oneself of not only can body-building but also can massage.
" office clan " usually a seat is exactly several even tens hours, and this makes them often be in tired state.Clinical research finds that if a people is in tired state for a long time, its blood circulation, digestive system and motor system etc. all can be affected.If things go on like this, disease will not recruited from the beginning.How to make " office clan " of long-term seat office when office is tired, being sitting on the chair foot can relaxing massage, fatigue alleviating once pedaling, relax muscles and bones alive, prevent disease, building body, demands equally providing the body-building massage chair of relying on oneself urgently.。
Summary of the invention
The purpose of this utility model provides a kind of body-building massage chair of relying on oneself, strength by people itself is finished, simple in structure, cost is low, be specially adapted to " office clan ", be sitting in when office is tired on the chair that foot can be massaged once pedaling, fatigue alleviating, work muscles and bones, prevent disease, building body relax.
The technical scheme of employing of the present utility model is: comprise seat support and backrest, it is characterized in that: the rotating shaft of arrangement is set at backrest, be fixedly connected with a plurality of cams that vary in size in each rotating shaft, the driving gear pair of engagement is set at an end of each rotating shaft, end a rotating shaft connects drive sprocket, drive sprocket and drive sprocket are set below seat support, and drive sprocket, drive sprocket and drive sprocket connect by chain drive, drive sprocket connecting pin pedal.
The beneficial effects of the utility model are: the strength driving by people itself is finished, simple in structure, cost is low, is specially adapted to " office clan ", is sitting in when office is tired on the chair that foot can be massaged once pedaling, fatigue alleviating, work muscles and bones, prevent disease, building body relax.
Description of drawings

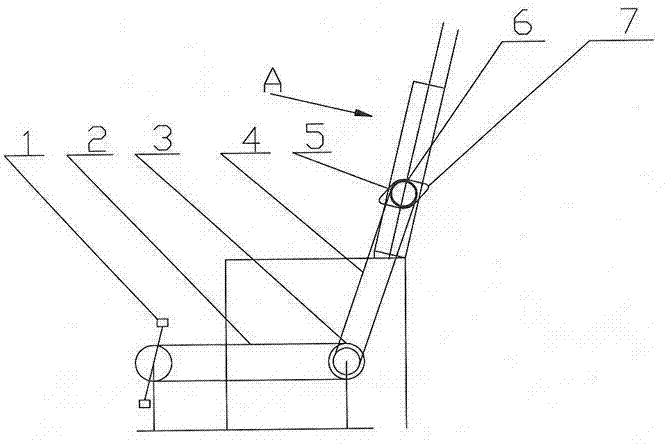

Fig. 1 is this utility model structural representation.
Fig. 2 is that the A of Fig. 1 is to view.
The specific embodiment
See Fig. 1,2, concrete structure is as follows: three rotating shafts of arrangement are set at backrest, be fixedly connected with a plurality of cams that vary in size in each rotating shaft, the driving gear pair of engagement is set at an end of each rotating shaft, end a rotating shaft connects drive sprocket, drive sprocket and drive sprocket are set below seat support, and drive sprocket, drive sprocket and drive sprocket connect by chain drive, the coaxial connecting pin pedal of drive sprocket.The people is sitting on the chair, by pedal pedal 1, so that drive sprocket rotates, power is passed to the drive sprocket 3 of back by driving chain 2, by driving chain 4 power is passed to drive sprocket 5 again, drive sprocket 5 rotations drive coaxial big or small cam 7 and rotate, and also by the driving gear pair 6 that meshes power transmission are arrived next root axle simultaneously, so that the cam on three axles rotates, realize the mechanical massage to human body back in chair back space.
Claims (1)
Priority Applications (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN 201220258228 CN202724219U (en) | 2012-06-04 | 2012-06-04 | Self-power bodybuilding massage chair |
Applications Claiming Priority (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN 201220258228 CN202724219U (en) | 2012-06-04 | 2012-06-04 | Self-power bodybuilding massage chair |
Publications (1)
| Publication Number | Publication Date |
|---|---|
| CN202724219U true CN202724219U (en) | 2013-02-13 |
Family
ID=47649979
Family Applications (1)
| Application Number | Title | Priority Date | Filing Date |
|---|---|---|---|
| CN 201220258228 Expired - Fee Related CN202724219U (en) | 2012-06-04 | 2012-06-04 | Self-power bodybuilding massage chair |
Country Status (1)
| Country | Link |
|---|---|
| CN (1) | CN202724219U (en) |
Cited By (8)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN104382410A (en) * | 2014-11-13 | 2015-03-04 | 张建青 | Correction rehabilitation chair |
| CN104523423A (en) * | 2015-01-11 | 2015-04-22 | 北京工业大学 | Novel outdoor body building massage chair |
| CN104783549A (en) * | 2014-01-18 | 2015-07-22 | 黑龙江慧田知识产权服务有限公司 | Internal structure of fitness massage twin sofa |
| CN105251179A (en) * | 2015-11-25 | 2016-01-20 | 欧阳年沣 | Bodybuilding massaging chair |
| CN107174417A (en) * | 2017-06-28 | 2017-09-19 | 张阳 | A kind of Self-operating full rest formula luxury wheel chair |
| CN108814900A (en) * | 2018-06-14 | 2018-11-16 | 谢名英 | A kind of interactive auxiliary patient legs' activity recovery sports equipment |
| CN110074957A (en) * | 2019-03-29 | 2019-08-02 | 泸州市人民医院 | A kind of adjustable massage recovering equipment of foot-operated abdomen |
| CN111939032A (en) * | 2020-09-15 | 2020-11-17 | 辽宁科技大学 | Massage bed with wake-up function |
-
2012
- 2012-06-04 CN CN 201220258228 patent/CN202724219U/en not_active Expired - Fee Related
Cited By (11)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN104783549A (en) * | 2014-01-18 | 2015-07-22 | 黑龙江慧田知识产权服务有限公司 | Internal structure of fitness massage twin sofa |
| CN104382410A (en) * | 2014-11-13 | 2015-03-04 | 张建青 | Correction rehabilitation chair |
| CN104523423A (en) * | 2015-01-11 | 2015-04-22 | 北京工业大学 | Novel outdoor body building massage chair |
| CN105251179A (en) * | 2015-11-25 | 2016-01-20 | 欧阳年沣 | Bodybuilding massaging chair |
| CN105251179B (en) * | 2015-11-25 | 2018-12-21 | 欧阳年沣 | A kind of body-building massage chair |
| CN107174417A (en) * | 2017-06-28 | 2017-09-19 | 张阳 | A kind of Self-operating full rest formula luxury wheel chair |
| CN107174417B (en) * | 2017-06-28 | 2018-11-02 | 张阳 | A kind of Self-operating full rest formula luxury wheel chair |
| CN108814900A (en) * | 2018-06-14 | 2018-11-16 | 谢名英 | A kind of interactive auxiliary patient legs' activity recovery sports equipment |
| CN110074957A (en) * | 2019-03-29 | 2019-08-02 | 泸州市人民医院 | A kind of adjustable massage recovering equipment of foot-operated abdomen |
| CN110074957B (en) * | 2019-03-29 | 2021-07-16 | 泸州市人民医院 | Foot-operated adjustable massage rehabilitation equipment for abdomen |
| CN111939032A (en) * | 2020-09-15 | 2020-11-17 | 辽宁科技大学 | Massage bed with wake-up function |
Similar Documents
| Publication | Publication Date | Title |
|---|---|---|
| CN201022834Y (en) | Multifunctional body-building health-care chair | |
| CN104523423A (en) | Novel outdoor body building massage chair | |
| CN102920584A (en) | Hydraulic fitness massage chair | |
| CN204671509U (en) | Multi-faceted body massaging device | |
| CN208130339U (en) | A kind of leg exerciser | |
| CN104352337B (en) | A kind of Portable electric control scapulohumeral periarthritis prevention convalescence device | |
| CN110251378A (en) | A dual-drive mode massage chair for the elderly and the disabled and its working method | |
| CN202035754U (en) | Office chair with lumbar muscle massaging function | |
| CN104958165A (en) | Sitting posture state limb rehabilitation trainer | |
| CN204890506U (en) | Position of sitting state four limbs rehabilitation training device | |
| CN210078265U (en) | Torsional pendulum type massager | |
| CN201642762U (en) | Spiral massager | |
| CN211252901U (en) | Lumbar vertebra twisting scooter | |
| CN102895100B (en) | Belly massage device capable of rotating forward and backward alternately | |
| CN110403818B (en) | Novel waist and leg massage device | |
| CN109549817B (en) | An entertainment fitness rehabilitation vehicle upper limb passive and active rehabilitation training device | |
| CN206577117U (en) | Supination type back massager | |
| CN203029586U (en) | Hydraulic fitness massage chair | |
| CN204364378U (en) | The rack structure of magnetic force 3D movement | |
| CN201055130Y (en) | Rotating therapy health chair | |
| CN202554381U (en) | Swing type fitness-massage stool | |
| CN210020191U (en) | Ankle pump athletic training auxiliary device | |
| CN201758798U (en) | Simple massaging shoulder pad | |
| CN204394955U (en) | The Special Automatic masseur of pain in the lumbar region | |
| CN105560009B (en) | A lumbar therapy rehabilitation chair |
Legal Events
| Date | Code | Title | Description |
|---|---|---|---|
| C14 | Grant of patent or utility model | ||
| GR01 | Patent grant | ||
| C17 | Cessation of patent right | ||
| CF01 | Termination of patent right due to non-payment of annual fee |
Granted publication date: 20130213 Termination date: 20130604 |
