Abstract
The utility model discloses a double-layer vacuum cup, belongs to daily articles, and particularly discloses a double-layer vacuum cup capable of simultaneously maintaining temperature and warming hands. The double-layer vacuum cup comprises a water cup and is characterized in that an outer container made of heat conduction materials is arranged on the water cup, an outer cover is arranged on the outer container, an inner container made of thermal insulation materials is arranged in the water cup, and an inner cover is arranged on the inner container. The double-layer vacuum cup has the beneficial effects that the inner cover and the outer cover of the cup are opened, water is poured into the cup, the outer container and the inner container are both full of water, the inner cover and the outer cover are covered, as the heat can be transferred by the outer container, the hands can be warmed by the cup, and the inner container is made of the thermal insulation materials, so that the temperature can be maintained; and in the drinking process, a user can drink water without thermal insulation by opening the outer cover and also drink water subjected to thermal insulation by opening the inner cover.
Description
Technical field
The utility model belongs to daily necessities, particularly a kind of double-layer vacuum cup that not only can be incubated simultaneously but also can warm hand.
Background technology
Common thermos cup is only guaranteeing the temperature of water in the cup, but often too cold cannot warm hand for skin, but common water tumbler pour into behind the hot water can the warm hand water in the cup temperature cannot guarantee.
The utility model content
Can not reach simultaneously the deficiency of insulation, warm hand in order to overcome existing cup, the utility model provides a kind of double-layer vacuum cup, and this double-layer vacuum cup is warm hand not only, and can guarantee the temperature of water in the cup.
The technical scheme that its technical problem that solves the utility model adopts is: a kind of double-layer vacuum cup, comprise water tumbler, it is characterized in that: water tumbler is provided with the outer courage that Heat Conduction Material is made, and on the outer courage enclosing cover is arranged, water tumbler inside is provided with the inner bag that heat-insulating material is made, and inner cap is arranged on the inner bag.
The beneficial effects of the utility model are to open the inner cap of cup, enclosing cover, pouring in the cup, and outer courage and inner bag all have been full of water, cover inner cap, enclosing cover, but because outer courage transferring heat, but the cup warm hand, inner bag is made by heat-insulating material, can be incubated; When drinking water, what open that enclosing cover drinks is uninsulated water, opens the hot water that inner cap can drink insulation.
Description of drawings

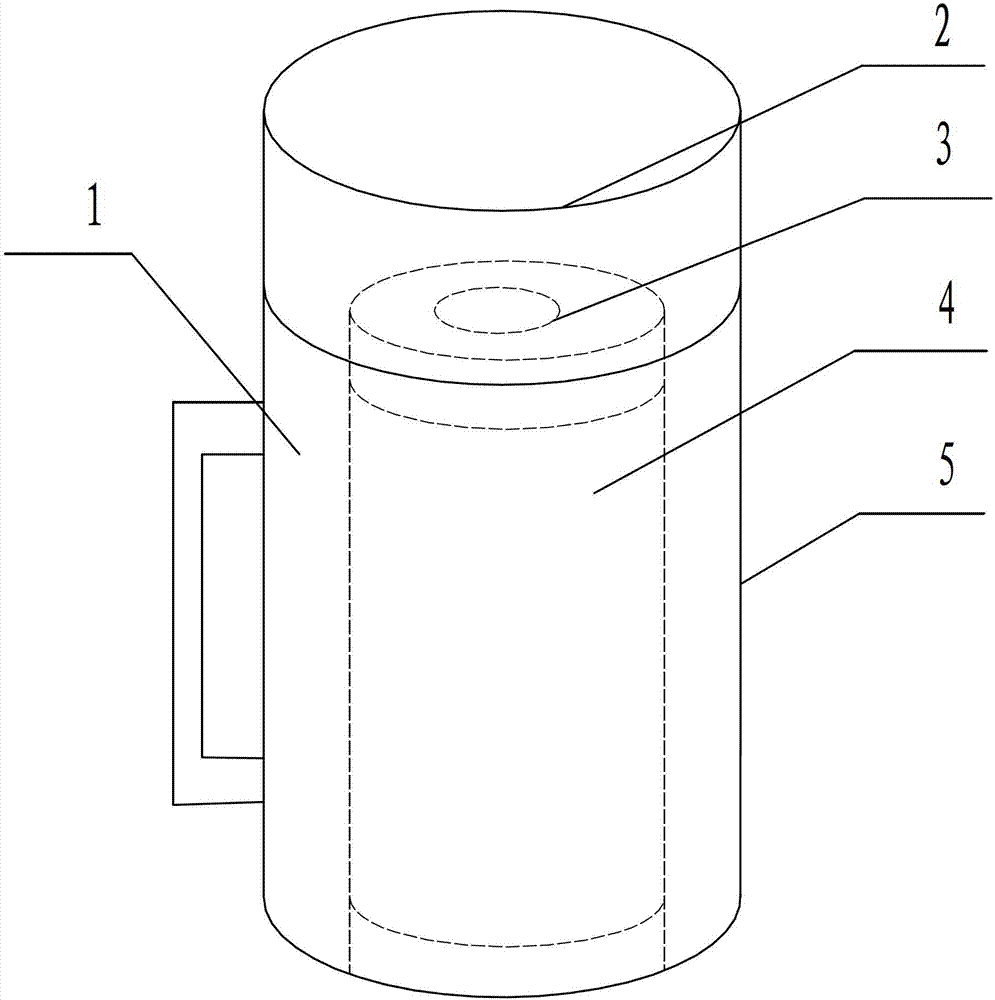

Fig. 1 is structural representation of the present utility model,
Among the figure, 1. water tumbler, 2. enclosing cover, 3. inner cap, 4. inner bag, 5. outer courage.
The specific embodiment
The specific embodiment of the present utility model is, as shown in the figure:
Embodiment 1, and a kind of double-layer vacuum cup comprises water tumbler 1, it is characterized in that: water tumbler 1 is provided with the outer courage 5 that Heat Conduction Material is made, and on the outer courage 5 enclosing cover 2 is arranged, and water tumbler 1 inside is provided with the inner bag 4 that heat-insulating material is made, and inner cap 3 is arranged on the inner bag 4.
Claims (1)
1. a double-layer vacuum cup comprises water tumbler, it is characterized in that: water tumbler is provided with the outer courage that Heat Conduction Material is made, and on the outer courage enclosing cover is arranged, and water tumbler inside is provided with the inner bag that heat-insulating material is made, and inner cap is arranged on the inner bag.
