CN202722829U

CN202722829U - Detachable type space traveling case

Info

Publication number: CN202722829U
Application number: CN 201220244308
Authority: CN
Inventors: 郭瑞麟
Original assignee: Individual
Current assignee: Individual
Priority date: 2012-05-29
Filing date: 2012-05-29
Publication date: 2013-02-13
Anticipated expiration: 2022-05-29

Abstract

The utility model discloses a detachable type space traveling case which comprises a case body (10) and a cover body (60), wherein the case body (10) is provided with an accommodating space (11); and the traveling case is characterized by also comprising a storage bag (20) and a detachable connecting mechanism (30), wherein the storage bag (20) is arranged in the accommodating space (11), and the storage bag (20) and the case body (10) are connected through the detachable connecting mechanism (30). Therefore, an effect of separately storing toilet articles or skin care products and the clothes is achieved, thereby saving the time for finding articles.

Description

Detachable space travel case

Technical field

The utility model relates to a kind of travel goods, is specially a kind of suitcase.

Background technology

People Chang Yu goes away when travelling or going on business, carry suitcase or packsack and change clothing, toilet articles and skin care products in order to the dress band, but traditional suitcase internal main will comprise a casing and a lid, box house has an accommodation space, the corresponding casing of lid covers, and when wish is used, opens the accommodation space that casing put into laundry, toilet articles and skin care products by suitcase, again lid be covered on casing on, to reach the effect of taking in thereafter.Yet known suitcase still has following shortcoming, owing to totally reach the accommodation space that sordid laundry is put into suitcase all together, causes easily sordid laundry to pollute clean laundry; In addition, because laundry, toilet articles and skin care products mix, often need many times of cost to look for the article that will use; In addition, in toilet articles or the skin care products, separate with bottle cap when the Bottle ﹠ Can that liquid is housed is taken transportation work easily in route, make the liquid in the Bottle ﹠ Can flow out pollution clothes; And demand in addition improver urgently.

The utility model content

The problem that can not separately take in for the article that solve in the above-mentioned case, the utility model provides a kind of detachable space travel case, but to be utilization assemble or disassemble bindiny mechanism be connected collecting bag with casing for it, reach toilet articles or skin care products are separated the effect of taking in clothing, look for the time of article with saving.The technical solution of the utility model is: but comprise a casing, a collecting bag and an assemble or disassemble bindiny mechanism; This casing has an accommodation space; This collecting bag is placed in this accommodation space, but this collecting bag sees through and should assemble or disassemble bindiny mechanism be connected with this casing system.

As a kind of improvement, the utility model is divided at least two accommodation chambers by dividing plate with accommodation space, and clothing is done sorting placement, avoids dirty linen to pollute clean laundry.

Improve as another kind, the utility model can be detained mutually admittedly by the first pin thread and the second box that are placed on the collecting bag, collecting bag can be folded the formation collecting bag, to carry, saves the expense of buying collecting bag or cosmetic case.

Also as a kind of improvement, dividing plate described in the utility model has vertical bar type and two kinds of patterns of " L " type dividing plate, and the two combination is divided into horizontal " product " font, vertical any one of " product " font and " ten " font to cabinet space by it.

The utility model adopts the beneficial effect of above technical scheme to be: owing to adopt the structure of free assemble or disassemble, so that the user can load and unload corresponding dividing plate and collecting bag as required, to reach toilet articles or skin care products are separated the effect of taking in clothing, save the time of looking for article.

Description of drawings

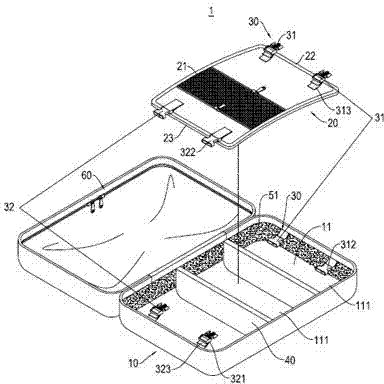

Fig. 1 is the three-dimensional exploded view () of the utility model the first embodiment.

Fig. 2 is the three-dimensional exploded view (two) of the utility model the first embodiment.

Fig. 3 is the three-dimensional combination figure of the utility model the first embodiment.

Fig. 4 is the collecting bag stereogram of the utility model the first embodiment.

Fig. 5 is the collecting bag application state figure of the utility model the first embodiment.

Fig. 6 is that the cabinet space of the utility model the first embodiment is cut apart application state figure.

Fig. 7 is the three-dimensional exploded view of the utility model the second embodiment.

Fig. 8 is the three-dimensional combination figure of the utility model the second embodiment.

Among the figure, 1 suitcase, 10 casings, 11 accommodation spaces, 111 accommodation chambers, 20,20b collecting bag, 21 accommodation spaces, 22 first sides, 23 Second Edges, 24 locating holes, but 30 assemble or disassemble bindiny mechanisms, 31 first cingulum groups, 311 first pin threads, 312 first boxes, 313 first belt bodies, 32 second cingulum groups, 321 second pin threads, 322 second boxes, 323 second belt bodies, 40,40a, 40b dividing plate, 50 adhesive buckle structures, 51 adhesive buckle hairs, 52 adhesive buckles collude, 60 lids, 70 pivot buttons.

The specific embodiment

The detailed description of relevant the utility model and technology contents cooperate graphic being described as follows.

Please refer to shown in Figure 1ly, be the three-dimensional exploded view () of the utility model the first embodiment, but suitcase 1 mainly includes a casing 10, a collecting bag 20 and an assemble or disassemble bindiny mechanism 30.Casing 10 has an accommodation space 11; Collecting bag 20 is placed in the accommodation space 11, and collecting bag 20 has plural accommodation space 21, and a side of collecting bag 20 is a first side 22, and collecting bag 20 is a Second Edge 23 in the opposite side of first side 21.

But assemble or disassemble bindiny mechanism 30 comprises at least one the first cingulum group 31 and at least one the second cingulum group 32; But collecting bag 20 is can see through assemble or disassemble bindiny mechanism 30 to be connected with casing 10; The first cingulum group 31 includes one first pin thread 311, one first box 312 and the first belt body 313, button is solid mutually for the first box 312 and the first pin thread 311, the first pin thread 311 is placed in the first side 22 of collecting bag 20, the first box 312 is placed in the inner and corresponding first side 22 of casing 10 and sets, and wall through the first cingulum group 31 junction buttons admittedly together within the first side 22 that makes collecting bag 20 and the casing 10 inner corresponding first sides 22; The first belt body 313 is fixed on first side 22 and provides the first pin thread 311 to adjust mobile.The second cingulum group 32 includes one second pin thread 321, one second box 322 and the second belt body 323, button is solid mutually for the second pin thread 321 and the second box 322, the second box 322 is placed in the Second Edge 23 of collecting bag 20, the second pin thread 321 is placed in the inner and corresponding Second Edge 23 of casing 10 and sets, and wall through the second cingulum group 32 junction buttons admittedly together within the Second Edge 23 that makes collecting bag 20 and the casing 10 inner corresponding Second Edges 23; The second belt body 323 is fixed on casing 10 inner also corresponding Second Edge 23, the second belt bodies 323 provides the second pin thread 321 to adjust mobile.

Please refer to shown in Figure 2ly, is the three-dimensional exploded view (two) of the utility model the first embodiment, and suitcase 1 more comprises at least one dividing plate 40, an adhesive buckle structure 50 and a lid 60; One side of lid 60 1 side connect boxes 10, and lid 60 corresponding casings 10 cover; Dividing plate 40 is placed in the accommodation space 11 of casing 10, and accommodation space 11 is separated at least two accommodation chambers 111, and it is cemented with the internal face of casing 10 that dividing plate 40 sees through adhesive buckle structure 50; Adhesive buckle structure 50 includes an adhesive buckle hair 51 and at least one pair of adhesive buckle colludes 52, adhesive buckle hair 51 is laid on the internal face of casing 10, each adhesive buckle colludes the dual-side of 52 difference connecting partitions 40, each adhesive buckle collude 52 respectively with adhesive buckle hair 51 mutual adhesive buckles, make in the firm accommodation space that is placed in casing 10 11 of dividing plate 40.

Please refer to shown in Figure 3, it is the three-dimensional combination figure of the utility model the first embodiment, during combination, at first at least one dividing plate 40 is placed in the casing 10, utilize adhesive buckle structure 50 (shown in figure two) with firm cemented in the accommodation space 11 of casing 10 of dividing plate 40, by this can be along with user's demand and purposes be divided into the accommodation chamber 111 of requirement with accommodation space 11, as user during without the demand of cutting apart accommodation space 11 or purposes, also dividing plate 40 can be removed; By this, can enlarge the purposes of suitcase 1.

In addition, but collecting bag 20 can mutually be detained with casing 10 by assemble or disassemble bindiny mechanism 30 and be solidly connected, the cover plate that makes collecting bag 20 not only can work as suitcase 1 uses, accessory, toilet articles or skin care products that also can whilst on tour is entrained is positioned in each accommodation space 21 of collecting bag 20, for example, toothbrush, necklace, skin care products, screwdriver or travelling medicine ... etc., to avoid the clothing in the accommodation space 11 with casing 10 to mix, avoid occuring when wish is used accessory, toilet articles or skin care products, to be difficult for the situation of searching; In addition, when the user need not use collecting bag 20, also can be with collecting bag 20 from casing 10 interior dismountings, to increase the user in the convenience that uses suitcase; Also can avoid in addition during the journey because of the top of the vehicles quite, order be equipped with the toilet articles of liquid or maintenance Bottle ﹠ Can separate with bottle cap, the liquid in the Bottle ﹠ Can is flowed out, pollute clean laundry.

Please refer to Fig. 4 and shown in Figure 5, system is respectively collecting bag stereogram and the collecting bag application state figure of the utility model the first embodiment, the first pin thread 311 and the second box 322 that are connected on the collecting bag 20 can be detained mutually solid, make collecting bag 20 collapsible formation collecting bags, to take in carry-on articles, for example, mobile phone or wallet ... etc., make the purposes of collecting bag 20 not only can work as the cover plate use, also can work as collecting bag and use, increasing the user need to the extra expense of buying collecting bag in during the journey ease of use and saving.

Please refer to shown in Figure 6, be that the cabinet space that is respectively the utility model the first embodiment is cut apart application state figure, described dividing plate 40 has vertical bar type 40a and two kinds of patterns of " L " type dividing plate 40b, and the two combination is divided into horizontal " product " font, vertical any one of " product " font and " ten " font to cabinet space by it.

Please refer to Fig. 7 and shown in Figure 8, is three-dimensional exploded view and the three-dimensional combination figure that is respectively the utility model the second embodiment, is that with the previous embodiment main distinction suitcase 1 more comprises at least one pivot button 70, and changes collecting bag 20 into collecting bag 20b; Pivot button 70 is arranged at the intersection that casing 10 connects lid 60; The first box 312 of the first cingulum group 31 changes and is placed in lid 60 inside, and the first side 22 of corresponding collecting bag 20b sets; Collecting bag 20b mid portion offers at least one locating hole 24; Pivot button 70 corresponding pivot joint locating holes 24, and the first box 312 and the first pin thread 311 mutual buttons admittedly, the second pin thread 321 and the second box 322 are detained admittedly mutually, collecting bag 20b is bridged be fixed in casing 10 and the lid 60.

The above-mentioned specific embodiment is exemplary, is to be the restriction that this patent is comprised scope in order better to make those skilled in the art can understand this patent, can not to be interpreted as; So long as the technology contents essence of making according to the disclosed technical scheme of this patent is identical or any change or the modification that are equal to, all fall into the scope that this patent comprises.

Claims

1. a detachable space travel case includes a casing (10) and a lid (60), and described casing (10) has an accommodation space (11); It is characterized in that: also include a collecting bag (20), be placed in this accommodation space (11), but and an assemble or disassemble bindiny mechanism (30), this collecting bag (20) with this casing (10) but be to see through assemble or disassemble bindiny mechanism (30) to be connected.

2. detachable space travel case as claimed in claim 1, it is characterized in that: but described assemble or disassemble bindiny mechanism (30) comprises one first cingulum group (31), this the first cingulum group (31) comprises one first pin thread (311) and mutually detains one first solid box (312) with this first pin thread (311), this collecting bag (20) has a first side (22), this first pin thread (311) is placed in this first side (22), and it is inner and to setting by first side (22) that this first box (312) is placed in this casing (10).

3. detachable space travel case as claimed in claim 1, it is characterized in that: but described assemble or disassemble bindiny mechanism (30) comprises one first cingulum group (31), this the first cingulum group (31) comprises one first pin thread (311) and mutually detains one first solid box (312) with this first pin thread (311), this collecting bag (20) has a first side (22), this first pin thread (311) is placed in this first side (22), and it is inner and to setting by first side (22) that this first box (312) is placed in this lid (60).

4. detachable space travel case as claimed in claim 2 or claim 3 is characterized in that: described the first cingulum group (31) more comprises and is fixed on this first side (22) and provides this first pin thread (311) to adjust one first mobile belt body (313).

5. detachable space travel case as claimed in claim 2 or claim 3, it is characterized in that: but described assemble or disassemble bindiny mechanism (30) includes one second cingulum group (32), this the second cingulum group (32) includes one second pin thread (321) and mutually detains one second solid box (322) with this second pin thread (321), the opposite side of this first side (22) of this collecting bag (20) has a Second Edge (23), this second box (322) is placed in this Second Edge (23), and it is inner and to setting by Second Edge (23) that this second pin thread (321) is placed in this casing (10).

6. detachable space travel case as claimed in claim 5, it is characterized in that: described the second cingulum group (32) more comprises provides this second pin thread (321) to adjust one second mobile belt body (323), and it is inner and to should Second Edge (23) that this second belt body (323) is fixed on this casing (10).

7. detachable space travel case as claimed in claim 1, it is characterized in that: also comprise at least one dividing plate (40), this dividing plate (40) is placed in this accommodation space (11) of this casing (10), and this accommodation space (11) is separated into two accommodation chambers (111).

8. detachable space travel case as claimed in claim 7 is characterized in that: also include an adhesive buckle structure (50), it is cemented with the internal face of this casing (10) that this dividing plate (40) sees through this adhesive buckle structure (50).

9. detachable space travel case as claimed in claim 8, it is characterized in that: described adhesive buckle structure (50) comprises an adhesive buckle hair (51) and a pair of adhesive buckle colludes (52), this adhesive buckle hair (51) is laid on the internal face of this casing (10), respectively this adhesive buckle colludes the dual-side that (52) connect respectively this dividing plate (40), and respectively this adhesive buckle colludes (52) and the mutual adhesive buckle of this adhesive buckle hair (51).

10. detachable space travel case as claimed in claim 9, it is characterized in that: described dividing plate (40) has vertical bar type (40a) and two kinds of patterns of " L " type dividing plate (40b), and the two combination is divided into any one of laterally " product " font, vertical " product " font and " ten " font to cabinet space by it.

11. detachable space travel case as claimed in claim 1 is characterized in that: described collecting bag (20) has plural accommodation space (21).

12. detachable space travel case as claimed in claim 1, it is characterized in that: also comprise a pivot button (70), be arranged at the intersection that this lid (60) connects this casing (10), this collecting bag (20b) mid portion offers at least one locating hole (24), this pivot button (70) is corresponding to articulate this locating hole (24), and this collecting bag (20b) is cross-placed in this lid (60) and this casing (10).
