一种组合家具的电视柜，涉及一种组合家具，主要由U型柜体和长方形柜体构成，U型柜体由两块平行的面板Ⅰ和面板Ⅱ组成，面板Ⅰ和面板Ⅱ的一端构成弧形连接形成U型槽面板Ⅰ的长度大于面板Ⅱ的长度，所述的长方形柜体由两块厚度不相等的支撑板和嵌入板组成，支撑板和嵌入板的厚度与面板Ⅰ和面板Ⅱ之间的U型槽平齐，支撑板与嵌入板的上端面平齐，嵌入板与面板Ⅰ和面板Ⅱ之间的U型槽相匹配；其结构简单合理、造型新颖，舒适实用，可以存放物品，也可以放置各种装饰品，非常适宜当下年轻消费者的需求，在给人们的生活带来便利的同时，还带来视觉上的美感和享受。
A TV cabinet for combined furniture, relating to a combined furniture, mainly composed of a U-shaped cabinet body and a rectangular cabinet body, the U-shaped cabinet body is composed of two parallel panels I and II, and one end of the panel I and panel II is formed Arc-shaped connection forms a U-shaped groove. The length of panel I is greater than that of panel II. The rectangular cabinet is composed of two support plates and embedded plates with unequal thickness. The thickness of the support plate and embedded plate is the same as that of panel I and panel II. The U-shaped groove between them is flush, the support plate is flush with the upper end surface of the embedded plate, and the embedded plate matches the U-shaped groove between the panel Ⅰ and panel Ⅱ; its structure is simple and reasonable, the shape is novel, comfortable and practical, and it can be stored Items can also be placed with various decorations, which is very suitable for the needs of young consumers today. While bringing convenience to people's lives, it also brings visual beauty and enjoyment.
Description
Technical field
The utility model relates to a kind of composite furniture, specifically a kind of cabinet for TV of composite furniture.
Background technology
At present, along with popularizing of flat panel TV, cabinet for TV also quietly changes again, no matter on shape-designing or utility function, but still Shortcomings, its moulding of existing cabinet for TV is stiff, and is impracticable, it is the effect that TV is put in simple playing, often hear complaint " space is large not, and thing does not have the place to put, and perhaps this cabinet for TV is too little; very not reasonable with flat panel TV ", in fact lack contractile function.
The utility model content
The purpose of this utility model is to be the deficiency that solves the problems of the technologies described above, and a kind of cabinet for TV of composite furniture is provided, and it is simple and reasonable, and the comfortable practicality of modern design has solved the problem that existing cabinet for TV can not arbitrarily be regulated length.
the utility model is to solve the problems of the technologies described above the cabinet for TV that the technical scheme that adopts is a kind of composite furniture, mainly consisted of by U-shaped cabinet and rectangle cabinet, the U-shaped cabinet is comprised of two parallel panel I and panel II, one end of panel I and panel II consists of arc and is connected to form U-lag, the length of panel I is greater than the length of panel II, described rectangle cabinet is comprised of two unequal gripper shoes of thickness and insert plate, the thickness of gripper shoe is greater than the thickness of insert plate, the upper surface of gripper shoe, the lower surface of the upper surface of insert plate and panel I is positioned on same level, in the U-lag of insert plate between panel I and panel II.
The beneficial effects of the utility model are: its simple and reasonable, modern design, comfortable practicality, can storing articles, also can place various ornaments, the demand of very suitable young consumers instantly when the life of giving people offers convenience, is also brought visual aesthetic feeling and enjoyment, the length that can regulate cabinet for TV according to length and the personal like of body of wall has solved the problem that existing cabinet for TV can not arbitrarily be regulated length.
Description of drawings

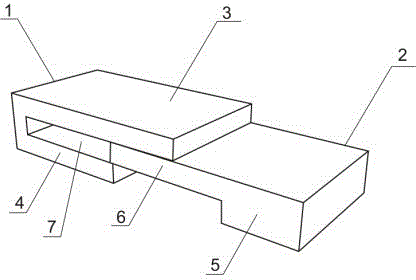

Fig. 1 is structural representation of the present utility model;
Mark in figure: 1, U-shaped cabinet, 2, the rectangle cabinet, 3, the panel I, 4, the panel II, 5, gripper shoe, 6, insert plate, 7, U-lag.
The specific embodiment
as shown in the figure, a kind of cabinet for TV of composite furniture, mainly consisted of by U-shaped cabinet 1 and rectangle cabinet 2, U-shaped cabinet 1 is comprised of two parallel panel I 3 and panel II 4, one end of panel I 3 and panel II 4 consists of arc and is connected to form U-lag 7, the length of panel I 3 is greater than the length of panel II 4, described rectangle cabinet 2 is comprised of two unequal gripper shoes 5 of thickness and insert plate 6, the thickness of gripper shoe 5 is greater than the thickness of insert plate 6, the upper surface of gripper shoe 5, the lower surface of the upper surface of insert plate 6 and panel I 3 is positioned on same level, in the U-lag 7 of insert plate 6 between panel I 3 and panel II 4, the thickness of gripper shoe 5 and insert plate 6 is concordant with the U-lag 7 between panel I 3 and panel II 4, gripper shoe 5 is concordant with the upper surface of insert plate 6, U-lag 7 between insert plate 6 and panel I 3 and panel II 4 is complementary, the length that this kind structure can be regulated cabinet for TV according to length and the personal like of body of wall, solve existing cabinet for TV and can not arbitrarily regulate the problem of length.
Its simple and reasonable, modern design of the utility model, comfortable practicality can storing articles, also can place various ornaments, the demand of very suitable young consumers instantly when the life of giving people offers convenience, is also brought visual aesthetic feeling and enjoyment.
Claims (1)
1. the cabinet for TV of a composite furniture, it is characterized in that: mainly consisted of by U-shaped cabinet (1) and rectangle cabinet (2), U-shaped cabinet (1) is comprised of two parallel panel I (3) and panel II (4), one end of panel I (3) and panel II (4) consists of arc and is connected to form U-lag (7), the length of panel I (3) is greater than the length of panel II (4), described rectangle cabinet (2) is comprised of two unequal gripper shoes of thickness (5) and insert plate (6), the thickness of gripper shoe (5) is greater than the thickness of insert plate (6), the upper surface of gripper shoe (5), the lower surface of the upper surface of insert plate (6) and panel I (3) is positioned on same level, insert plate (6) is positioned at the U-lag (7) between panel I (3) and panel II (4).
