The utility model discloses a lighting operation ticket folder which comprises a supporting plate. A clamp is arranged on the supporting plate, a lighting lamp is arranged on the supporting plate, the lighting lamp is formed by a lamp holder, a lamp bracket and a lamp base, the lamp base is provided with a switch and a battery, the lamp base and the supporting plate are fixedly connected. The lamp holder comprises 14 light-emitting diode (LED) lamp tubes, and a spring soft handle is arranged between the lamp holder and the lamp bracket. The lamp holder is composed of the 14 LED lamp tubes and is high in luminance. In addition, the thin spring soft handle is arranged on the lower portion of the lamp holder, the lamp holder can rotate randomly and can light up operation tickets from different angles so as to facilitate ticket reading and device inspection for workers, and the lighting operation ticket folder is convenient to use.
Description
Technical field:
The utility model relates to a kind of power system device repair and maintenance lighting device, particularly relates to a kind of illumination operation ticket-holder.
Background technology:
The staff of power plant and transformer station carries out equipment inspection when operation at night, need to carry torch or just can see the content of operation order clearly by the illumination of outdoor light, then reads item by item the ticket operation, and checkout facility is very inconvenient item by item.
The utility model content:
Technical problem to be solved in the utility model is: overcome the deficiencies in the prior art, a kind of modern design, simple in structure, easy to use and lower-cost illumination operation ticket-holder are provided.
The technical solution of the utility model is: a kind of illumination operation ticket-holder, contain supporting plate, be provided with clip on the described supporting plate, be provided with illuminating lamp on the described supporting plate, described illuminating lamp is made of lamp holder, lamp bracket and lamp socket, be provided with switch and battery on the described lamp socket, and described lamp socket is fixedly connected with described supporting plate.
Described lamp holder contains 14 LED fluorescent tubes, is provided with soft of spring between described lamp holder and the lamp bracket.Be provided with spring clip on the described lamp socket, described spring clip is clamped on the described supporting plate.
The beneficial effects of the utility model are:
1, the utility model lamp holder adopts 14 LED fluorescent tubes to form, and its brightness is high, in addition, the lamp holder bottom adopts thin shape spring soft design, and arbitrarily direction of rotation can illuminate operation order from different perspectives, be convenient to the staff and read ticket and checkout facility, use very convenient.
2, the utility model adopts the rechargeable type lithium battery, and charging is convenient, long service life, and once charging can be used four hours continuously, had improved operating efficiency.
3, the utility model is novel in design, simple in structure, easy to use and cost is lower, and its outward appearance is light and handy, waterproof, bright, energy-conserving and environment-protective, is easy to promotion and implementation, has good economic benefit.
Description of drawings:

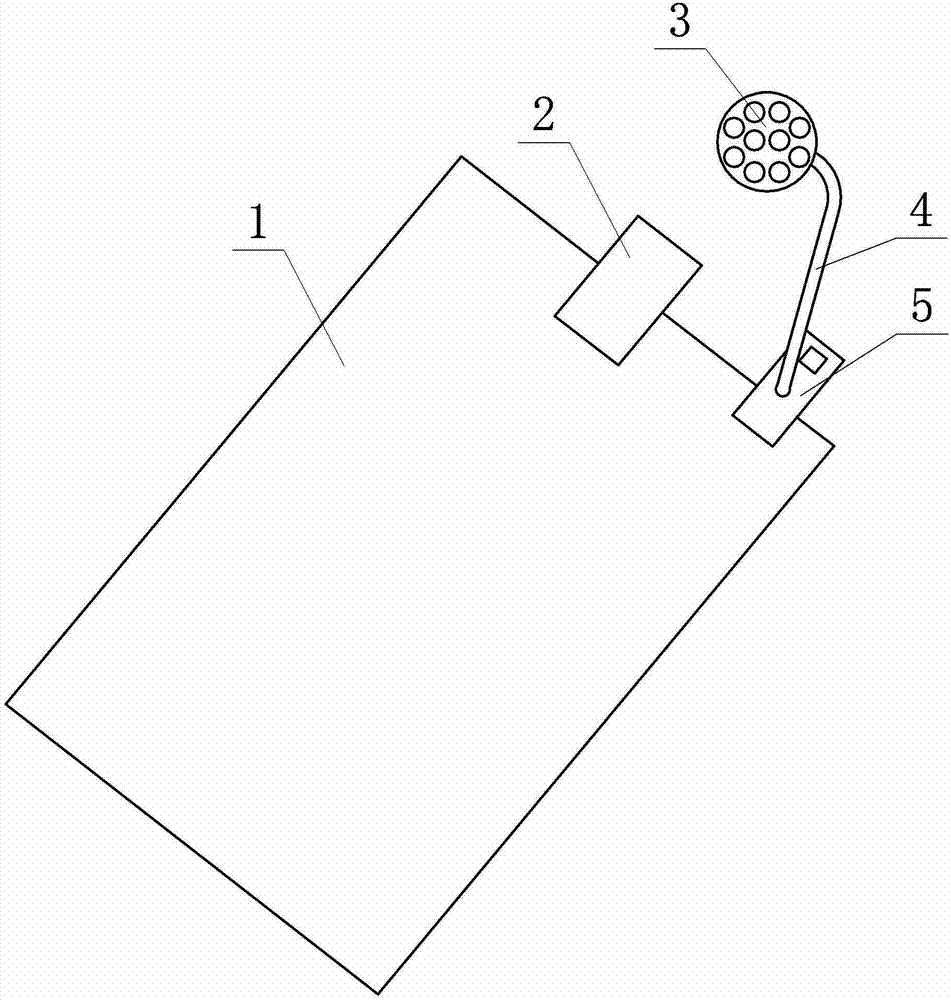

Fig. 1 is the structural representation of illumination operation ticket-holder.
The specific embodiment:
Embodiment: referring to Fig. 1, among the figure, 1-supporting plate, 2-clip, 3-lamp holder, 4-lamp bracket, 5-lamp socket.
The illumination operation order has been embedded supporting plate 1, is provided with clip 2 on the supporting plate 1, is provided with illuminating lamp on the supporting plate 1, and illuminating lamp is made of lamp holder 3, lamp bracket 4 and lamp socket 5, is provided with switch and battery on the lamp socket 5, and lamp socket 5 is fixedly connected with supporting plate 1.
During work, operation order is placed on the supporting plate 1 and by clip 2 and fixes, and presses switch, and the light that lamp holder 3 sends impinges upon on the operation order, and the staff can be clear that the content on the operation order, then carries out item by item checkout facility, uses very convenient.
Claims (3)
1. an illumination operation ticket-holder contains supporting plate, is provided with clip on the described supporting plate, it is characterized in that: be provided with illuminating lamp on the described supporting plate, described illuminating lamp is made of lamp holder, lamp bracket and lamp socket, is provided with switch and battery on the described lamp socket, and described lamp socket is fixedly connected with described supporting plate.
2. illumination according to claim 1 operates ticket-holder, and it is characterized in that: described lamp holder contains 14 LED fluorescent tubes, is provided with soft of spring between described lamp holder and the lamp bracket.
3. illumination according to claim 1 and 2 operates ticket-holder, and it is characterized in that: be provided with spring clip on the described lamp socket, described spring clip is clamped on the described supporting plate.
