CN202678672U - Combined piecewise luminous cable - Google Patents
Combined piecewise luminous cable Download PDFInfo
- Publication number
- CN202678672U CN202678672U CN 201220018190 CN201220018190U CN202678672U CN 202678672 U CN202678672 U CN 202678672U CN 201220018190 CN201220018190 CN 201220018190 CN 201220018190 U CN201220018190 U CN 201220018190U CN 202678672 U CN202678672 U CN 202678672U
- Authority
- CN
- China
- Prior art keywords
- plug
- socket
- circuit board
- isolychn
- transmission line
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Landscapes
- Details Of Connecting Devices For Male And Female Coupling (AREA)
Abstract
The utility model discloses a combined piecewise luminous cable, comprising a transmission line, a luminous line and a connecting seat, wherein the connecting seat comprises a circuit board, and the transmission line is connected with the circuit board. The combined piecewise luminous cable is characterized in that the circuit board is further provided with a first socket, one end of the luminous line is connected with a first plug, the luminous line is inserted into the first socket through the first plug and is connected with the circuit board. The connection of the luminous line and the circuit board is realized through the first plug and the first socket, thus the combined connection of the luminous line and the circuit board is realized, not only the production efficiency of the luminous cables is improved, the fixation degree of the luminous cable connection is effectively enhanced, and the product quality is increased.
Description
Technical field
The utility model relates to the cable that a kind of electronic product is connected to each other usefulness, especially a kind of cable that can show cable transmission current size and Orientation.
Background technology
Along with popularizing of electronic product, people need the utility power line in time to be electronic product conveying electric current or charging, perhaps need data wire mutual data transmission etc. in various electronic equipments.In existing power line and data wire, in the data transmission procedure between current delivery or the electronic product, whether whether wire finished in normal operation or transmission, all is difficult to directly finding out in appearance from power line or data wire.
Present existing cable all directly is welded on cable on the circuit board and makes.It is all very inconvenient that the connected mode of this cable and circuit board is made processing, production efficiency is low, and is in the actual use procedure, owing to the phenomenons such as welding shakiness or rosin joint often occurring, cause cable easily to come off from circuit board, affect quality and the use of light-emitting cable.
The utility model content
For the deficiencies in the prior art, the purpose of this utility model is will provide a kind of can firmly connect, and composite type easy to make is light-emitting cable piecemeal.
For achieving the above object, the technical scheme that adopts of light-emitting cable is as follows piecemeal for composite type described in the utility model:
A kind of composite type is light-emitting cable piecemeal, comprise transmission line and isolychn and a connecting seat, described Connection Block comprises a circuit board, described transmission line is connected with described circuit board, also be provided with one first socket on the described circuit board, described isolychn one end is connected with first plug corresponding with described socket, described isolychn by this first plug be connected socket and be connected with described circuit board.
Further, described plug is power line or the data cable plug of USB plug, HDMI plug or various special uses.Described plug is located at described circuit board front end, described pin tail, and with the circuit welding of circuit board, affiliated pin head is used for connecting the corresponding female seat of various electric equipments, realizes the electrical connection of power line and data wire.
Preferably, described the first plug is the flexible circuit board plug, the mother socket that described the first socket is corresponding with described flexible circuit board plug.It should be noted that described flexible circuit board plug also can be called the flexible PCB plug.
Preferably, also comprise a socket and plug socket, described socket is connected in described transmission line one end, described plug socket is corresponding with this socket, be located on the described circuit board, described transmission line by described socket be connected plug socket and be connected with described circuit board, described the first socket and this plug socket are located at described plug rear, described plug socket is located at this first socket rear.
Further, described socket is public plug, and described plug socket is the busbar socket.
In the above-mentioned preferred implementation, also comprise a housing, be used for holding described circuit board, described plug stretches out from this housing front end, and described transmission line and isolychn stretch out from the rear end of described housing.
Concrete, described isolychn is at least three group spiral windings, every group at least one isolychn.
Further, also be enclosed with one deck the first hyaline layer outside the described isolychn.
Further, described transmission line is divided at least two groups, and every group of transmission line outside is enclosed with one deck aluminium foil or metal level, and described aluminium foil or the metal level outside also are enclosed with one deck plastic layer.Preferably, every group of transmission line outside also can only be enclosed with one deck aluminium foil or metal level.
Further, also comprise one second hyaline layer, described the second hyaline layer is wrapped in the outside of described transmission line and isolychn.
With respect to prior art, light-emitting cable described in the utility model by the first plug be connected socket and make isolychn and connector realize that composite type is connected; Transmission line makes transmission line be connected with the connector composite type by socket and plug socket.Plug socket and the first socket are carried out after the rational deployment, not only so that the layout of cable and circuit board becomes reasonable, and be difficult to rocking or swinging isolychn is come off from circuit board by isolychn, not only greatly improved the piecemeal production efficiency of light-emitting cable of this composite type, and effectively strengthened transmission line and the compactness that isolychn is connected with circuit board, improved the quality of cable.
In order to understand fully the purpose of this utility model, feature and effect, be described further below with reference to the technique effect of accompanying drawing to design of the present utility model, concrete structure and generation.
Description of drawings
Fig. 1 is the piecemeal structural representation of light-emitting cable of composite type described in the utility model;
Fig. 2 is the structural representation of Connection Block described in the utility model;
Fig. 3 is the cross sectional representation of transmission line of the present utility model and isolychn one embodiment;
Fig. 4 is the vertical section structure schematic diagram of embodiment among Fig. 3;
Fig. 4 a is the vertical section schematic diagram of transmission line of the present utility model and the other embodiment of isolychn;
Fig. 5 is the cross sectional representation of transmission line described in the utility model;
Fig. 6 is the cross sectional representation of isolychn described in the utility model.
Among the figure:
The 1-Connection Block; The 11-plug; The 12-circuit board; 121-the first socket; The 122-transformer; The 123-plug socket; The 13-housing; The 2-cable; The 21-transmission line; The 211-wire; The 212-plain conductor; The 213-aluminium foil; The 214-plastic layer; The 22-isolychn; 221-the first isolychn; 222-the second isolychn; 223-the 3rd isolychn; 224-the first hyaline layer; 23-the second hyaline layer; The 3-plug terminal.
Embodiment
As shown in Figure 1 to Figure 3, a kind of composite type is light-emitting cable piecemeal, comprises cable 2 and Connection Block 1, and cable 2 comprises a transmission line 21, isolychn 22.This Connection Block 1 is provided with a plug 11 and circuit board 12, and this plug 11 is arranged at the front end of circuit board 12, and transmission line 21 is connected with circuit board 12, is used for signal transmission or electric current.Described plug 11 can be power line or the data cable plug of USB plug, HDMI plug or other various special uses.
Be provided with one first socket 121 at circuit board 12, an end of isolychn 22 is connected with one first plug, and isolychn 22 inserts the circuit of realizing in the first socket 121 with on the circuit board 12 by the first plug and is electrically connected.An other end of transmission line 21 is connected with a plug terminal 3, and plug terminal 3 can be proficiency machine plug special, perhaps all types of power consumption equipment such as micro USB plug or the plug special of data-signal receiving equipment.
See also Fig. 2, the first socket 121 is located on the circuit board 12.In order to reduce the plug volume, realize the rational deployment of circuit, the first plug can be a flexible circuit board plug, described flexible circuit board plug also can be called the flexible PCB plug.The welding of one end of isolychn 22 and flexible circuit board, an other end of flexible circuit board can insert in the first socket 121, realize with circuit board 12 on being electrically connected of circuit.Because isolychn 22 is not directly to be welded on the circuit board 12, but pass through the first plug and be connected the connection realization of plug 121 and being electrically connected of circuit board 12, effectively raise the make efficiency of light-emitting cable, improved the firm degree that connects, made isolychn 22 be not easy to come off from circuit board 12.
As preferred embodiment a kind of, because circuit board 12 is provided with a transformer 122, in order further to improve the firm degree that isolychn 22 is connected with circuit board 12, the first socket 121 is arranged on the front portion of circuit board 12, namely between plug 11 and transformer 122, so that superfine isolychn 22 can be away from the place of Connection Block 1 fixing cable, can or not rock because of the swing of cable 2 isolychn 22 is come off from circuit board 12, further improve the firm degree of isolychn 22 with circuit board 12.As preferred embodiment, also transformer 122 can be located at plug 11 rears, the first socket 121 is arranged at before the plug socket 123, after the transformer 122; Preferred, the first socket 121 is arranged at plug 11 after, plug socket 123 is arranged at after this first socket 121, transformer 122 is located at after this plug socket 123.
Described composite type piecemeal light-emitting cable also is provided with a housing 13, is used for accommodating described circuit board 12.Plug 11 1 ends are connected with circuit board 12, and an other end stretches out from the front end of housing 13.The end that transmission line 21 is connected with isolychn is connected with circuit board 12, and stretches out from the rear end of housing 13.
See also Fig. 3, Figure 3 shows that the cross sectional representation of an embodiment of isolychn 22 and transmission line 21.Isolychn 22 be arranged in parallel with transmission line 21, and is wrapped in together among the one second transparent overcoat 23.As shown in Figure 4, the isolychn 22 in the present embodiment also is three groups of EL light-emitting cables, and every group of EL light-emitting cable adopts spiral being intertwined to form an independent isolychn 22.Isolychn 22 and transmission line 21 parallel placements, wherein isolychn 22 can be placed on a side of transmission cable 21, also can be placed on the centre of 2 transmission lines 21.Wrap up the plastic wrapper 23 of layer of transparent at the skin of transmission line 21 and isolychn 22, protection transmission line 21 and isolychn 22.
See also Fig. 6, Figure 6 shows that the structural representation of these embodiment isolychn 22 cross sections.Isolychn 21 outsides are enclosed with one deck the first hyaline layer 214.

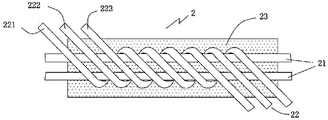

Shown in Fig. 4 a, Fig. 4 a is depicted as the structural representation of isolychn 22 and transmission line 21 other embodiment.Among this embodiment, isolychn 22 is three groups of EL isolychns, and every group of EL light-emitting cable adopts the spiral outside that is wrapped in described transmission line 21.In a certain side of transmission line 21, be aligned in sequence with the first isolychn 221, the second isolychn 222 and the 3rd isolychn 223.
See also Fig. 5, transmission line 21 can be divided into some groups, in the present embodiment, transmission line 21 is divided into two groups, every group of two wires.Be enclosed with a layer insulating, for example plastic cement in the outside of wire 211.21 every groups of wires of transmission line also are provided with a plain conductor 212 that is used for ground connection, and its outside also is enclosed with one deck aluminium foil 213, so that plain conductor 212 can directly electrically contact with aluminium foil 213, reduces the interference of signal, the stability that the enhancing signal transmits.
Also be enclosed with one deck the second hyaline layer 23 in the outside of transmission line 21 and isolychn 22, transmission line 21 and isolychn 22 are bundled together.
With respect to prior art, the composite type described in the utility model piecemeal transmission line 22 of light-emitting cable is connected with plug socket by a socket and is realized that composite type connects, and inserts by socket and realizes being electrically connected circuit on transmission line 22 and the circuit board 21 in the plug socket 123; Isolychn 22 is arranged at plug 11 by the flexible circuit board insertion and realizes that with the first socket 121 between the transformer 121 isolychns 22 are connected with the composite type of circuit board 12, not only greatly improved the production efficiency of light-emitting cable, also effectively strengthened the firm degree of light-emitting cable, made transmission line 21 and isolychn 22 be difficult to come off from circuit board 12.
More than describe preferred embodiment of the present utility model in detail, the ordinary skill that should be appreciated that this area need not creative work and just can make many modifications and variations according to design of the present utility model.Therefore, all in the art technical staff according to the utility model design on the prior art basis by logic analysis, reasoning or according to the available technical scheme of limited experiment, all should be among the determined protection range by these claims.
Claims (10)
1. composite type light-emitting cable piecemeal, comprise transmission line and isolychn and a connecting seat, described Connection Block comprises a circuit board, described transmission line is connected with described circuit board, it is characterized in that, also be provided with a plug and the first socket on the described circuit board, described plug is connected with board circuit, described isolychn one end connects one first plug, and described isolychn inserts by this first plug and realizes in this first socket being connected with described circuit board.
2. light-emitting cable as claimed in claim 1 is characterized in that, described plug is located at described circuit board front end, and described plug is USB plug, HDMI plug or various power source wire, data cable plug.
3. light-emitting cable as claimed in claim 2 is characterized in that, described the first plug is the flexible circuit board plug, and described the first socket is the mother socket corresponding with this flexible circuit board plug.
4. light-emitting cable as claimed in claim 3, it is characterized in that, also comprise a socket and plug socket, described socket is connected in described transmission line one end, described plug socket is corresponding with this socket, be located on the described circuit board, described transmission line by described socket be connected plug socket and be connected with described circuit board, described the first socket and this plug socket are located at described plug rear, and described plug socket is located at this first socket rear.
5. light-emitting cable as claimed in claim 4 is characterized in that, described socket is public plug, and described plug socket is the busbar socket.
6. such as each described light-emitting cable of claim 1 to 5, it is characterized in that, also comprise a housing, be used for holding described circuit board, described plug stretches out from this housing front end, and described transmission line and isolychn stretch out from the rear end of described housing.
7. light-emitting cable as claimed in claim 6 is characterized in that, described isolychn is at least three group spiral windings, every group at least one isolychn.
8. light-emitting cable as claimed in claim 7 is characterized in that, the described isolychn outside also is enclosed with one deck the first hyaline layer.
9. light-emitting cable as claimed in claim 8 is characterized in that, described transmission line is divided at least two groups, and every group of transmission line outside is enclosed with one deck aluminium foil or metal level, and described aluminium foil or the metal level outside also are enclosed with one deck plastic layer.
10. light-emitting cable as claimed in claim 9 is characterized in that, also comprises one second hyaline layer, and described the second hyaline layer is wrapped in the outside of described transmission line and isolychn.
