CN202678587U - Novel power socket - Google Patents
Novel power socket Download PDFInfo
- Publication number
- CN202678587U CN202678587U CN 201220278895 CN201220278895U CN202678587U CN 202678587 U CN202678587 U CN 202678587U CN 201220278895 CN201220278895 CN 201220278895 CN 201220278895 U CN201220278895 U CN 201220278895U CN 202678587 U CN202678587 U CN 202678587U
- Authority
- CN
- China
- Prior art keywords
- strip
- socket base
- socket
- long
- slot
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Landscapes
- Connector Housings Or Holding Contact Members (AREA)
Abstract
The utility model provides a novel power socket, comprising a socket base and a pair of long-strip-shaped socket strips arranged in the socket base; wherein, a top of the socket base is provided with a conduction plug and a control switch, the pair of long-strip-shaped socket strips are arranged in parallel on the socket base, the each long-strip-shaped socket strip consists of a long-strip-shaped groove and a conductive slot arranged in the long-strip-shaped groove, the conductive slot is a long-strip-shaped elastic slot, and the conductive slots are electrically connected with the conduction plug through the control switch. The novel power socket of the utility model has the advantages of scientific design, simple structure, convenient use, and flexible jack.
Description
Technical field
The utility model relates to a kind of supply socket, specifically, has related to flexibly convenience receptacle of a kind of jack.
Background technology
At present, household outlet sets in advance two jacks, three jacks more, jack position is fixed, but, electrical appliance plug in the real life is not of uniform size, in the time of a plurality of electrical appliance plugs can occurring and use simultaneously, mutually ties up the jack usage space between the electrical appliance plug, cause the electrical appliance plug not insert jack fully, affect the normal use of electrical appliance.In order to solve the problem of above existence, people are seeking a kind of desirable technical solution always.
Summary of the invention
The purpose of this utility model is for the deficiencies in the prior art, thereby flexibly convenience receptacle of a kind of design science, simple in structure, easy to use and jack is provided.
To achieve these goals, the technical scheme that the utility model adopts is: a kind of convenience receptacle, it comprises socket base and a pair of strip insert row that is arranged in the described socket base, wherein, the top of described socket base is provided with conduction plug, a pair of described strip insert row is set in parallel on the described socket base, and described strip insert row is comprised of strip groove and the conduction slot that is installed in the described strip groove, and described conduction slot is electrically connected with described conduction plug.
Based on above-mentioned, described conduction slot is strip elasticity slot.
Based on above-mentioned, be provided with control switch on the described socket base, described conduction slot is electrically connected with described conduction plug by described control switch.
The relative prior art of the utility model has substantive distinguishing features and progress, specifically, this convenience receptacle do not arrange fixed jacks different from original supply socket, it comprises socket base and a pair of strip insert row that is arranged in the described socket base, the strip insert row that is arranged on the described socket base by pair of parallel replaces original fixed jack, when a plurality of electrical appliance plugs use simultaneously, can insert successively the strip insert row, avoid mutually tying up between a plurality of electrical appliance plugs, so that each electrical appliance plug can both insert the strip insert row fully, adopt strip elasticity slot so that the electrical appliance plug can be plugged in the strip insert row closely; It has flexibly advantage of design science, simple in structure, easy to use and jack.
Description of drawings

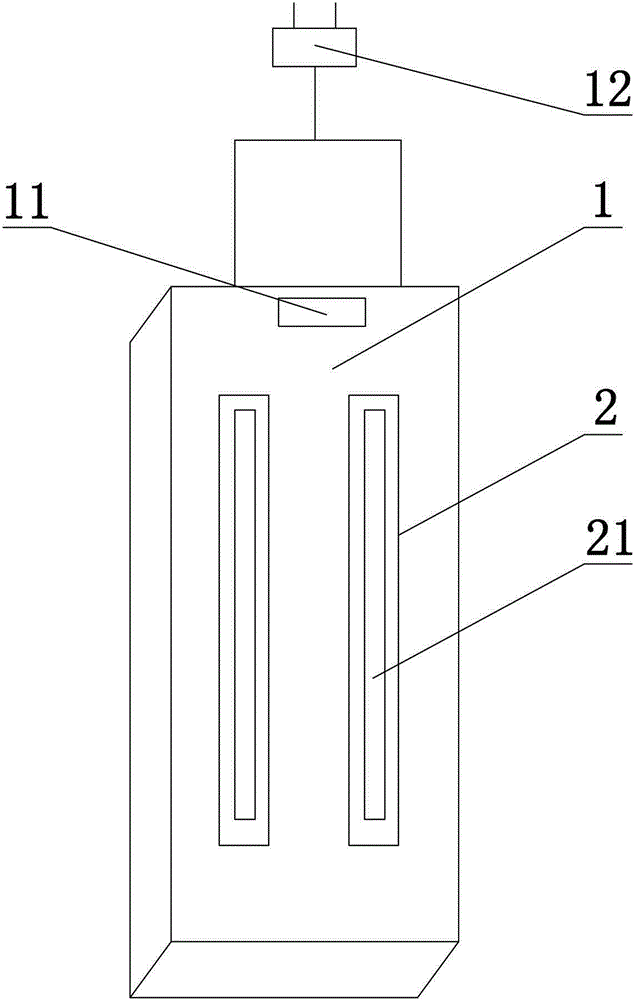

Fig. 1 is structural representation of the present utility model.
Embodiment
Below by embodiment, the technical solution of the utility model is described in further detail.
As shown in Figure 1, a kind of convenience receptacle, it comprises socket base 1 and a pair of strip insert row that is arranged in the described socket base, wherein, the top of described socket base 1 is provided with conduction plug 12, be provided with control switch 11 on the described socket base 1, a pair of described strip insert row is set in parallel on the described socket base 1, described strip insert row is comprised of strip groove 2 and the conduction slot 21 that is installed in the described strip groove, described conduction slot 21 is strip elasticity slots, and described strip elasticity slot is connected with described conduction plug electricity 12 by described control switch 11.
Based on above-mentioned, the strip insert row that pair of parallel is arranged on the described socket base 1 replaces original fixed jack, when a plurality of electrical appliance plugs use simultaneously, can insert successively the strip insert row, avoid mutually tying up between a plurality of electrical appliance plugs, so that each electrical appliance plug can both insert the strip insert row fully, described conduction slot 21 is strip elasticity slots, so that the electrical appliance plug can be plugged in the strip insert row closely.
Based on above-mentioned, the length of described strip insert row is according to different user demand settings, and the length of described conduction slot 21 is according to the length relative set of described strip insert row simultaneously.
Based on above-mentioned, the utility model three described strip insert rows that also can be arranged in parallel make things convenient for the use of three-phase electric appliance plug.
Should be noted that at last: above embodiment is only in order to illustrate that the technical solution of the utility model is not intended to limit; Although with reference to preferred embodiment the utility model is had been described in detail, those of ordinary skill in the field are to be understood that: still can make amendment or the part technical characterictic is equal to replacement embodiment of the present utility model; And not breaking away from the spirit of technical solutions of the utility model, it all should be encompassed in the middle of the technical scheme scope that the utility model asks for protection.
Claims (3)
1. convenience receptacle, it is characterized in that: it comprises socket base and a pair of strip insert row that is arranged in the described socket base, wherein, the top of described socket base is provided with conduction plug, a pair of described strip insert row is set in parallel on the described socket base, described strip insert row is comprised of strip groove and the conduction slot that is installed in the described strip groove, and described conduction slot is electrically connected with described conduction plug.
2. convenience receptacle according to claim 1, it is characterized in that: described conduction slot is strip elasticity slot.
3. convenience receptacle according to claim 1 is characterized in that: be provided with control switch on the described socket base, described conduction slot is electrically connected with described conduction plug by described control switch.
