CN202675779U - Refrigerator door - Google Patents
Refrigerator door Download PDFInfo
- Publication number
- CN202675779U CN202675779U CN 201220191901 CN201220191901U CN202675779U CN 202675779 U CN202675779 U CN 202675779U CN 201220191901 CN201220191901 CN 201220191901 CN 201220191901 U CN201220191901 U CN 201220191901U CN 202675779 U CN202675779 U CN 202675779U
- Authority
- CN
- China
- Prior art keywords
- refrigerator
- door
- refrigerator doors
- wicket
- drawer
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Lifetime
Links
Images
Landscapes
- Refrigerator Housings (AREA)
Abstract
The utility model discloses a refrigerator door. A small door is arranged on the refrigerator door and one side of the small door is connected with the refrigerator door. An independent drawer capable of being pulled out is arranged on the inside of a refrigerator and the inside of the refrigerator corresponds to the small door. By arrangements of the small door on the refrigerator door and the drawer capable of being pulled out on the refrigerator inside corresponding to the small door, articles can be taken out through the drawer after the small door is opened, so that loss of cool air inside the refrigerator can be reduced, and at the same time, the volume of the refrigerator is utilized to the utmost degree. Therefore, the refrigerator door achieves a better energy-saving effect and follows trends of present development of refrigerators, and in addition, the refrigerator door is simple in structure and an integral appearance of the refrigerator door is not influenced.
Description
Technical field
The utility model relates to box body structure of refrigerator, relates in particular to conveniently to get thing on a kind of refrigerator and reduce the door that cold scatters and disappears.
Background technology
The door body that is applied at present side by side combination refrigerator mostly is an overall structure, has the clean and tidy characteristics of outward appearance, but in use, in the time of need to picking and placeing common food or drinks, open whole door body, so that the cold air in the refrigerator runs off in a large number, causes waste; If the door body of integral body is divided into a plurality of wickets, its complex structure affects the overall appearance of refrigerator, has increased simultaneously production cost.
High-end refrigerator in the market generally has the design of bar desk, on refrigerating-chamber door, open again a wicket, wicket can independent folding, after opening, food in the depository dish that is positioned over behind the refrigerating-chamber door, beverage etc. directly can be taken out, when taking, just whole refrigerating-chamber door need not be opened like this, thereby save refrigerator power consumption.
Document CN1432778A discloses a kind of bar door of household refrigerator, its body has one can make refrigerating chamber and the extraneous opening that contacts, the home bar door is used for opening and closing home bar opening, further comprises: a supporting bracket that links to each other with described home bar opening; One links to each other with described home bar door and can be with its movable support that together rotates; And chocking construction that comprises the first retainer and the second retainer, described the first retainer is configured on the described movable support and can together rotates with it, described the second retainer is configured on the described supporting bracket, when the family expenses bar door was in its open position, described the second retainer contacted and limits being rotated further of described home bar door with described the first retainer.Thereby this utility model has realized having reduced energy resource consumption by opening and closing the less bar door of area, reduced the problem of use cost, and the connected mode of bar door improved, make the both sides, bar desk can be isostructural not former thereby block because of connecting rod, the profile of refrigerator is also neat and artistic simultaneously.But this structural design has only provided an opening is used for picking and placeing the interior article of refrigerator, has solved the problems that cold scatters and disappears in a large number, has taken into account simultaneously attractive in appearance; But it is still not convenient to pick and place accordingly article.
The utility model content
The purpose of this utility model provides a kind of refrigerator doors, can better address the above problem.
For achieving the above object, the utility model is achieved through the following technical solutions:
A kind of refrigerator doors is provided with a wicket on the described refrigerator doors, one side of wicket is connected with refrigerator doors, it is characterized in that: corresponding wicket inboard is provided with an independence and telescopic drawer.
Preferably, described drawer is positioned on the refrigerator doors, can together open in company with refrigerator doors, is used for depositing and taking of a small amount of article.
Preferably, described drawer is positioned at refrigerator body, can be used for the larger article storage of quantity and takes.
Especially, the openings of sizes opened on the rear refrigerator doors of the positive size of described drawer and wicket is identical.
Further, described wicket is connected with refrigerator doors by hinge.
Further, described wicket and refrigerator doors junction are provided with stopping means, can keep certain state when wicket is opened.
Further, described wicket inner side edge is along being provided with door seal, do not affect the heat insulation effect of whole refrigerator doors after wicket is closed.
The beneficial effects of the utility model are, when picking and placeing greater amount food, can directly open refrigerator doors operates, by be provided with the less wicket of area in refrigerator doors, the drawer that can pull is set in refrigerator body corresponding to wicket simultaneously, when wicket is opened, can be by drawer being extracted to realize taking out the purpose of article, when cold air runs off in reducing refrigerator, utilize the volume of refrigerator, thereby make refrigerator have better energy-saving effect, comply with present refrigerator trend, and simple in structure, do not affect the overall appearance effect of refrigerator doors.
Description of drawings
The below is described in further detail the utility model according to embodiment and accompanying drawing.
Fig. 1 is the structural representation of refrigerator doors described in the utility model;
Fig. 2 is the structural representation after wicket described in the utility model is opened;

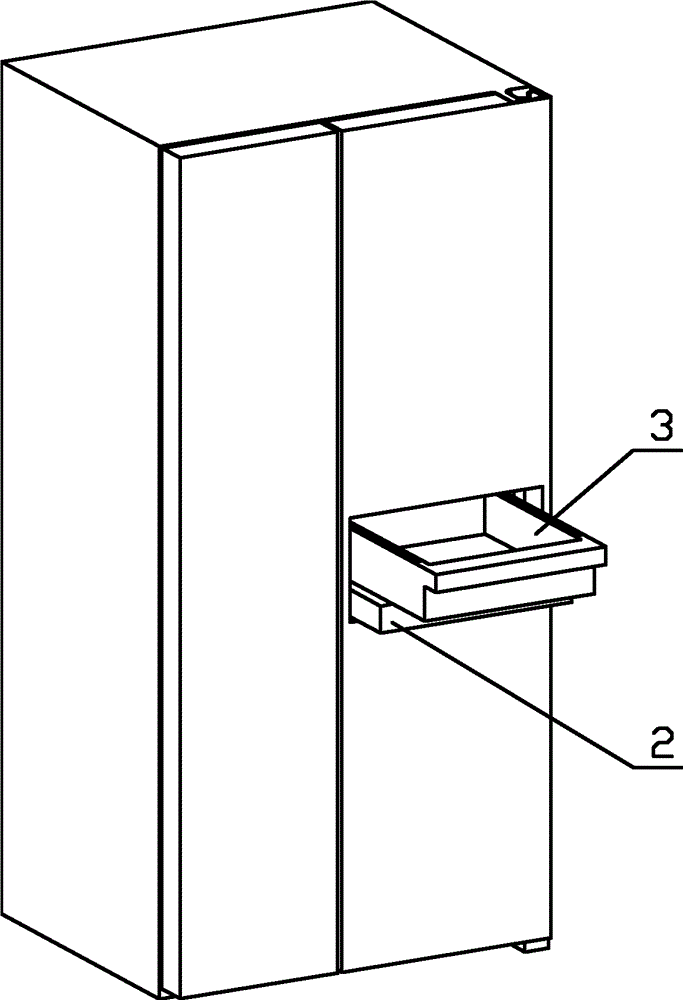

Fig. 3 is the structural representation after drawer is pulled out among Fig. 2;
Fig. 4 is the structural representation after refrigerator doors integral body described in the utility model is opened;
Fig. 5 is the structural representation after drawer is pulled out among Fig. 4.
Among the figure:
1, refrigerator doors; 2, wicket; 3, drawer.
The specific embodiment
Shown in Fig. 1-5, provided the structural representation of a specific embodiment of refrigerator doors described in the utility model, its concrete structure is: have a wicket 2 in refrigerator doors 1, wicket 2 is connected with refrigerator doors 1 outwards to overturn by hinge opens the formation bar door, corresponding wicket 2 places are provided with a drawer 3 in the casing, can pull out from wicket 2 after wicket 2 is opened, described drawer 3 positive sizes are identical with the openings of sizes that wicket 2 is opened on the rear refrigerating-chamber door 1.
Such as Fig. 1-3, wicket 2 can outwards overturn and open, and by at wicket 2 and refrigerator doors 1 junction stopping means being set, can make wicket 2 keep level, doubles as the bar desk and uses, and at this moment the drawer 3 in the casing can be pulled out, and picks and places food commonly used, beverage etc.Such as Fig. 4-5, when not using wicket 2, still can carry out food and pick and place by refrigerator doors 1 integral body is opened, at this moment, drawer 3 can normally use.
Above, provided a specific embodiment of refrigerator doors described in the utility model, corresponding wicket 2 also can adopt side evolution formula, is used for the larger article storage of quantity and when taking, drawer 3 is placed in the refrigerator body; When being used for the depositing and take of article in a small amount, drawer 3 can also be placed on refrigerator doors, can together open in company with refrigerator doors.
Refrigerator doors described in the utility model has reduced the loss of cold air in the refrigerator, thereby has made refrigerator have better energy-saving effect when keeping original refrigerator doors function, and simple in structure, easy to use.
Above-mentioned explanation is specifying for the feasible embodiment of the utility model; and this embodiment limits claim of the present utility model; allly do not break away from the equivalence that the utility model technical spirit done and implement or change, all should be contained in the claimed claim of the application.
Claims (7)
1. a refrigerator doors is provided with a wicket on the described refrigerator doors, and one side of wicket is connected with refrigerator doors, it is characterized in that: corresponding wicket inboard is provided with an independence and telescopic drawer.
2. a kind of refrigerator doors according to claim 1, it is characterized in that: described drawer is positioned on the refrigerator doors.
3. a kind of refrigerator doors according to claim 1, it is characterized in that: described drawer is positioned at refrigerator body.
4. a kind of refrigerator doors according to claim 1 is characterized in that: the positive size of described drawer is identical with the openings of sizes that wicket is opened on the rear refrigerator doors.
5. according to claim 1 to 4 described any refrigerator doors, it is characterized in that: described wicket is connected with refrigerator doors by hinge.
6. according to claim 1 to 4 described any refrigerator doors, it is characterized in that: described wicket and refrigerator doors junction are provided with stopping means.
7. according to claim 1 to 4 described any refrigerator doors, it is characterized in that: described wicket inner side edge is along being provided with door seal.
