Abstract
The utility model discloses a support frame of an intelligent solar lighting monitoring device. The support frame of the intelligent solar lighting monitoring device comprises a fixed support frame and a movable support frame, wherein the fixed support frame is composed of two mounting plates which are mounted in parallel, and the movable support frame is composed of a transverse support plate, a solar panel movable support frame, a lighting movable support frame and a monitoring support frame. One end of the transverse support plate is movably connected with one of the two mounting plates through a sliding connector, and the other end of the transverse support plate is movably connected with the other mounting plate through a sliding connector. The solar panel movable support frame and the lighting movable support frame are fixedly mounted on the transverse support plate, and the monitoring support frame is mounted on the lighting movable support frame. The support frame of the intelligent solar lighting monitoring device has the advantages that the adjustments of front-back position, up-down position and angle of the whole intelligent solar lighting monitoring device can be achieved through the sliding connectors, the solar panel movable support frame and the lighting movable support frame, the flexibility of the intelligent solar lighting monitoring device is improved, the using range of the intelligent solar lighting monitoring device is extended, and the support frame of the intelligent solar lighting monitoring device has the advantages of being simple in structure and convenient to use at the same time.
Description
Technical field
The utility model relates to a kind of support of intelligent solar illumination monitoring device.
Background technique
Solar energy is primary energy, is again renewable energy sources, and its aboundresources both can freely use, and need not again transportation, and environment without any pollution, for the mankind have created a kind of new lifestyle, is made society and the human epoch that enter an energy saving minimizing pollution.Utilizing solar energy to throw light on and monitoring is a brand-new technical field, at present, there is no ripe solar lighting supervisory device and mounting bracket thereof at home and abroad.
Existing mounting bracket mostly is fixed, can not adjust and install solar panels, and for novel solar lighting supervisory device, existing support is inapplicable.
Summary of the invention
The purpose of this utility model is to overcome the shortcoming of prior art, and a kind of support of intelligent solar illumination monitoring device simple in structure, easy to use is provided.
The purpose of this utility model is achieved through the following technical solutions: a kind of support of intelligent solar illumination monitoring device, it comprises fixed support and movable supporting frame, wherein, fixed support is comprised of the mounting plate of two parallel installations, movable supporting frame is comprised of horizontal support plate, solar panels travel(l)ing rest, flare activity support and monitoring support, the two ends of horizontal support plate are flexibly connected by slip joint and two mounting plates, solar panels travel(l)ing rest and flare activity support are fixedly mounted on the horizontal support plate, and monitoring support is installed on the flare activity support.
The width location piece is installed between described mounting plate.
Described mounting plate is the mounting plate that " L " shape mounting plate, " I " shape mounting plate or " L " shape mounting plate and " I " shape mounting plate combine.
Be provided with strengthening rib on the joint of described solar panels travel(l)ing rest, flare activity support and horizontal support plate and the mounting plate.
Described solar panels travel(l)ing rest is comprised of solar panels strut and the angle adjustment plate that is installed on the solar panels strut.
The beneficial effects of the utility model are: by slip joint, solar panels travel(l)ing rest and flare activity support can realize whole solar lighting supervisory device in front and back, up and down and the adjustment on the angle, improve flexibility and the using scope of support, had simultaneously characteristics simple in structure, easy to use.
Description of drawings

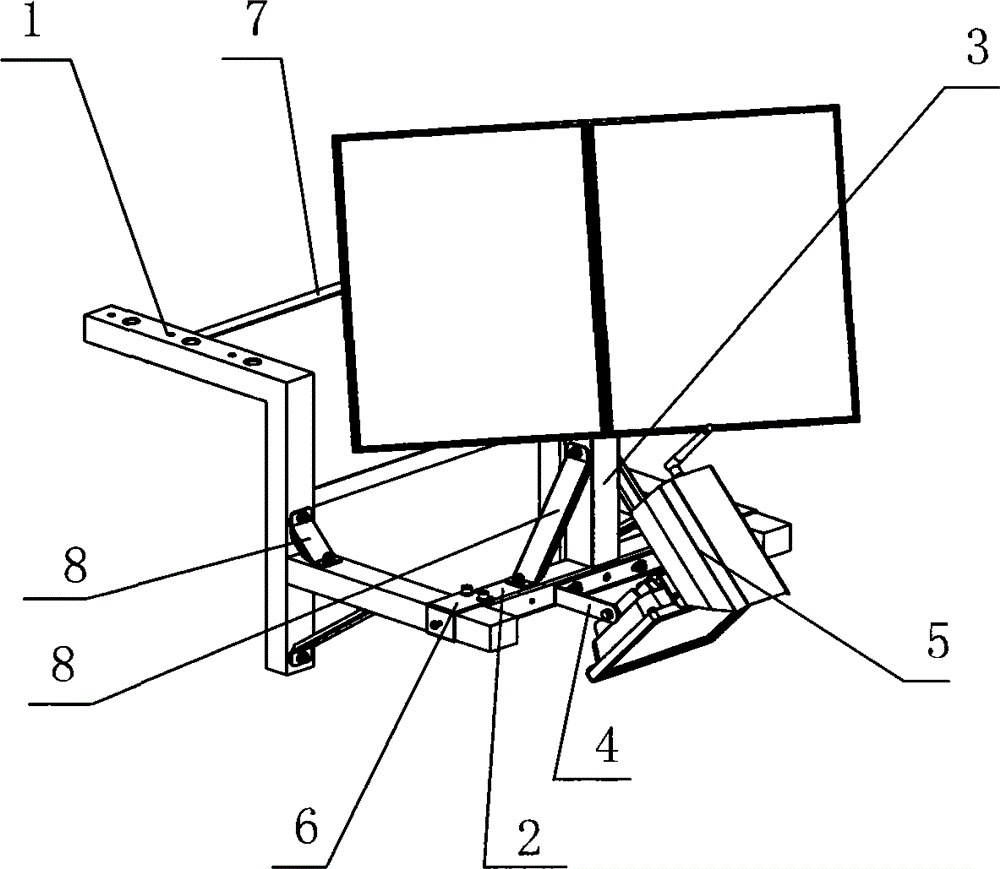

Fig. 1 is structural representation of the present utility model;
Fig. 2 is side view of the present utility model.
Among the figure, 1-mounting plate, 2-horizontal support plate, 3-solar panels travel(l)ing rest, 4-flare activity support, 5-monitoring support, 6-slip joint, 7-width location piece, 8-strengthening rib, 9-solar panels strut, 10-angle adjustment plate.
Embodiment
Further describe the technical solution of the utility model below in conjunction with accompanying drawing, but that claimed scope is not limited to is described.
Such as Fig. 1, Fig. 2, a kind of support of intelligent solar illumination monitoring device, it comprises fixed support and movable supporting frame, wherein, fixed support is comprised of the mounting plate 1 of two parallel installations, movable supporting frame is comprised of horizontal support plate 2, solar panels travel(l)ing rest 3, flare activity support 4 and monitoring support 5, the two ends of horizontal support plate 2 are flexibly connected by slip joint 6 and two mounting plates 1, solar panels travel(l)ing rest 3 and flare activity support 4 are fixedly mounted on the horizontal support plate 2, and monitoring support 5 is installed on the flare activity support 4.
1 of described mounting plate is equipped with width location piece 7, can carry out location and the adjusting of width between the mounting plate 1.
The mounting plate that described mounting plate 1 combines for " L " shape mounting plate, " I " shape mounting plate or " L " shape mounting plate and " I " shape mounting plate is according to combined shaped and the size of actual conditions selection mounting plate.
Be provided with strengthening rib 8 on the joint of described solar panels travel(l)ing rest 3, flare activity support 4 and horizontal support plate 2 and the mounting plate 1, improve the intensity of scaffold.
Described solar panels travel(l)ing rest 3 is comprised of solar panels strut 9 and the angle adjustment plate 10 that is installed on the solar panels strut 9.
By slip joint 6, solar panels travel(l)ing rest 3 and flare activity support 4 can realize whole solar lighting supervisory device in front and back, up and down and the adjustment on the angle.
Claims (5)
1. the support of an intelligent solar illumination monitoring device, it is characterized in that: it comprises fixed support and movable supporting frame, wherein, fixed support is comprised of the mounting plate (1) of two parallel installations, movable supporting frame is by horizontal support plate (2), solar panels travel(l)ing rest (3), flare activity support (4) and monitoring support (5) form, the two ends of horizontal support plate (2) are flexibly connected by slip joint (6) and two mounting plates (1), solar panels travel(l)ing rest (3) and flare activity support (4) are fixedly mounted on the horizontal support plate (2), and monitoring support (5) is installed on the flare activity support (4).
2. the support of intelligent solar illumination monitoring device according to claim 1 is characterized in that: width location piece (7) is installed between described mounting plate (1).
3. the support of intelligent solar illumination monitoring device according to claim 1 is characterized in that: the mounting plate that described mounting plate (1) combines for " L " shape mounting plate, " I " shape mounting plate or " L " shape mounting plate and " I " shape mounting plate.
4. the support of intelligent solar illumination monitoring device according to claim 1 is characterized in that: be provided with strengthening rib (8) on the joint of described solar panels travel(l)ing rest (3), flare activity support (4) and horizontal support plate (2) and the mounting plate (1).
5. the support of intelligent solar illumination monitoring device according to claim 1 is characterized in that: described solar panels travel(l)ing rest (3) is comprised of solar panels strut (9) and the angle adjustment plate (10) that is installed on the solar panels strut (9).
