Abstract
The utility model relates to a postal service carton with an adjustable height. The postal service carton with the adjustable height comprises a carton body and angle protectors, wherein the carton body is composed of body plates, a join tongue, a top portion outer waving cover, a top portion inner waving cover, a bottom outer waving cover and a bottom inner waving cover. A plurality of horizontal indentation lines, a plurality of inclined indentation lines which form 45-degree angles with the horizontal indentation lines, and a plurality of inclined indentation lines which form 135-degree angles with the horizontal indentation lines are arranged at the middle portions of the body plates and the join tongue. Indentation lines enable a carton to achieve folding and extending in the height direction. The angle protectors are in right-angled L shapes, and two sides of each angle protector can be the same or can be different in length. The length of the each angle protector is the same with the final size of the carton, wherein the final size of the carton is obtained by folding or extending in the height direction. With the manner, the postal service carton with the adjustable height can meet demands of packing of posted goods with various standards, and reduce the storage space of a post office and fund occupation.
Description
Technical field
The utility model relates to a kind of postal carton, particularly a kind of adjustable for height postal carton.
Background technology
When we remove post office's mail items, need the Master Carton that uses post office to provide.This carton is a kind of common hexahedron structure, and by the moulding of a piece of paper plate disjunctor, joint adopts nail case or gluing mode, and the upper and lower rolling cover of casing can be used for enclosed carton.This carton the time is tabular in transportation, in use, lower rolling cover is folded flat secures with adhesive tape afterwards first, then mail items is put in people's carton, again with upper rolling cover involution.Yet; mail items is of a great variety; its shape and the scale of construction also vary; but the standard specification of the postal carton that post office can provide is relatively limited; when the article size that will post when us can not satisfy a little Master Carton specification; just need to choose the carton of bigger specification, then between carton and mail items Serb some can play the disregard message paper of buffer protection function or shredded paper bar etc., to avoid mail items in transportation, to produce rocking and damaged.But operation has increased mailer's mailing cost like this, has also affected the attractive in appearance of mail items inside.The mailer blames that carton that post office can not provide more specifications for you to choose for, but consider from the angle of post office, will all make the postal carton of the different sizes that are fit to various mail items in order to the mailer and select, need the storage space of the more occupation of capital, this also is unpractical.
The utility model content
Fix for existing postal carton height, can't satisfy the problem of customer's diversified demand, it is a kind of simple in structure that the utility model provides, and is easy to the adjustable for height postal carton of suitability for industrialized production.
The utility model is to realize by following technical measures.A kind of adjustable for height postal carton, comprise casing and corner protector, casing is by the body plate, connects outside tongue, the top in rolling cover, the top outside rolling cover, the bottom that rolling cover consists of in rolling cover, the bottom, described body plate is equipped with some horizontal indentation lines, is the inclination indentation line of miter angle and is the 135 inclination indentation lines of spending angles with horizontal indentation line with horizontal indentation line with the middle part that connects tongue, and these indentation lines are so that carton can be realized folding on short transverse and stretching, extension; Described corner protector is rectangular L-type, and two edge lengths of corner protector can be identical, can be not identical yet, and the length of corner protector is identical through final size folding or the stretching, extension gained in short transverse with carton.
The production process of the adjustable for height postal carton that the utility model is related is identical with existing common hexahedron carton, can finish on existing common hexahedron carton production line.Produce the related adjustable for height postal carton of the utility model, only need to change carton case mold cutting plate and get final product, need not existing equipment and manufacturing line are improved, improvement cost is low, is easy to mechanization production.
After the utility model adopts abovementioned technology, cardboard box structure is simple, production and processing is convenient, the height of the postal carton of making can elongate or shorten according to the size of mail items, overcoming traditional postal carton height fixes, can't satisfy the present situation of mailer's diversified demand, a carton can possess multiple height, is convenient to satisfy more mail items demand with minimum carton specification, can reduce the occupation of capital and the storage space of post office, increase customer satisfaction degree.The high related adjustable for height postal carton of the utility model also can adopt other materials or paper material is carried out special processing, to improve intensity and the flexible alerting ability of carton.
Description of drawings

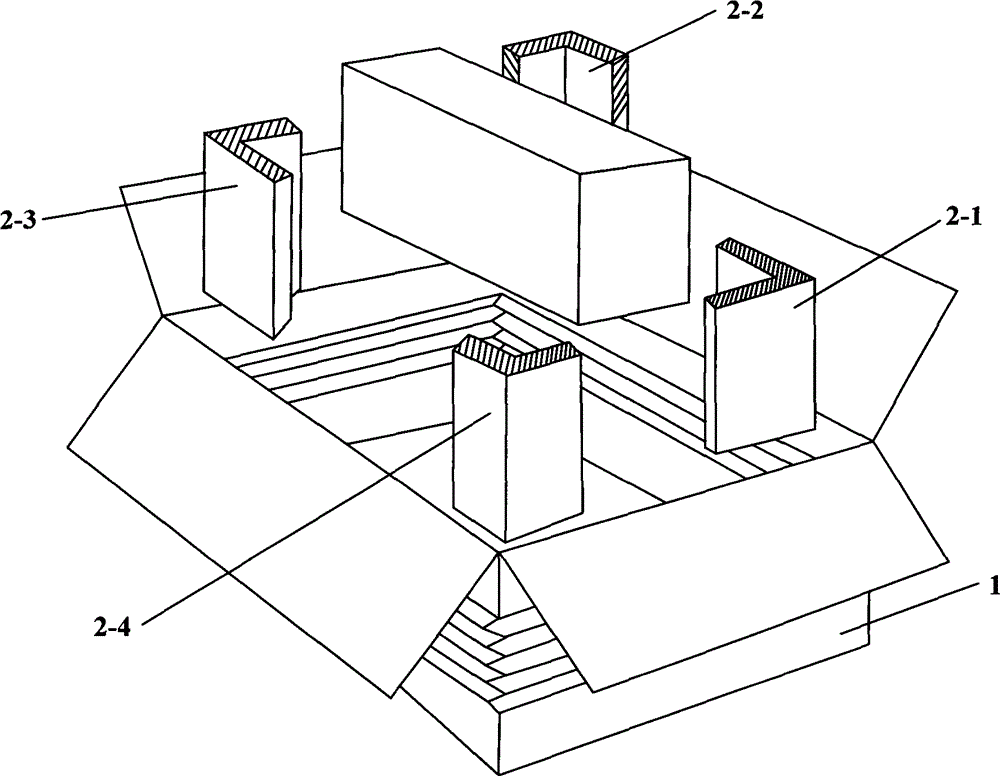

Accompanying drawing 1 is the using method scheme drawing of the related adjustable for height postal carton of the utility model.
Accompanying drawing 2 is the result of use figure of the related adjustable for height postal carton of the utility model.
Accompanying drawing 3 is the carton agent structure expansion drawing of the related adjustable for height postal carton of the utility model.
The mark of each parts is as follows in the accompanying drawing:
1, casing; 2, corner protector; 3, body plate; 4, connect tongue; 5, rolling cover outside the top; 6, rolling cover in the top; 7, rolling cover outside the bottom; 8, rolling cover in the bottom; 9, indentation line.
The specific embodiment
The utility model is described in further detail below in conjunction with drawings and Examples.
As shown in Figure 1, a kind of adjustable for height postal carton comprises casing 1 and corner protector 2-1, corner protector 2-2, corner protector 2-3, corner protector 2-4.During use, first the inside and outside rolling cover in the bottom of this carton is folded flat and secures with adhesive tape afterwards, according to the mail items desired height casing 1 is folded again or stretch, make folding or stretch after carton height and mail items height be complementary, then the corner protector 2-1 that intercepted length is identical with box height, corner protector 2-2, corner protector 2-3, corner protector 2-4 place four corners of casing 1, at last mail items is put in people's carton, rolling cover inside and outside the top is folded flat secures with adhesive tape afterwards.Adjustable for height postal carton after packaged as shown in Figure 2.
As shown in Figure 3, a kind of casing 1 of adjustable for height postal carton through operation moulding such as cross cutting, impression, flutings, comprises body plate 3-1 by a piece of paper plate, body plate 3-2, body plate 3-3, body plate 3-4, connect tongue 4, rolling cover 5-1 outside the top, rolling cover 5-2 outside the top, rolling cover 6-1 in the top, rolling cover 6-2 in the top, the outer rolling cover 7-1 in bottom, rolling cover 7-2 outside the bottom, rolling cover 8-2 in rolling cover 8-1 and the bottom in the bottom; At body plate 3-1, body plate 3-2, body plate 3-3, body plate 3-4 is equipped with some horizontal indentation line 9-1 with the middle part that connects tongue 4, is the inclination indentation line 9-2 of miter angle and is the 135 inclination indentation line 9-3 that spend angles with horizontal indentation line 9-1 with horizontal indentation line 9-1.These indentation lines are so that carton can be realized folding on short transverse and stretching, extension.
Above-described only is preferred implementation of the present utility model.Should be pointed out that for the person of ordinary skill of the art under the prerequisite that does not break away from the utility model principle, can also make some modification and improvement, these also should be considered as belonging to protection domain of the present utility model.
Claims (3)
1. an adjustable for height postal carton comprises casing (1), corner protector (2-1), corner protector (2-2), corner protector (2-3), corner protector (2-4); Casing (1) comprises body plate (3-1), body plate (3-2), body plate (3-3), body plate (3-4), connect tongue (4), rolling cover outside the top (5-1), rolling cover outside the top (5-2), rolling cover in the top (6-1), rolling cover in the top (6-2), bottom outer rolling cover (7-1), bottom outer rolling cover (7-2), rolling cover (8-2) in rolling cover (8-1) and the bottom is characterized in that: body plate (3-1) in the bottom, body plate (3-2), body plate (3-3), body plate (3-4) and the middle part that connects tongue (4) are equipped with some indentation lines; The length of corner protector (2-1), corner protector (2-2), corner protector (2-3), corner protector (2-4) is identical through final size folding or the stretching, extension gained in short transverse with carton.
2. a kind of adjustable for height postal carton according to claim 1, it is characterized in that: body plate (3-1), body plate (3-2), body plate (3-3), body plate (3-4) and the indentation line that connects tongue (4) middle part comprise horizontal indentation line (9-1), be the inclination indentation line (9-2) of miter angle with horizon indentation line (9-1), be the inclination indentation lines (9-3) at 135 degree angles with horizon indentation line (9-1).
3. a kind of adjustable for height postal carton according to claim 1, it is characterized in that: corner protector (2-1), corner protector (2-2), corner protector (2-3), corner protector (2-4) they are rectangular L-types; Two edge lengths of corner protector can be identical, also can be not identical.
