Abstract
本实用新型涉及一种压紧模组，它包括气缸固定板、气缸、压头固定板、固定块、导套、导杆、连接块和硅胶压头，所述气缸安装在气缸固定板上；所述压头固定板安装在气缸上；所述压头固定板上装有四个导套，两端各两个导套，四个导套内装有四个导杆，导杆的一端与连接块连接起来，另一端与固定块连接起来；所述固定块底部开有两个凹槽，凹槽内分别装有硅胶压头。本实用新型通过气缸的运动可以方便的调节硅胶压头的位置，使得硅胶压头很快就能够达到标准作业位置，其操作简单，快捷。
The utility model relates to a compression module, which includes a cylinder fixing plate, a cylinder, a pressure head fixing plate, a fixing block, a guide sleeve, a guide rod, a connecting block and a silicone pressure head, and the cylinder is installed on the cylinder fixing plate; The pressure head fixing plate is installed on the cylinder; the pressure head fixing plate is equipped with four guide sleeves, two guide sleeves at both ends, and four guide rods are installed in the four guide sleeves, and one end of the guide rod is connected with the connecting block connected, and the other end is connected with the fixed block; there are two grooves on the bottom of the fixed block, and silicone pressure heads are respectively installed in the grooves. The utility model can conveniently adjust the position of the silicone pressure head through the movement of the cylinder, so that the silicone pressure head can quickly reach the standard working position, and the operation is simple and quick.
Description
Technical field
The utility model relates to a kind of compression module, and the product that is placed on the carrier is compressed, and relates to more specifically the module that a kind of normal place that makes in the course of the work the silica gel pressure head is adjusted.
Background technology
Compress module in work, product need to be placed on the product carrier, and the product needed after placing has the job position of a standard, the product in this time just needs positioning compression, and this compression module is exactly the module that the position of product on carrier compresses as required, make product be in the job position of standard, just need this moment a kind of compression module simple in structure, easy to adjust to realize.
The utility model content
The purpose of this utility model provides a kind of compression module, and it is simple in structure, can adjust easily and fast the normal place of silica gel pressure head.
Technology solution of the present utility model is as follows:
A kind of compression module, it comprises air cylinder fixed plate, cylinder, pressure head fixed head, fixed block, guide pin bushing, guide rod, contiguous block and silica gel pressure head, described cylinder is installed on the air cylinder fixed plate; Described pressure head fixed head is installed on the cylinder; Four guide pin bushings are housed on the described pressure head fixed head, and each two guide pin bushing of two ends are equipped with four guide rods in four guide pin bushings, and an end and the contiguous block of guide rod couple together, and the other end and fixed block couple together; Described fixed block bottom has two grooves, and the silica gel pressure head is housed respectively in the groove.
In the technique scheme, have mounting hole on the described air cylinder fixed plate, described cylinder is installed on the air cylinder fixed plate by mounting hole.
The beneficial effects of the utility model are:
The utility model can be regulated the position of silica gel pressure head easily by the motion of cylinder, so that the silica gel pressure head can reach the standard operation position soon, it is simple to operate, and is quick.
Description of drawings
Below in conjunction with accompanying drawing the utility model is described further:

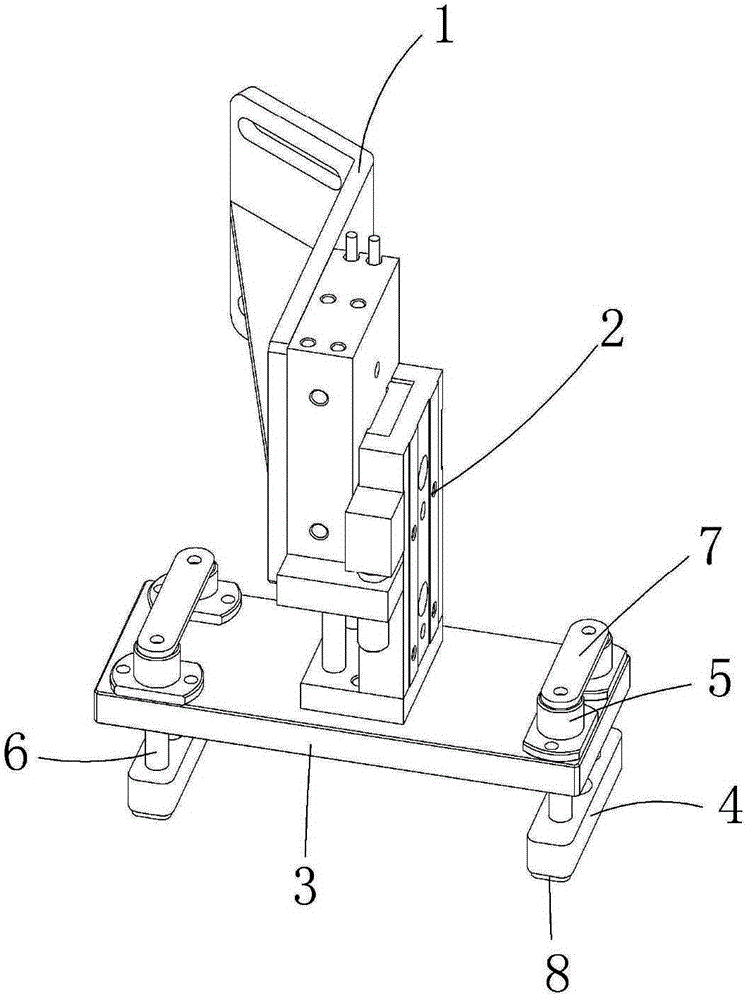

Fig. 1 is structural representation of the present utility model.
The specific embodiment
The following stated is preferred embodiment of the present utility model only, is not that scope of the present utility model is limited.
Embodiment sees accompanying drawing 1, a kind of compression module, and it comprises air cylinder fixed plate 1, cylinder 2, pressure head fixed head 3, fixed block 4, guide pin bushing 5, guide rod 6, contiguous block 7 and silica gel pressure head 8, described cylinder is installed on the air cylinder fixed plate; Described pressure head fixed head is installed on the cylinder; Four guide pin bushings are housed on the described pressure head fixed head, and each two guide pin bushing of two ends are equipped with four guide rods in four guide pin bushings, and an end and the contiguous block of guide rod couple together, and the other end and fixed block couple together; Described fixed block bottom has two grooves, and the silica gel pressure head is housed respectively in the groove.
Have mounting hole on the described air cylinder fixed plate, described cylinder is installed on the air cylinder fixed plate by mounting hole.
