Abstract
本实用新型涉及清洁器。包括杆体，杆体的一端设有清洁刷头，杆体与清洁刷头之间设有可弯曲的连接臂。由上述技术方案可知，本实用新型提供的清洁器其杆体与清洁刷头之间设有可弯曲的连接臂，这样在清理一些卫生死角时，可以通过连接臂的弯曲来实现，简单方便。
The utility model relates to a cleaner. It includes a rod body, one end of the rod body is provided with a cleaning brush head, and a bendable connecting arm is arranged between the rod body and the cleaning brush head. It can be seen from the above technical solution that the cleaner provided by the utility model is provided with a bendable connecting arm between the rod body and the cleaning brush head, so that when cleaning some sanitary corners, it can be realized by bending the connecting arm, which is simple and convenient.
Description
技术领域 technical field
本实用新型涉及一种清洁器。The utility model relates to a cleaner.
背景技术 Background technique
现今社会，上班族的工作节奏都很紧张，闲暇时间不多，而打扫居家卫生就成为大多数上班族的头疼事。一般家庭在打扫时，一些卫生死角不易清理，而且在清理房顶或玻璃时一般都要借助类似长竿的物体来完成。In today's society, the working rhythm of office workers is very tense, and there is not much leisure time, and cleaning at home has become a headache for most office workers. General family is when cleaning, and some hygienic corners are not easy to clean up, and when cleaning roof or glass generally all will be finished by the object of similar long pole.
实用新型内容 Utility model content
本实用新型的目的在于提供一种清洁器，该清洁器可以方便地清理卫生死角。The purpose of the utility model is to provide a cleaner, which can conveniently clean the sanitary corners.
为实现上述目的，本实用新型采用了以下技术方案：包括杆体，杆体的一端设有清洁刷头，杆体与清洁刷头之间设有可弯曲的连接臂。In order to achieve the above purpose, the utility model adopts the following technical solutions: it includes a rod body, one end of the rod body is provided with a cleaning brush head, and a bendable connecting arm is provided between the rod body and the cleaning brush head.
本实用新型的清洁刷头为电动刷头。The cleaning brush head of the present utility model is an electric brush head.
本实用新型的清洁刷头与连接臂之间为可拆连接。The cleaning brush head and the connecting arm of the utility model are detachably connected.
本实用新型的杆体上设有开关，所述的清洁刷头与开关相连。The rod body of the utility model is provided with a switch, and the cleaning brush head is connected with the switch.
由上述技术方案可知，本实用新型提供的清洁器其杆体与清洁刷头之间设有可弯曲的连接臂，这样在清理一些卫生死角时，可以通过连接臂的弯曲来实现，简单方便。It can be seen from the above technical solution that the cleaner provided by the utility model has a bendable connecting arm between the rod body and the cleaning brush head, so that when cleaning some sanitary corners, it can be realized by bending the connecting arm, which is simple and convenient.
附图说明 Description of drawings

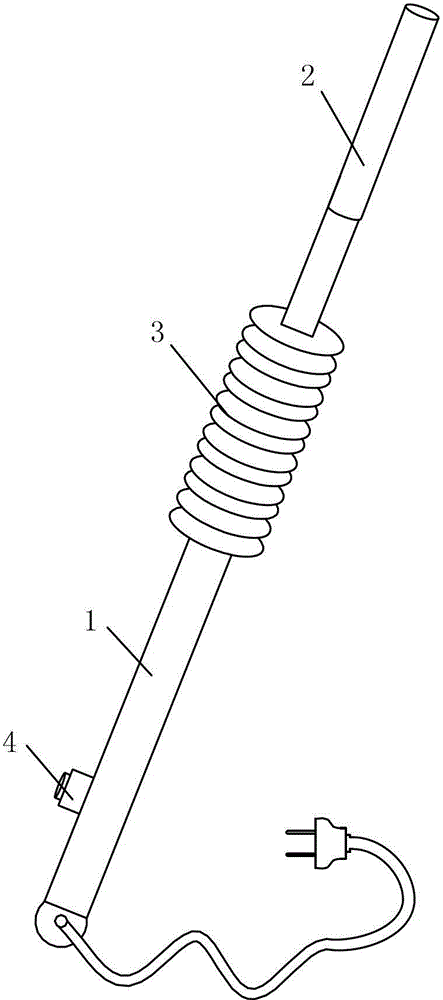

图1是本实用新型的结构示意图。Fig. 1 is the structural representation of the utility model.
具体实施方式 Detailed ways
下面结合附图对本实用新型做进一步说明：Below in conjunction with accompanying drawing, the utility model is further described:
如图1所示的一种清洁器，包括杆体1，杆体1的一端设有清洁刷头2，杆体1与清洁刷头2之间设有可弯曲的连接臂3。A cleaner as shown in FIG. 1 includes a rod body 1 , a
作为本实用新型的优选方案，清洁刷头为电动刷头，杆体1上设有开关4，清洁刷头2与开关4相连，这样在清理卫生时，更为省力。As a preferred solution of the present utility model, the cleaning brush head is an electric brush head, the rod body 1 is provided with a
作为更为优选的方案，清洁刷头2与连接臂3之间为可拆连接，这样可以根据清理对象的不同，更换不同的刷头，适应性更广。As a more preferred solution, the
以上所述的实施例仅仅是对本实用新型的优选实施方式进行描述，并非对本实用新型的范围进行限定，在不脱离本实用新型设计精神的前提下，本领域普通技术人员对本实用新型的技术方案作出的各种变形和改进，均应落入本实用新型权利要求书确定的保护范围内。The above-mentioned embodiments are only described to the preferred implementation of the utility model, and are not limited to the scope of the utility model. Various modifications and improvements made should fall within the scope of protection determined by the claims of the utility model.
