Abstract
本实用新型公开了一种光伏组件背膜开孔工具，包括相互垂直短模板和长模板、刀具支架、刀片，所述长模板上通过模块调节螺丝连接有刀具支架，所述刀片垂直穿过刀具支架前端，刀片上端连接有加压手柄。本实用新型结构合理、操作简单，能够快速调节、准确定位，可根据生产需要调节打孔数量、位置及宽度，并能多张背膜同时打孔，减少员工劳动强度及作业时间。
The utility model discloses a hole-opening tool for the back film of a photovoltaic module, which comprises a short template and a long template perpendicular to each other, a tool bracket and a blade. The long template is connected with a tool bracket through a module adjusting screw, and the blade vertically passes through the tool. The front end of the bracket and the upper end of the blade are connected with a pressure handle. The utility model has the advantages of reasonable structure, simple operation, fast adjustment and accurate positioning, the number, position and width of punching can be adjusted according to production needs, and multiple back films can be punched at the same time, reducing the labor intensity and working time of employees.
Description
Technical field
The utility model belongs to mechanical field, is specifically related to a kind of photovoltaic module notacoria drilling tool.
Background technology
The existing assembly that is only applicable to the same specification with the ordinary steel pallet of fixedly perforate, can not regulate arbitrarily quantity, width and the position of punching, positioning time is long during use, but slow, the each perforate number of perforate speed is few, greatly increased workman's labour intensity, simultaneously this traditional drilling tool uses a period of time rear surface easy to wear, dirty.
The utility model content
The utility model purpose: the purpose of this utility model is in order to solve the deficiencies in the prior art, to provide a kind of rational in infrastructure, easy and simple to handle, can regulating according to need of production the photovoltaic module notacoria drilling tool of punching quantity, position and width.
Technical scheme: a kind of photovoltaic module notacoria drilling tool, comprise mutually vertical short template and long template, knives rack, blade, be connected with knives rack by the module set screw on the described long template, described blade vertically passes the knives rack front end, and the blade upper end is connected with pressurized handgrip.
As preferably, be respectively arranged with scale on described long template and the knives rack, the zero starting point of long template scale is positioned at the inboard intersection of two templates, and knives rack scale zero starting point is positioned on the blade planar line.
As preferably, the independent and pressurized handgrip flexible connection of each blade of described blade.
Beneficial effect: the utility model is rational in infrastructure, simple to operate, can quick adjustment, accurate location, and can regulate punching quantity, position and width according to need of production, and can punch simultaneously by many notacorias, reduce staff labor intensity and activity duration.
Description of drawings

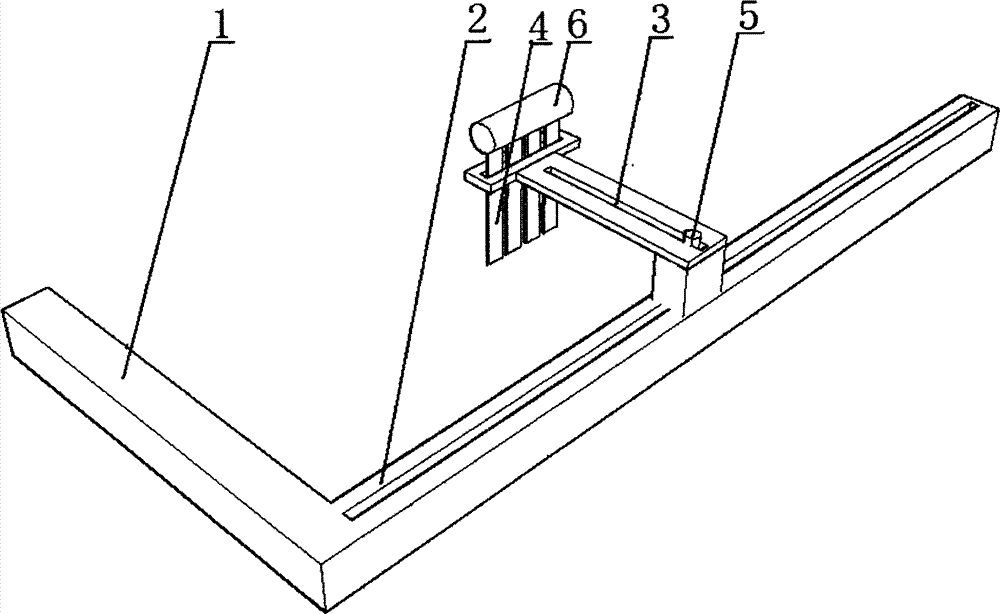

Fig. 1 is the utility model example structure side view;
Fig. 2 is the utility model example structure top view.
The specific embodiment
The utility model is described in further detail below in conjunction with specific embodiment:
As shown in drawings, a kind of photovoltaic module notacoria drilling tool, comprise mutually vertical short template 1 and long template 2, knives rack 3, blade 4, be connected with knives rack 3 by module set screw 5 on the described long template 2, described blade 4 vertically passes knives rack 3 front ends, blade 4 upper ends are connected with pressurized handgrip 6, be respectively arranged with scale on described long template 2 and the knives rack 3, the zero starting point of long template 2 scales is positioned at the inboard intersection of two templates, knives rack 3 scales zero starting point is positioned on blade 4 parallel lines, independent and pressurized handgrip 6 flexible connections of described blade 4 each blade.During use, choose on demand suitable blade 4 and form the up-and-down reciprocating cutter, the distance that regulates blade 4 is also fixing; Unclamp module set screw 5, the knives rack 3 with scale is regulated scale on demand after, the module of screwing on set screw 5 make its be fixed on demand with on the template 2 of scale to finish the cutter positioning; Put between short template 1 and the long template 2 with scale needing the tunicle of perforate or insulation strip to be close to, press up-and-down reciprocating cutter pressurized handgrip 6, namely finish punching.
The above only is preferred embodiment of the present invention; be noted that for those skilled in the art; under the prerequisite that does not break away from the principle of the invention, can also make some improvements and modifications, these improvements and modifications also should be considered as protection scope of the present invention.
Claims (3)
1. photovoltaic module notacoria drilling tool, it is characterized in that: comprise mutual vertical short template (1) and long template (2), knives rack (3), blade (4), described long template (2) is upper to be connected with knives rack (3) by module set screw (5), described blade (4) vertically passes knives rack (3) front end, and blade (4) upper end is connected with pressurized handgrip (6).
2. photovoltaic module notacoria drilling tool according to claim 1, it is characterized in that: be respectively arranged with scale on described long template (2) and the knives rack (3), the zero starting point of long template (2) scale is positioned at the inboard intersection of two templates, and knives rack (3) scale zero starting point is positioned on blade (4) parallel lines.
3. photovoltaic module notacoria drilling tool according to claim 1 is characterized in that: independent and pressurized handgrip (6) flexible connection of each blade of described blade (4).
