Abstract
The utility model belongs to the technical field of machinery and particularly relates to a tight rope tensioning device applied to various carriers and used for mechanically stabilizing and binding objects born by the carriers. The tight rope tensioning device comprises a rotary shaft, a rotary arm arranged on the rotary shaft and a drive part driving the rotary arm to rotate with the rotary shaft as the axis, wherein the rotary arm is provided with a spoon head portion located at the lower portion and a spoon handle portion located at the upper portion. The spoon head portion is fixedly connected onto the rotary shaft. The top end of the spoon handle portion is connected with a tight rope through a tensioner. The drive part is a telescopic oil cylinder. A piston rod of the telescopic oil cylinder is connected onto the bottom of the spoon head portion. An installing part is arranged at the bottom of the telescopic oil cylinder. Two ends of the rotary shaft are provided with rotary installing parts. By means of the tight rope tensioning device, materials can be effectively and stably bound on a bearing device. The tight rope tensioning device is simple in structure, small in volume, convenient to install and wide in application range, has low requirement to the bearing device and can flexibly installed on various bearing devices.
Description
Technical field
The utility model belongs to field of mechanical technique, is specifically related to a kind of being applied to and on the various carriages carriage institute carrier is carried out the mechanically tight rope tensioning apparatus of firm binding.
Background technology
Adopt the equipment such as mechanical carriage to large-scale material (especially round tubular materials) when carrying or lifting,, all need during loading material is reinforced binding because concussion comes off to cause from carriage damages and dangerous for preventing material.Because haulage equipment need to have larger flexibility and simplicity, and institute's loaded material of wanting is of a great variety, is unsuitable for opening in the loaded down with trivial details specific binding of equipment installation putting.More existing easy methods are at carriage equivalent-load equipment manually operated ratchet to be installed to open the tight rope that assembling device is used for tensioning binding usefulness.
Be the patent of " tensioning apparatus that is used for belt or analog " such as application number 200410062101.8 patent names, a kind of tensioning apparatus is disclosed, it comprises a tensioning frame, a tensioning handle that is rotatably installed on the tensioning frame, be used for starting a belt spool that is rotatably installed in tensioning frame, reaching one drives and locking mechanism, have one and drive ratchet and a locking pawl, drive ratchet and engage with at least one ratchet, this tensioning apparatus can manually be bundled in the material binding on the carriage easier labour-saving.But because the stretching resistance that the device of such small-scale structure itself bears is limited, and the limitation of manual operation manpower size is very large, during for the larger material of binding weight, ratchet rotated to reach the limit of and can not resist the excessive inertia force that produces owing to the concussion material when both having made installation, so this tensioning apparatus can not give the admittedly firm power of tying up of material foot.
The utility model content
The purpose of this utility model be for address the above problem provide a kind of easy can with material tighter tie up automatic rope tightening tensioning apparatus on load bearing equipment.
Above-mentioned technical purpose of the present utility model is achieved by the following technical programs:
A kind of tight rope tensioning apparatus comprises rotating shaft, is arranged at the driver part that turning arm on the rotating shaft and driven rotary arm rotate take rotating shaft as the axle center, and described turning arm has the spoon head section that is positioned at the bottom and superposed spoon section; Described spoon head section is fixed on described rotating shaft; Described spoon section top connects tight rope by stretcher; Described driver part is telescopic oil cylinder; Described telescopic oil cylinder piston rod is connected in described spoon head section bottom; Described telescopic oil cylinder bottom is provided with installing component; Described rotating shaft terminal is provided with the rotation installing component.
Through manual stretcher tentatively be tensioned to can't tighten again manually after, make spoon section drive that stretcher is whole to be pulled back by the electronic telescopic oil cylinder of controlling again, stretcher further drives tight rope and tightens up.The more firm quilt of material is tied up on load bearing equipment, guaranteed that material can be because of the dangerous and damage that road conditions, equipment self problem produce or the material own wt occurs coming off too greatly in handling process.
As preferably, described telescopic oil cylinder and described spoon section are obliquely installed towards the same side.
As preferably, described spoon head section bottom extends to form installation portion to spoon section direction downwards; Described piston rod part and described installation portion are hinged.
Installation portion and spoon section are partly to encircle the version setting of rotating shaft, shorter and smaller installation portion is rotated at the piston rod thrust active force, drive long spoon section reversed turning, because spoon section head, moment is larger, make less piston rod thrust after transforming with larger pulling force from the end output of spoon section, the pulling tight rope more consolidation pinion material.Therefore also reduce the requirement to the flexible dynamics of oil cylinder, can adopt the common telescopic oil cylinder that cost is low, volume is little just can reach the tensile force that needs.
As preferably, described installing component comprise two symmetrically arranged arranged outside be useful on installation tensioner lower ear plate raise connecting plate; Described telescopic oil cylinder bottom is by the oil cylinder connecting plate that is connected with the telescopic oil cylinder one and described to raise connecting plate hinged.
The hinged of oil cylinder bottom guarantees that piston rod oil cylinder in telescopic process can rotate and little swing with the installation portion hinged with it stretching resistance that is connected when preventing from swinging and can produces.Piston rod swings with installation portion flexibly and with the power of maximum contractility is passed to installation portion.
As preferably, described rotation installing component comprises bearing block and is arranged at the bearing that is fixed on the rotating shaft end in the bearing block.
As preferably, described bearing block both sides are provided with the upper ear plate for installation tensioner.
As preferably, described upper ear plate and described lower ear plate are in the same plane.
Only need during installation upper lower ear plate is installed on the load bearing equipment by bolt, just can carry out work, upper lower ear plate volume is little, installs rear painstaking jail, can both install on the tiny pole, can be adapted on the various load bearing equipments applied range.
As preferably, described telescopic oil cylinder and described upper ear plate and plane, lower ear plate place are 5 ~ 20 degree angles.
Raise connecting plate oil cylinder bottom is raised, make oil cylinder and plane, upper lower ear plate place at an angle, can form trying hard to recommend of best connection angle use minimum with installation portion and move the installation portion rotation thereby reach piston rod.The oil contracting that guarantees to stretch is carried out work with maximum effect.
As preferably, described stretcher and described spoon section top are hinged; Interference is provided with elastomeric element between described spoon hinged place, section top and the stretcher.Stretcher along spoon section towards being connected in spoon section.
Buffering by elastomeric element is hinged, guarantee that stretcher can not hang over spoon section and arbitrarily rock the stable fulcrum of neither one when making manual tensioning and operate inconvenience, spoon section is rotated when driving stretcher, angle between stretcher and the spoon section can be regulated voluntarily, make spoon section pulling force maximized be used to the stretcher of pulling back, thus more laborsaving.
As preferably, be provided with one or more turning arms on the described rotating shaft.Only need to install a telescopic oil cylinder on the same load bearing equipment, just can drive all turning arms that are located on the rotating shaft during piston rod running and work thereupon.In sum, the utlity model has following beneficial effect:
1, can be effectively with more firm being bundled on the load bearing equipment of material by this device;
2, spoon head section and rotating shaft is connected, the turnability of rotating shaft, spoon section and stretcher, installation portion and piston rod, oil cylinder bottom with raise the hinged of connecting plate and guaranteed that the contractility on the piston rod can be sent to spoon section with maximum effect, make simultaneously the less contractility on the piston rod be converted into larger pulling force output;
3, the contractility of piston rod transmission efficiency in total is high, has reduced the requirement of telescopic oil cylinder and the requirement of strength of device;
4, this apparatus structure is simple, and volume is little, and is easy for installation, low to the load bearing equipment requirement, can be installed to flexibly on the various load bearing equipments, applied widely;
5, this apparatus structure is simple, and production cost is low.
Description of drawings

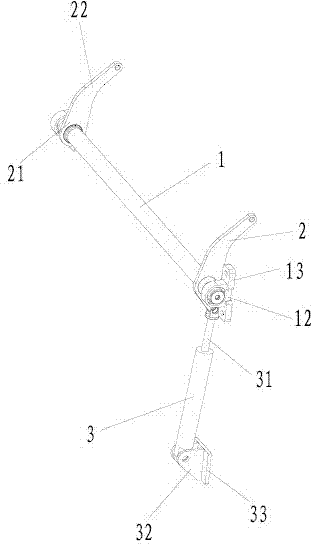

Fig. 1 is tight rope tensioning device structure schematic diagram one;
Fig. 2 is tight rope tensioning device structure schematic diagram two;
1-rotating shaft among the figure, the 11-bearing, 12 bearing blocks, the 13-upper ear plate, the 2-turning arm, 21-spoon head section, 22-spoon section, the 3-telescopic oil cylinder, the 31-piston rod, 32-raises connecting plate, the 33-lower ear plate.
The specific embodiment
Below in conjunction with accompanying drawing the utility model is described in further detail.
This specific embodiment only is to explanation of the present utility model; it is not to restriction of the present utility model; those skilled in the art can make the modification that does not have creative contribution to present embodiment as required after reading this specification, but as long as all are subject to the protection of Patent Law in claim scope of the present utility model.
Embodiment:
As shown in drawings, a kind of tight rope tensioning apparatus, comprise rotating shaft 1, be arranged at the driver part that turning arm 2 on the rotating shaft 1 and driven rotary arm 2 rotate take rotating shaft as the axle center, described turning arm 2 has the spoon head section 21 that is positioned at the bottom and superposed spoon section 22; Described spoon head section 21 is fixed on described rotating shaft 1; Described spoon section 22 tops connect tight rope by stretcher; Described driver part is telescopic oil cylinder 3; Described telescopic oil cylinder 3 piston rods 31 are connected in described spoon head section 21 bottoms; Described telescopic oil cylinder 3 bottoms are provided with installing component; Described rotating shaft 1 two ends are provided with the rotation installing component.
Described telescopic oil cylinder 3 and described spoon section 22 are obliquely installed towards the same side.Described spoon head section 21 bottoms extend to form installation portion to spoon section 22 directions downwards; Described piston rod 31 tops and described installation portion are hinged.Described installing component comprise two symmetrically arranged arranged outside be useful on installation tensioner lower ear plate 33 raise connecting plate 32; Described telescopic oil cylinder 3 bottoms are by the oil cylinder connecting plate that is connected with telescopic oil cylinder 3 one and described to raise connecting plate 32 hinged.Described rotation installing component comprises bearing block 12 and is arranged at the bearing 11 that is fixed on rotating shaft 1 end in the bearing block 12.Described bearing block 12 both sides are provided with the upper ear plate 13 for installation tensioner.Described upper ear plate 13 and described lower ear plate 33 are in the same plane.Described telescopic oil cylinder 3 is 5 ~ 20 degree angles with described upper ear plate 13 and plane, lower ear plate 33 place.Described stretcher and described spoon section 22 tops are hinged; Interference is provided with elastomeric element between described spoon section hinged place, 22 top and the stretcher.Be provided with two turning arms 2 on the described rotating shaft 1.
Through manual stretcher tentatively be tensioned to can't tighten again manually after, make spoon section 22 drive that stretcher is whole to be pulled back by the electronic telescopic oil cylinder 3 of controlling again, stretcher further drives tight rope and tightens up.The more firm quilt of material is tied up on load bearing equipment.
Can be effectively with more firm being bundled on the load bearing equipment of material by this device.And this apparatus structure is simple, and volume is little, and is easy for installation, low to the load bearing equipment requirement, can be installed to flexibly on the various load bearing equipments, applied widely.
Claims (10)
1. tight rope tensioning apparatus, comprise rotating shaft (1), be arranged at the driver part that turning arm (2) on the rotating shaft (1) and driven rotary arm (2) rotate take rotating shaft as the axle center, it is characterized in that: described turning arm (2) has spoon head section (21) and the superposed spoon section (22) that is positioned at the bottom; Described spoon head section (21) is fixed on described rotating shaft (1); Described spoon section (22) top connects tight rope by stretcher; Described driver part is telescopic oil cylinder (3); The piston rod (31) of described telescopic oil cylinder (3) is connected in described spoon head section (21) bottom; Described telescopic oil cylinder (3) bottom is provided with installing component; Described rotating shaft (1) two ends are provided with the rotation installing component.
2. described a kind of tight rope tensioning apparatus according to claim 1, it is characterized in that: described telescopic oil cylinder (3) is obliquely installed towards the same side with described spoon section (22).
3. described a kind of tight rope tensioning apparatus according to claim 1 and 2, it is characterized in that: described spoon head section (21) bottom extends to form installation portion to spoon section (22) direction downwards; Described piston rod (31) top and described installation portion are hinged.
4. described a kind of tight rope tensioning apparatus according to claim 3 is characterized in that: what described installing component comprised that two symmetrically arranged arranged outside are useful on the lower ear plate of installation tensioner (33) raises connecting plate (32); Described telescopic oil cylinder (3) bottom is by the oil cylinder connecting plate that is connected with telescopic oil cylinder (3) one and described to raise connecting plate (32) hinged.
5. described a kind of tight rope tensioning apparatus according to claim 4, it is characterized in that: described rotation installing component comprises bearing block (12) and is arranged at the bearing (11) that is fixed on rotating shaft (1) end in the bearing block (12).
6. described a kind of tight rope tensioning apparatus according to claim 5, it is characterized in that: described bearing block (12) both sides are provided with the upper ear plate (13) for installation tensioner.
7. described a kind of tight rope tensioning apparatus according to claim 6, it is characterized in that: described upper ear plate (13) is in the same plane with described lower ear plate (33).
8. described a kind of tight rope tensioning apparatus according to claim 7, it is characterized in that: described telescopic oil cylinder (3) is 5 ~ 20 degree angles with described upper ear plate (13) and lower ear plate (33) plane, place.
9. described a kind of tight rope tensioning apparatus according to claim 8, it is characterized in that: described stretcher and described spoon section (22) top are hinged; Interference is provided with elastomeric element between described spoon section (22) hinged place, top and the stretcher.
10. described a kind of tight rope tensioning apparatus according to claim 9 is characterized in that: be provided with one or more turning arms (2) on the described rotating shaft (1).
