CN202655300U - Dust cleaning device of pole piece slitting machine - Google Patents
Dust cleaning device of pole piece slitting machine Download PDFInfo
- Publication number
- CN202655300U CN202655300U CN 201220234095 CN201220234095U CN202655300U CN 202655300 U CN202655300 U CN 202655300U CN 201220234095 CN201220234095 CN 201220234095 CN 201220234095 U CN201220234095 U CN 201220234095U CN 202655300 U CN202655300 U CN 202655300U
- Authority
- CN
- China
- Prior art keywords
- pole piece
- vacuum cavity
- dust
- hairbrush
- slit
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Lifetime
Links
Images
Landscapes
- Cleaning In General (AREA)
Abstract
The utility model belongs to the technical field of dust removing device, and in particular relates to a dust cleaning device of a pole piece slitting machine. The dust cleaning device of the pole piece slitting machine comprises a vacuum cavity, wherein the vacuum cavity is respectively provided with a pole piece outlet slit and a pole piece inlet slit; upper hair brushes are arranged at the two sides of the pole piece outlet slit; the two ends of the vacuum cavity are connected with dust collection ports; and the vacuum cavity is a tubular cavity. Compared with the prior art, the dust cleaning device disclosed by the utility model has the advantages that negative pressure in the vacuum cavity can promote jet stream to be formed between the pole piece inlet slit and the pole piece outlet slit; the jet stream can be directly acted on the surface of a pole piece, and dust can be removed; meanwhile, the upper hair brushes arranged at the two sides of the pole piece outlet slit can finally and thoroughly clean residual dust, and high dust removal rate is guaranteed; moreover, the cross section of the vacuum cavity is circular or elliptical, and a plane on which dust can be resident is arranged inside the vacuum cavity, so that the dust can be prevented from being resident inside the vacuum cavity; and besides, the jet stream of the pole piece outlet slit can blow away the dust embedded in the hair brushes, so that secondary pollution can not be caused.
Description
Technical field
The utility model belongs to the dust arrester technical field, relates in particular to a kind ofly both can guarantee dust removal efficiency, can avoid again dust granules resident in air velocity lower region and the hairbrush in vacuum cavity, thereby reduces the polar sheat slicing machine dust scavenge unit of secondary pollution.
Background technology
Battery pole piece is as the important component part of lithium ion battery, and its micro-structural has very important impact for the performance of lithium ion battery.The production process of lithium ion battery generally comprises stirring, is coated with, colds pressing, itemize, coiling or lamination, fluid injection, encapsulate, change into and capacity etc.Wherein, battery pole piece produces free particles easily when being compacted itemize, the pole piece surface is polluted, and the internal resistance of cell and self-discharge performance are had a negative impact.In order to strengthen the stability of battery performance, battery production producer has relatively high expectations to the dust size of pole piece remained on surface and what, the General Requirements battery pole piece in the divided by maximum granularity of the dust of coiling front surface below 8 μ m.If the particle of the residual large-size on pole piece surface will cause the local micro-structural stress of lithium ion battery to concentrate, cause the local damage when further processing and use procedure, cause easily security incident.
Brush dust dust exhaust apparatus on the banding machine generally comprises vacuum chamber and is placed on the interior hairbrush of described vacuum chamber at present.Because wind speed profile is inconsistent in the vacuum chamber, cause easily the resident in a large number of wind speed lower region particle in the chamber, affect battery performance.And adopt the hairbrush brush dust, and the particle on pole piece surface often can appear embedding in the hairbrush, cause the secondary pollution to pole piece.
In view of this, necessaryly provide a kind of and both can guarantee dust removal efficiency, can avoid again dust granules resident in air velocity lower region and the hairbrush in vacuum cavity, thereby reduce the polar sheat slicing machine dust scavenge unit of secondary pollution.
Summary of the invention
The purpose of this utility model is: for the deficiencies in the prior art, and provide a kind of dust removal efficiency that both can guarantee, can avoid again dust granules resident in air velocity lower region and the hairbrush in vacuum cavity, thereby reduce the polar sheat slicing machine dust scavenge unit of secondary pollution, polar sheat slicing machine dust scavenge unit efficiency of dust collection of the prior art is not high to overcome, easy resident in vacuum cavity and hairbrush, the deficiency that causes secondary pollution of dust granules.
In order to achieve the above object, the utility model adopts following technical scheme:
A kind of polar sheat slicing machine dust scavenge unit, comprise vacuum cavity, offer respectively pole piece exit slit and pole piece entrance slit on the described vacuum cavity, described pole piece exit slit both sides are provided with hairbrush, the two ends of described vacuum cavity are connected with suction port, and described vacuum cavity is tubular housing.
As a kind of improvement of the utility model polar sheat slicing machine dust scavenge unit, the cross section of described vacuum cavity is circular.
As a kind of improvement of the utility model polar sheat slicing machine dust scavenge unit, the cross section of described vacuum cavity is oval.
As a kind of improvement of the utility model polar sheat slicing machine dust scavenge unit, described pole piece entrance slit both sides are provided with lower hairbrush.
As a kind of improvement of the utility model polar sheat slicing machine dust scavenge unit, described upper hairbrush is uniformly distributed in the both sides of described pole piece exit slit, and described lower hairbrush is uniformly distributed in the both sides of described pole piece entrance slit.
As a kind of improvement of the utility model polar sheat slicing machine dust scavenge unit, two suction ports at the two ends of described vacuum cavity are in smoothing junction with described vacuum cavity respectively.
As a kind of improvement of the utility model polar sheat slicing machine dust scavenge unit, described pole piece entrance slit and described pole piece exit slit are symmetrically distributed in described vacuum cavity.
As a kind of improvement of the utility model polar sheat slicing machine dust scavenge unit, two suction ports at the two ends of described vacuum cavity are symmetrically distributed in the two ends of described vacuum cavity.
With respect to prior art, the negative pressure in the vacuum cavity of the present utility model can be impelled between pole piece entrance slit and the pole piece exit slit and form high velocity air, but this air-flow direct effect is removed dust to the pole piece surface; Simultaneously, the upper hairbrush that is positioned at pole piece exit slit both sides can carry out last thoroughly cleaning to residual dust, guarantees high dust removal efficiency, improves the surface quality of pole piece, has improved cycle performance and the security performance of battery.And vacuum cavity is tubular housing, and its inside does not have the plane that dust can be resident, therefore can prevent resident in vacuum cavity inside of dust; In addition, the high velocity air of pole piece exit slit can blow away the dust that embeds in the hairbrush, realizes the automatically cleaning of hairbrush, avoids causing secondary pollution.
Description of drawings
Below in conjunction with the drawings and specific embodiments the utility model and beneficial effect thereof are conducted further description.
Fig. 1 is front view of the present utility model.
Fig. 2 is side view of the present utility model.

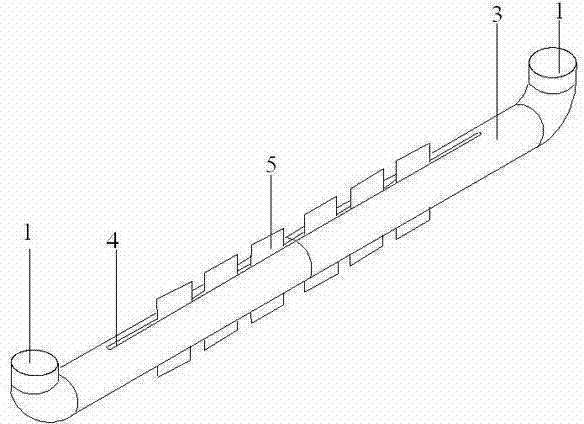

Fig. 3 is stereogram of the present utility model.
The specific embodiment
Below in conjunction with the specific embodiment and Figure of description the utility model and beneficial effect thereof are done further detailed description, but embodiment of the present utility model is not limited to this.
Such as Fig. 1, Fig. 2 and shown in Figure 3, a kind of polar sheat slicing machine dust scavenge unit that the utility model provides, comprise vacuum cavity 3, offer respectively pole piece exit slit 4 and pole piece entrance slit 8 on the vacuum cavity 3, pole piece exit slit 4 both sides are provided with hairbrush 6, the two ends of vacuum cavity 3 are connected with suction port 1, and vacuum cavity 3 is tubular housing.
Wherein, the cross section of vacuum cavity 3 is circular or oval, and this tube type vacuum cavity 3 inside do not have the plane that dust can be resident, therefore can prevent resident in vacuum cavity 3 inside of dust, avoids causing secondary pollution.The design of the structure of vacuum cavity 3 is got by the hydrodynamic simulation analysis optimization, saves to greatest extent source of the gas when guaranteeing dust removing effects, and guarantees that simultaneously the horizontal wind speed on the pole piece 5 is consistent.When the cross section of vacuum cavity 3 is circle, can satisfy above-mentioned requirements.
Wherein, the negative pressure in the vacuum cavity 3 impels pole piece entrance slit 8 and pole piece exit slit 4 to form high velocity air, but direct effect is removed dust to pole piece 5 surfaces.And the upper hairbrush 6 that pole piece exit slit 4 both sides are arranged can carry out last thorough cleaning to residual dust, gas shock and hairbrush brush dust, and two kinds of dedusting method actings in conjunction can be guaranteed high dust removal efficiency.
Wherein, pole piece entrance slit 8 both sides are provided with lower hairbrush 7.Upper hairbrush 6 and lower hairbrush 7 play sealing function, prevent vacuum cavity 1 excessive decompression.
Two suction ports 1 and vacuum cavity 3 smooth connections at the two ends of vacuum cavity 3, concrete, suction port 1 and the integral body of vacuum cavity 3 for seamlessly transitting are to reduce to greatest extent the obstruction in the dust path.
Pole piece entrance slit 8 and pole piece exit slit 4 are symmetrically distributed on the vacuum cavity 3, are convenient to the air-flow stepless action in the pole piece 5 between pole piece entrance slit 8 and pole piece exit slit 4.
Two suction ports 1 at the two ends of vacuum cavity 3 are symmetrically distributed in the two ends of vacuum cavity 3, are convenient to the sucking-off of the dust granules in the vacuum cavity 3.
During actual the use, pole piece 5 from bottom to top enters from pole piece entrance slit 8, passes the lower hairbrush 7 of two rows, enters vacuum cavity 3.For avoiding lower hairbrush 7 that dust is brushed out vacuum cavity 3, lower hairbrush 7 should have certain aperture.
The pole piece 5 of operation is subject to the impact from the high velocity air of pole piece entrance slit 8 and pole piece exit slit 4 in vacuum cavity 3, finishes first dedusting action (air flow impact type dedusting).The lower hairbrush 7 that is arranged at pole piece entrance slit 8 both sides can prevent vacuum cavity 3 excessive decompressions with the upper hairbrush 6 that is arranged at pole piece exit slit 4 both sides, can guarantee the wind speed of impact airflow simultaneously, guarantees the dynamics of air flow impact type dedusting.
Dust by under the lector removing via vacuum cavity 3, is siphoned away by the suction port 1 that is positioned at vacuum cavity 3 two ends, finishes the dedusting action.
The dust of not removed by air flow impact type dedusting action then is with supreme hairbrush 6 places by pole piece 5, and for guaranteeing brush dust dynamics and enough large gas shock dynamics, upper hairbrush 6 needs to arrange less aperture.Pole piece 5 passes the upper hairbrush 6 of two rows' " curtain-type " simultaneously, and residual dust is lower by upper hairbrush 6 brushes, and the dust under the brush is siphoned away by the suction port 1 that is positioned at vacuum cavity 3 two ends via vacuum cavity 3, finishes second dedusting action (dedusting of hairbrush brush dust).
Dust removal efficiency has been guaranteed in two kinds of dedusting actions (air flow impact type dedusting and the dedusting of hairbrush brush dust), the dust that embeds simultaneously in upper hairbrush 6 and the lower hairbrush 7 impacts through the high velocity air that pole piece entrance slit 8 and pole piece exit slit 4 enter, be blown into vacuum cavity 3, thereby realize the cleaning of upper hairbrush 6 and lower hairbrush 7.
And tube type vacuum cavity 3, and guaranteed that with the smooth connection of suction port 1 vacuum cavity 3 is interior without the dead angle, dust is difficult for resident.
The according to the above description announcement of book and instruction, the utility model those skilled in the art can also carry out suitable change and modification to above-mentioned embodiment.Therefore, the specific embodiment that discloses and describe above the utility model is not limited to also should fall in the protection domain of claim of the present utility model modifications and changes more of the present utility model.In addition, although used some specific terms in this specification, these terms do not consist of any restriction to the utility model just for convenience of description.
Claims (8)
1. polar sheat slicing machine dust scavenge unit, it is characterized in that: comprise vacuum cavity, offer respectively pole piece exit slit and pole piece entrance slit on the described vacuum cavity, described pole piece exit slit both sides are provided with hairbrush, the two ends of described vacuum cavity are respectively arranged with suction port, and described vacuum cavity is tubular housing.
2. polar sheat slicing machine dust scavenge unit according to claim 1 is characterized in that: the cross section of described vacuum cavity is for circular.
3. polar sheat slicing machine dust scavenge unit according to claim 1 is characterized in that: the cross section of described vacuum cavity is for oval.
4. polar sheat slicing machine dust scavenge unit according to claim 1, it is characterized in that: described pole piece entrance slit both sides are provided with lower hairbrush.
5. polar sheat slicing machine dust scavenge unit according to claim 4, it is characterized in that: described upper hairbrush is uniformly distributed in the both sides of described pole piece exit slit, and described lower hairbrush is uniformly distributed in the both sides of described pole piece entrance slit.
6. polar sheat slicing machine dust scavenge unit according to claim 1 is characterized in that: two suction ports at the two ends of described vacuum cavity are in smoothing junction with described vacuum cavity respectively.
7. polar sheat slicing machine dust scavenge unit according to claim 1, it is characterized in that: described pole piece entrance slit and described pole piece exit slit are symmetrically distributed in described vacuum cavity.
8. polar sheat slicing machine dust scavenge unit according to claim 1, it is characterized in that: two suction ports at the two ends of described vacuum cavity are symmetrically distributed in the two ends of described vacuum cavity.
