The utility model discloses a straightness measuring device for a washing machine control panel, and belongs to the technical field of straightness measuring devices. A first bottom positioning block, a second bottom positioning block, a first side positioning block, a second side positioning block and a guide rail of the straightness measuring device for the washing machine control panel are positioned on the upper surface of a base and are fixedly connected with the base, the first bottom positioning block and the second bottom positioning block are distributed at two ends of the bottom in the length direction of the base, a threaded hole is arranged on the first bottom positioning block, and an adjusting nut is screwed in the threaded hole, the first side positioning block and the second side positioning block are distributed at two side edges of the base, the guide rail is arranged at the top of the base along the length direction, a moving gauge stand is arranged on the guide rail in a sliding fit manner, and a measuring mechanism is mounted on the moving gauge stand. The straightness of a surface to be measured is rapidly and accurately measured, working efficiency is improved, and the straightness measuring device is high in accuracy.

Description

A kind of washer control panel linearity measurer
Technical field
The utility model relates to the linearity measurer technical field, more particularly, relates to a kind of washer control panel linearity measurer.
Background technology
Whether the panel class workpiece of household electrical appliance all needs by quality requirements test linearity tolerance, qualified to differentiate product.The production run that affects linearity has multiple tracks, and forming process, mould precision etc. all can cause product section or in batches crooked, must fast detecting in the transfer of product or handshaking, check and accept goods, not affect the manufacturing schedule of product.
The washer control panel linearity all needs to measure, its structural representation as shown in Figure 1, wherein being tested surface M is the plane that needs the detection of straight lines degree, existing detection method commonly used mainly contains following two kinds:
(1) rolling clearance gauge method on the leveling board: its weak point is that error is large, mainly is that the detection position is determined by artificial visual, and easily cause measuring out of true, the smooth leveling board in working site also is not easy to find, and testing efficiency is low.
(2) Instrument for Straightness detects: the method measuring accuracy is high, but apparatus expensive, volume is large, is inconvenient to carry, and field test is large to device damage, must be placed in inspection center, can not accomplish that production site detects, with producing with inspection, and the equipment adjustment process is complicated, can't satisfy the requirement of fast detecting in the production run, practicality is not high.
In addition, the measurement of linearity also has adopts a plurality of dial gauges to carry out multimetering, the method exist equally degree of accuracy poor, adjust difficulty, inefficient deficiency.
China Patent No. ZL200920071423.7, Granted publication day is on February 17th, 2010, invention and created name is: a kind of simple and easy Instrument for Straightness of long pole, this measuring instrument comprises that a pair of bearing, horizon crossing are between the described bearing and the thick guide rail that is parallel to each other and thin guide rail, be fixed in the dial gauge on the thick guide rail, the test tack of described dial gauge is located between thick guide rail and the thin guide rail, described measuring instrument also comprises two slide blocks that can move along thick guide rail and thin guide rail, and this slide block is provided with spring holding device.In addition, China Patent No. ZL 200810022204.X, the applying date is on June 27th, 2008, invention and created name is: slide rail linearity testing apparatus.China Patent No. ZL 201020155586.6, and the applying date is on March 26th, 2010, and invention and created name is: device for measuring straightness of upper die of bending machine.Above-mentioned disclosed technological document has solved the straight line degree measurement problem to a certain extent, but structure is all comparatively complicated, and can not realize fast detecting, adjusts difficulty.
Therefore, according to the Production requirement of reality, the fast simple washer control panel linearity measurer that satisfies under certain measuring accuracy condition is in demand.
Summary of the invention
The technical matters that utility model will solve
The purpose of this utility model be to overcome in the prior art washer control panel straight line degree measurement degree of accuracy poor, adjust difficulty, inefficient deficiency, a kind of washer control panel linearity measurer is provided, pass through the utility model, can realize quick and precisely measuring the linearity of being tested surface, efficient is high, and equipment operating is simple.
Technical scheme
For achieving the above object, the technical scheme that the utility model provides is:
A kind of washer control panel linearity measurer of the present utility model, comprise base, also comprise the first end locating piece, the second end locating piece, the first side locating piece, the second side locating piece, setting nut, guide rail and measuring mechanism, wherein: described the first end locating piece, the second end locating piece, the first side locating piece, the second side locating piece and guide rail are positioned at the upper surface of base, and be connected mutually with base, the first above-mentioned end locating piece and the second end locating piece are distributed in the two ends, bottom on the base length direction, wherein the first end locating piece is provided with screw, described setting nut screws in above-mentioned screw, and the first above-mentioned side locating piece and the second side locating piece are distributed in the dual-side of base; Described guide rail arranges along the top on the base length direction, is sliding combined with mobile gauge stand on the above-mentioned guide rail, and this moves measuring mechanism is installed on the gauge stand.
Further, also comprise the first keel, the second keel and supporting lug, described the first keel is positioned at a side of the first end locating piece, is connected mutually with base; Described the second keel is positioned at a side of the second end locating piece, is connected mutually with base; Described supporting lug parallels setting with guide rail, and is connected mutually with base.
Further, described measuring mechanism is dial gauge, and the gauge head of this dial gauge contacts with being tested surface.
Further, be fastenedly connected by screw between described guide rail and the base.
Further, be fastenedly connected by screw between described supporting lug and the base.
Further, described supporting lug is strip structure, and upper surface is the plane.
Beneficial effect
The technical scheme that adopts the utility model to provide is compared with existing known technology, has following beneficial effect:
(1) a kind of washer control panel linearity measurer of the present utility model, position by the washer control panel of a plurality of locating pieces to linearity to be measured, and a dial gauge on the employing guide rail is measured being tested surface, realized quick and precisely measuring the linearity of being tested surface, improved work efficiency, and precision is high;
(2) a kind of washer control panel linearity measurer of the present utility model, its first end locating piece is provided with setting nut, the adjusting work before can realizing preparing fast to measure, equipment operating is simple;
(3) a kind of washer control panel linearity measurer of the present utility model is simple in structure, be easy to make, and low production cost, and reliability is high.
Description of drawings
Fig. 1 is the washer control panel structural representation of linearity to be measured;

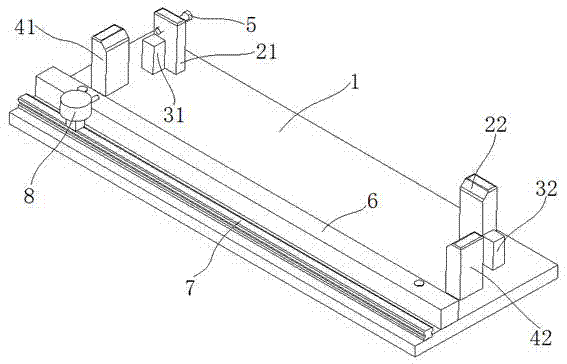

Fig. 2 is the structural representation of a kind of washer control panel linearity measurer of the present utility model;
Fig. 3 is use constitutional diagram of the present utility model.
Label declaration in the schematic diagram:
The 1-base; First end of 21-locating piece; Second end of 22-locating piece; 31-the first keel; 32-the second keel; 41-the first side locating piece; 42-the second side locating piece; The 5-setting nut; The 6-supporting lug; The 7-guide rail; The 8-measuring mechanism; The 9-washer control panel; The M-being tested surface.
Embodiment
For further understanding content of the present utility model, by reference to the accompanying drawings the utility model is described in detail.
In conjunction with Fig. 2 and Fig. 3, a kind of washer control panel linearity measurer of the present utility model comprises base 1, the first end locating piece 21, the second end locating piece 22, the first keel 31, the second keel 32, the first side locating piece 41, the second side locating piece 42, setting nut 5, supporting lug 6, guide rail 7 and measuring mechanism 8.
The first end locating piece 21 of the present utility model, the second end locating piece 22, the first side locating piece 41, the second side locating piece 42 and guide rail 7 are positioned at the upper surface of base 1, and be connected mutually with base 1, the first above-mentioned end locating piece 21 and the second end locating piece 22 are distributed in the two ends, bottom on base 1 length direction, wherein the first end locating piece 21 is provided with screw, described setting nut 5 screws in above-mentioned screw, and the first above-mentioned side locating piece 41 and the second side locating piece 42 are distributed in the dual-side of base 1; Guide rail 7 of the present utility model arranges along the top on base 1 length direction, is sliding combined with mobile gauge stand on the above-mentioned guide rail 7, and this moves measuring mechanism 8 is installed on the gauge stand; The first keel 31 of the present utility model is positioned at a side of the first end locating piece 21, is connected mutually with base 1; Described the second keel 32 is positioned at a side of the second end locating piece 22, is connected mutually with base 1; Described supporting lug 6 parallels setting with guide rail 7, and is connected mutually with base 1.
The utility model will be further described below in conjunction with embodiment.
Embodiment 1
A kind of washer control panel linearity measurer of the present embodiment is comprised of base 1, the first end locating piece 21, the second end locating piece 22, the first keel 31, the second keel 32, the first side locating piece 41, the second side locating piece 42, setting nut 5, supporting lug 6, guide rail 7 and measuring mechanism 8 etc.The first end locating piece 21 in the present embodiment, the second end locating piece 22, the first side locating piece 41, the second side locating piece 42, supporting lug 6 and guide rail 7 all are positioned at the upper surface of base 1, be fastenedly connected by screw between guide rail 7 and the base 1, the first above-mentioned end locating piece 21 and the second end locating piece 22 are distributed in the two ends, bottom on base 1 length direction, wherein the first end locating piece 21 is provided with screw, described setting nut 5 screws in above-mentioned screw, the first above-mentioned side locating piece 41 and the second side locating piece 42 are distributed in the dual-side of base 1, the first end locating piece 21 in the utility model, the second end locating piece 22, the first side locating piece 41 and the second side locating piece 42 position washer control panel 9 jointly; Guide rail 7 arranges along the top on base 1 length direction, be sliding combined with mobile gauge stand on the above-mentioned guide rail 7, this moves measuring mechanism 8 is installed on the gauge stand, and the measuring mechanism 8 of the present embodiment is dial gauge, the gauge head of this dial gauge contacts with being tested surface M, as shown in Figure 3; The first keel 31 of the present utility model is positioned at a side of the first end locating piece 21, the second keel 32 is positioned at a side of the second end locating piece 22, supporting lug 6 parallels setting with guide rail 7, be fastenedly connected by screw between the supporting lug 6 of the present embodiment and the base 1, supporting lug 6 is strip structure, upper surface is the plane, the first keel 31 in the utility model, the second keel 32 and supporting lug 6 are used for supporting the washer control panel 9 of linearity to be measured, so that the gauge head of being tested surface M and dial gauge is perpendicular.
During use, the washer control panel 9(that needs are measured is as shown in Figure 1) be placed on (as shown in Figure 3) on the measurement mechanism of the present utility model, dial gauge is slided into a end away from setting nut 5 at guide rail 7, and the number of degrees of dial gauge are made zero, then dial gauge is moved to the end near setting nut 5, rotate setting nut 5 this moment, the number of degrees of dial gauge are made zero, namely finished the adjusting work before measuring, again dial gauge is slided into the other end from an end of guide rail 7, the demonstration numerical value of dial gauge is the linearity numerical value of being tested surface M, the utility model practicality simple to operate, and measure accurately.
Below schematically the utility model and embodiment thereof are described, this description does not have restricted, and shown in the accompanying drawing also is one of embodiment of the present utility model, and actual structure is not limited to this.So, if those of ordinary skill in the art is enlightened by it, create aim in the situation that do not break away from the utility model, without the creationary frame mode similar to this technical scheme and the embodiment of designing, all should belong to protection domain of the present utility model.

Claims (6)

1. washer control panel linearity measurer, comprise base (1), it is characterized in that: also comprise the first end locating piece (21), the second end locating piece (22), the first side locating piece (41), the second side locating piece (42), setting nut (5), guide rail (7) and measuring mechanism (8), wherein:
Described the first end locating piece (21), the second end locating piece (22), the first side locating piece (41), the second side locating piece (42) and guide rail (7) are positioned at the upper surface of base (1), and be connected mutually with base (1), the first above-mentioned end locating piece (21) and the second end locating piece (22) are distributed in the two ends, bottom on base (1) length direction, wherein the first end locating piece (21) is provided with screw, described setting nut (5) screws in above-mentioned screw, and the first above-mentioned side locating piece (41) and the second side locating piece (42) are distributed in the dual-side of base (1);
Described guide rail (7) arranges along the top on base (1) length direction, and above-mentioned guide rail is sliding combined with mobile gauge stand on (7), and this moves measuring mechanism (8) is installed on the gauge stand.
2. a kind of washer control panel linearity measurer according to claim 1, it is characterized in that: also comprise the first keel (31), the second keel (32) and supporting lug (6), described the first keel (31) is positioned at a side of the first end locating piece (21), is connected mutually with base (1); Described the second keel (32) is positioned at a side of the second end locating piece (22), is connected mutually with base (1); Described supporting lug (6) parallels setting with guide rail (7), and is connected mutually with base (1).
3. a kind of washer control panel linearity measurer according to claim 2, it is characterized in that: described measuring mechanism (8) is dial gauge, and the gauge head of this dial gauge contacts with being tested surface (M).
4. it is characterized in that: be fastenedly connected by screw between described guide rail (7) and the base (1) according to claim 2 or 3 described a kind of washer control panel linearity measurers.
5. a kind of washer control panel linearity measurer according to claim 4 is characterized in that: be fastenedly connected by screw between described supporting lug (6) and the base (1).
6. a kind of washer control panel linearity measurer according to claim 5 is characterized in that: described supporting lug (6) is strip structure, and upper surface is the plane.
