CN202636706U - Heat-insulating bottle plug - Google Patents
Heat-insulating bottle plug Download PDFInfo
- Publication number
- CN202636706U CN202636706U CN 201220120429 CN201220120429U CN202636706U CN 202636706 U CN202636706 U CN 202636706U CN 201220120429 CN201220120429 CN 201220120429 CN 201220120429 U CN201220120429 U CN 201220120429U CN 202636706 U CN202636706 U CN 202636706U
- Authority
- CN
- China
- Prior art keywords
- plug
- air flue
- plug head
- bottle
- airway
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Abstract
The utility model discloses a heat-insulating bottle plug. The structure is as follows: a hole penetrating up and down is formed at the middle of a plug body; a ventilation channel is arranged at the lower end of the hole, and an air overflow channel is arranged at the upper end of the hole; a notch is formed on the air overflow channel; the circular centres of the ventilation channel, the air overflow channel and the notch are located on the same central axis; a plug head is arranged in the ventilation channel; the plug head is conical on the whole, and the upper end of the plug head penetrates through the air overflow channel via a connection rod and is fixedly connected with a button which is arranged in the notch; a tension spring is sleeved on the connection rod, the lower end of the tension spring is fixedly connected with the plug head, and the upper end of the tension spring is fixed on the sidewall of the air overflow channel; an inclined conical surface fitting the plug head is arranged between the ventilation channel and the air overflow channel; and in the case that the tension spring applies tension on the plug head, the plug head can be automatically plugged on the inclined conical surface between the ventilation channel and the air overflow channel. The heat-insulating bottle plug disclosed by the utility model is simple in structure and ingenious in conception; and because the plug head is under the action of the tension spring, the air pressure in a bottle is always equivalent to the air pressure outside the bottle.
Description
Technical field
The utility model relates to the daily life tools field, is specifically related to a kind of plug for vacuum bottle.
Background technology
In the process of routine use thermos bottle; usually the phenomenon that bottle stopper can pull out out can appear; if extract by force; the careless slightly interior hot water of water bottle that will make spills; thereby cause the phenomenon of scalding; this be since at present common bottle stopper mostly be greatly wooden entity structure manufacturing and form, and the air in the bottle is behind drop in temperature, due to the inner contraction of gas.
Summary of the invention
The utility model purpose provides a kind of plug for vacuum bottle, effectively solves existing problem in the background technology.
In order to solve existing problem in the background technology, it comprises the bottle stopper body, the middle part of this bottle stopper body is provided with the hole of up/down perforation, the lower end in this hole is provided with airway, its upper end is the air flue that overflows, the top of air flue that overflow is recess 7, described airway, the center of circle of excessive air flue and recess 7 is on the same axis, plug is arranged in the airway, this plug integral body is conical, button in its upper end is passed excessive air flue and is arranged on recess 7 by connecting rod is fixedly connected with, and extension spring is enclosed within on the connecting rod, and its lower end is fixedly connected with plug, its upper end is fixed on the sidewall of the air flue that overflows, between airway and excessive air flue, be provided with the scalene cone of applying plug, extension spring when plug is applied pulling force, plug just can automatic blocking on the scalene cone between airway and the excessive air flue.
Scribble antirusting paint in the described extension spring.
Owing to having adopted above technical scheme, the utlity model has following beneficial effect: simple in structure, be skillfully constructed, because under the effect of plug in extension spring, so that the air pressure in the bottle is suitable with the outer air pressure of bottle all the time, be very easy to when extracting, and the effect that plug has also played well and air is isolated, even the situation that bottle stopper is held occurs, only button need be pressed and put into gas, can reach the purpose of air pressure balance.
Description of drawings
In order to be illustrated more clearly in the utility model, the below will be to doing simple introduction to embodiment by reference to the accompanying drawings.

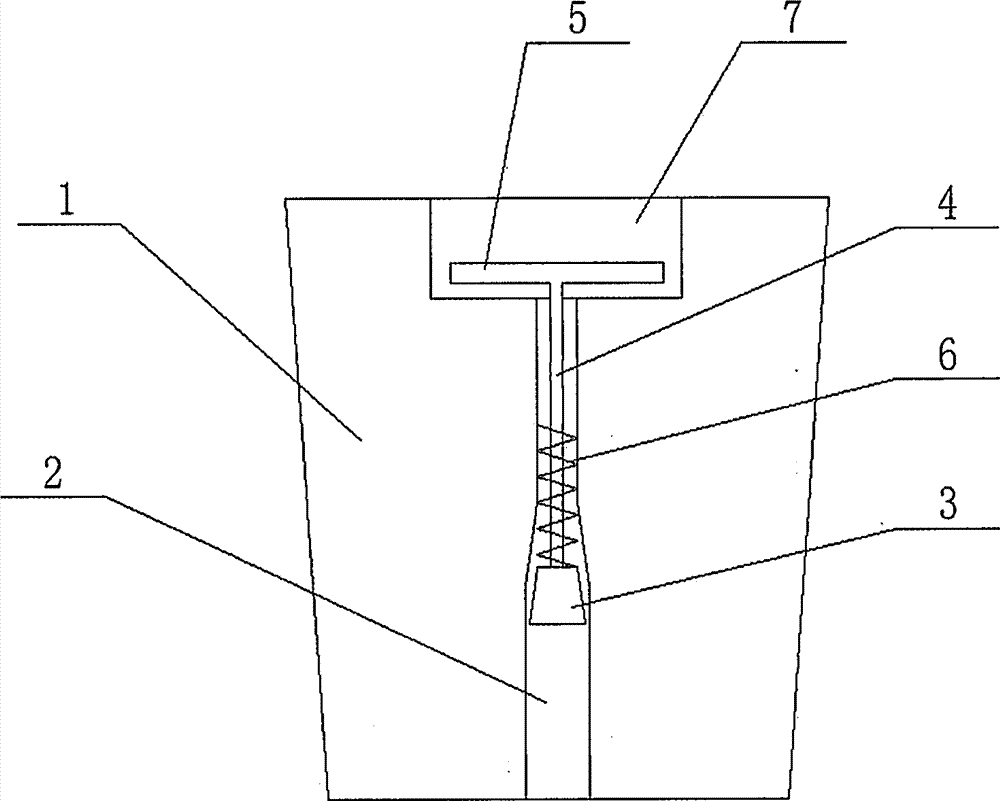

Fig. 1 is structural representation of the present utility model.
The specific embodiment
For technological means, creation characteristic that the utility model is realized, reach purpose and effect is easy to understand, the accompanying drawing below in conjunction with among the utility model embodiment is clearly and completely described the technical scheme among the utility model embodiment.
Referring to Fig. 1, this specific embodiment is to be achieved by the following technical solutions, it comprises bottle stopper body 1, the middle part of this bottle stopper body 1 is provided with the hole 2 of up/down perforation, the lower end in this hole 2 is provided with airway, its upper end is the air flue that overflows, the top of air flue that overflow is recess 7, described airway, the center of circle of excessive air flue and recess 7 is on the same axis, plug 3 is arranged in the airway, and these plug 3 integral body are conical, and the button 5 in its upper end is passed excessive air flue and is arranged on recess 7 by connecting rod 4 is fixedly connected with, extension spring 6 is enclosed within on the connecting rod 4, its lower end is fixedly connected with plug 3, and its upper end is fixed on the sidewall of the air flue that overflows, and is provided with the scalene cone of applying plug 3 between airway and excessive air flue, extension spring 6 when plug 3 is applied pulling force, plug 3 just can automatic blocking on the scalene cone between airway and the excessive air flue.
Scribble antirusting paint in the described extension spring 6.
Owing to having adopted above technical scheme, this specific embodiment has following beneficial effect: simple in structure, be skillfully constructed, because under the effect of plug in extension spring, so that the air pressure in the bottle is suitable with the outer air pressure of bottle all the time, be very easy to when extracting, and the effect that plug has also played well and air is isolated, even the situation that bottle stopper is held occurs, only button need be pressed and put into gas, can reach the purpose of air pressure balance.
It should be noted that at last: above embodiment only in order to the technical solution of the utility model to be described, is not intended to limit; Although with reference to previous embodiment the utility model is had been described in detail, those of ordinary skill in the art is to be understood that: it still can be made amendment to the technical scheme that aforementioned each embodiment puts down in writing, and perhaps part technical characterictic wherein is equal to replacement; And these modifications or replacement do not make the essence of appropriate technical solution break away from the spirit and scope of each embodiment technical scheme of the utility model.
Claims (2)
1. plug for vacuum bottle, it comprises bottle stopper body (1), it is characterized in that the middle part of this bottle stopper body (1) is provided with the hole (2) of up/down perforation, the lower end in this hole (2) is provided with airway, its upper end is the air flue that overflows, the top of air flue that overflow is recess (7), described airway, the center of circle of excessive air flue and recess (7) is on the same axis, plug (3) is arranged in the airway, this plug (3) integral body is conical, its upper end is passed the air flue that the overflows button (5) interior with being arranged on recess (7) by connecting rod (4) and is fixedly connected with, extension spring (6) is enclosed within on the connecting rod (4), its lower end is fixedly connected with plug (3), its upper end is fixed on the sidewall of the air flue that overflows, be provided with the scalene cone of applying plug (3) between airway and excessive air flue, extension spring (6) is to plug (3) when applying pulling force, plug (3) just can automatic blocking on the scalene cone between airway and the excessive air flue.
2. a kind of plug for vacuum bottle according to claim 1 is characterized in that scribbling antirusting paint in the described extension spring (6).
Priority Applications (1)
Application Number | Priority Date | Filing Date | Title |
---|---|---|---|
CN 201220120429 CN202636706U (en) | 2012-03-26 | 2012-03-26 | Heat-insulating bottle plug |
Applications Claiming Priority (1)
Application Number | Priority Date | Filing Date | Title |
---|---|---|---|
CN 201220120429 CN202636706U (en) | 2012-03-26 | 2012-03-26 | Heat-insulating bottle plug |
Publications (1)
Publication Number | Publication Date |
---|---|
CN202636706U true CN202636706U (en) | 2013-01-02 |
Family
ID=47405902
Family Applications (1)
Application Number | Title | Priority Date | Filing Date |
---|---|---|---|
CN 201220120429 Expired - Fee Related CN202636706U (en) | 2012-03-26 | 2012-03-26 | Heat-insulating bottle plug |
Country Status (1)
Country | Link |
---|---|
CN (1) | CN202636706U (en) |
Cited By (1)
Publication number | Priority date | Publication date | Assignee | Title |
---|---|---|---|---|
CN108269625A (en) * | 2016-12-30 | 2018-07-10 | 中核核电运行管理有限公司 | A kind of multi-functional anti-foreign matter blocking component of heavy water reactor Steam Generators in NPP hand hole |
-
2012
- 2012-03-26 CN CN 201220120429 patent/CN202636706U/en not_active Expired - Fee Related
Cited By (1)
Publication number | Priority date | Publication date | Assignee | Title |
---|---|---|---|---|
CN108269625A (en) * | 2016-12-30 | 2018-07-10 | 中核核电运行管理有限公司 | A kind of multi-functional anti-foreign matter blocking component of heavy water reactor Steam Generators in NPP hand hole |
Similar Documents
Publication | Publication Date | Title |
---|---|---|
CN202636706U (en) | Heat-insulating bottle plug | |
CN204483708U (en) | A kind of disposable milky tea cup with telescopic sucking tube | |
CN201901312U (en) | Easily removed bottle stopper | |
CN204055029U (en) | With the pen of ink bottle for subsequent use | |
CN202997187U (en) | Plug with draw ring | |
CN202078040U (en) | Extendible chopstick | |
CN106012351B (en) | A kind of eedle | |
CN205695685U (en) | A kind of water storage ashtray of anti-air-breathing | |
CN204132669U (en) | A kind of hair-dryer sizing cover with equal wind function | |
CN204622907U (en) | A kind of carbon pen | |
CN202525968U (en) | Novel insulating bottle stopper | |
CN202201302U (en) | Lifting type bottle cap | |
CN207949543U (en) | A kind of new structural goblet | |
CN204211697U (en) | A kind of can the vapourizing furnace that gets loose of anti-tail cap | |
CN207197550U (en) | Examine instrument interface in a kind of end | |
CN204362950U (en) | A kind of Smoking pipe with refrigeration | |
CN202892531U (en) | Dropper | |
CN203943450U (en) | Clothes hanging | |
CN203090947U (en) | Chemical reagent bottle | |
CN206756191U (en) | A kind of air measuring appliance shell | |
CN204467661U (en) | Paper cup holder | |
CN203564157U (en) | Bath device | |
CN103156481B (en) | The combination of slot type chopsticks rack and chopsticks | |
CN204701318U (en) | Cloth to be rule special pens | |
CN203017717U (en) | Anti-drop shuttlecock |
Legal Events
Date | Code | Title | Description |
---|---|---|---|
C14 | Grant of patent or utility model | ||
GR01 | Patent grant | ||
CF01 | Termination of patent right due to non-payment of annual fee |
Granted publication date: 20130102 Termination date: 20150326 |
|
EXPY | Termination of patent right or utility model |
