The utility model discloses a folding pull-type clothes support which comprises a rack and hangers arranged on the rack. The rack consists of a first rack and a second rack, which are connected in a sliding manner, wherein the first rack consists of two first slide tracks which are in parallel to each other and two first sliding rings, the second rack consists of two second slide tracks which are in parallel to each other and two second sliding rings, the two first sliding rings are arranged on the two second slide tracks in a sliding manner respectively, the two second sliding rings are arranged on the two first slide tracks in a sliding manner respectively, and the two first sliding rings and the two second sliding rings are all connected with the hangers through connectors. The folding pull-type clothes support has a simple structure, the size and length of the clothes support can be controlled by the pulling mode to hang clothes of different sizes, and the clothes support can be compressed and folded to provide convenience for storage and carrying.
Description
Technical field
The utility model relates to a kind of folding slide clothes hanger.
Background technology
Present employed clothes hanger in daily life, length is fixed dimension, can not change, and each family has many clothes that vary in size in the real life, therefore needs the different clothes hanger of length, and traditional clothes hanger has brought many inconvenience to the end user.
The utility model content
The technical problems to be solved in the utility model provides a kind of folding slide clothes hanger, and the utility model folding slide clothes hanger is simple in structure, can use the mode adjusting size of pull, controls the length of clothes hanger, can hang the clothing of arbitrary size; Can also compress foldingly, conveniently place and carry.
Technical solution adopted in the utility model is: a kind of folding slide clothes hanger, comprise support body and the hook that is arranged on the support body, and support body is comprised of two the first support bodys that mutually are slidingly connected and the second support body;
The first support body is comprised of two the first slideways that be arranged in parallel and two the first slip rings; The second support body is comprised of two the second slideways that be arranged in parallel and two the second slip rings;
Two the first slip rings are slidingly arranged in respectively on two the second slideways, and two the second slip rings are slidingly arranged in respectively on two the first slideways;
Two the first slip rings with are connected second slip ring and all are connected with described hook by connector.
The beneficial effect that adopts technique scheme to produce is: the utility model folding slide clothes hanger is simple in structure, can use the mode adjusting size of pull, controls the length of clothes hanger, can hang the clothing of arbitrary size; Can also compress foldingly, conveniently place and carry.
Description of drawings
Below in conjunction with the drawings and specific embodiments the utility model is described in further detail.

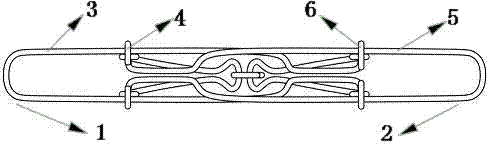

Fig. 1 is upward view of the present utility model;
Fig. 2 is top view of the present utility model;
Fig. 3 is front view of the present utility model;
1 is the first support body, and 2 is the second support body, and 3 is the first slideway, and 4 is the second slip ring, and 5 is the second slideway, and 6 is the first slip ring, and 7 are hook, and 8 is connector.
The specific embodiment
A kind of folding slide clothes hanger comprises support body and the hook 7 that is arranged on the support body, and support body is comprised of two the first support bodys 1 that mutually are slidingly connected and the second support body 2;
The first support body 1 is comprised of two the first slideways 3 that be arranged in parallel and two the first slip rings 6; The second support body 2 is comprised of two the second slideways 5 that be arranged in parallel and two the second slip rings 4;
Two the first slip rings 6 are slidingly arranged in respectively on two the second slideways 5, and two the second slip rings 4 are slidingly arranged in respectively on two the first slideways 3;
Two the first slip rings 6 with are connected second slip ring 4 and all are connected with hook 7 by connector 8.
Claims (1)
1. a folding slide clothes hanger comprises support body and the hook (7) that is arranged on the support body, and it is characterized in that: described support body is comprised of two the first support bodys (1) that mutually are slidingly connected and the second support body (2);
Described the first support body (1) is comprised of two the first slideways (3) that be arranged in parallel and two the first slip rings (6); Described the second support body (2) is comprised of two the second slideways (5) that be arranged in parallel and two the second slip rings (4);
Described two the first slip rings (6) are slidingly arranged in respectively on two the second slideways (5), and two the second slip rings (4) are slidingly arranged in respectively on two the first slideways (3);
Two the first slip rings (6) with are connected second slip ring (4) and all are connected with described hook (7) by connector (8).
