Abstract
本实用新型公开了一种充气床垫，用于解决现有的充气床垫床垫体和枕头共用一个气室，不能单独调节枕头的软硬度的技术问题。技术方案是枕头围片（2）、枕头顶片（1）与床体顶片（3）连接组成枕头的气室，床体围片（4）与床体顶片（3）和床体底片（5）连接组成床垫体的气室，床垫体由床体拉筋（6、7、8、9）隔成连通的小气室，枕头由枕头拉筋（10、11）隔成连通的小气室，床垫体端头部设置床体气阀（12）与床垫体的气室连通，枕头端头部设置枕头气阀（13）与枕头的气室连通。由于床垫体和枕头的气室各自独立，枕头的软硬度可调，提高了睡眠质量；同时枕头顶片和床体顶片的材料均为单面植绒织物，提高了人体的舒适度。
The utility model discloses an inflatable mattress, which is used to solve the technical problem that the mattress body of the existing inflatable mattress and a pillow share an air chamber, and the softness and hardness of the pillow cannot be adjusted independently. The technical solution is that the pillow side piece (2), the pillow top piece (1) and the bed top piece (3) are connected to form the air chamber of the pillow, the bed side piece (4), the bed top piece (3) and the bed bottom piece (5) Connect the air chambers that make up the mattress body. The mattress body is separated into connected small air chambers by the bed ties (6, 7, 8, 9), and the pillow is separated into connected small air chambers by the pillow ties (10, 11). The small air chamber is provided with a bed air valve (12) at the end of the mattress body to communicate with the air chamber of the mattress body, and a pillow air valve (13) is provided at the end of the pillow to communicate with the air chamber of the pillow. Because the air chambers of the mattress body and the pillow are independent, the softness and hardness of the pillow can be adjusted, which improves the quality of sleep; meanwhile, the materials of the top sheet of the pillow and the top sheet of the bed body are single-sided flocking fabric, which improves the comfort of the human body .
Description
技术领域 technical field
本实用新型涉及一种床垫，特别涉及一种充气床垫。The utility model relates to a mattress, in particular to an air mattress.
背景技术 Background technique
公知的充气床垫包括床垫体和枕头，床垫体由床体顶片、床体底片和床体围片连接而成，枕头置于床体顶片一端的中部，由一个枕头顶片和一个枕头围片组成，枕头围片的上边缘与枕头顶片相连接，枕头围片的下边缘与床体顶片相连接，在床体顶片枕头部位有气孔将床垫体和枕头连通，枕头顶片与床体顶片之间有数条拉筋相连接，床体围片上设置有气阀用于给床垫体和枕头充气。但由于床垫体和枕头共用一个气室，床垫体和枕头的充气压力值相同，不能单独调节枕头的软硬度，而且床体顶片和枕头顶片均为尼丝纺织物，影响睡眠质量。The known air mattress comprises a mattress body and a pillow. The mattress body is formed by connecting a bed top sheet, a bed bottom sheet and a bed surround sheet. The pillow is placed in the middle of one end of the bed top sheet, and consists of a pillow top sheet and It is composed of a pillow panel, the upper edge of the pillow panel is connected with the pillow top sheet, the lower edge of the pillow panel is connected with the bed top sheet, and there are air holes in the pillow part of the bed top sheet to connect the mattress body and the pillow. The pillow top sheet and the bed top sheet are connected by several tie bars, and an air valve is arranged on the bed body surround sheet to inflate the mattress body and the pillow. However, since the mattress body and the pillow share an air chamber, the inflation pressure of the mattress body and the pillow is the same, and the softness and hardness of the pillow cannot be adjusted separately, and the top sheet of the bed body and the top sheet of the pillow are made of nylon fabric, which affects sleep quality.
发明内容 Contents of the invention
为了解决现有的充气床垫床垫体和枕头共用一个气室，床垫体和枕头的充气压力值相同，不能单独调节枕头的软硬度的技术问题，本实用新型提供一种充气床垫，床垫体和枕头的气室各自独立，枕头具有独立气室，软硬度可调，不受床垫体充气度的影响，可以提高睡眠质量。In order to solve the technical problem that the mattress body and the pillow of the existing air mattress share an air chamber, the inflation pressure value of the mattress body and the pillow is the same, and the softness and hardness of the pillow cannot be adjusted separately, the utility model provides an air mattress , the air chambers of the mattress body and the pillow are independent, and the pillow has an independent air chamber with adjustable hardness and is not affected by the inflation degree of the mattress body, which can improve sleep quality.
本实用新型解决其技术问题所采用的技术方案是：一种充气床垫，包括床垫体和枕头，床垫体由床体顶片3、床体底片5和床体围片4连接而成，枕头置于床体顶片3一端的中部，由一个枕头顶片1和一个枕头围片2组成，枕头围片2的上边缘与枕头顶片1相连接，枕头围片2的下边缘与床体顶片3相连接，其特点是枕头围片2、枕头顶片1与床体顶片3连接组成枕头的气室，床体围片4与床体顶片3和床体底片5连接组成床垫体的气室，床垫体由床体拉筋6、7、8、9隔成连通的小气室，枕头由枕头拉筋10、11隔成连通的小气室。床垫体端头部设置床体气阀12与床垫体的气室连通，用于床垫体的充放气；枕头端头部设置枕头气阀13与枕头的气室连通，用于枕头的充放气。The technical solution adopted by the utility model to solve the technical problem is: an air mattress, including a mattress body and a pillow, and the mattress body is formed by connecting the top sheet 3 of the bed body, the bottom sheet 5 of the bed body and the surrounding sheet 4 of the bed body , the pillow is placed in the middle of one end of the top sheet 3 of the bed body, and is composed of a pillow top sheet 1 and a pillow wrapping sheet 2, the upper edge of the pillow wrapping sheet 2 is connected with the pillow top sheet 1, and the lower edge of the pillow wrapping sheet 2 is connected with the pillow wrapping sheet 2. The bed top piece 3 is connected, which is characterized in that the pillow side piece 2, the pillow top piece 1 and the bed top piece 3 are connected to form the air chamber of the pillow, and the bed side piece 4 is connected with the bed top piece 3 and the bed bottom piece 5 Form the air chamber of the mattress body, the mattress body is divided into connected small air chambers by the
枕头顶片1的材料是单面植绒织物。The material of the pillow top sheet 1 is a single-sided flocking fabric.
床体顶片3的材料是单面植绒织物。The material of the bed body top sheet 3 is a single-sided flocking fabric.
本实用新型的有益效果是：由于床垫体和枕头的气室各自独立，枕头具有独立气室，软硬度可调，不受床垫体充气度的影响，提高了睡眠质量；同时枕头顶片和床体顶片与人体接触部分均为单面植绒织物，提高了人体的舒适度。The beneficial effects of the utility model are: since the air chambers of the mattress body and the pillow are independent, the pillow has an independent air chamber, the softness and hardness are adjustable, and is not affected by the inflation degree of the mattress body, which improves the quality of sleep; at the same time, the pillow top The parts of the sheet and the top sheet of the bed body that are in contact with the human body are all single-sided flocking fabrics, which improves the comfort of the human body.
下面结合附图和实施例对本实用新型作详细说明。Below in conjunction with accompanying drawing and embodiment the utility model is described in detail.
附图说明 Description of drawings

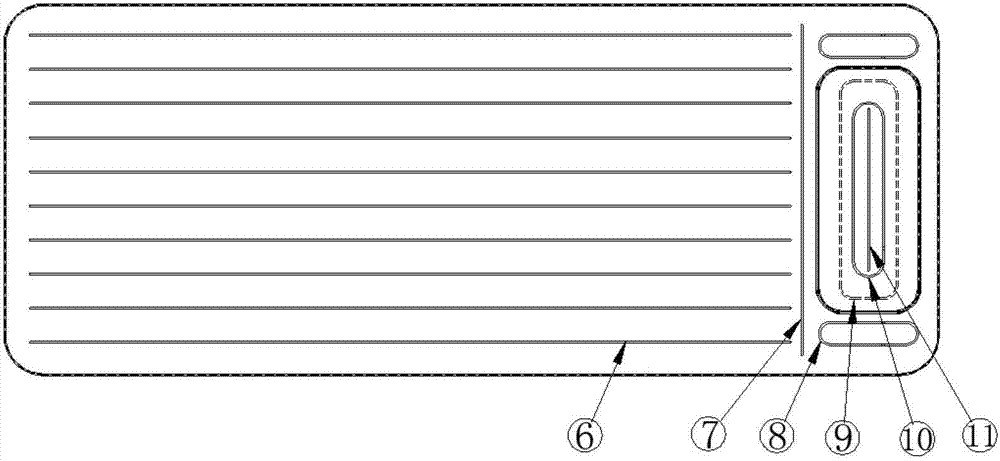

图1是本实用新型充气床垫的主视图。Fig. 1 is the front view of the utility model air mattress.
图2是本实用新型充气床垫的俯视图。Fig. 2 is a top view of the utility model air mattress.
图3是本实用新型充气床垫的侧视图。Fig. 3 is a side view of the utility model air mattress.
图中，1-枕头顶片，2-枕头围片，3-床体顶片，4-床体围片，5-床体底片，6、7、8、9-床体拉筋，10、11-枕头拉筋，12-床体气阀，13-枕头气阀。In the figure, 1-pillow top sheet, 2-pillow surrounding sheet, 3-bed body top sheet, 4-bed body surrounding sheet, 5-bed body bottom sheet, 6, 7, 8, 9-bed body stretching, 10, 11-pillow tension, 12-bed air valve, 13-pillow air valve.
具体实施方式 Detailed ways
参照图1～3，本实用新型充气床垫包括床垫体和枕头，床垫体由床体顶片3、床体底片5和床体围片4连接而成，枕头置于床体顶片3一端的中部，由一个枕头顶片1和一个枕头围片2组成，枕头围片2的上边缘与枕头顶片1相连接，枕头围片2的下边缘与床体顶片3相连接。枕头围片2、枕头顶片1与床体顶片3连接组成枕头的气室，床体围片4与床体顶片3和床体底片5连接组成床垫体的气室。而且，床垫体由床体拉筋6、7、8、9隔成连通的小气室，枕头由枕头拉筋10、11隔成连通的小气室。床垫体端头部设置床体气阀12与床垫体的气室连通，用于床垫体的充放气；枕头端头部设置枕头气阀13与枕头的气室连通，用于枕头的充放气。由于床垫体和枕头的气室各自独立，枕头具有独立气室，软硬度可调，不受床垫体充气度的影响，提高了睡眠质量。Referring to Figures 1 to 3, the air mattress of the present invention includes a mattress body and a pillow. The mattress body is formed by connecting the top sheet 3 of the bed body, the bottom sheet 5 of the bed body and the surrounding sheet 4 of the bed body. The pillow is placed on the top sheet of the bed body. The middle part of 3 one end is made up of a pillow top sheet 1 and a pillow wrapping sheet 2, the upper edge of the pillow wrapping sheet 2 is connected with the pillow top sheet 1, and the lower edge of the pillow wrapping sheet 2 is connected with the bed top sheet 3. Pillow surrounding sheet 2, pillow top sheet 1 are connected with bed body top sheet 3 to form the air chamber of pillow, and bed body surrounding sheet 4 is connected with bed body top sheet 3 and bed bottom sheet 5 to form the air chamber of mattress body. Moreover, the mattress body is divided into connected small air chambers by the
枕头顶片1的材料是单面植绒织物。床体顶片3的材料是单面植绒织物。由于枕头顶片1和床体顶片3与人体接触部分均为单面植绒织物，提高了人体的舒适度。The material of the pillow top sheet 1 is a single-sided flocking fabric. The material of the bed body top sheet 3 is a single-sided flocking fabric. Because the parts of the pillow top sheet 1 and the bed body top sheet 3 in contact with the human body are all single-sided flocked fabrics, the comfort of the human body is improved.
