Abstract
The utility model relates to a rotary type sweeper. The rotary type sweeper comprises a brush handle and a brush head, and is characterized by also comprising a sleeve, wherein the brush handle is arranged in the sleeve; a crank is detachably arranged at the upper end of the brush handle; and a gland is arranged at the upper end of the sleeve and used for supporting the brush handle. With the adoption of the structure, the brush head can be rotated conveniently by holding the sleeve with one hand and rotating the crank with the other hand, so that rapid cleaning is realized. Therefore, the structure has the advantages of being simple in structure, reasonable in design and convenient in use, and the brush head can be cleaned easily.
Description
Technical field
The utility model belongs to the daily life technical field, particularly relates to a kind of rotary sweeper.
Background technology
At present, toilet or sewer sweeper used in people's daily life mostly are to adopt stationary structure, namely mainly comprise brush holder and brush, both adopt integrated injection molding, when using, people in order to clear up thoroughly, often rotate whole sweeper, in the simultaneously and then together rotation of rotary hand, extremely inconvenient, and cleaning is not thorough.
Summary of the invention
The utility model provides a kind of rotary sweeper simple in structure, easy to use for solving the technical problem that exists in the known technology.
The technical scheme that the utility model is taked for the technical problem that exists in the solution known technology is:
A kind of rotary sweeper comprises brush holder and brush, it is characterized in that: this sweeper also comprises sleeve, and described brush holder is installed in the sleeve, the detachable crank that is equipped with in described brush holder upper end, and the upper end of described sleeve is equipped with gland, and described gland supports brush holder.
The utility model can also adopt following technical measures:
The middle part of described sleeve is provided with anti-skidding projection.
The described bristle that is installed on the brush is fixedly mounted on the arc installing plate, and described arc installing plate inboard is provided with T shape slide block, and described brush in axial direction is laid with T shape chute, and the T shape slide block of described arc installing plate is inserted in the T shape chute of brush.
Advantage and the good effect that the utlity model has are: because the utility model adopts technique scheme, be about to brush holder and brush and connect into a rotary structure by sleeve, be that brush holder is installed in the sleeve, the detachable crank that is equipped with in described brush holder upper end, people in use like this, one holds sleeve, rotate on the other hand crank, easily realize the rotation of brush, and then can realize fast cleaning, therefore said structure have simple in structure, reasonable in design, easy to use, and the advantage such as brush is replaceable.
Description of drawings

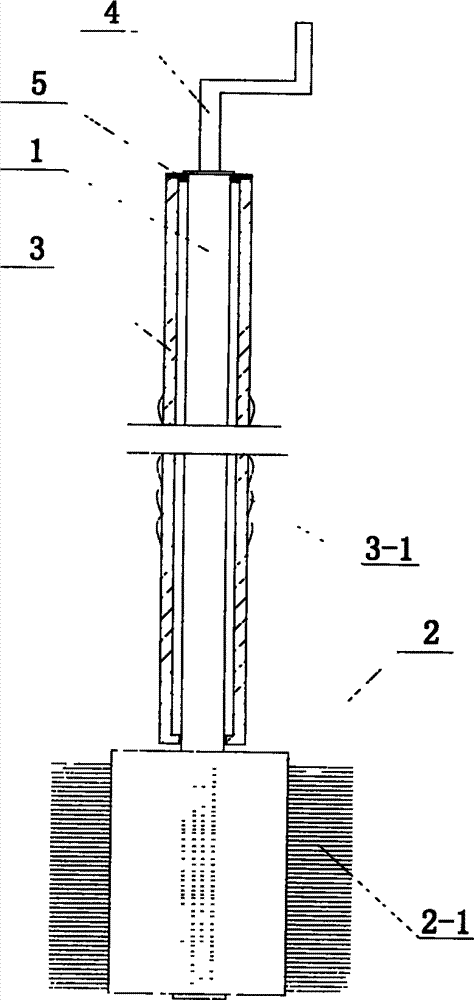

Fig. 1 is structural representation of the present utility model;
Fig. 2 is the top view of brush;
Fig. 3 is arc mounting plates structure schematic diagram.
Among the figure: 1, brush holder; 2, brush; 2-1, bristle; 2-2, arc installing plate; 2-3, T shape slide block; 2-4, T shape chute; 3, sleeve; 3-1, anti-skidding projection; 4, crank; 5, gland.
The specific embodiment
For further understanding summary of the invention of the present utility model, Characteristic, hereby exemplify following examples, and cooperate accompanying drawing to be described in detail as follows:
See also Fig. 1 to Fig. 3, a kind of rotary sweeper comprises brush holder 1 and brush 2, this sweeper also comprises sleeve 3, and described brush holder 1 is installed in the sleeve 3, the detachable crank 4 that is equipped with in described brush holder 1 upper end, the upper end of described sleeve 3 is equipped with gland 5, and described gland 5 supports brush holder 1.Adopt the said structure people in use, one holds sleeve, rotates crank on the other hand, easily realizes the rotation of brush, and then can realize fast cleaning.
In order to increase the frictional force between hand and the sleeve, the middle part of described sleeve is provided with anti-skidding protruding 3-1.
For the ease of the cleaning brush, described brush adopts Split type structure, the described bristle 2-1 that is installed on the brush 2 is fixedly mounted on the arc installing plate 2-2, described arc installing plate 2-2 inboard is provided with T shape slide block 2-3, described brush 2 in axial direction is laid with T shape chute 2-4, the T shape slide block 2-3 of described arc installing plate 2-2 is inserted in the T shape chute 2-4 of brush, the dismounting of so very convenient realization bristle, thus so that the utlity model has the characteristics that are easy to clear up.
The above only is to preferred embodiment of the present utility model, be not that the utility model is done any pro forma restriction, any simple modification that every foundation technical spirit of the present utility model is done above embodiment, equivalent variations and modification all belong in the scope of technical solutions of the utility model.
Claims (3)
1. a rotary sweeper comprises brush holder and brush, and bristle is installed on the brush, it is characterized in that: this sweeper also comprises sleeve, and described brush holder is installed in the sleeve, the detachable crank that is equipped with in described brush holder upper end, the upper end of described sleeve is equipped with gland, and described gland supports brush holder.
2. rotary sweeper according to claim 1, it is characterized in that: the middle part of described sleeve is provided with anti-skidding projection.
3. rotary sweeper according to claim 1 and 2, it is characterized in that: the described bristle that is installed on the brush is fixedly mounted on the arc installing plate, described arc installing plate inboard is provided with T shape slide block, described brush in axial direction is laid with T shape chute, and the T shape slide block of described arc installing plate is inserted in the T shape chute of brush.
