Abstract
The utility model relates to a crosslinked polyethylene insulating power cable including at least one metal conductor. Each metal conductor is coated with a crosslinked polyethylene insulating layer. The crosslinked polyethylene insulating layer is coated with an outer sheath layer. A taping layer is arranged between the crosslinked polyethylene insulating layer and the outer sheath layer. The crosslinked polyethylene insulating power cable has high reliability, large carrying capacity and good anti-flaming effect, and is applied to occasions such as the indoor, tunnels, cable channels and the like.
Description
Technical field
The utility model relates to the technical field of power cable, especially a kind of power cable with cross-linked polyethylene insulation.
Background technology
The current capacity of cable is relevant with the sectional area of conductor thread core usually; Conductor temperature is raise; The temperature of the outer insulating barrier that coats of conductor surpasses the last change that can cause on the insulating barrier generation performance in limited time; Thereby the insulating reliability of insulating barrier is reduced greatly, influence the useful life of cable.
Existing common cable exists structural stability difference and incendive problem simultaneously, so the fire-retardant problem of the lsafety level of electric wiring and cable more and more causes people's attention.
The utility model content
The technical problem that the utility model will solve is: in order to solve the problem that proposes in the above-mentioned background technology, the utility model provides a kind of power cable with cross-linked polyethylene insulation, and its insulating reliability is big, and ampacity is big, good flame retardation effect.
The utility model solves the technical scheme that its technical problem adopted: a kind of power cable with cross-linked polyethylene insulation; Comprise at least one metallic conductor; Each metallic conductor is coated with crosslinked polyetylene insulated layer; Crosslinked polyetylene insulated layer is coated with external sheath layer, is provided with belting layer between crosslinked polyetylene insulated layer and the external sheath layer.
Further: the cross section of each metallic conductor is circle or fan-like pattern.
Further: each metallic conductor is copper core or aluminium core.
Further: metallic conductor is 2 or 3 or 4 or 5.
Further: be equipped with packed layer between the outer crosslinked polyetylene insulated layer that coats of belting layer and each metallic conductor and between the outer crosslinked polyetylene insulated layer that coats of each metallic conductor.
The beneficial effect of the utility model: each metallic conductor is coated with crosslinked polyetylene insulated layer in the cable of the utility model; The insulating reliability of crosslinked polyetylene insulated layer is big; Have favorable mechanical physical property, environmental stress cracking resistance and resistance to wear, can bear concentrated mechanical stress; Under rated voltage 0.6/1kV condition of power supply, the maximum amount fixed temperature can reach 90 ℃ during crosslinked polyetylene insulated layer of long-term work, and ampacity is bigger.Crosslinked polyetylene insulated layer is coated with external sheath layer, and the good flame retardation effect of external sheath layer, and then prolonged useful life of cable is used for places such as indoor, tunnel and cable trough.
Description of drawings
Below in conjunction with accompanying drawing and embodiment the utility model is further specified.

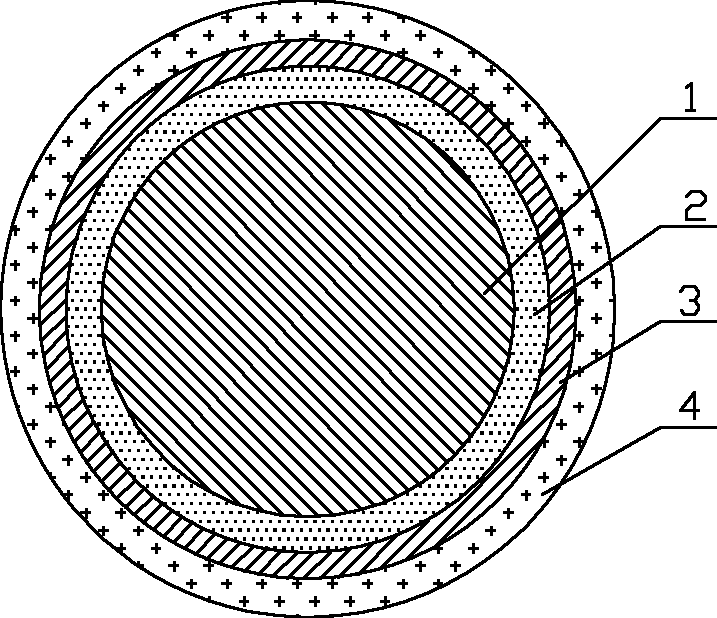

Fig. 1 is the cross section structure sketch map of the utility model embodiment one;
Fig. 2 is the cross section structure sketch map of the utility model embodiment two;
Fig. 3 is the cross section structure sketch map of the utility model embodiment three;
Fig. 4 is the cross section structure sketch map of the utility model embodiment four;
Fig. 5 is the cross section structure sketch map of the utility model embodiment five;
Fig. 6 is the cross section structure sketch map of the utility model embodiment six;
Fig. 7 is the cross section structure sketch map of the utility model embodiment seven;
Fig. 8 is the cross section structure sketch map of the utility model embodiment eight;
Fig. 9 is the cross section structure sketch map of the utility model embodiment nine;
Figure 10 is the cross section structure sketch map of the utility model embodiment ten;
Figure 11 is the cross section structure sketch map of the utility model embodiment 11;
Figure 12 is the cross section structure sketch map of the utility model embodiment 12.
Among the figure 1, metallic conductor, 2, crosslinked polyetylene insulated layer, 3, belting layer, 4, external sheath layer, 5, packed layer.
Embodiment
Combine accompanying drawing that the utility model is done further detailed explanation now.These accompanying drawings are the sketch map of simplification, the basic structure of the utility model only is described in a schematic way, so it only show the formation relevant with the utility model.
Power cable with cross-linked polyethylene insulation like Fig. 1-the utility model shown in Figure 12; Comprise at least one metallic conductor 1; Each metallic conductor 1 is coated with crosslinked polyetylene insulated layer 2; The insulating reliability of crosslinked polyetylene insulated layer 2 is big, has favorable mechanical physical property, environmental stress cracking resistance and resistance to wear, can bear concentrated mechanical stress; Under rated voltage 0.6/1kV condition of power supply, the maximum amount fixed temperature can reach 90 ℃ during crosslinked polyetylene insulated layer of 2 long-term work, and ampacity is bigger.Crosslinked polyetylene insulated layer 2 is coated with external sheath layer 4, and the good flame retardation effect of external sheath layer 4 has prolonged useful life of cable simultaneously, is provided with belting layer 3 between crosslinked polyetylene insulated layer 2 and the external sheath layer 4.
The cross section of above-mentioned each metallic conductor 1 is circle or fan-like pattern; Each metallic conductor 1 is copper core or aluminium core; Metallic conductor 1 is 2 or 3 or 4 or 3+1 or 5 or 4+1 or 3+2; Be equipped with packed layer 5 between belting layer 3 and each metallic conductor 1 outer crosslinked polyetylene insulated layer 2 that coats and between each metallic conductor 1 outer crosslinked polyetylene insulated layer 2 that coats.
Be not provided with packed layer 5 and the metallic conductor 1 of the utility model embodiment one as shown in Figure 1 are that 1 cross section is circular structure; Be provided with packed layer 5 and the metallic conductor 1 of the utility model embodiment two as shown in Figure 2 are that 2 cross sections are circular structures; The utility model embodiment three as shown in Figure 3 be provided with packed layer 5 and metallic conductor 1 is 2 structures that the cross section is a fan-like pattern; Be provided with packed layer 5 and the metallic conductor 1 of the utility model embodiment four as shown in Figure 4 are that 3 cross sections are circular structures; The utility model embodiment five as shown in Figure 5 be provided with packed layer 5 and metallic conductor 1 is 3 structures that the cross section is a fan-like pattern;
Be provided with packed layer 5 and the metallic conductor 1 of the utility model embodiment six as shown in Figure 6 are that 4 cross sections are circular structures; The utility model embodiment seven as shown in Figure 7 be provided with packed layer 5 and metallic conductor 1 is 4 structures that the cross section is a fan-like pattern; Packed layer 5 and the metallic conductor 1 that be provided with of the utility model embodiment eight as shown in Figure 8 is the structure of 3+1 cross section for circle; Packed layer 5 and the metallic conductor 1 that be provided with of the utility model embodiment nine as shown in Figure 9 is 3+1, and wherein 3 cross sections are fan-like pattern, and 1 cross section be the structure of circle; Be provided with packed layer 5 and the metallic conductor 1 of the utility model embodiment ten shown in figure 10 are that 5 cross sections are circular structures; Packed layer 5 and the metallic conductor 1 that be provided with of the utility model embodiment 11 shown in figure 11 is the structure of 4+1 cross section for circle; Packed layer 5 and the metallic conductor 1 that be provided with of the utility model embodiment 12 shown in figure 12 is the structure of 3+2 cross section for circle.
With above-mentioned desirable embodiment according to the utility model is enlightenment, and through above-mentioned description, the related work personnel can carry out various change and modification fully in the scope that does not depart from this utility model technological thought.The technical scope of this utility model is not limited to the content on the specification, must confirm its technical scope according to the claim scope.
Claims (5)
1. power cable with cross-linked polyethylene insulation; It is characterized in that: comprise at least one metallic conductor (1); Each metallic conductor (1) is coated with crosslinked polyetylene insulated layer (2); Crosslinked polyetylene insulated layer (2) is coated with external sheath layer (4), is provided with belting layer (3) between crosslinked polyetylene insulated layer (2) and the external sheath layer (4).
2. power cable with cross-linked polyethylene insulation according to claim 1 is characterized in that: the cross section of described each metallic conductor (1) is circle or fan-like pattern.
3. power cable with cross-linked polyethylene insulation according to claim 1 is characterized in that: described each metallic conductor (1) is copper core or aluminium core.
4. power cable with cross-linked polyethylene insulation according to claim 1 is characterized in that: described metallic conductor (1) is 2 or 3 or 4 or 5.
5. power cable with cross-linked polyethylene insulation according to claim 4 is characterized in that: be equipped with packed layer (5) between the outer crosslinked polyetylene insulated layer (2) that coats of described belting layer (3) and each metallic conductor (1) and between the outer crosslinked polyetylene insulated layer (2) that coats of each metallic conductor (1).
