本实用新型公开了一种新型橡皮盒，属于一种文具用品，特别是适合于套装橡皮的橡皮盒。该新型橡皮盒，其特征是：橡皮盒由位于上方的短圆筒和与其连接的箱体组成，短圆筒中插接着橡皮，所述的箱体内装有可从一侧拉出的带有拉手的推拉盒。本实用新型的有益效果是由于在橡皮盒本体的下端一侧敞口的箱体内安装了带有拉手的推拉盒，拉开推拉盒，十分便于中小学生将橡皮末清理到橡皮下部的推拉盒中，减少橡皮末对环境和地面的污染。
The utility model discloses a novel rubber box, which belongs to a stationery product, in particular a rubber box suitable for covering rubbers. The new type of rubber box is characterized in that: the rubber box is composed of a short cylinder on the top and a box connected to it, the rubber is inserted into the short cylinder, and the box is equipped with a handle that can be pulled out from one side. push-pull box. The beneficial effect of the utility model is that a push-pull box with a handle is installed in an open box on one side of the lower end of the rubber box body, and the push-pull box is opened, which is very convenient for primary and middle school students to clean up the rubber powder into the push-pull box at the bottom of the rubber , to reduce the pollution of rubber powder to the environment and the ground.
Description
Technical field
The utility model belongs to a kind of stationery, particularly is suitable for the rubber case of suit rubber.
Background technology
Various rubbers are often stationeries of the modification wrong word of use of primary and secondary students; Primary and secondary students are when using rubber to revise wrong word; The top of rubber and wrong word modification place can stay a lot of rubbers end, and the classmate who has directly plays wind and string instruments the rubber end on the ground, contaminated environment and ground.
The utility model content
In order to overcome primary and secondary students when using rubber to revise wrong word; The classmate who has directly plays wind and string instruments the rubber end on the ground; The deficiency on contaminated environment and ground; The purpose of the utility model provides a kind of novel rubber case, this utility model can so that students in middle and primary schools the rubber end is cleared up in the push-and-pull box of rubber bottom.
The technical scheme that its technical problem of the utility model solution is taked is: a kind of novel rubber case; It is characterized in that: rubber case is made up of the short cylinder and the connected casing that are positioned at the top; The rubber of pegging graft in the short cylinder is equipped with the push-and-pull box that has handle that can go out from a layback in the described casing.
The beneficial effect of the utility model is owing in the uncovered casing of the lower end of rubber case body one side, the push-and-pull box that has handle has been installed; Draw back the push-and-pull box; Very be convenient to students in middle and primary schools and the rubber end cleared up in the push-and-pull box of rubber bottom, reduce the pollution on rubber foot couple environment and ground.The utility model is simple in structure, the convenient use.
Description of drawings

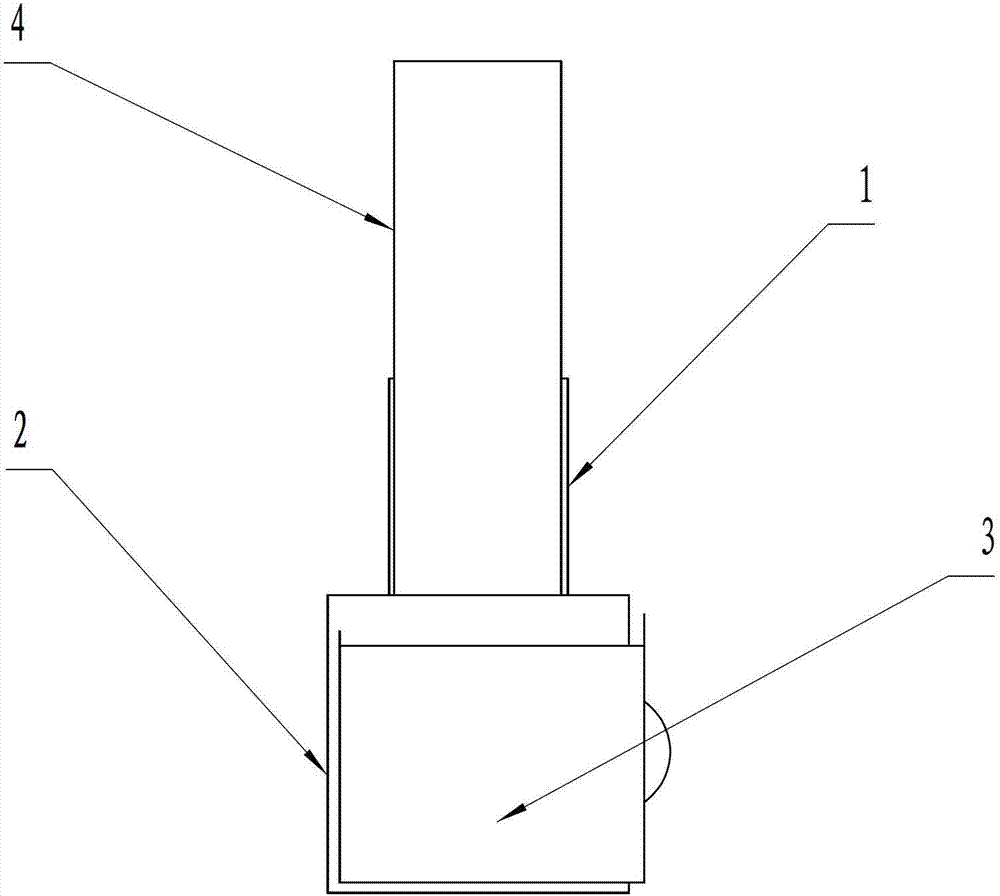

Fig. 1 is the structural representation of the utility model.
Among the figure, 1. short cylinder, 2. casing, 3. push-and-pull box, 4. rubber.
The specific embodiment
The specific embodiment of the utility model is, and is as shown in the figure:
Embodiment 1, and a kind of novel rubber case is characterized in that: rubber case is made up of short cylinder 1 that is positioned at the top and connected casing 2, and the rubber 4 of pegging graft in the short cylinder is equipped with the push-and-pull box 3 that has handle that can go out from a layback in the described casing.
Claims (1)
1. novel rubber case is characterized in that: rubber case is made up of the short cylinder and the connected casing that are positioned at the top, and the rubber of pegging graft in the short cylinder is equipped with the push-and-pull box that has handle that can go out from a layback in the described casing.
