Abstract
The utility model provides a device for measuring the center height of a ball groove of a besides-star wheel, comprising a measurement frame which is provided with a dial indicator, a lever and a movably-arranged test lever. One end of the lever abuts against the measuring head of the dial indicator, the other end of the lever abuts against a surveyor's pole on the test lever, the bottom of the test lever is provided with a ball holding frame, at least three positioning balls are uniformly and upwardly distributed in the circumferential direction of the ball holding frame, and a clamping fixture for fixing the besides-star wheel is arranged right below the ball holding frame. During the measurement, the besides-star wheel is fixed on the clamping fixture, and the ball holding frame extends to the inside of the besides-star wheel to correspondingly cooperate with the ball groove of the besides-star wheel. The device for measuring the center height of the ball groove of the besides-star wheel in the utility model is simple in structure and easy to manufacture, is high in measurement accuracy and easy to use, and can be used to measure various models of besides-star wheels and improve the production efficiency.
Description
Technical field
The utility model relates to a kind of measurement frock, particularly relates to a kind of out star wheel alley height of center measurement mechanism.
Background technology
Out star wheel, ball cage, star-wheel are divided into multiple part form such as RE, AC, UF, VL as the vital part of constant velocity cardan joint by its nodal pattern difference.The dimension precision requirement of its height of center is very high, directly the performance of influence assembling.
Finish forge spare out star wheel alley height of center is measured and on two-point height of center measurer, is compared and measured usually, because the contour shape error of finish forge spare out star wheel alley is too big, measuring like this is that instability is also inaccurate.As do not have reliable special measuring tool measurement to have only the use three-dimensional coordinates measurement, and can cause on-the-spot lathe longer stop time like this, be unfavorable for the control of operation procedure quality again.The measurement of out star wheel alley height of center generally adopts German ZEISS three-coordinates measuring machine to detect; The advantage of this method is comparatively accurate; But Measuring Time is very long, as adds and measure non-cutting time, and the time of cost is more; For the frequent occasion of measuring of needs, this metering system extremely is unfavorable for the quality control in the process.
Chinese patent CN201407975Y discloses a kind of ball cage, star-wheel inside and outside spherical surface height of center measurer; It comprises limited post, fixedly gauge head, movable gauge head, measuring staff and clock gauge; Be hinged on the said limited post in the middle of the said measuring staff, the upper end connection activity gauge head of said measuring staff, the lower end abutment of said measuring staff is on the gauge head of said clock gauge; Said clock gauge is fixed on the said limited post, and said fixedly gauge head is arranged on the said limited post.It is through comparing and measuring the height of center of calculating star-wheel or ball cage, but because out star wheel exterior contour error is bigger, is not suitable for this measurement mechanism.
Therefore, lack a kind of out star wheel alley height of center measurement mechanism, should measure quickly and easily, can adapt to the Working Procedure Controlling of the many kind processing of short run again, helpful to enhancing productivity.
The utility model content
The shortcoming of prior art in view of the above, the purpose of the utility model is to provide a kind of out star wheel alley height of center measurement mechanism, is used for solving the problem that prior art can not be measured out star wheel alley height of center fast.
For realizing above-mentioned purpose and other relevant purposes, the utility model provides a kind of out star wheel alley height of center measurement mechanism, comprises measurement bay; Measurement bay is provided with dial gauge, lever and the movable reference test bar that is provided with, and an end of lever and the gauge head of said dial gauge are conflicted, and the other end of lever and the mark post on the reference test bar are conflicted; The bottom of reference test bar is provided with the holding frame; Frame week upwards be uniformly distributed with at least three place kick in holding, under the holding frame, be provided with the anchor clamps that fixing out star wheel is used, during measurement; Out star wheel is fixed on the said anchor clamps, and said holding frame stretches into said place kick and out star wheel alley corresponding matching in the out star wheel.
Preferably, the diameter of said place kick is identical with the corresponding diameter of said out star wheel alley arc section.
Preferably, said anchor clamps are through being bolted on the said measurement bay.
Preferably, has the stepped hole that the out star wheel shank wears on the said anchor clamps.
Preferably, said holding frame comprises joint pin, and the top of joint pin links to each other with said reference test bar, and the bottom of joint pin is provided with a circle groove of placing said place kick, in groove, is provided with a plurality of limited posts, and said place kick places between adjacent two limited posts.
Preferably, the bottom of said measurement bay is provided with supporting leg.
As stated, the out star wheel alley height of center measurement mechanism of the utility model has following beneficial effect: its simple in structure being convenient to is produced; Adopt place kick to contact with arc section; Realize fitting tightly of cambered surface and cambered surface, out star wheel circle drum bottom is a reference field, and the distance at this reference field and place kick center promptly can be as the fiducial value of out star wheel alley height of center measurement; Its measuring accuracy is high; Be easy to use, can measure the out star wheel of various models, improved production efficiency.
Description of drawings

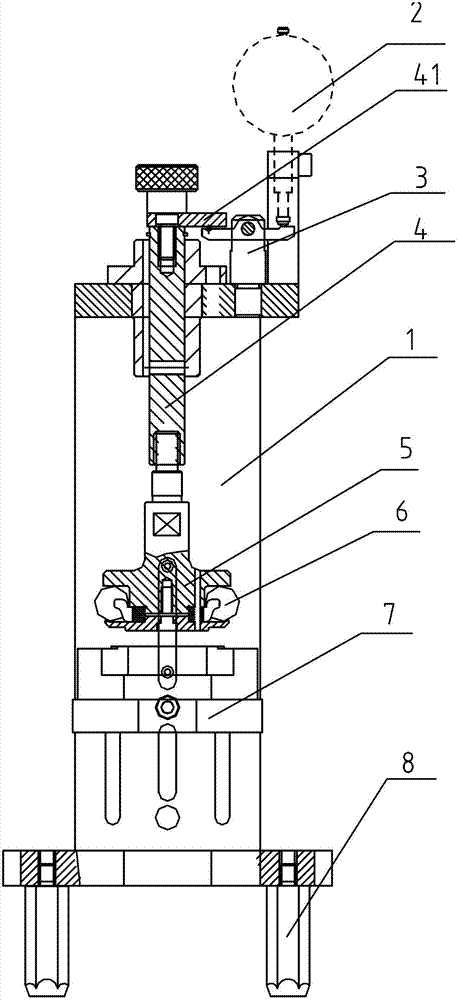

Fig. 1 is shown as the front elevation of the out star wheel alley height of center measurement mechanism of the utility model.
Fig. 2 is shown as the side view of the out star wheel alley height of center measurement mechanism of the utility model.
The element numbers explanation
1 measurement bay
2 dial gauges
3 levers
4 reference test bars
41 mark posts
5 holding framves
51 joint pins
52 limited posts
53 grooves
6 place kick
7 anchor clamps
8 supporting legs
Embodiment
Below by the embodiment of particular specific embodiment explanation the utility model, be familiar with other advantages and effect that this technological personage can be understood the utility model easily by the content that this instructions disclosed.
See also Fig. 1 to Fig. 2.Notice; The appended graphic structure that illustrates of this instructions, ratio, size etc.; All only in order to cooperate the content that instructions disclosed, understanding and reading for being familiar with this technological personage, is not in order to limit the enforceable qualifications of the utility model; Event is the technical essential meaning of tool not; The adjustment of the modification of any structure, the change of proportionate relationship or size is not influencing under effect that the utility model can produce and the purpose that can reach, and the technology contents that all should still drop on the utility model and disclosed gets in the scope that can contain.Simultaneously; Quoted in this instructions as " on ", D score, " left side ", " right side ", " centre " reach the term of " " etc.; Also be merely be convenient to narrate clear, but not in order to limit the enforceable scope of the utility model, the change of its relativeness or adjustment; Under no essence change technology contents, when also being regarded as the enforceable category of the utility model.
Like Fig. 1 and shown in Figure 2, the utility model provides a kind of out star wheel alley height of center measurement mechanism, comprises measurement bay 1; Measurement bay 1 is provided with dial gauge 2, lever 3 and the movable reference test bar 4 that is provided with, and an end of lever 3 and the gauge head of dial gauge 2 are conflicted, and the mark post 41 on the other end of lever 3 and the reference test bar 4 is conflicted; The bottom of reference test bar 4 is provided with holding frame 5,5 weeks of frame upwards is uniformly distributed with at least three place kick 6 in holding, under holding frame 5, is provided with the anchor clamps 7 that fixing out star wheel is used; Reference test bar 4 is located in also can be up and down on the measurement bay 1, and during measurement, out star wheel is fixed on the anchor clamps 7; Holding frame 5 stretches in the out star wheel, place kick 6 and out star wheel alley corresponding matching.The utility model adopts three place kick to locate the height of center of out star wheel alley; Because the out star wheel alley is made up of arc section and rectilinear end, arc section is positioned at the two ends of out star wheel alley, therefore; Adopt place kick to contact with arc section; Realize fitting tightly of cambered surface and cambered surface, out star wheel circle drum bottom is a reference field, and the distance at this reference field and place kick center promptly can be as the fiducial value of out star wheel alley height of center measurement.When measuring, at first the out star wheel standard component is fixed on the anchor clamps, carry out the standard adjustment, the reading of adjusting dial gauge this moment is zero; Once more out star wheel to be measured is fixed on the anchor clamps, reads the reading of dial gauge, in error range, out star wheel alley height of center then to be measured is qualified as if reading, if it is defective to exceed error range out star wheel alley then to be measured height of center.
As shown in Figure 2; Above-mentioned holding frame 5 comprises joint pin 51, and the top of joint pin 51 links to each other with reference test bar 4, and the bottom of joint pin 51 is provided with a circle groove 52 of placement positioning ball 6; In groove 53, be provided with a plurality of limited posts 52, place kick 6 places 52 of adjacent two limited posts.Be installation and the replacing that makes things convenient for place kick, above-mentioned groove 53 is surrounded by second limiting plate that first fixing on the joint pin 51 limiting plate and bolt are connected the joint pin bottom.Above-mentioned anchor clamps 7 are through being bolted on the measurement bay 1; Has the stepped hole that the out star wheel shank wears on the anchor clamps 7; Anchor clamps can the corresponding change with shape according to the size of survey out star wheel, makes the measurement mechanism of the utility model satisfy the measurement of various out star wheel alley height of centers.The bottom of measurement bay 1 is provided with supporting leg 8.
For improving measuring accuracy, the diameter of above-mentioned place kick 6 is identical with the corresponding diameter of out star wheel alley arc section, and different according to the survey out star wheel, place kick can be changed.
In sum, the out star wheel alley height of center measurement mechanism of the utility model, its simple in structure being convenient to is produced, but measuring accuracy is high, is easy to use, and can measure the out star wheel of various models, has improved production efficiency.So the utility model has effectively overcome various shortcoming of the prior art and the tool high industrial utilization.
The foregoing description is the principle and the effect thereof of illustrative the utility model only, but not is used to limit the utility model.Any be familiar with this technological personage all can be under the spirit and category of the utility model, the foregoing description is modified or is changed.Therefore, have common knowledge the knowledgeable under such as in the technical field, must contain by the claim of the utility model not breaking away from all equivalence modification or changes that spirit that the utility model discloses and technological thought are accomplished down.
Claims (6)
1. out star wheel alley height of center measurement mechanism; It is characterized in that, comprise measurement bay (1), measurement bay (1) is provided with dial gauge (2), lever (3) and the movable reference test bar (4) that is provided with; The gauge head of one end of lever (3) and said dial gauge (2) is conflicted; Mark post (41) on the other end of lever (3) and the reference test bar (4) is conflicted, and the bottom of reference test bar (4) is provided with holding frame (5), frame (5) week upwards is uniformly distributed with at least three place kick (6) in holding; Under holding frame (5), be provided with the anchor clamps (7) that fixing out star wheel is used; During measurement, out star wheel is fixed on the said anchor clamps (7), and said holding frame (5) stretches into said place kick (6) and out star wheel alley corresponding matching in the out star wheel.
2. out star wheel alley height of center measurement mechanism according to claim 1 is characterized in that: the diameter of said place kick (6) is identical with the corresponding diameter of said out star wheel alley arc section.
3. out star wheel alley height of center measurement mechanism according to claim 1 is characterized in that: said anchor clamps (7) are through being bolted on the said measurement bay (1).
4. out star wheel alley height of center measurement mechanism according to claim 1, it is characterized in that: said anchor clamps have the stepped hole that the out star wheel shank wears on (7).
5. out star wheel alley height of center measurement mechanism according to claim 1; It is characterized in that: said holding frame (5) comprises joint pin (51); The top of joint pin (51) links to each other with said reference test bar (4); The bottom of joint pin (51) is provided with a circle groove (53) of placing said place kick, in groove, is provided with a plurality of limited posts (52), and said place kick (6) places between adjacent two limited posts (52).
6. out star wheel alley height of center measurement mechanism according to claim 1, it is characterized in that: the bottom of said measurement bay (1) is provided with supporting leg (8).
