CN202611176U - Wall cloth capable of being adhered repeatedly and rapidly - Google Patents
Wall cloth capable of being adhered repeatedly and rapidly Download PDFInfo
- Publication number
- CN202611176U CN202611176U CN201220013714.2U CN201220013714U CN202611176U CN 202611176 U CN202611176 U CN 202611176U CN 201220013714 U CN201220013714 U CN 201220013714U CN 202611176 U CN202611176 U CN 202611176U
- Authority
- CN
- China
- Prior art keywords
- layer
- opp
- membrane material
- extexine
- wallpaper
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
- 239000004744 fabric Substances 0.000 title claims abstract description 11
- 239000000463 material Substances 0.000 claims abstract description 50
- 239000012528 membrane Substances 0.000 claims abstract description 23
- 239000004033 plastic Substances 0.000 claims abstract description 11
- 229920003023 plastic Polymers 0.000 claims abstract description 11
- 239000004677 Nylon Substances 0.000 claims abstract description 8
- 229920001778 nylon Polymers 0.000 claims abstract description 8
- 239000003292 glue Substances 0.000 claims abstract description 5
- 239000006223 plastic coating Substances 0.000 claims abstract description 5
- 229920004934 Dacron® Polymers 0.000 claims description 8
- 239000005020 polyethylene terephthalate Substances 0.000 claims description 8
- 239000002390 adhesive tape Substances 0.000 claims description 4
- 238000005034 decoration Methods 0.000 abstract description 6
- 239000010410 layer Substances 0.000 abstract 11
- 239000011229 interlayer Substances 0.000 abstract 2
- 229920000728 polyester Polymers 0.000 abstract 2
- 238000010276 construction Methods 0.000 description 4
- 238000005516 engineering process Methods 0.000 description 2
- 238000004140 cleaning Methods 0.000 description 1
- 230000000694 effects Effects 0.000 description 1
- 230000007613 environmental effect Effects 0.000 description 1
- 210000000697 sensory organ Anatomy 0.000 description 1
Images
Classifications
-
- Y—GENERAL TAGGING OF NEW TECHNOLOGICAL DEVELOPMENTS; GENERAL TAGGING OF CROSS-SECTIONAL TECHNOLOGIES SPANNING OVER SEVERAL SECTIONS OF THE IPC; TECHNICAL SUBJECTS COVERED BY FORMER USPC CROSS-REFERENCE ART COLLECTIONS [XRACs] AND DIGESTS
- Y02—TECHNOLOGIES OR APPLICATIONS FOR MITIGATION OR ADAPTATION AGAINST CLIMATE CHANGE
- Y02W—CLIMATE CHANGE MITIGATION TECHNOLOGIES RELATED TO WASTEWATER TREATMENT OR WASTE MANAGEMENT
- Y02W30/00—Technologies for solid waste management
- Y02W30/50—Reuse, recycling or recovery technologies
- Y02W30/80—Packaging reuse or recycling, e.g. of multilayer packaging
Landscapes
- Synthetic Leather, Interior Materials Or Flexible Sheet Materials (AREA)
- Laminated Bodies (AREA)
- Paper (AREA)
Abstract
本实用新型公开了一种可重复快捷粘贴墙布，该墙布共有五层，最底层采用防渗透塑胶涂层，第二间层用涤纶布或尼龙布织材，第三层采用环保塑胶材料，涤纶布与OPP膜材料之间用环保塑胶将其粘结，第四间层与外表层均采用OPP膜材料，第四间层用无花型OPP膜材料，外表层用有花型的OPP膜材料，第四层与外表层运用胶水或双面胶将其粘合一起，这二者在使用过程中，可根据客户需求变化花型，并可在不破坏前四层材料下只需将外表层的OPP膜撕下，按喜好粘贴上自己喜欢的花型即可，从而节省装修费用，达到有效的经济效益。
The utility model discloses a wall covering that can be pasted repeatedly and quickly. The wall covering has five layers, the bottom layer is made of anti-penetration plastic coating, the second layer is made of polyester cloth or nylon cloth, and the third layer is made of environmentally friendly plastic material. , The polyester cloth and the OPP film material are bonded with environmentally friendly plastics, the fourth interlayer and the outer layer are made of OPP film material, the fourth interlayer is made of pattern-free OPP film material, and the outer layer is made of patterned OPP Membrane material, the fourth layer and the outer layer are bonded together with glue or double-sided tape. During the use of the two, the pattern can be changed according to customer needs, and the first four layers of materials can only be glued together without damaging the first four layers. The OPP film on the outer layer is torn off, and you can paste the pattern you like according to your preferences, so as to save decoration costs and achieve effective economic benefits.
Description
Technical field
The utility model relates to wallpaper, is specifically related to a kind of quick stickup scratch-proof function wallpaper.
Background technology
Along with the progress of society, people's living standard improves constantly, and people variation occurs to the requirement of interior decoration wallpaper; There is a demands of different in different places to indoor; The wallpaper that present people generally use mainly is made up of tack coat and plastic flower lamina, because decorative effect is relatively good, thereby is favored by people; Wallpaper is widely used in the decoration field as a kind of ornament materials.Wallpaper is pasted on metope as decoration the time, and its external surface has the color decorative pattern; But people tend on wallpaper, leave scratch when cleaning wallpaper, tend to make the pattern blurring on the wallpaper after the time is permanent; Influence attractive in appearance; In case wallpaper is scraped damage, the humidity resistance of metope also can be had a greatly reduced quality, and reduces the application life of wallpaper.
In addition, the job practices of traditional wallpaper need be torn whole layer wallpaper earlier, is attached to new wallpaper on the metope again, and traditional wallpaper construction is loaded down with trivial details, and the metope breakage can occur after the construction, mends ash again, ties and causes strong decoration cost to improve greatly.
The utility model content
It is complicated that the utility model will solve existing wallpaper construction, cleans easy damaging problem, provides a kind of high strength the quick wall paper of pasting.
For solving the problems of the technologies described above; The utility model is realized through following technical scheme: a kind ofly repeat fast to paste wall paper, this wallpaper has five layers, and the bottom adopts impermeable plastic coating; The second layer is knitted material with woven dacron or nylon cloth; The 3rd layer is environment friendly plastic rubber material, and the 4th layer is the 4th layer of OPP membrane material, and extexine adopts extexine OPP membrane material; Said woven dacron or nylon cloth are knitted and are adopted environment friendly plastic rubber material that it is bondd between material and the OPP membrane material, and said the 4th layer of OPP membrane material is bonding with it with glue or double faced adhesive tape with extexine OPP membrane material.
Said the 4th layer of OPP membrane material adopts the material of the OPP film that does not have the flower type.
Said extexine OPP membrane material adopts the material of the OPP film that colored type is arranged.
The utlity model has following advantage: 1, wallpaper has five layers: the bottom adopts impermeable plastic coating, and second interbed is knitted material with woven dacron or nylon cloth, the 3rd interbed utilization environment friendly plastic rubber material; The 4th layer is all adopted the OPP membrane material with extexine, adopts environment friendly plastic rubber material that it is bondd between woven dacron and the 4th layer of OPP membrane material, and the 4th layer is used glue or double faced adhesive tape that it is bonding with extexine; This two in use, can be according to the customer demand variation patterns, in not destroying preceding four layer materials with the OPP film of extexine tear arbitrarily added the OPP membrane material after the wall paper life-span all more permanent than existing wallpaper; And the wallpaper third dimension is better; Elegant in appearance, have surface of good sense organ vision, and can make different pattern according to different client's needs; And clear patterns can distortion, and length is arbitrarily cutting also; 2, wall construction is simple, the layer 5 OPP film of tearing is pasted new flower-shaped, has reduced numerous and diverse operation of work, pastes more smooth, and environmental protection, thereby and the saving decoration cost, reach the effective economic benefit.
Description of drawings

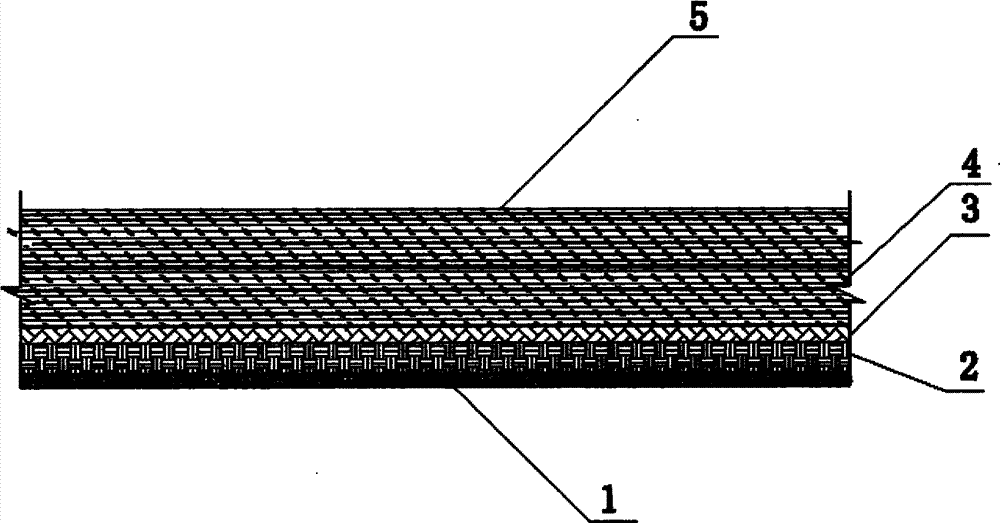

Fig. 1 is the utility model structural representation.
The specific embodiment
Shown in Figure 1; A kind ofly repeat fast to paste wall paper, this wallpaper has five layers, and the bottom adopts impermeable plastic coating 1; The second layer is knitted material 2 with woven dacron or nylon cloth; The 3rd layer is environment friendly plastic rubber material (3), and the 4th layer is the 4th layer of OPP membrane material 4, and extexine adopts extexine OPP membrane material 5; Said woven dacron or nylon cloth are knitted and are adopted environment friendly plastic rubber material 3 with its bonding between material 2 and the OPP membrane material 4, and said the 4th layer of OPP membrane material 4 is bonding with it with extexine OPP membrane material 5 usefulness glue or double faced adhesive tape; This two in use, can in not destroying preceding four layer materials, the OPP film of extexine be torn arbitrarily according to different customer demand variation patterns.
Claims (3)
1. one kind can be repeated fast to paste wall paper; It is characterized in that: this wallpaper has five layers; The bottom adopts impermeable plastic coating (1), and the second layer is knitted material (2) with woven dacron or nylon cloth, and the 3rd layer is environment friendly plastic rubber material (3); The 4th layer is the 4th layer of OPP membrane material (4); Extexine adopts extexine OPP membrane material (5), and said woven dacron or nylon cloth are knitted between material (2) and the OPP membrane material (4) and adopted environment friendly plastic rubber material (3) with its bonding, and said the 4th layer of OPP membrane material (4) is bonding with it with glue or double faced adhesive tape with extexine OPP membrane material (5).
2. according to claim 1ly repeat fast to paste wall paper, it is characterized in that: said the 4th layer of OPP membrane material (4) adopts the material of the OPP film that does not have the flower type.
3. according to claim 1ly repeat fast to paste wall paper, it is characterized in that: said extexine OPP membrane material (5) adopts the material of the OPP film that colored type is arranged.
