Abstract

新型礼盒，属于生活用具。它包括礼盒(1)、薄铁片(2)、镜面(3)、柔性磁片(4)。其特征是：礼盒为长20cm，宽16cm，高10cm的长方体翻盖结构，礼盒内部可以放礼物；薄铁片为边长2cm的正方形，设在礼盒外表面；镜面设在礼盒内部5个表面，使礼盒内部显得空间大，也增加了礼盒的美观度；柔性磁片是个半径为1.5cm的半圆，当礼盒盖子盖下时，能吸住薄铁片而来封闭礼盒。本实用新型结构简单、方便实用、功能多样，具有很好的实用性。

Figure 201220141290

A new type of gift box belongs to daily necessities. It comprises a gift box (1), a thin iron sheet (2), a mirror surface (3), and a flexible magnetic sheet (4). Its characteristics are: the gift box is a rectangular parallelepiped structure with a length of 20cm, a width of 16cm, and a height of 10cm. Gifts can be placed inside the gift box; a thin iron sheet is a square with a side length of 2cm, which is set on the outer surface of the gift box; It makes the interior of the gift box appear larger, and also increases the beauty of the gift box; the flexible magnetic sheet is a semicircle with a radius of 1.5cm. When the lid of the gift box is closed, it can attract the thin iron sheet to close the gift box. The utility model has the advantages of simple structure, convenience and practicality, various functions and good practicability.

Figure 201220141290

Description

新型礼盒new gift box

技术领域 technical field

本实用新型是一种新型礼盒，属于生活用具。The utility model is a novel gift box, which belongs to living utensils.

背景技术 Background technique

礼盒是人们在日常生活中用来装礼物的用具，礼盒的实用性大，由于比较美观，还有人收集礼盒。礼盒还可以定制，人们对礼盒的要求多。传统的礼盒内部单调，已不能满足人们的需求。Gift boxes are utensils that people use to hold gifts in their daily life. Gift boxes are very practical. Because they are more beautiful, some people collect gift boxes. Gift boxes can also be customized, and people have many requirements for gift boxes. The interior of the traditional gift box is monotonous, which can no longer meet people's needs.

发明内容 Contents of the invention

为了克服上述不足，本实用新型提供了一种新型礼盒，用于解决传统的礼盒内部单调，已不能满足人们的需求的问题。In order to overcome the above disadvantages, the utility model provides a new type of gift box, which is used to solve the problem that the interior of the traditional gift box is monotonous and cannot meet people's needs.

为达到上述目的，本实用新型包括了礼盒、薄铁片、镜面、柔性磁片。In order to achieve the above object, the utility model includes a gift box, a thin iron sheet, a mirror surface, and a flexible magnetic sheet.

所述的礼盒为长20cm，宽16cm，高10cm的长方体翻盖结构，礼盒内部可以放礼物。Described gift box is long 20cm, wide 16cm, the cuboid clamshell structure of height 10cm, can put gift inside gift box.

所述的薄铁片为边长2cm的正方形，设在礼盒外表面。Described thin iron sheet is the square of side length 2cm, is located at gift box outer surface.

所述的镜面设在礼盒内部5个表面，使礼盒内部显得空间大，也增加了礼盒的美观度。The mirrors are arranged on five surfaces inside the gift box, which makes the interior of the gift box appear larger and also increases the aesthetics of the gift box.

所述的柔性磁片是个半径为1.5cm的半圆，当礼盒盖子盖下时，能吸住薄铁片而来封闭礼盒。The flexible magnetic sheet is a semicircle with a radius of 1.5cm. When the lid of the gift box is covered, it can absorb the thin iron sheet to close the gift box.

本实用新型的积极效果：The positive effect of the utility model:

本实用新型的优点是：结构简单、方便实用，有效地解决了传统的礼盒内部单调，已不能满足人们的需求的问题，具有很好的实用性。The utility model has the advantages of simple structure, convenience and practicality, effectively solves the problem that the interior of the traditional gift box is monotonous and can no longer meet people's needs, and has good practicability.

附图说明 Description of drawings

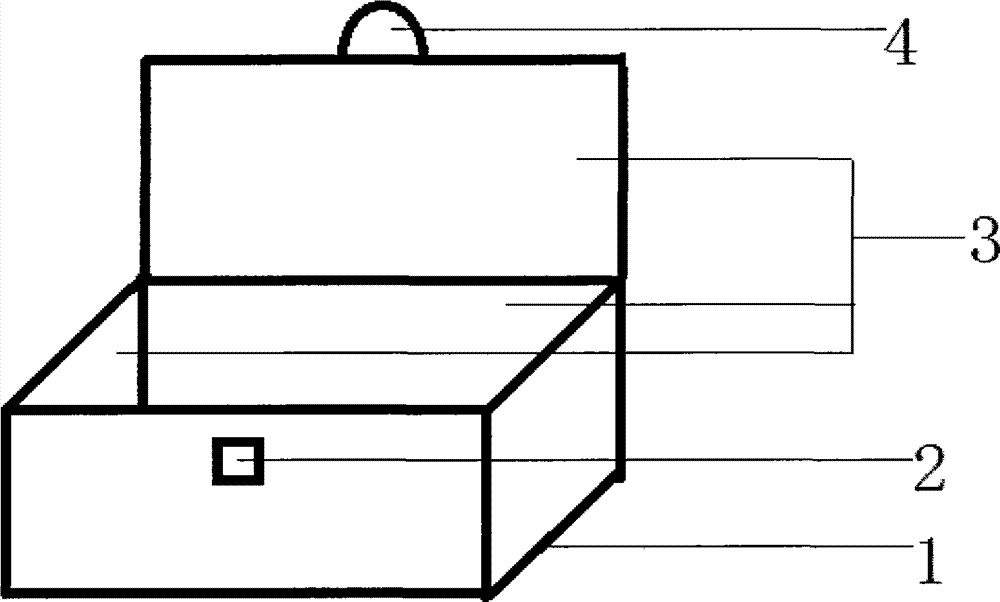

图1为本实用新型的结构示意图。如图所示礼盒(1)、薄铁片(2)、镜面(3)、柔性磁片(4)。Fig. 1 is the structural representation of the utility model. Gift box (1), thin iron sheet (2), mirror surface (3), flexible magnetic sheet (4) as shown in the figure.

具体的实施方式specific implementation

下面结合附图对本实用新型进一步说明：Below in conjunction with accompanying drawing, the utility model is further described:

如图1所示，本实用新型包括礼盒(1)、薄铁片(2)、镜面(3)、柔性磁片(4)。礼盒为长20cm，宽16cm，高10cm的长方体翻盖结构，礼盒内部可以放礼物；薄铁片为边长2cm的正方形，设在礼盒外表面；镜面设在礼盒内部5个表面，使礼盒内部显得空间大，也增加了礼盒的美观度；柔性磁片是个半径为1.5cm的半圆，当礼盒盖子盖下时，能吸住薄铁片而来封闭礼盒。本实用新型结构简单、方便实用、功能多样，具有很好的实用性。As shown in Figure 1, the utility model comprises a gift box (1), a thin iron sheet (2), a mirror surface (3), and a flexible magnetic sheet (4). The gift box is a cuboid clamshell structure with a length of 20cm, a width of 16cm, and a height of 10cm. Gifts can be placed inside the gift box; a thin iron sheet is a square with a side length of 2cm, which is set on the outer surface of the gift box; mirrors are set on five surfaces inside the gift box to make the inside of the gift box appear The large space also increases the aesthetics of the gift box; the flexible magnetic sheet is a semicircle with a radius of 1.5cm. When the lid of the gift box is closed, it can attract the thin iron sheet to close the gift box. The utility model has the advantages of simple structure, convenience and practicality, various functions and good practicability.

Claims (1)

1. novel gift box comprises gift box (1), tagger (2), minute surface (3), flexible magnetic sheet (4), and it is characterized in that: gift box is long 20cm, wide 16cm, the cuboid flip structure of high 10cm; Minute surface is located at 5 surfaces of gift box in-to-in.
