Abstract
The utility model discloses a deformation-resisting board surface which is formed by bonding two layers of boards. A plurality of longitudinal grooves along the direction of the board and a plurality of transverse grooves perpendicular to the longitudinal grooves are formed in the bonding surface of the inner side of the board; and steel strips are arranged in the transverse grooves. The deformation-resisting board surface disclosed by the utility model is formed by compounding two layers of boards, wherein the two layers of boards can be a solid wood board and an artificial board respectively; relatively speaking, high-quality wood products can be produced by using second-class boards, so that the cost of the products can be greatly reduced and a synthetic material has the effects of attractiveness and durability endowed by solid wood without generating any deformation; and in addition, the deformation-resisting board surface is very firm and durable and excellent in quality and reasonable in price, so that high-grade wood products can enter thousands of households.
Description
One, technical field
The utility model belongs to the woodwork process technology, is specifically related to a kind of plate face that is used to constitute the combinations of furniture parts.
Two, background technology
The sheet material that woodwork processing is used has solid wood plate and wood-based plate.The solid wood plate comprises primary plank and finger plate, have attractive in appearance, durable advantage with solid wood plate processing and fabricating woodwork, but its resource is less, and the cost of raw material is high, only is suitable for top-grade furniture; And the problem on deformation of solid wood is puzzlement people's a hard nut to crack always, and still there are some distortion more or less in dried in any case.Above-mentioned two kinds of reasons make solid wood board fail the economical and practical huge numbers of families that come into.The common wealth furniture major part depends on artificial board; Artificial board be with the meagre veneer of multilayer or with discrete materials such as wood-fibred, wood shavings, wood chip, wood wools with the hot-forming sheet material of adhesive; Though have economical and practical, on-deformable advantage; But its durability, robustness are relatively poor, cracky, and service life is short.
Three, summary of the invention
The purpose of the utility model provides a kind of resistance to deformation plate face, uses this plate face to make woodenware, and the cost of raw material of woodenware processing is reduced, and product is specious, and is firm firm, indeformable, increases the service life.
The technical scheme that the utility model adopts is: resistance to deformation plate face constitutes by two-ply is bonding, has a plurality of longitudinal grooves and several lateral trench vertical with longitudinal groove along the plate direction, the steel bar of in lateral trench, packing at the inboard adhesive surface of plate.
The utility model adopts the compound formation of two-ply; Two-ply can adopt solid wood plate and wood-based plate respectively; The woodwork that can make with inferior sheet material comparatively speaking; Product can be reduced cost significantly, and make synthetic material have the attractive in appearance, durable of solid wood and can not produce any problem on deformation.And very sturdy and durable, inexpensive, make high-grade woodwork can come into huge numbers of families.
Four, description of drawings

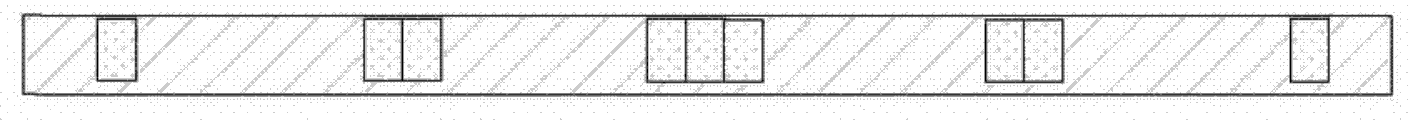

The structural representation of Fig. 1 for cutting open in the middle of the utility model embodiment 1;
Fig. 2 is the sectional drawing of the utility model embodiment 2;
Fig. 3 is the sectional drawing of the utility model embodiment 3;
Fig. 4 is the sectional drawing of the utility model embodiment 4;
Fig. 5 has the sketch map of longitudinal groove for lamina;
Fig. 6 has longitudinal groove and lateral trench for lamina and inserts the sketch map of steel bar.
Five, the specific embodiment
The utility model adopts solid wood plate (log jigsaw or finger plate) and solid wood plate or solid wood plate and the compound formation of wood-based plate; At first on the back side of jigsaw or finger plate, slot with saw; On each splicing lath of little, leave elongated longitudinal groove along the plate direction; Longitudinal groove two end distance panel edges distance along the plate direction is 5 ~ 8mm, and the width of groove is 3 ~ 5 mm, and the degree of depth of groove is bottom surface 3 ~ 5 mm of distance plate.Effect along plate direction groove is a tissue fibers of destroying timber, reduces the strength of sheet deformation, stops the sheet material transversely deforming.The direction vertical with longitudinal groove left lateral trench again at each piece sheet material back side then, the steel bar of in lateral trench, packing into, and lateral trench two end distance panel edges distance is 3 ~ 5mm, the width of groove and the degree of depth and steel bar adapt, and make things convenient for groove under the steel bar.Put into glue after ending lateral trench, and then put into steel bar, steel bar and sheet material are become one.The width of groove, the degree of depth are wanted evenly can not appear the plate face, can not extend to outside the sheet material.The quantity of the lateral trench of dress steel bar is decided according to the size of sheet material, under the larger-size situation of plate face, adds the method for root steel bar in the middle of can adopting and comes the gusset plate face, makes it indeformable.Large-sized plate face needs two all to have groove and embed the plate of steel bar synthetic, and it is synthetic that undersized plate face can open the plate face adhesive gel plywood that groove is arranged and embed steel bar with one according to actual conditions.During production and processing, be in strict accordance with the design specification processing and fabricating of product (for example desktop), in case fluting, the steel bar of packing into are processed the composite plate face, its length, thin and thick equidimension just can not be gone change again.The utility model belongs to the component end item that is used to assemble, and woodwork processing is made to component end item assembling upgrading from raw material played important effect.
The longitudinal groove of the suitable plate direction that the utility model backboard face is opened all is dark groove with the lateral trench of the steel bar of packing into; Front and end face at plate all cannot see; Therefore the utility model product can be kept good outside impression, and passes through the embedding of groove blocking-up and steel bar, makes sheet material no longer include any distortion; Keep the uniform form of woodwork, and can not bring any trouble to the user.For top-grade furniture; Only use solid wood outside; And wide material sources such as the general available core-board of inboard adhesion sheet, glued board even particieboard, cheap wood-based plate; Thereby product cost is reduced significantly, solid wood resource comparatively in short supply can be accessed more fully utilize.
Claims (3)
1. a resistance to deformation plate face constitutes by two-ply is bonding, it is characterized in that: have a plurality of longitudinal grooves and several lateral trench vertical with longitudinal groove along the plate direction, the steel bar of in lateral trench, packing at the inboard adhesive surface of plate.
2. resistance to deformation plate face according to claim 1 is characterized in that: said two-ply adopts solid wood plate and solid wood plate or solid wood plate and the compound formation of wood-based plate respectively.
3. resistance to deformation plate face according to claim 1 is characterized in that: said longitudinal groove two end distance panel edges distance along the plate direction is 5 ~ 8mm, and the width of groove is 3 ~ 5 mm, and the degree of depth of groove is bottom surface 3 ~ 5 mm of distance plate; Lateral trench two end distance panel edges distance is 3 ~ 5mm, and the width of groove and the degree of depth and steel bar adapt.
