Abstract
The utility model discloses a mobile toilet control system. The control system comprises an intelligent lighting sub-system. The intelligent lighting sub-system comprises a light sensor (1), a control box (2) and an LED light-emitting unit (3). A lighting controller (22) and an LED drive circuit (23) are arranged inside the control box (2), wherein an input end of the lighting controller (22) is connected with the light sensor (1), and an output end of the lighting controller (22) is connected with the LED light-emitting unit (3) through the LED drive circuit (23). The mobile toilet control system of the utility model has the advantages of energy-saving property, convenient utilization and low cost.
Description
Technical field
The utility model relates to the Porta Potti field, is specifically related to a kind of Porta Potti control system.
Background technology
The Porta Potti of prior art often lacks illumination, uses very inconvenience; Even some provides illumination functions, but all being manual work, these illumination functions control, cause energy consumption higher.
The utility model content
The technical problem that the utility model will solve provides a kind of energy savings, Porta Potti control system easy to use, with low cost.
For solving the problems of the technologies described above, the technical scheme that the utility model adopts is:
A kind of Porta Potti control system; Comprise the intelligent lighting subsystem; Said intelligent lighting subsystem comprises light sensor, control cabinet and LED luminescence unit; Be provided with lighting controller and led drive circuit in the said control cabinet, the input of said lighting controller links to each other with light sensor, and the output of said lighting controller links to each other with the LED luminescence unit through led drive circuit.
Further improvement as technique scheme:
Also be provided with the infrared human body transducer on the said control cabinet, said infrared human body transducer links to each other with the input of lighting controller.
Said light sensor is installed on the outer wall of Porta Potti; Said control cabinet is installed on the inwall of Porta Potti; Said LED luminescence unit is installed in the top of Porta Potti, and said LED luminescence unit is made up of a plurality of light-emitting diodes.
The utlity model has following advantage:
1, the intelligent lighting subsystem of the utility model Porta Potti control system comprises light sensor, control cabinet and LED luminescence unit; Be provided with lighting controller and led drive circuit in the control cabinet; The input of lighting controller links to each other with light sensor; The output of lighting controller links to each other with the LED luminescence unit through led drive circuit; Lighting controller light sensor detect ambient light when low control LED luminescence unit luminous, have energy savings, advantage easy to use, with low cost.
2, further be provided with the infrared human body transducer on the control cabinet of the utility model; The infrared human body transducer links to each other with the input of lighting controller; Lighting controller only cuts out detecting the low acquiescence control of ambient light LED luminescence unit at light sensor; It is luminous only in human body, just to control the time-delay of LED luminescence unit at the infrared human body sensor sensing, more energy savings.
Description of drawings
In order to be illustrated more clearly in the utility model embodiment or technical scheme of the prior art; To do to introduce simply to the accompanying drawing of required use in embodiment or the description of the Prior Art below; Obviously, the accompanying drawing in describing below only is some embodiment of the utility model, for those of ordinary skills; Under the prerequisite of not paying creative work, can also obtain other accompanying drawing according to these accompanying drawings.

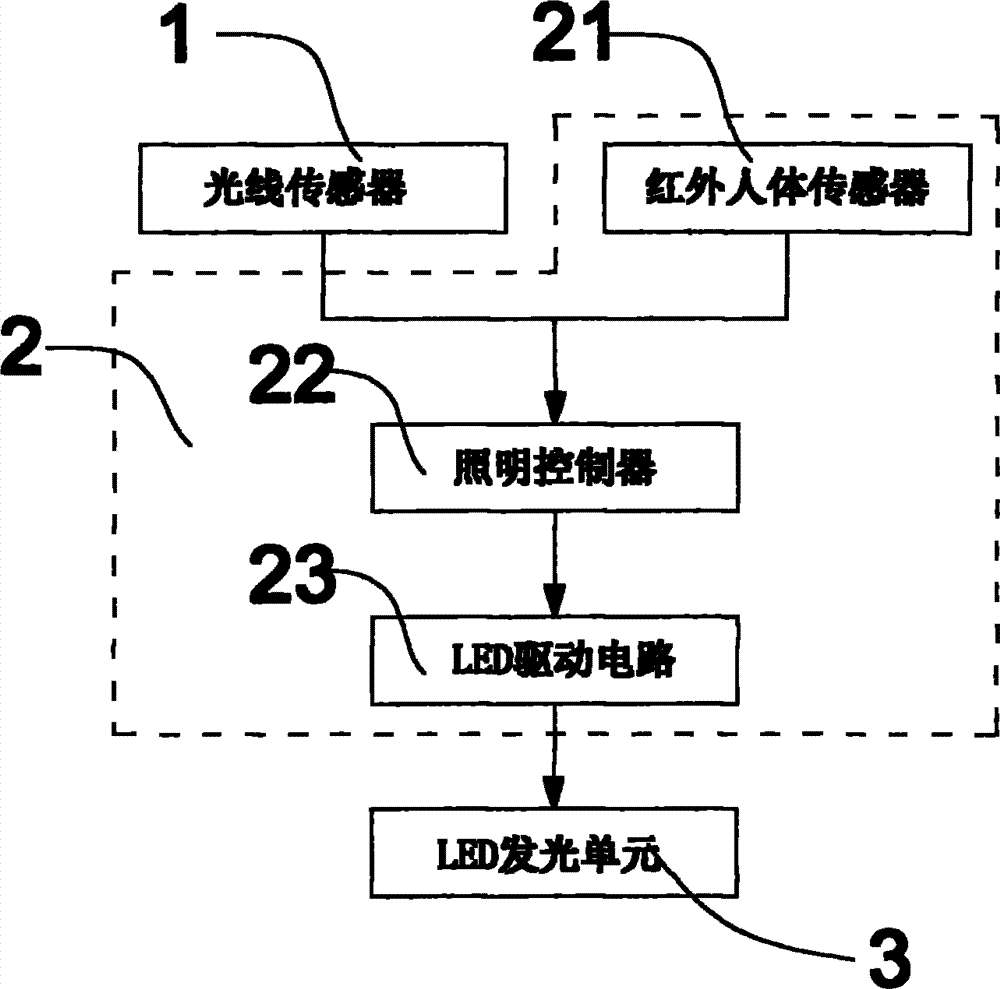

Fig. 1 is the frame structure sketch map of intelligent lighting subsystem among the utility model embodiment.
Fig. 2 is the mounting structure sketch map of intelligent lighting subsystem among the utility model embodiment.
Marginal data:
1, light sensor;
2, control cabinet;
21, infrared human body transducer; 22, lighting controller; 23, led drive circuit;
3, LED luminescence unit;
4, Porta Potti.
Embodiment
Below in conjunction with accompanying drawing the preferred embodiments of the present invention are set forth in detail, thereby protection scope of the present invention is made more explicit defining so that advantage of the present invention and characteristic can be easier to it will be appreciated by those skilled in the art that.
As depicted in figs. 1 and 2; The Porta Potti control system of present embodiment comprises the intelligent lighting subsystem; The intelligent lighting subsystem comprises light sensor 1, control cabinet 2 and LED luminescence unit 3; Be provided with lighting controller 22 and led drive circuit 23 in the control cabinet 2, the input of lighting controller 22 links to each other with light sensor 1, and the output of lighting controller 22 links to each other with LED luminescence unit 3 through led drive circuit 23.
As shown in Figure 1, also be provided with infrared human body transducer 21 on the control cabinet 2, infrared human body transducer 21 links to each other with the input of lighting controller 22.
As shown in Figure 2, light sensor 1 is installed on the outer wall of Porta Potti 4; Control cabinet 2 is installed on the inwall of Porta Potti 4; LED luminescence unit 3 is installed in the top of Porta Potti 4, and LED luminescence unit 3 is made up of a plurality of light-emitting diodes.
The above is merely the preferred implementation of the utility model, and the protection range of the utility model is not limited in above-mentioned execution mode, and every technical scheme that belongs to the utility model principle all belongs to the protection range of the utility model.For a person skilled in the art, some improvement and the retouching under the prerequisite of the principle that does not break away from the utility model, carried out, these improvement and retouching also should be regarded as the protection range of the utility model.
Claims (3)
1. Porta Potti control system; Comprise the intelligent lighting subsystem; It is characterized in that: said intelligent lighting subsystem comprises light sensor (1), control cabinet (2) and LED luminescence unit (3); Be provided with lighting controller (22) and led drive circuit (23) in the said control cabinet (2), the input of said lighting controller (22) links to each other with light sensor (1), and the output of said lighting controller (22) links to each other with LED luminescence unit (3) through led drive circuit (23).
2. Porta Potti control system according to claim 1 is characterized in that: also be provided with infrared human body transducer (21) on the said control cabinet (2), said infrared human body transducer (21) links to each other with the input of lighting controller (22).
3. Porta Potti control system according to claim 2 is characterized in that: said light sensor (1) is installed on the outer wall of Porta Potti (4); Said control cabinet (2) is installed on the inwall of Porta Potti (4); Said LED luminescence unit (3) is installed in the top of Porta Potti (4), and said LED luminescence unit (3) is made up of a plurality of light-emitting diodes.
