Abstract
The utility model relates to a novel portable earphone which comprises a plug, earphone lines, and earphone plugs. The earphone comprises an earphone line accommodating body. The earphone line accommodating body comprises an upper hemispherical housing and a lower hemispherical housing. The upper hemispherical housing and the lower hemispherical housing can be rotated relative to each other, and can be fixed through a fixing device arranged between the upper hemispherical housing and the lower hemispherical housing. A wiring cylinder is fixedly installed on the upper hemispherical housing. The wiring cylinder extends into the lower hemispherical housing. Earphone line holes are provided on the wiring cylinder and the lower hemispherical housing. The earphone lines penetrate through the earphone line holes and are fixed on the wiring cylinder. The novel portable earphone is provided with the earphone line accommodating body, has a simple structure, and is convenient to use, so that the earphone is not knotted frequently, the lines are wound in the earphone line accommodating body when the earphone is not used, the novel portable earphone has a small size, and is easy to carry, and at the same time, the length of the earphone lines can be adjusted according to actual needs, so the using is convenient. At the same time, an ordinary earphone plug hole is added at a rear end of the plug of the earphone, thereby being convenient for being connected with a plurality of earphones.
Description
Technical field
The utility model relates to a kind of earphone, particularly a kind ofly can store earphone cord into hold body portable earphone.
Background technology
Along with the development of electronic product, earphone has become the essential product in people's daily life, yet, use the earphone cord of earphone longer at present, be easy to occur the situation of earphone cord knotting, use was both lost time like this, had reduced the useful life of earphone cord again.Simultaneously, use earphone to be mostly a plug at present, be not suitable for many people and use simultaneously,, use and carry still comparatively inconvenience even lovers' socket has been arranged, and the socket limited amount, use and limited to.
The utility model content
The purpose of the utility model is the defective to prior art, and a kind of portable earphone that earphone cord carries inconvenient problem that solves is provided.
The technical scheme of the utility model is: a kind of novel portable earphone; Comprise plug, earphone cord and earphone plug; Described earphone comprises that earphone cord holds body, and described earphone cord holds body and comprises upper hemispherical shell and lower hemisphere shell, and the two can rotate relatively and can fix through the fixture that is provided with between the two; Be fixed with the coiling cylinder on the described upper hemispherical shell; The coiling cylinder extends to lower hemisphere shell, is provided with the earphone cord hole on coiling cylinder and the lower hemisphere shell, and earphone cord passes the earphone cord hole and is fixed on the coiling cylinder.
Preferably: described fixture is the magnetic head that is arranged between upper hemispherical shell and the lower hemisphere shell.
Preferably: the coiling cylinder is provided with the circuit board box body in the described upper hemispherical shell, and upper hemispherical shell is provided with microphone and volume adjustment knob.
Preferably: the rear portion of described plug is provided with jack.
Preferably: described lower hemisphere shell is provided with clip.
The beneficial effect of the utility model is: the utility model is provided with earphone cord and holds body, and is simple in structure, easy to use; Earphone cord is no longer often tied a knot, when not using, with wire-wound in earphone cord holds body; Volume is very little, is easy to carry about with one, simultaneously; Can adjust the length of earphone cord according to actual needs, easy to use.Simultaneously, the utility model increases a common headphones jack again in the rear end of headset plug, is easy to connect a plurality of earphones.
Description of drawings

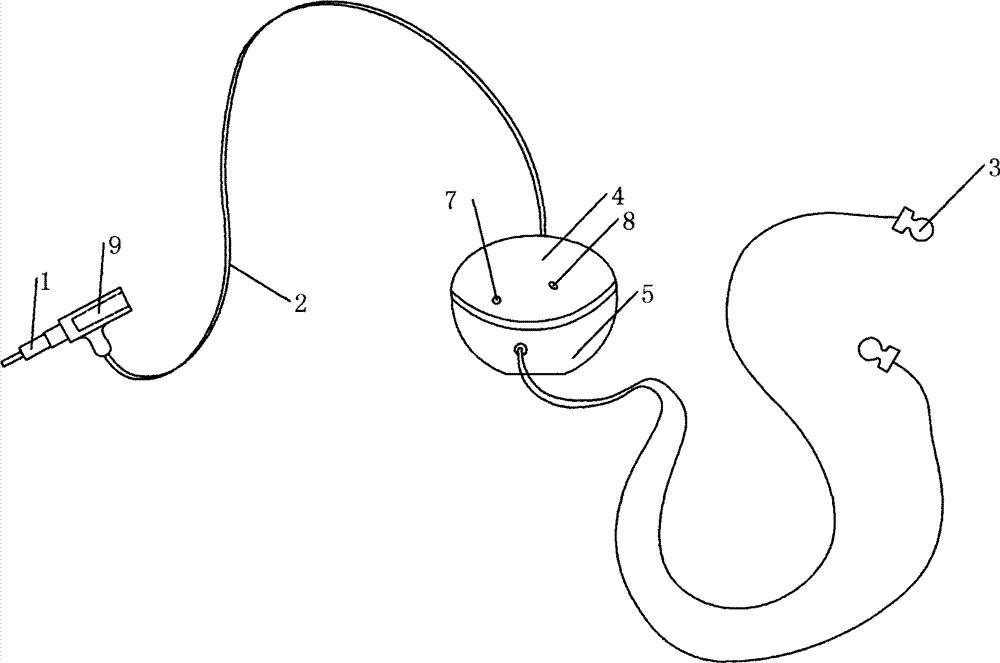

Fig. 1 is the structural representation of the utility model user mode
Fig. 2 is positioned at the view that earphone cord holds body for the utility model earphone cord
Fig. 3 holds the longitudinal section of body for the utility model earphone cord
Fig. 4 holds the sectional elevation of body for the utility model earphone cord
Embodiment
Embodiment below in conjunction with description of drawings the utility model:
A kind of novel portable earphone; Comprise plug 1, earphone cord 2 and earphone plug 3; Described earphone comprises that earphone cord holds body, and described earphone cord holds body and comprises upper hemispherical shell 4 and lower hemisphere shell 5, and the two can rotate relatively and can fix through the fixture that is provided with between the two; Be fixed with coiling cylinder 12 on the described upper hemispherical shell 4; Coiling cylinder 12 extends to lower hemisphere shell 5, is provided with the earphone cord hole on coiling cylinder 12 and the lower hemisphere shell 5, and earphone cord 2 passes the earphone cord hole and is fixed on the coiling cylinder 12.Described fixture is the magnetic head 6 that is arranged between upper hemispherical shell 4 and the lower hemisphere shell 5.Coiling cylinder 12 is provided with circuit board box body 11 in the described upper hemispherical shell 4, and upper hemispherical shell 4 is provided with microphone 7 and volume adjustment knob 8.The rear portion of described plug 1 is provided with jack 9.Described lower hemisphere shell 5 is provided with clip 10.
During use, rotation upper hemispherical shell 4 can be wrapped in earphone cord 3 on the coiling cylinder 12, holds body thereby earphone cord 3 taken in to earphone cord, perhaps with earphone cord 3 from the coiling cylinder 12 around down, and stretch out earphone cord and hold body.。
The above embodiment that lifts only uses to conveniently illustrating the utility model, and at the said technical scheme category of the utility model, the person of ordinary skill in the field does various simple deformation and modification, all should be included in the above claim.
Claims (5)
1. novel portable earphone; Comprise plug (1), earphone cord (2) and earphone plug (3); It is characterized in that: described earphone comprises that earphone cord holds body, and described earphone cord holds body and comprises upper hemispherical shell (4) and lower hemisphere shell (5), and the two can rotate relatively and can fix through the fixture that is provided with between the two; Be fixed with coiling cylinder (12) on the described upper hemispherical shell (4); Coiling cylinder (12) extends to lower hemisphere shell (5), is provided with the earphone cord hole on coiling cylinder (12) and the lower hemisphere shell (5), and earphone cord (2) passes the earphone cord hole and is fixed on the coiling cylinder (12).
2. novel portable earphone as claimed in claim 1 is characterized in that: described fixture is for being arranged at the magnetic head (6) between upper hemispherical shell (4) and the lower hemisphere shell (5).
3. novel portable earphone as claimed in claim 1 is characterized in that: coiling cylinder (12) is provided with circuit board box body (11) in the described upper hemispherical shell (4), and upper hemispherical shell (4) is provided with microphone (7) and volume adjustment knob (8).
4. like any described novel portable earphone of claim 1-3, it is characterized in that: the rear portion of described plug (1) is provided with jack (9).
5. novel portable earphone as claimed in claim 4 is characterized in that: described lower hemisphere shell (5) is provided with clip (10).
