CN202567652U - Cross bar rotatable clothes rack - Google Patents
Cross bar rotatable clothes rack Download PDFInfo
- Publication number
- CN202567652U CN202567652U CN 201220150147 CN201220150147U CN202567652U CN 202567652 U CN202567652 U CN 202567652U CN 201220150147 CN201220150147 CN 201220150147 CN 201220150147 U CN201220150147 U CN 201220150147U CN 202567652 U CN202567652 U CN 202567652U
- Authority
- CN
- China
- Prior art keywords
- cross bar
- rotatable
- bars
- cross
- clothes hanger
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Landscapes
- Holders For Apparel And Elements Relating To Apparel (AREA)
Abstract
The utility model discloses a cross bar rotatable clothes rack, which comprises rotatable cross bars, cross bar rotary components, support bars and a closable hanging component, wherein the cross bar rotary components are arranged at bottoms of inclined bars on two sides of the clothes rack; the rotatable cross bars are connected to the cross bar rotary components; the support bars are used for supporting the rotatable cross bars which are stretched in a rotational mode; and the closable hanging component is connected with the inclined bars of the clothes rack and a support cross beam sequentially. According to the cross bar rotatable clothes rack, the cross bar rotary components are needed to be provided with the two rotatable cross bars; sandwich layers are arranged in the centers of the rotatable cross bars; cross bar bending heads are arranged on heads of the rotatable cross bars; after being closed, the rotatable cross bars can be fixed by using a rubber sleeve; and after being closed, the support bars can be hidden in the sandwich layers of the rotatable cross bars. The cross bar rotatable clothes rack can air more and large clothes, is convenient to use and does not occupy space.
Description
Technical field
The utility model relates to a kind of daily necessities, is specifically related to the rotatable clothes hanger of cross bar that a kind of cool clothes is used.
Background technology
At present, people's living space is more and more littler, so major part all uses clothes hanger to come airing clothes, when at large piece articles such as use clothes hanger airing coverlet, quilt covers, narrow space is very inconvenient, also can cause and should not dry if fold up.
The utility model content
The purpose of the utility model is to overcome the above problem that prior art exists, and provides a kind of cross bar rotatable clothes hanger, and this clothes hanger not only can the airing large piece article; Also can the airing small article; The time spent is not retractable into the common hanger size, and is easy to use, do not take up space.
For realizing above-mentioned technical purpose, reach above-mentioned technique effect, the utility model is realized through following technical scheme:
Rotatable clothes hanger; Comprise rotatable cross bar, cross bar rotary part, support bar, can closed sprung parts; Said whippletree rotary part is arranged at brace bottom, clothes hanger both sides; Said rotatable cross bar is connected on the said cross bar rotary part, the said rotatable cross bar behind the said they sup-port rotary expansion, said can the connection successively with clothes hanger brace, supporting traverse by closed sprung parts.
Further, said cross bar rotary part need be settled two said rotatable cross bars.
Further, said rotatable cross bar centre is provided with interlayer, and head is provided with the cross bar bending head, and available rubber case is fixed after closure.
Further, said support bar can be hidden in the interlayer of said rotatable cross bar after closure.
The beneficial effect of the utility model is:
The more bigger clothings of ability airing, easy to use, do not take up space.
Above-mentioned explanation only is the general introduction of the utility model technical scheme, in order more to know the technological means of understanding the utility model, and can implement according to the content of specification, below with the preferred embodiment of the utility model and conjunction with figs. specify as after.The specific embodiment of the utility model is provided by following examples and accompanying drawing thereof in detail.
Description of drawings
Accompanying drawing described herein is used to provide the further understanding to the utility model, constitutes the application's a part, and illustrative examples of the utility model and explanation thereof are used to explain the utility model, do not constitute the improper qualification to the utility model.In the accompanying drawings:

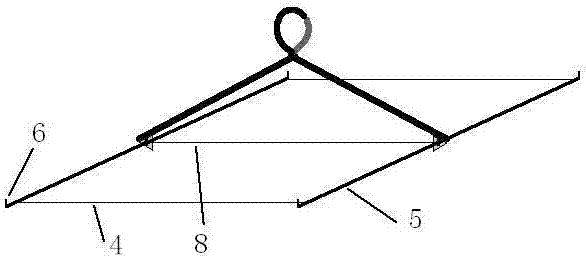

The whole deployed configuration sketch map of Fig. 1;
Fig. 2 unitary closed structural representation.
Label declaration among the figure: 1, can closed sprung parts, 2, the clothes hanger brace, 3, rubber case, 4, support bar, 5, rotatable cross bar, 6, the cross bar bending head, 7, the cross bar rotary part, 8, supporting traverse.
The specific embodiment
Below with reference to accompanying drawing and combine embodiment, specify the utility model.
With reference to shown in Figure 1; Rotatable clothes hanger; Comprise rotatable cross bar 5, cross bar rotary part 7, support bar 4, can closed sprung parts 1, said whippletree rotary part 7 is arranged at brace 2 bottoms, clothes hanger both sides, said rotatable cross bar 5 is connected on the said cross bar rotary part 7; Said support bar 4 supports the said rotatable cross bar 5 behind the rotary expansion, said can the connection successively with clothes hanger brace 2, supporting traverse 8 by closed sprung parts 1.
Further, said cross bar rotary part 7 needs to settle two said rotatable cross bars 5.
Further, said rotatable cross bar 5 centres are provided with interlayer, and head is provided with cross bar bending head 6, and available rubber case 3 is fixed after closure.
With reference to shown in Figure 2, said support bar can be hidden in the interlayer of said rotatable cross bar after closure.
The operation principle of present embodiment is following:
The deployed condition of clothes hanger is that rotatable cross bar is opened, be fixed at its head position with support bar, but use then closed sprung parts fixing with hanging articles on; But the supporting traverse of the rotatable clothes hanger of this cross bar, support bar be suspended garment all, and the closure state of clothes hanger is that support bar is taken off, and draws rotatable cross bar in; And be positioned over support bar in the interlayer of rotatable cross bar; On the cross bar bending head, put rubber case then, also can hang small amount this moment, and smaller volume is easy to collection.
The preferred embodiment that the above is merely the utility model is not limited to the utility model, and for a person skilled in the art, the utility model can have various changes and variation.All within the spirit and principle of the utility model, any modification of being done, be equal to replacement, improvement etc., all should be included within the protection domain of the utility model.
Claims (4)
1. rotatable clothes hanger; It is characterized in that: comprise rotatable cross bar (5), cross bar rotary part (7), support bar (4), can closed sprung parts (1); Said whippletree rotary part (7) is arranged at both sides clothes hanger braces (2) bottom; Said rotatable cross bar (5) is connected on the said cross bar rotary part (7), and said support bar (4) supports the said rotatable cross bar (5) behind the rotary expansion, said can the connection successively with clothes hanger brace (2), supporting traverse (8) by closed sprung parts (1).
2. the rotatable clothes hanger of cross bar according to claim 1 is characterized in that: said cross bar rotary part (7) needs to settle two said rotatable cross bars (5).
3. the rotatable clothes hanger of cross bar according to claim 1 is characterized in that: said rotatable cross bar (5) centre is provided with interlayer, and head is provided with cross bar bending head (6), and available rubber case (3) is fixing after closure.
4. the rotatable clothes hanger of cross bar according to claim 1 is characterized in that: said support bar (4) can be hidden in after closure in the interlayer of said rotatable cross bar (5).
