Abstract

The utility model discloses a multifunctional bed, which is mainly composed of a sofa, a table, a shoe cabinet and a stool; , the first box body, the second box body, the hanging board, the connector, the first lifting mechanism and the second lifting mechanism; wherein the lower surface of the desktop is fixedly connected with the four connecting panels at the upper ends of the two lifting mechanisms, and the first The two panels at the lower end of the lifting mechanism are fixedly connected to the upper surface of the first box, and the two panels at the lower end of the second lifting mechanism are fixedly connected to the upper surface of the second box, and the two boxes and the two groups of lifting The mechanisms are symmetrical about the center line of the desktop: both the stool and the shoe cabinet are quadrangular columns, and two grooves for placing shoes are opened on one side of the shoe cabinet. The multifunctional bed of the utility model has the advantages of being detachable into furniture such as sofas, tables, shoe cabinets and stools, increasing the use function of the bed, and saving the use space of the family room.

Description

multifunctional bed

technical field

The utility model relates to a bed, in particular to a multifunctional bed which can be split into sofas, tables and other furniture.

Background technique

At present, the transformable beds sold and used in the market can only realize the transformation between sofa and bed, and only have the two functions of sofa and bed. savings. The housing cost in today's society accounts for a large proportion of the expenditure of many residents, especially for college students who have just graduated, it is even more difficult to bear the housing cost in the city. People need a kind of combination deformation furniture that can reduce housing area cost, but has multiple furniture functions. The deformed furniture not only reduces the waste of housing area, but also saves the cost of purchasing furniture.

Utility model content

The utility model provides a multifunctional bed for avoiding the disadvantages of the above-mentioned prior art, which can be divided into furniture such as sofas, tables, shoe cabinets and stools to increase the use function of the bed.

The utility model adopts the following technical solutions for solving technical problems.

The multifunctional bed is characterized in that it is mainly composed of a sofa, a table, a shoe cabinet and two stools; the sofa includes a sofa seat, an upwardly foldable backrest and a downwardly foldable footrest, The backrest and the footrest are respectively arranged on both sides of the sofa seat; the table includes a table top, a first box body, a second box body, a hanging board, connecting pieces, a first raising mechanism and a second raising mechanism; Among them, the lower surface of the desktop is fixedly connected with the four connecting panels at the upper ends of the two lifting mechanisms, the two panels at the lower end of the first lifting mechanism are fixedly connected with the upper surface of the first box body, and the two panels at the lower end of the second lifting mechanism are connected with the upper surface of the first box body. The upper surface of the second box is fixedly connected, and the two boxes and the two sets of lifting mechanisms are symmetrical about the center line of the desktop: the stool is a quadrangular column; the shoe cabinet is also a quadrangular column Body, one side of the shoe cabinet is provided with two grooves for placing shoes.

The structural features of the multifunctional bed of the present utility model also lie in:

The footrest is connected to the box body through a ratchet mechanism, and the adjustment of the ratchet mechanism realizes the angle adjustment of the legrest; both sides of the backrest are provided with hangers for hanging clothes.

The lifting mechanism includes two sets of adjustable triangular frames, and the lifting of the desktop is realized through the adjustment of the angles of the two sides in the triangular frames; the hanging board is composed of a triangular plank, a rectangular plank and a connecting device, and is adjusted through the rotation of the rectangular plank and the triangular plank to realize The desktop becomes larger.

The lifting mechanism includes two supporting upper rods, two supporting lower rods, a U-shaped rod, two synchronous electric push rods, and a horizontal supporting rod; They are hinge joints that can rotate relative to each other, and the two joints are respectively fixed at both ends of the hollow shaft; two arc-shaped slots are fixed on the lower support rod, and the two ends of the U-shaped rod are respectively hinged with the two upper support rods. The middle rod of the U-shaped rod falls on the two arc-shaped slots of different heights on the lower support rod to realize the adjustment of different heights of the desktop; the two electric push rods push the horizontal support rod to provide upward assistance and Keep the desktop stable.

Compared with the prior art, the beneficial effects of the utility model are reflected in:

In the combined deformable bed designed by the utility model, the bed body becomes a sofa, a table, a shoe cabinet and two stools by splitting. Integrating the functions of multiple furniture reduces the cost of purchasing furniture, and at the same time greatly reduces the waste of living area, and uses novel combination methods to improve the quality of life.

Description of drawings

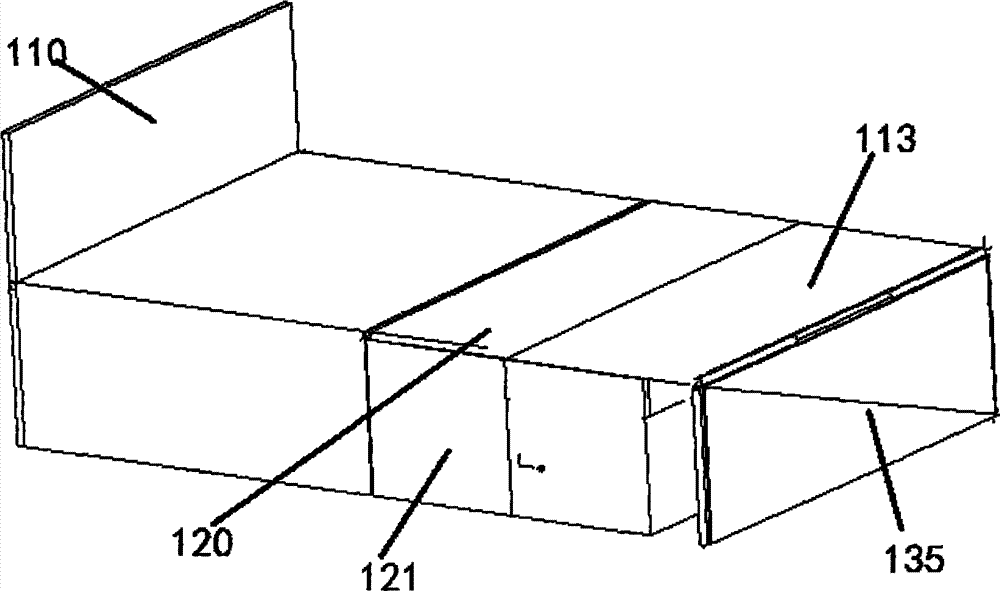

Fig. 1 is a schematic structural view of a combined deformation bed of an embodiment of the utility model patent.

Fig. 2 is a schematic structural view of a deformed sofa according to an embodiment of the utility model patent.

Fig. 3 is a schematic structural view of the elevated table of the embodiment of the utility model patent.

Fig. 4 is a structural schematic diagram of the raising mechanism of the embodiment of the utility model patent.

Fig. 5 is a schematic structural view of the bedside table and the shoe cabinet of the embodiment of the utility model patent.

The utility model will be further described below through specific embodiments in conjunction with the accompanying drawings.

Detailed ways

Referring to Figures 1 to 2, the multifunctional bed is mainly composed of a sofa, a table, a shoe cabinet and two stools; the sofa includes a sofa seat, an upwardly foldable backrest and a downwardly foldable backrest Foot boards, the backrest and the foot boards are respectively arranged on both sides of the sofa seat body;

The table includes a desktop, a first box body, a second box body, a hanging board, connectors, a first raising mechanism and a second raising mechanism; wherein the lower surface of the desktop is connected to four upper ends of the two raising mechanisms Fixed connection, the two panels at the lower end of the first lifting mechanism are fixedly connected with the upper surface of the first box body, the two panels at the lower end of the second lifting mechanism are fixedly connected with the upper surface of the second box body, and the gap between the two boxes Symmetry between the two sets of lifting mechanisms about the centerline of the desktop:

The stool is a quadrangular prism; the shoe cabinet is also a quadrangular prism, and one side of the shoe cabinet is provided with two grooves for placing shoes. The shoe cabinet is a two-layer shoe cabinet with three horizontal planes.

The footrest is connected to the box body through a ratchet mechanism, and the adjustment of the ratchet mechanism realizes the angle adjustment of the legrest; both sides of the backrest are provided with hangers for hanging clothes. Through the adjustment of the ratchet mechanism and the connecting piece, the change of the backrest and angle of the sofa can be realized. A mattress is arranged on the box, and the mattress is divided into a first section, a second section and a third section in parallel. Push up through the slideway to become a sofa, wherein the first and second mattresses become the backrest of the sofa, and the third section becomes the cushion of the sofa. The sofa seat body is divided into two parts: a wardrobe and a storage drawer, both of which have the same volume. Wherein the wardrobe is a double-door wardrobe connected by a vertical shaft, and the storage drawer is a drawer that realizes drawing and pushing through slide rails.

The lifting mechanism includes two sets of adjustable triangular frames, and the lifting of the desktop is realized through the adjustment of the angles of the two sides in the triangular frames; the hanging board is composed of a triangular plank, a rectangular plank and a connecting device, and is adjusted through the rotation of the rectangular plank and the triangular plank to realize The desktop becomes larger. The hanging board includes a rectangular plate and two triangular plates. The long side of the rectangular plate is connected to the desktop hinge, and the two short sides are respectively connected to the two triangular plate hinges; the free ends of the two triangular plates are in vertical contact with the ground, so that the rectangular plate and the desktop On the same plane, the expansion of the desktop is realized. A universal wheel is respectively arranged on the four legs of the table.

The lifting mechanism includes two supporting upper rods, two supporting lower rods, a U-shaped rod, two synchronous electric push rods, and a horizontal supporting rod; They are hinges that can rotate relative to each other, and the two hinges are respectively fixed at both ends of the hollow shaft; two arc-shaped slots are fixed on the lower support rod, and the two ends of the U-shaped rod are respectively hinged with the two upper support rods. The middle rod of the U-shaped rod falls on the two arc-shaped slots of different heights on the lower support rod to realize the adjustment of different heights of the desktop; the two electric push rods push the horizontal support rod to provide upward assistance and Keep the desktop stable.

In the combined deformable bed designed by the utility model, the bed body becomes a sofa, a table, a shoe cabinet and two stools through splitting, which integrates the functions of various furniture, reduces the cost of purchasing furniture, and greatly reduces the cost of living space. The waste of area and the use of novel combination methods improve the quality of life.

Claims (4)

1. multi-purpose bed, it is characterized in that, mainly form by a sofa, a desk, a shoe chest and two stooles; Said sofa comprise sofa pedestal, the backrest that can upwards turn down and can turn down downwards lean on sole, said backrest and be separately positioned on the both sides of sofa pedestal by sole;

Desk comprises a desktop, first casing, second casing, link plate, connector, the first rising mechanism and second a rising mechanism; Wherein the desktop lower surface is connected panel with four of the upper ends of two rising mechanisms and connects firmly; Two panels in the lower end of the first rising mechanism and the first casing upper surface connect firmly; Two panels in the lower end of the second rising mechanism and the second casing upper surface connect firmly, and between two casings and between two groups of rising mechanisms about desktop center line symmetry:

Said stool is the four prism type cylinder; Said shoe chest also is the four prism type cylinder, and a side of said shoe chest has two grooves that are used to place footwear.

2. according to claim 1 multi-purpose bed, it is characterized in that the said sole that leans on is connected with casing through ratchet mechanism, the ratchet mechanism adjustment realizes the angular adjustment of leg plate; The both sides of said backrest are provided with the clothes hanger that is used to hang clothes.

3. according to claim 1 multi-purpose bed, it is characterized in that said rising mechanism comprises two groups of adjustable triangle-frames, realize the rising of desktop through the adjusting of both sides angle in the triangle-frame; Link plate is regulated through the rotation of rectangle plank and triangle plank by triangle plank and rectangular slab and jockey, realizes that the change of desktop is big.

4. according to claim 1 multi-purpose bed, it is characterized in that said rising mechanism comprises that two are supported rod member, a U-shaped rod member, two synchronous electric pushrods, a horizontal support bar under upper lever, two supports; Support upper lever and support down and be respectively relatively turnable hinged, the two hinged hollow shaft two ends that have been separately fixed between the rod member; Fixing two circular arc draw-in grooves on the lower support bar spare wherein, the two ends of U-shaped rod member are hinged with two upper support bars respectively, and the circular arc draw-in groove of two differing heights of middle the rod member of U-shaped rod member through dropping on lower support bar is with the adjusting of the differing heights of realization desktop; Two electric push rods play upwards power-assisted and the stable effect of maintenance desktop through promoting horizontal support bar.
