Abstract
The utility model relates to a daily life tool, in particular to an automatic ignition ashtray, which comprises an ashtray main body, wherein the ashtray main body is provided with an ash storage groove and a cigarette support frame, and the cigarette support frame is connected with the side wall of the ash storage groove and the outer wall of the ashtray main body. The automatic ignition ashtray is characterized in that the ashtray main body is also provided with an ignition region and a control region, the ignition region is provided with a cigarette placing groove and an igniter, the control region consists of a switch, a battery, a control circuit and a cigarette sensor in serial connection, the cigarette sensor of the control region is arranged in the cigarette placing groove of the ignition region, and the control circuit is connected with the igniter of the ignition region. The existence of the cigarette is sensed through the cigarette sensor arranged in the cigarette placing groove, and whether the igniter works or not is controlled. The whole design structure is simple, the use is convenient, the ashtray can be used as a cigarette end and ash storage tool and also has the function of replacing an open fire tool for igniting the cigarette.
Description
Technical field
The utility model relates to daily life tools, refers to a kind of automatic igniting ashtray particularly.
Background technology
Traditional ashtray is as the store tools of a kind of stub and cigarette ash or have the art work of certain value of art appreciation, and many families have ashtray and are used for personal or as collectibles.The ashtray of selling on the market is function singleness mostly, brings all inconvenience to the consumer, in order to light a cigarette, generally needs to adopt naked light tool point such as match or the lighter cigarette of burning incense, and these naked light instruments are to cause important hidden danger such as fire.
The utility model content
The purpose of the utility model is exactly a kind of automatic igniting ashtray that can when sucking cigarette, not use naked light instruments such as match or lighter to be provided to the deficiency of above-mentioned background technology.
For realizing above-mentioned purpose; The automatic igniting ashtray that the utility model designed; Comprise the ashtray main body, said ashtray main body is provided with cigarette ash accumulator tank and the cigarette holder that is connected cigarette ash accumulator tank sidewall and ashtray main body outer wall, and its special character is: the ashtray main body also is provided with ignition zone and control area; Ignition zone is provided with cigarette standing groove and igniter; The control area is made up of the switch that is cascaded, battery, control circuit and cigarette inductor, and the cigarette inductor of control area is arranged in the cigarette standing groove of ignition zone, and control circuit is connected with the igniter of ignition zone.
Further, the switch of said control area is built in the ashtray main body.
The operation principle of the utility model is: cigarette is placed in the cigarette standing groove; Be sent to control circuit through the cigarette inductor, control circuit sends signal, the switch closure of control circuit; Connect entire circuit, and then the drive igniter is lighted the cigarette in the cigarette standing groove; After cigarette was taken away, the cigarette inductor was responded to less than cigarette, and the switch of control circuit breaks off, and igniter extinguishes automatically.
Whether the advantage of the utility model is: exist through the induction of the cigarette inductor in cigarette standing groove cigarette, whether come control point firearm work.Whole project organization is simple, and is easy to use, makes ashtray realize both having can be used as the store tools of stub and cigarette ash, also has to replace the burn incense function of cigarette of naked light tool point.
Description of drawings
Fig. 1 is the structural representation of the utility model.
The specific embodiment
Below in conjunction with accompanying drawing and specific embodiment the utility model is done further to specify, be convenient to be well understood to the utility model, but they do not constitute qualification to the utility model.

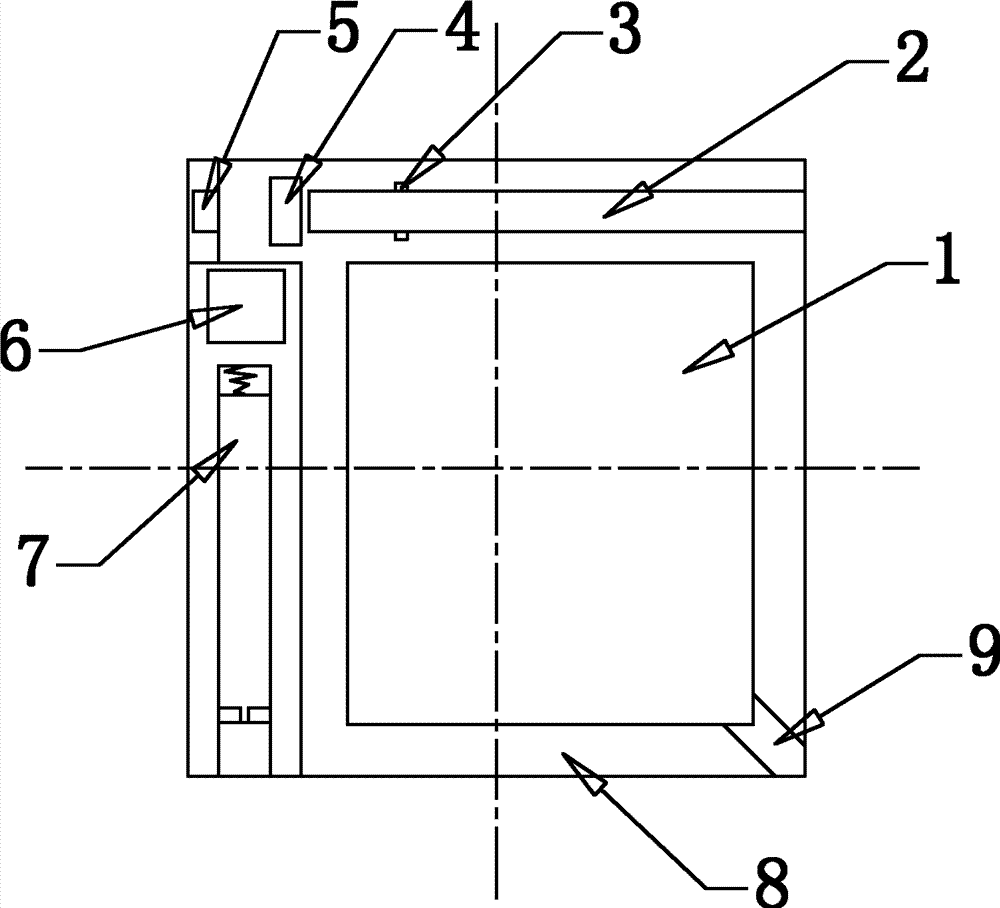

As shown in Figure 1; The automatic igniting ashtray that the utility model designed comprises ashtray main body 8, and said ashtray main body 8 is provided with the cigarette holder 9 of cigarette ash accumulator tank 1 and sidewall that is connected cigarette ash accumulator tank 1 and ashtray outer wall, and ashtray main body 8 also is provided with ignition zone and control area; Ignition zone is provided with cigarette standing groove 2 and igniter 4; The length of cigarette standing groove 2 is shorter than the length of whole Zhi Xiangyan, but the placement of Convenient cigarette and taking-up, and igniter 4 keeps certain distance with cigarette standing groove 2; The control area is made up of the switch that is cascaded 5, battery 7, control circuit 6 and cigarette inductor 3; Switch 5 is built in the ashtray main body; Cigarette inductor 3 is arranged in the cigarette standing groove 2 of ignition zone, and control circuit 6 is connected with the igniter 4 of ignition zone.
During concrete the realization, cigarette is placed in the cigarette standing groove 2, is sent to control circuit 6 through cigarette inductor 3, control circuit 6 sends signal, and switch 5 closures of control circuit are connected entire circuit, and then drive igniter 4 is lighted the cigarette in the cigarette standing groove 3; After cigarette was taken away, 3 inductions of cigarette inductor were less than cigarette, and the switch of control circuit 6 breaks off, and igniter 4 extinguishes automatically.
Whether the utility model exists through the 3 induction cigarettes of the cigarette inductor in the cigarette standing groove 2, comes control point firearm 4 whether to work.Whole project organization is simple, and is easy to use, makes ashtray both can be used as the store tools of stub and cigarette ash, also has to replace the burn incense function of cigarette of naked light tool point.
Claims (3)
1. automatic igniting ashtray; Comprise the ashtray main body; Said ashtray main body is provided with cigarette ash accumulator tank and the cigarette holder that is connected cigarette ash accumulator tank sidewall and ashtray main body outer wall; It is characterized in that: described ashtray main body also is provided with ignition zone and control area, and ignition zone is provided with cigarette standing groove and igniter, and the control area is made up of the switch that is cascaded, battery, control circuit and cigarette inductor; The cigarette inductor of control area is arranged in the cigarette standing groove of ignition zone, and control circuit is connected with the igniter of ignition zone.
2. automatic igniting ashtray according to claim 1 is characterized in that: the length of said cigarette standing groove is shorter than the length of whole Zhi Xiangyan.
3. automatic igniting ashtray according to claim 1, it is characterized in that: the switch of said control area is built in the ashtray main body.
