The utility model relates to a plug, and specially relates to a multifunctional plug. The multifunctional plug comprises a housing. The multifunctional plug is characterized in that the upper end face of the housing is provided with a sliding chute, a push slide knob is arranged in the sliding chute, the push slide knob is connected to a top insertion sheet located at the front end face of the housing, a rotary insulating column is arranged under the top insertion sheet on the front end face of the housing, two bottom insertion sheets are installed on the rotary insulating column, and each insertion sheet is connected with an electric wire. Two apron boards are installed at two sides of the front end face of the housing in a hinge manner, a groove is opened at the contact position of each apron board and the rotary insulating column, and the grooves are vertical to the rotary insulating column. A through hole is opened at the middle portion of each apron board, and friction raised portions corresponding to the through holes are arranged on end faces at two sides of the housing respectively. The rear end face of the housing is provided with a USB jack. The multifunctional plug has advantages of small size, easy carry and beautiful appearance. According to the multifunctional plug, a two-pin plug and a three-pin plug are integrated into an integral body, and a user can select to use the two-pin plug or the three-pin plug at any time according to demands, so the advantage of easy operation is realized, and different demands of users can be satisfied.

Description

A kind of adaptor plug
(1) technical field
The utility model relates to a kind of plug, particularly a kind of adaptor plug.
(2) background technology
Present employed plug mainly contains two hole plugs and three hole plugs, and the structure of existing two hole plugs and three hole plugs is all fixed, and can not transform each other between the two, causes function singleness in use, can not satisfy needs of people.
(3) summary of the invention
The utility model is in order to remedy the defective of prior art, and a kind of two holes and three hole plugs, adaptor plug easy to use of integrating is provided.
The utility model is realized through following technical scheme:
A kind of adaptor plug; Comprise housing, it is characterized in that: the housing upper surface is provided with chute, establishes the sliding button in the chute; The sliding button connects the top inserted sheet that is positioned at the housing front end face; The housing front end face is provided with rotating insulated post below the inserted sheet of top, two bottom inserted sheets are installed on the rotating insulated post, and each inserted sheet connects electric wire respectively.
This adaptor plug, two skirtboards of the hinged installation in housing front end face both sides, groove is offered in skirtboard and rotating insulated post contact position, and groove and rotating insulated post are perpendicular.Through hole is offered at the skirtboard middle part, and housing both sides end face is provided with and the corresponding friction projection of through hole.The housing rear end face is provided with the USB jack.
The beneficial effect of the utility model is: this adaptor plug, and volume is little, and is easy to carry, and good looking appearance integrates two holes and three hole plugs, can select two holes and three hole plugs as required at any time, uses easy to operately, can satisfy people's different needs.
(4) description of drawings
Below in conjunction with accompanying drawing the utility model is further described.

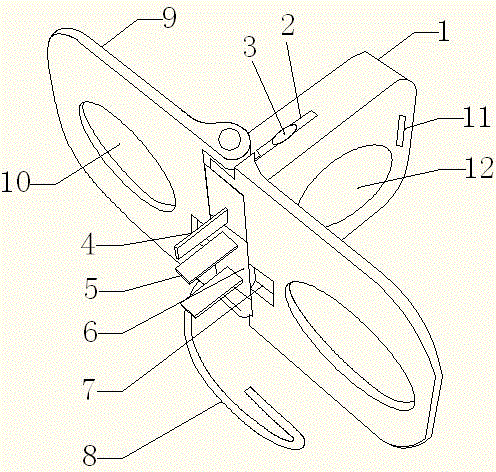

Accompanying drawing 1 is the structural representation of the utility model adaptor plug.
Among the figure, 1 housing, 2 chutes, 3 sliding buttons, 4 top inserted sheets, 5 bottom inserted sheets, 6 rotating insulated posts, 7 grooves, 8 electric wires, 9 skirtboards, 10 through holes, 11USB jack, 12 friction projections.
(5) embodiment
Accompanying drawing is a kind of specific embodiment of the utility model.
Among Fig. 1, this adaptor plug comprises housing 1; Housing 1 upper surface is provided with chute 2; Establish sliding button 3 in the chute 2, sliding button 3 connects the top inserted sheet 4 that is positioned at housing 1 front end face, and housing 1 front end face is provided with rotating insulated post 6 below top inserted sheet 4; Two bottom inserted sheets 5 are installed on the rotating insulated post 6, and each inserted sheet connects electric wire 8 respectively.Two skirtboards 9 of the hinged installation in housing 1 front end face both sides, skirtboard 9 is offered groove 7 with rotating insulated post 6 contact positions, and groove 7 and rotating insulated post 6 are perpendicular.Top inserted sheet 4 can stretch through sliding button 3, just becomes two hole plugs after in the retraction housing 1, and during the 4 not retractions of top inserted sheet; Folding two skirtboards 9 drive two bottom inserted sheets, 5 rotations, 90 degree through rotating insulated post 6, and whole plug has just become three hole plugs of standard; The rotation of rotating insulated post 6 can be set up incomplete gear and realized through engagement and spring in housing 1; After becoming three hole plugs, two skirtboards 9 can launch once more, not only can play stabilization; And finger skids and touches pin when can prevent to take plug, even wet hand also can plug safely.Through hole 10 is offered at skirtboard 9 middle parts, and housing 1 both sides end face is provided with and through hole 10 corresponding friction projections 12, and friction projection 12 can make plug be convenient to pull up, and through hole 10 overlaps with friction projection 12 just when folding, thereby not only can realize preventing electricity but also having reduced volume.Housing 1 rear end face is provided with USB jack 11, can charge to the USB product.
This kind plug adopts Bionic Design, and its innovation structure is to fold stretching, extension.Can dwindle the volume of oneself when folding, folding after again in the inserted sheet retraction body of 3-phase plug conveniently to be used for the use of two-pin plug.During stretching, extension, two skirtboards 9 launch to be used for the fixing of 3-phase plug, and two middle inserted sheets can rotate freely, the convenient insertion.Another function of this plug is exactly a decoration function, for your life staying idle at home is brought enjoyment.

Claims (4)

1. adaptor plug; Comprise housing (1), it is characterized in that: housing (1) upper surface is provided with chute (2), establishes sliding button (3) in the chute (2); Sliding button (3) connects the top inserted sheet (4) that is positioned at housing (1) front end face; Inserted sheet (4) below is provided with rotating insulated post (6) to housing (1) front end face on the top, and rotating insulated post (6) is gone up two bottom inserted sheets (5) are installed, and each inserted sheet connects electric wire (8) respectively.
2. adaptor plug according to claim 1; It is characterized in that: housing (1) front end face both sides two skirtboards of hinged installation (9); Skirtboard (9) is offered groove (7) with rotating insulated post (6) contact position, and groove (7) is perpendicular with rotating insulated post (6).
3. adaptor plug according to claim 2 is characterized in that: through hole (10) is offered at skirtboard (9) middle part, and housing (1) both sides end face is provided with and the corresponding friction projection of through hole (10) (12).
4. adaptor plug according to claim 1 is characterized in that: housing (1) rear end face is provided with USB jack (11).
