Abstract
本实用新型涉及一种可压缩式垃圾桶，属于生活日用品技术领域。该垃圾桶包括筒体(1)和筒盖(2)，筒体(1)与筒盖(2)之间活动连接，筒盖(2)的底部设置脚踏(3)，筒盖(2)与脚踏(3)之间设置包括钢丝绳(4)的动力传输机构(5)，所述筒盖(2)的正下方设置压板(6)，压板(6)通过弹簧(7)与筒盖(2)连接，所述筒盖(2)的底部设置滑轮(8)，所述钢丝绳(4)绕过滑轮(8)后与压板(6)连接。本实用新型具有结构简单、使用方便的优点，能自动压缩垃圾桶内的垃圾，省时省力，而且能减少垃圾袋的使用量，具有环保和节约资源的效果。
The utility model relates to a compressible trash can, which belongs to the technical field of daily necessities. The trash can comprises a cylinder body (1) and a cylinder cover (2), which are movably connected between the cylinder body (1) and the cylinder cover (2), and a pedal (3) is arranged at the bottom of the cylinder cover (2), and the cylinder cover (2) ) and the pedal (3) are provided with a power transmission mechanism (5) including a steel wire rope (4), and a pressing plate (6) is arranged directly below the cylinder cover (2), and the pressing plate (6) is connected to the cylinder through a spring (7) The cover (2) is connected, the bottom of the cylinder cover (2) is provided with a pulley (8), and the steel wire rope (4) is connected with the pressing plate (6) after going around the pulley (8). The utility model has the advantages of simple structure and convenient use, can automatically compress the garbage in the garbage can, saves time and labor, can reduce the usage of garbage bags, and has the effects of environmental protection and resource saving.
Description
Technical field
The utility model relates to a kind of compressible formula sewage disposer, belongs to the small stores technical field.
Background technology
Refuse bag is our indispensable daily necessities of living, yet " white pollution " problem of thereupon bringing has also become global problems; Simultaneously, make refuse bag raw material---oil is fewer and feweri, and; Existing sewage disposer institute load garbage is too bulk, and rubbish is dirtier, can't manual compression; The frequent change that causes refuse bag, this not only makes the refuse bag excess waste, and lets the people be fed up with.But the sewage disposer that a kind of automatic cover-turning is arranged in the prior art comprises cylindrical shell and cover, flexibly connects between cylindrical shell and the cover; The bottom of cover is provided with foot-operated, cover and foot-operated between the power transmission mechanism that comprises steel rope is set, an end of steel rope is connected with cover; The other end of steel rope is connected with actuating unit; During use, it is foot-operated to tramp with one's feet, and can cover be opened.
The utility model content
The purpose of the utility model is the deficiency that overcomes prior art, and a kind of compressible formula sewage disposer is provided, and this sewage disposer is the interior rubbish of compacting barrel automatically.
The scheme that the utility model solve the technical problem is: a kind of compressible formula sewage disposer; Comprise cylindrical shell and cover; Flexibly connect between cylindrical shell and the cover, the bottom of cover is provided with foot-operated, cover and foot-operated between the power transmission mechanism that comprises steel rope is set; Pressing plate is set under the said cover, and pressing plate is connected with cover through spring.
Owing under the cover pressing plate is set, pressing plate is connected with cover through spring, and when the rubbish in the sewage disposer had certain height, pressing plate meeting pressing waste was compressed bulk rubbish, and refuse bag is fully utilized.
As further technical scheme, the bottom of said cover is provided with pulley, and said steel rope is connected with pressing plate after walking around pulley.
The bottom of cover is provided with pulley, and said steel rope is connected with pressing plate after walking around pulley, when opening bung; Steel rope hauls pressing plate and makes length of spring compressed; When closing bung, steel rope loosens, and pressing plate is rapid bullet down under the effect of spring; Rubbish in the bucket is carried out the extruding of greater role power, further the rubbish in the compacting bucket.
In sum, the utlity model has advantage simple in structure, easy to use, the rubbish in the compressed garbage bucket is time saving and energy saving automatically, and can reduce the use amount of refuse bag, the effect that has environmental protection and economize on resources.
Description of drawings

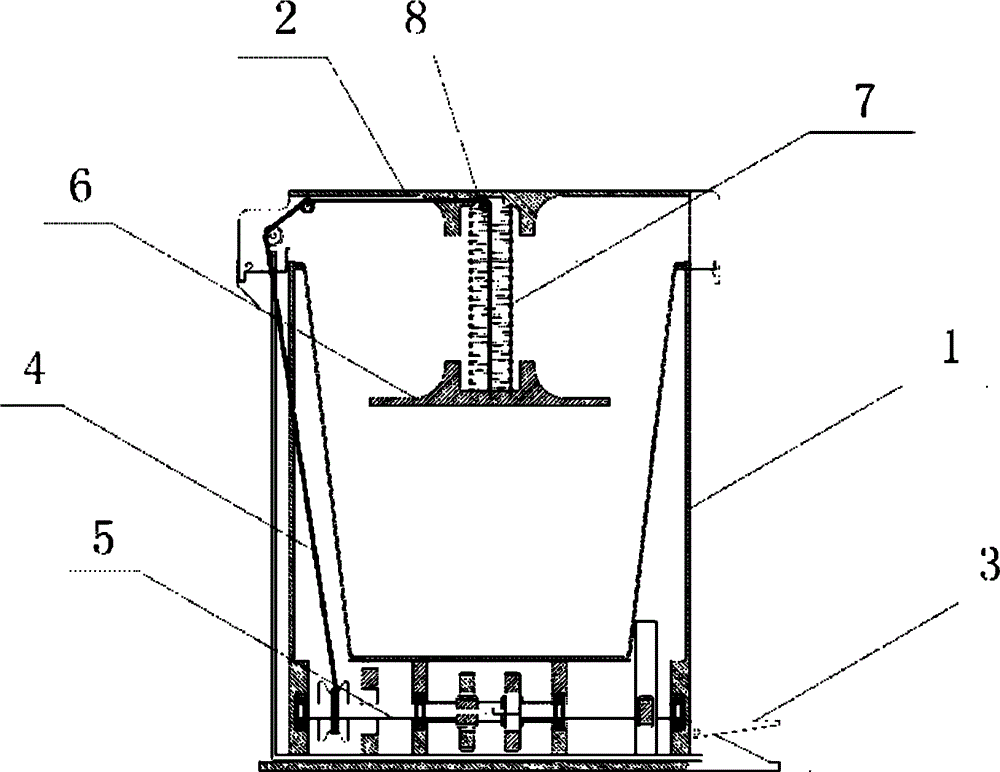

Fig. 1 is the structural representation of the utility model.
The specific embodiment
As shown in Figure 1; A kind of compressible formula sewage disposer comprises cylindrical shell 1 and cover 2, flexibly connects between cylindrical shell 1 and the cover 2; The bottom of cover 2 is provided with foot-operated 3; Between the cover 2 and foot-operated 3 power transmission mechanism 5 that comprises steel rope 4 is set, pressing plate 6 is set under the cover 2, pressing plate 6 is connected with cover 2 through spring 7.The bottom of cover 2 is provided with pulley 8, and steel rope 4 is walked around pulley 8 backs and is connected with pressing plate 6.
