Abstract
A suspensible packing box capable of exhibiting product comprises a box body, wherein the box body is composed of main sidewalls having narrow folding edges at the two sides and through holes at fold positions with the box bottom, and two auxiliary sidewalls arranged close to the main sidewalls and having buckle pieces at the end parts of their wide folding edges; the border of the wide folding edge of each auxiliary sidewall is provided with a notch; and a hook is set on the back of the box bottom. The buckle pieces of the auxiliary sidewalls can be buckled in the through holes of the main sidewalls when folding, so as to obviate the use of adhesive to lower production cost.
Description
Technical field
The utility model relates to a kind of packing box, but particularly a kind of packing box of exhibiting product belongs to the packing box technical field.
Background technology
Present product all need be packed with packing box; Wherein a part of packing box can have the perspective mouth that can see the inner product of adorning on box body; Help the customer when shopping goods, to see the appearance of internal product in advance like this through having an X-rayed mouth, can the person's of boosting consumption desire to purchase.These packing boxes remove the perspective mouth and upward all follow other common packing boxes the same in other positions; Paste through glue between box side wall and the sidewall; Use glue bigger, and cost is higher to workman's actual bodily harm, and this type of packing box all can only to be pendulum can not hang selling on the shelf.
Summary of the invention
In view of this, but the purpose of the utility model is exactly that a kind of exhibiting product and hangable packing box are provided for the deficiency that addresses the above problem.
The utility model the technical scheme that will deal with problems following:
But the packing box of exhibiting product; Comprise box body; It is characterized in that: that said box body has a narrow flanging by both sides and having the major side wall of perforation with folding line place at the bottom of the box and forming near the two secondary sidewalls that have cramp in its set wide flanging end of this two major side wall, the set wide flanging of said two secondary sidewalls edge is provided with breach; The back side at the bottom of said box is provided with hook.
The beneficial effect of the utility model is following:
Compared with prior art, but adopt the packing box of the exhibiting product of the utility model,, can avoid the use of glue, reduced productive costs because of when box body is amounted to, being buckled in the perforation of major side wall through the cramp on the secondary sidewall.
Compared with prior art; But adopt the packing box of the exhibiting product of the utility model, because of being provided with hook at the packing box back side, can be after box body be amounted to; Form a product perspective mouth by major side wall and secondary sidewall; Through suspension, can the product in the packing box be showed the customer to greatest extent again, in induced consumption person's desire to purchase virtually.
Description of drawings:

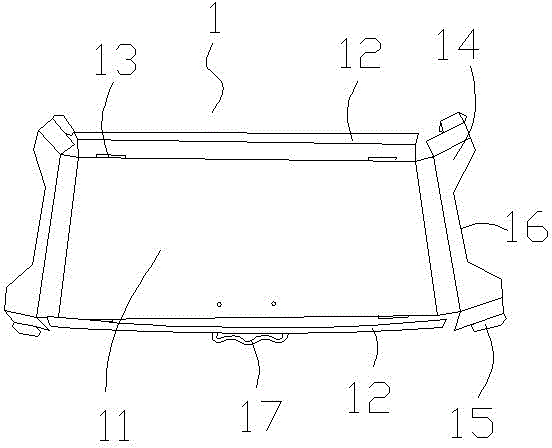

But Fig. 1 is the structure of the packing box of the utility model exhibiting product launches scheme drawing;
But Fig. 2 is the schematic appearance of the packing box of the utility model exhibiting product;
But Fig. 3 is the running condition reference diagram of the packing box of the utility model exhibiting product.
Among the figure: 1, box body; 11, at the bottom of the box;
12, narrow flanging; 13, perforation;
14, wide flanging; 15, cramp;
16, breach; 17, hook.
The specific embodiment:
Below in conjunction with accompanying drawing the utility model is done further detailed elaboration.
Consult Fig. 1, Fig. 2, Fig. 3; But the packing box of said exhibiting product; Comprise box body 1; That said box body 1 has a narrow flanging 12 by both sides and having the major side wall of perforation 13 with 11 folding line place at the bottom of the box and forming near the two secondary sidewalls that have cramp 15 in its set wide flanging 14 ends of this two major side wall, the set wide flanging of said two secondary sidewalls 14 edges are provided with breach 16; 11 the back side is provided with hook 17 at the bottom of said box.
During assembling, the wide flanging 14 on two major side wall is along the folding line doubling, again with the wide flanging 14 on the two secondary sidewalls along the folding line doubling, the cramp 15 of the wide flanging of two secondary sidewalls 14 ends is inserted in the perforation 13 gets final product then.
Claims (1)
1. but the packing box of exhibiting product; Comprise box body; It is characterized in that: that said box body has a narrow flanging by both sides and having the major side wall of perforation with folding line place at the bottom of the box and forming near the two secondary sidewalls that have cramp in its set wide flanging end of this two major side wall, the set wide flanging of said two secondary sidewalls edge is provided with breach; The back side at the bottom of said box is provided with hook.
