Abstract

A practical novel pen cap comprises a pen holder 1 and a pen cap 2. when a pen is not used, the pen cap is embedded in a groove A to be protected; and when the pen is used, the pen cap is pulled up to a groove B, the pen cap is embedded in the groove B, so that the pen can be normally used, and the waste caused by losing the pen cap is avoided.

Description

A kind of practical new-type pen cap

Technical field

The utility model relates to a kind of stationery, the pen of the band pen cap.

Background technology

Existing pen, especially free ink pen normally have the pen cap, but because when pen uses, the pen cap with normally separate, often some people owing to a variety of causes, usually loses the pen cap.After the pen cap was lost, because nib is directly exposed to the outside, nib is met other things easily made nib damage, and has caused unnecessary waste.

The utility model content

For addressing the above problem, the purpose of the utility model provides a kind of novel pensocket of being made by rubber, through the utility model; Pen in use; The pen cap needn't separate with penholder, makes the pen cap because the probability lost of a variety of causes reduces greatly like this, avoids wasting because the pen cap loses pen core.

The technical scheme of the utility model is:

A kind of novel pensocket of processing by rubber, the penholder of normally processing by plastic material, the said pen cap is with there being certain flexible rubber to process, and penholder has two grooves up and down, is used for fixing the position of the pen cap.

Preferably, said penholder is processed for the ordinary rigid plastics, and penholder has two grooves up and down.

Preferably, the said pen cap is processed for having certain flexible rubber, and its normal diameter is slightly less than penholder, but can be embedded in just again in the groove on the penholder.

The utility model has the advantages that: no matter the pen cap and penholder are one with pen all when pen uses or do not use; When not using; Can so just can make the rubber pen cap play the effect of protection nib through the groove of the slip rubber pen cap to penholder below; When using, can be through the slip rubber pen cap to penholder upper grooves, the fixedly pen cap.

Description of drawings

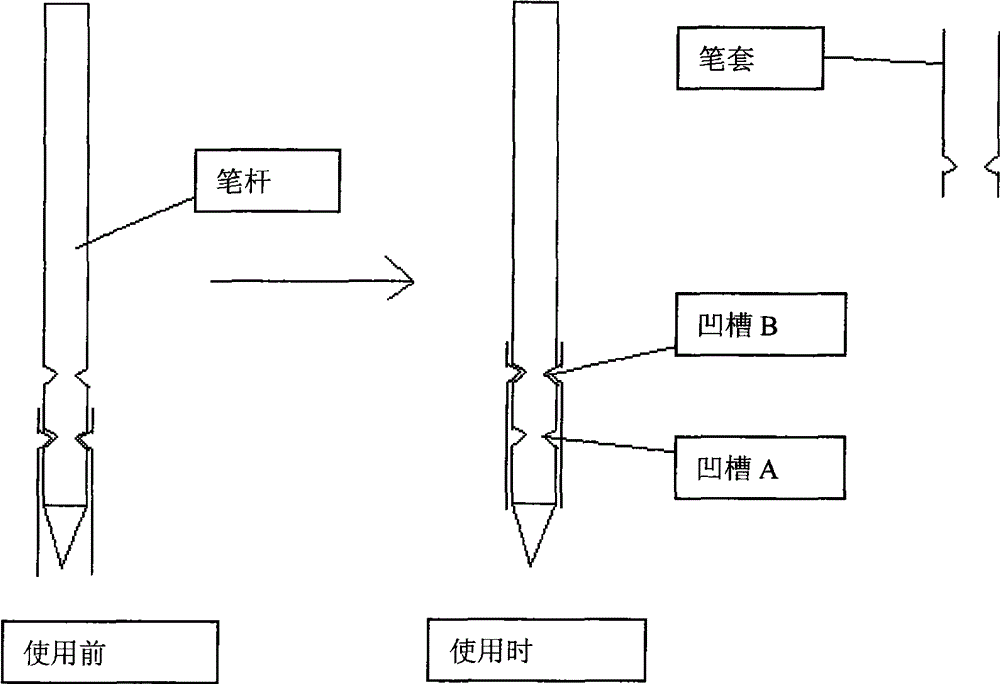

Fig. 1 is the structural representation of the utility model.

The specific embodiment

Combine accompanying drawing at present, the technology contents of the utility model is described in detail.

A kind of practical new-type pen cap comprises penholder 1, the pen cap 2.

Wherein said penholder 1 is a plastic material, and the described pen cap 2 is the rubber material.

When not using, the pen cap is embedded among the groove A, promptly can protect nib.

When using, the pen cap toward being pulled to groove B place, among the pen cap embedding groove B, then can normally be used.

The above is merely the preferred embodiment of the utility model; Be not therefore and the claim of restriction the utility model; Every equivalent structure transformation that utilizes the utility model specification and accompanying drawing content to be done; Or directly or indirectly be used in other relevant technical fields, all in like manner be included in the scope of patent protection of the utility model.

Claims (3)

1. a practical new-type pen cap comprises penholder (1), and the pen cap (2) is characterized in that: penholder (1) has two grooves up and down, and the pen cap (2) can self be fixed through embedding to make in the groove.

2. the practical new-type pen cap according to claim 1 is characterized in that: said penholder (1) is a plastic material.

3. the practical new-type pen cap according to claim 1 is characterized in that: the said pen cap (2) is the rubber material.
