The utility model relates to a cup, in particular to a cup with a filtering function. The whole structure of the cup with the filtering function comprises a cup body and a handle, wherein a filtering box is arranged inside the cup body and is a filtering screen with a plurality of spherical objects inside. After above structure is adopted, water scale and other impurities can be effectively filtered out, drinking water is purer, and therefore the cup with the filtering function is beneficial to health of people.
Description
Technical field
The utility model relates to a kind of cup, refers to a kind of cup with filtering function especially.
Background technology
In the daily life, use cup to drink water, incrustation scale gets in the cup unavoidably; If the cup vibrations, the incrustation scale of generation not only makes the easy ageing of people along with water gets in the human body; And influencing the healthy of people, people like water to brew up in daily life simultaneously, sample tea like tealeaves tea, jasmine tea, nutrition; If soak the back when drinking,, bring great inconvenience can for like this people that drink if there are not filter course tealeaves class bubble article to flow in people's mouth along with water.
Summary of the invention
To above-mentioned deficiency, the utility model aims to provide a kind of cup with filtering function simple in structure.
For realizing above-mentioned purpose; The technical scheme that the utility model adopts is: a kind of cup with filtering function, and described cup overall structure comprises cup and handle, described handle is installed in the cup outside; Between handle and the cup for being fixedly connected; Described cup set inside has filter cartridge, and the filter cartridge diameter matches with the cup inside diameter, and filter cartridge and cup are inner for flexibly connecting; Described filter cartridge is to have some rounds in the cylindrical screen pack.
The utility model adopts the beneficial effect after the technique scheme to be embodied in: after adopting described structure, effectively filtered the impurity such as incrustation scale in the cup, made drinking water purer, helped the healthy of people.
Description of drawings

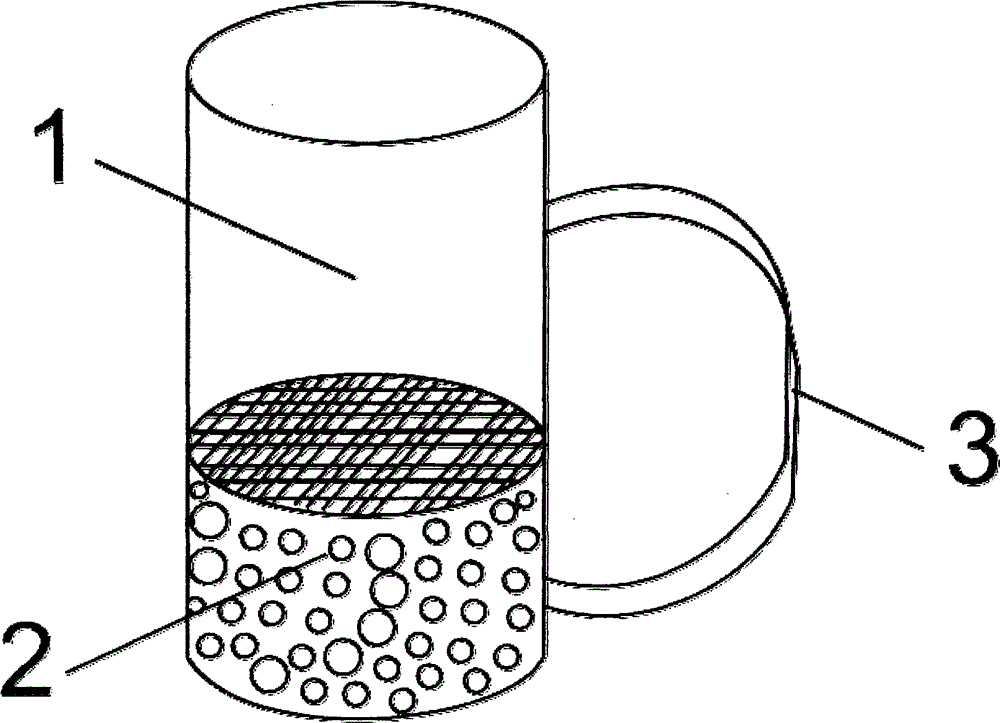

Fig. 1 is the utility model overall structure sketch map.
The specific embodiment
The utility model relates to a kind of cup, refers to a kind of cup with filtering function especially, specifies the specific embodiment of the utility model below in conjunction with accompanying drawing:
As shown in Figure 1, the cup overall structure of the utility model comprises cup 1, handle 3, and described cup 1 set inside has filter cartridge 2, and described filter cartridge 2 has some rounds in the cylindrical screen pack.Like this, after the water that has an incrustation scale was poured water tumbler into, incrustation scale will pass through filter cartridge 2; Filter cartridge 2 inside have some intensive rounds, and incrustation scale just is not easy out after getting into, and can be deposited in filter cartridge 2 bottoms; Impurity such as incrustation scale have been fallen in the water filtration of flowing out, and are pure relatively, help healthy.
The above; Only being the preferred embodiment of the utility model, is not that the technical scope of the utility model is done any restriction, the technical staff of the industry; Under the inspiration of present technique scheme; Can make some distortion and revise, every technical spirit according to the utility model all still belongs in the scope of the utility model technical scheme above any modification, equivalent variations and modification that embodiment did.
Claims (1)
1. cup with filtering function; It is characterized in that: described cup overall structure comprises cup and handle; Described handle is installed in the cup outside, and for being fixedly connected, described cup set inside has filter cartridge between handle and the cup; The filter cartridge diameter matches with the cup inside diameter, and filter cartridge and cup are inner for flexibly connecting; Described filter cartridge is to have some rounds in the cylindrical screen pack.
