The utility model relates to a cup, in particular to a cup with a cup cover having a storage function. A cup with the storage function comprises a cup body and the cup cover, the cup cover is in the shape of a container, the shape and size of the container match with those of a cup mouth of the cup body, a cover is arranged above the container, and the cup mouth is covered by the bottom of the container. A holding function and the storage function are integrated to the cup, namely the cup has the storage function added, and the cup with the storage function is simple in structure and is particularly convenient for a user going out for drinking tea since another container used for storing tea leaves need not be taken along.
Description
Technical field
The utility model relates to a kind of cup, refers to that especially a kind of bowl cover has the cup of memory function.
Background technology
At present, used cup often can only be used for the splendid attire drink on the market, when not having to quote infusion beverage; Often need carry dress Na Pao article in addition, like tealeaves etc., when promptly people have tea; All use cup always, bowl cover is arranged on the cup, the person of having tea will be furnished with tea can; Before having tea, take out tealeaves earlier from tea can and put into cup.If meeting or out on tours need be with tea can in addition, and be just cumbersome, use has inconvenience more.If can improve to cup, cup lid structure, make bowl cover can make tea cup with a cover and can adorn tealeaves etc. again, dual-use material must be welcomed by users.
Summary of the invention
For remedying the deficiency on the market, the utility model aims to provide simple in structure, a kind of cup with memory function of cup and memory function unification.
For realizing above-mentioned purpose; The technical scheme that the utility model adopts is: a kind of cup with memory function; Described cup is made up of cup and bowl cover, and described bowl cover is the chamber receptacle shape, and the rim of a cup shape and the size of this chamber receptacle shape and size and cup are complementary; The cup of the rim of a cup of described cup is outside equipped with external screw thread, and the internal thread that the bottom of said bowl cover container has correspondence to be complementary; There is external screw thread the outside, top of described chamber receptacle, the internal thread that the bottom of described lid has correspondence to be complementary; The top of this container is provided with lid, and the bottom of this container covers rim of a cup.
The utility model adopts the beneficial effect after the technique scheme to be embodied in: cup splendid attire function of the utility model and memory function together are arranged on the cup; Promptly set up the cup of memory function; Simple in structure, do not need to carry in addition a container when having tea when especially conveniently going out and be used for the storage bubble article.
Description of drawings
Fig. 1 is the schematic perspective view of the said bowl cover of the utility model.

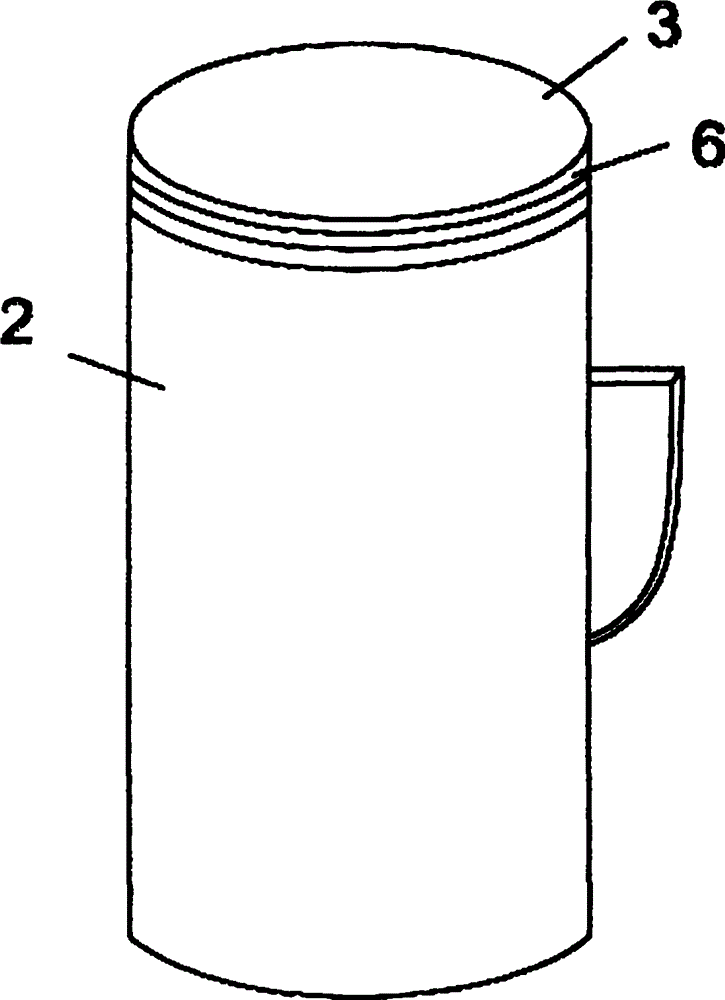

Fig. 2 is the schematic perspective view of the said cup of the utility model.
The specific embodiment
The utility model relates to a kind of cup, refers to that especially a kind of bowl cover has the cup of memory function, specifies the specific embodiment of the utility model below in conjunction with accompanying drawing:
Like Fig. 1, shown in 2; A kind of cup with memory function is made up of bowl cover 1 and cup 2, it is characterized in that described bowl cover 1 is container shapes, and rim of a cup 3 shapes and the size of this container shapes and size and cup are complementary; Also there is lid 4 top of this container, and the bottom 5 of this container covers rim of a cup.
Wherein, the cup of described cup rim of a cup is outer can be designed with external screw thread 6, and the bottom 5 of said bowl cover container is designed with the internal thread that correspondence is complementary; Thereby; The external screw thread of rim of a cup and the bottom of this container 5 internal threads, through to revolving, the bottom of this container and cover tight rim of a cup; In like manner, the outside, top of this container also can be designed with external screw thread, the internal thread that the bottom design of lid 4 has correspondence to be complementary, thereby, through to revolving, tight this container of lid 4 lids; Cup splendid attire function of the utility model and memory function together are arranged on the cup, have promptly set up the cup of memory function, and be simple in structure, do not need to carry in addition a container when having tea when especially conveniently going out and be used for the storage bubble article.
The above; Only being the preferred embodiment of the utility model, is not that the technical scope of the utility model is done any restriction, the technical staff of the industry; Under the inspiration of present technique scheme; Can make some distortion and revise, every technical spirit according to the utility model all still belongs in the scope of the utility model technical scheme above any modification, equivalent variations and modification that embodiment did.
Claims (1)
1. cup with memory function; Described cup is made up of cup and bowl cover; It is characterized in that: described bowl cover is the chamber receptacle shape; The rim of a cup shape and the size of this chamber receptacle shape and size and cup are complementary, and the cup of the rim of a cup of described cup is outside equipped with external screw thread, and the internal thread that the bottom of said bowl cover container has correspondence to be complementary; There is external screw thread the outside, top of described chamber receptacle, the internal thread that the bottom of described lid has correspondence to be complementary; The top of this container is provided with lid, and the bottom of this container covers rim of a cup.
