Abstract

The utility model discloses a bed capable of being dismantled into a table and chairs. It is characterized in that the bed is composed of a bed head, a bed end and a bed body connected between the bed head and the bed end by a detachable connection structure. The bed head and the bed end are a pair of chairs with identical structures, and each chair is composed of a chair faceplate, chair legs and a chair backrest; the bed body is a table composed of a table top supported on table legs; and the support height of the table top on the table legs can be adjusted to be the same as or different from the chair faceplate. The utility model realizes conversion between table/chairs and bed, so as to make effective use of small space.

Description

A kind of disassembled be the bed of tables and chairs
Technical field
The utility model relates to a kind of furniture, particularly a kind of can be as bed, the furniture that also can use as tables and chairs.
Background technology
Bed and tables and chairs are furniture important during people live, and are the bigger furniture of area occupied, also are the furniture of separate use basically simultaneously.At present, employed bed of people and tables and chairs are two furniture independently, and this is taking greatly space capable of using for the less space of area.
Summary of the invention
The utility model is for avoiding above-mentioned existing in prior technology weak point, a kind of disassembled bed of tables and chairs that is is provided, narrow space being utilized effectively.
The utility model adopts following technical scheme for the technical solution problem:
The utility model a kind of disassembled be tables and chairs the bed, its design feature is: by the removable syndeton of the head of a bed, tailstock and employing be connected between the head of a bed and the tailstock the bed body constitute; The said head of a bed is the identical seat of a pair of structure with tailstock, and said seat is to be made up of seat panel, seat leg and backrest; Said bed body is a desk, and said desk is on table leg, to be supported with desktop; The bearing height of said desktop on table leg can be adjusted in identical with seat panel or inequality.
The utility model a kind of disassembled be the bed of tables and chairs; Its design feature also is: the removable syndeton between said bed body and the head of a bed and the tailstock is to be respectively arranged with the sidepiece hook in the both sides of said seat panel; The level that is respectively arranged with in the both sides of said desktop is hung pin; Hung on the said extension pin by said hook and to form connection, the seat panel of connecting portion and desktop are to overlap each other with inclined-plane or protruding terrace.
Said desktop is set to soft cushion face in the front, is set to platen surface overleaf, and desktop can be supported on the said table leg with soft cushion face up, or is supported on up on the said table leg with platen surface.
Compared with present technology, the utility model beneficial effect is embodied in:
1, the utility model conversion between tables and chairs and bed is used, and narrow space is utilized effectively;
2, the syndeton of the utility model hook and extension pin is simple and convenient, and the mutual overlap joint of the inclined-plane of connecting portion or protruding terrace makes syndeton more firm;
3, the utility model desktop is set to the two-sided form of platen surface and soft cushion face; Be used as bed when using; Can be according to different users's demand; Select to use platen surface or soft cushion face, also can in Various Seasonal, select the practicality of more fitting of platen surface and soft cushion face, diversified form respectively.
Description of drawings

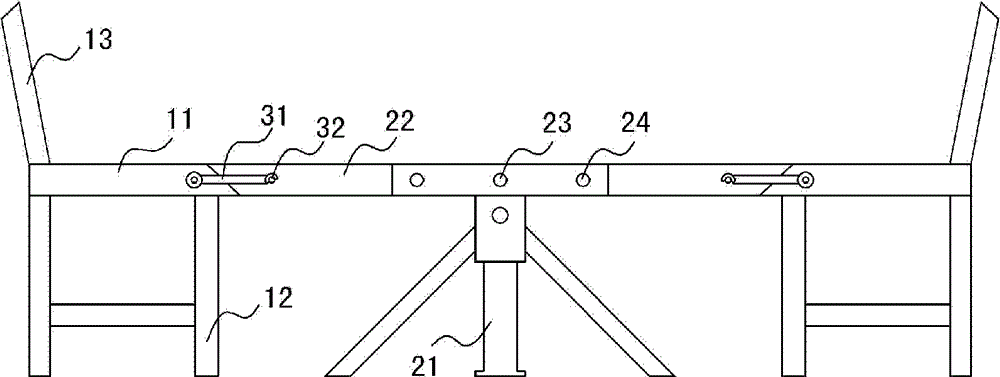

Fig. 1 is the utility model structural representation;
Fig. 2 disassembles for the utility model and is the tables and chairs structural representation;
Label among the figure: 11 seat panel; 12 seat legs; 13 backrests; 21 table legs; 22 desktops; 23 rotating shafts; 24 alignment pins; 31 hooks; 32 hang pin.
The specific embodiment
Referring to Fig. 1 and Fig. 2, disassembled bed for tables and chairs is to be made up of the bed body that the removable syndeton of the head of a bed, tailstock and employing is connected between the head of a bed and the tailstock in the present embodiment; Wherein, the head of a bed is the identical seat of a pair of structure with tailstock, and seat is to be made up of seat panel 11, seat leg 12 and backrest 13; The bed body is a desk, and desk is on table leg 21, to be supported with desktop 22; The bearing height of said desktop 22 on table leg 21 can be adjusted in identical or inequality with seat panel 11.When using as bed, the height of adjustment desktop is identical with the height of seat; When using as tables and chairs, according to different needs, the adjustment desktop is on suitable height.
As shown in Figure 1; In the practical implementation; Removable syndeton between bed body and the head of a bed and the tailstock is to be respectively arranged with sidepiece hook 31 in the both sides of said seat panel 11, and the level that is respectively arranged with in the both sides of said desktop 22 is hung pin 32, is hung on the pin 32 by hook 31 and forms connection; The seat panel 11 and the desktop 22 of connecting portion are to overlap each other with inclined-plane or protruding terrace, and this syndeton is firm, simple, reliable; Hang pin 32 and also can be set to plug type, in the time need not using, can pull up and hang pin 32, make it not influence the use of desk.
In order to adapt to different user demands, desktop 22 is set in the present embodiment is set to soft cushion face in the front, be set to platen surface overleaf; Desktop 22 can be supported on the said table leg 21 with soft cushion face up, or is supported on up on the said table leg 21 with platen surface, when being used as the bed use; Can be according to different users's demand; Select to use platen surface or soft cushion face, also can select platen surface and soft cushion face respectively in summer and winter, practical with multi-form applying like this; When using as desk, select platen surface usually, it is through pulling up alignment pin 24 that conversion between platen surface and the soft cushion face is used, and desktop ° is realized around rotating shaft 23 Rotate 180s.
In the practical implementation, bandage can also be set on the table, so that when using as tables and chairs, the enough bandages of quilt ability are bundled in the bottom of desktop.

Claims (4)

  1. One kind disassembled be the bed of tables and chairs, it is characterized in that: by the removable syndeton of the head of a bed, tailstock and employing be connected between the head of a bed and the tailstock the bed body constitute; The said head of a bed is the identical seat of a pair of structure with tailstock, and said seat is to be made up of seat panel (11), seat leg (12) and backrest (13); Said bed body is a desk, and said desk is on table leg (21), to be supported with desktop (22); The bearing height of said desktop (22) on table leg (21) can be adjusted in identical or inequality with seat panel (11).
  2. 2. according to claim 1 disassembled be the bed of tables and chairs; It is characterized in that: the removable syndeton between said bed body and the head of a bed and the tailstock is to be respectively arranged with sidepiece hook (31) in the both sides of said seat panel (11); The level that is respectively arranged with in the both sides of said desktop (22) is hung pin (32); Hang over said extension pin (32) by said hook (31) and upward form connection, seat panel of connecting portion (11) and desktop (22) are to overlap each other with inclined-plane or protruding terrace.
  3. 3. according to claim 1 disassembled be the bed of tables and chairs; It is characterized in that: said desktop (22) is set to soft cushion face in the front; Be set to platen surface overleaf, desktop (22) can be supported on the said table leg (21) with soft cushion face up, or is supported on up on the said table leg (21) with platen surface.
  4. 4. according to claim 3 disassembled be the bed of tables and chairs, it is characterized in that: said desktop (22) is provided with bandage in the front.
