Abstract
本实用新型涉及一种手机套，尤其是涉及一种可充电的手机套，其主要解决现有的手机套，功能单一，无法提供手机临时充电的特点。本实用新型的可充电的手机套，包括一个手机套，其主要特征在于所述的手机套上设有锂电池，而锂电池连接一个充电插头。本实用新型的具有结构简单、造价成本低，使用安全方便，当手机遇到电量不足时，人们将手机套上的充电插头插入手机充电孔内，使手机套内的锂电池为手机充电的特点。
The utility model relates to a mobile phone case, in particular to a rechargeable mobile phone case, which mainly solves the problem that the existing mobile phone case has single functions and cannot provide temporary charging for the mobile phone. The rechargeable mobile phone case of the utility model includes a mobile phone case, and its main feature is that the mobile phone case is provided with a lithium battery, and the lithium battery is connected with a charging plug. The utility model has the characteristics of simple structure, low cost, safe and convenient use, when the mobile phone encounters power shortage, people insert the charging plug on the mobile phone cover into the charging hole of the mobile phone, so that the lithium battery in the mobile phone cover can charge the mobile phone .
Description
Technical field
The utility model relates to a kind of cell-phone cover, especially relates to a kind of chargeable cell-phone cover.
Background technology
At present, the cell-phone cover style of selling on the market is various, but function singleness can't provide mobile phone interim characteristics of charging, and the utility model has well solved the technical problem of existing existence.
Summary of the invention
The purpose of the utility model provides a kind of chargeable cell-phone cover, and it mainly solves existing cell-phone cover, and function singleness can't provide mobile phone interim characteristics of charging.
The above-mentioned technical problem of the utility model mainly is able to solve through following technical proposals.
The chargeable cell-phone cover of the utility model comprises a cell-phone cover, is primarily characterized in that described cell-phone cover is provided with lithium battery, and lithium battery connects a charging plug.
Having of the utility model is simple in structure, the cost cost is low, safe and convenient to use, and when mobile phone ran into the electric weight deficiency, people inserted the charging plug on the cell-phone cover in the cell-phone charging hole, and making the lithium battery in the cell-phone cover is the characteristics of cell-phone charging.
Description of drawings

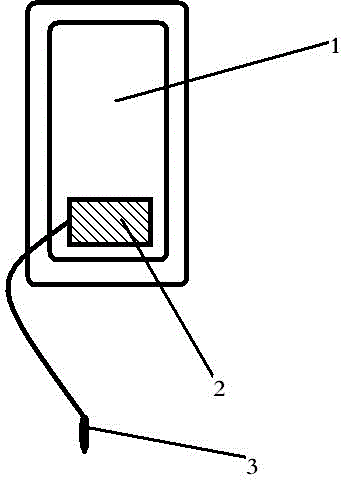

Accompanying drawing 1 is the structural representation of the utility model.
Specific embodiment
Pass through embodiment below, and combine accompanying drawing that the technical scheme of the utility model is further specified.
Embodiment, as shown in Figure 1, the chargeable cell-phone cover of this example comprises a cell-phone cover 1, is primarily characterized in that described cell-phone cover 1 is provided with lithium battery 2, and lithium battery 2 connects a charging plug 3.
During use, when mobile phone ran into the electric weight deficiency, people inserted the charging plug on the cell-phone cover in the cell-phone charging hole, and making the lithium battery in the cell-phone cover is the characteristics of cell-phone charging.
Claims (1)
1. chargeable cell-phone cover comprises a cell-phone cover, is primarily characterized in that described cell-phone cover is provided with lithium battery, and lithium battery connects a charging plug.
