The utility model relates to a flower-shaped candy packaging box. Conventional packages lack interestingness, the structure is undiversified, and attractiveness is poor. The packaging box comprises a box bottom, a box body and flaps, a piece of flat paper is folded into the packaging box, the box bottom is a regular hexagon-shaped plane, and six sidewall units with the same shape are closed to form the box body; each sidewall unit is shaped like a rectangular pyramid, and consists of an upper pyramidal face, a lower pyramidal face and two symmetrical side pyramidal faces, wherein the bottom side of the lower pyramidal face is one side of the box bottom, and the upper pyramidal face consists of two triangular planes; each unfolded sidewall unit is shape like a diamond, the top side is folded inward, the joint between the top sides of each two unfolded neighboring sidewall units are connected with one of the flaps, and the six closed flaps are fastened with one another crosswise to form the flower-shaped top cover of the packaging box. a paperboard can be shaped and printed in one step to form the flower-shaped candy packaging box, the fabrication cost is low, the process is simple, and the flower-shaped candy packaging box is highly interesting, and is particularly suitable for displaying the packages of candies and small articles.
Description
Technical field
The utility model belongs to the packing technique field, is specifically related to a kind of colored shape candy packing box.
Background technology
Raising day by day along with environmental consciousness; Utilize papery to pack and hold article already by extensively employing and attention of modern; Particularly use recycled writing paper to make carton; Reuse resource with this, the waste pollution of both having avoided plastic cement and other irretrievable materials and being caused has also reduced manufacturing cost.
Now, most candy is to pack with the mode of common carton or paper bag, and structure is more single, aesthetic property is not enough, shortage is interesting.And the primary effect of packing can cause customer's attention exactly, and the commodity packaging that can arouse attention can increase the probability of being bought.Therefore this ordinary packing form does not have novelty because packing itself lacks intention, is unfavorable for selling.
In addition, existing paper package box or packaging bag need be bonding with the viscose glue mode, not enough environmental protection, and adhesion process also relatively wastes time and energy.
Summary of the invention
The purpose of the utility model is exactly the deficiency to prior art, and a kind of colored shape candy packing box is provided.
At the bottom of the candy packing box of the utility model comprises box, box body and flap sheet, being that a plane paper is folding forms.
It at the bottom of the described box regular hexagon plane;
Described box surrounds as six identical side wall element of shape and forms;
Described side wall element is a rectangular pyramid shape, comprises the side conical surface of the conical surface, the following conical surface and two symmetries; The base of wherein descending the conical surface is a limit at the bottom of the box; The last conical surface is that two triangle projective planum butt joints form;
It is diamond that each side wall element is launched the back, and the base is a limit at the bottom of the box, and top margin is inwardly rolled over;
The top margin junction of the adjacent wall unit after two expansion is connected with flap sheet, surrounds back six flap sheets and intersects card mutually, forms the fancy top cover of packing box.
To be that a plane paper is folding form the utility model, can a plate be shaped and one-step print is accomplished making, and cost of manufacture is low, technology is simple, entertaining is strong, is particularly suitable for the displaying of the packing of candy and smallclothes commodity.
The utlity model has recreational, interesting, aesthetic property, interactive, help production and sales, meet human factor engineering.When sale, can adjust the position and the direction of putting flexibly, reach the effect of displaying dexterously, each face display state all has good aesthetic property, brings the customer strong visual impact, is beneficial to the sale that improves product.
Description of drawings
Fig. 1 is the planar development scheme drawing of the utility model;

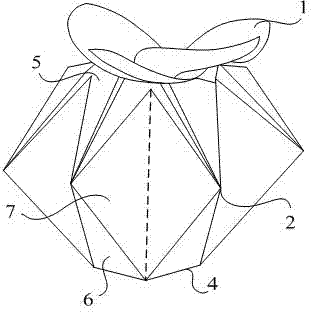

Fig. 2 is the perspective view of the utility model.
The specific embodiment
Below in conjunction with accompanying drawing the utility model is described further.
As illustrated in fig. 1 and 2, to be that a plane paper is folding form a kind of colored shape candy packing box, comprises at the bottom of the box 3, box body and flap sheet 1,3 is the regular hexagon plane at the bottom of the box wherein, and dotted line is fold line among the figure.
Box surrounds as six identical side wall element 2 of shape and forms.Side wall element 2 is the rectangular pyramid type, comprises the conical surface 5, the following side conical surface 7 of the conical surface 6 and two symmetries, and the base 4 of wherein descend the conical surface 6 be a limit of 3 at the bottom of the box, and the last conical surface 5 is two triangle projective planums formations of formation after folding.
It is diamond that each side wall element 2 of box body is launched the back, and base 4 is a limit of 3 at the bottom of the box, and top margin part area is inwardly rolled over; The top margin of the side wall element 2 after each launches is connected with 1, six flap sheet of flap sheet, the 1 intersection fancy top cover of card formation packing box mutually.
Claims (1)
1. colored shape candy packing box, comprise box at the bottom of, box body and flap sheet, being that a plane paper is folding forms, and it is characterized in that: be the regular hexagon plane at the bottom of the described box; Described box surrounds as six identical side wall element of shape and forms; Described side wall element is a rectangular pyramid shape, comprises the side conical surface of the conical surface, the following conical surface and two symmetries, and the base of wherein descending the conical surface is a limit at the bottom of the box, and the last conical surface is that two triangle projective planums butt joints form;
It is diamond that each side wall element is launched the back, and the base is a limit at the bottom of the box, and top margin is inwardly rolled over;
The top margin junction of the adjacent wall unit after two expansion is connected with flap sheet, surrounds back six flap sheets and intersects card mutually, forms the fancy top cover of packing box.
