CN202538771U - Chemical reaction kettle - Google Patents
Chemical reaction kettle Download PDFInfo
- Publication number
- CN202538771U CN202538771U CN2012201042258U CN201220104225U CN202538771U CN 202538771 U CN202538771 U CN 202538771U CN 2012201042258 U CN2012201042258 U CN 2012201042258U CN 201220104225 U CN201220104225 U CN 201220104225U CN 202538771 U CN202538771 U CN 202538771U
- Authority
- CN
- China
- Prior art keywords
- kettle
- shaft
- chemical reaction
- motor
- paddle
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
- 238000006243 chemical reaction Methods 0.000 title claims abstract description 16
- 239000000126 substance Substances 0.000 abstract description 3
- 230000000694 effects Effects 0.000 abstract description 2
- 238000003756 stirring Methods 0.000 abstract 4
- 230000009286 beneficial effect Effects 0.000 description 1
- 230000002950 deficient Effects 0.000 description 1
Images
Landscapes
- Mixers Of The Rotary Stirring Type (AREA)
- Physical Or Chemical Processes And Apparatus (AREA)
Abstract
本实用新型公开了一种化工反应釜，属于化工设备技术领域。本实用新型的目的在于提供一种混合效果好的化工反应釜。它的结构包括釜体和釜盖，釜体和釜盖通过法兰连接，其特征是，所述釜体侧壁上对称设有一对搅拌轴，搅拌轴上分别设有搅拌桨A，搅拌轴与电机A的动力输出轴相连接；所述釜体底部中间部位垂直设有下搅拌轴和电机B，下搅拌轴和电机B的动力输出轴相连接，所述下搅拌轴的端部设有一搅拌桨B。所述釜体的底部设有支架。该种化工反应釜，能够使物料能够进行充分反应。
The utility model discloses a chemical reaction kettle, which belongs to the technical field of chemical equipment. The purpose of the utility model is to provide a chemical reaction kettle with good mixing effect. Its structure includes a kettle body and a kettle cover, and the kettle body and the kettle cover are connected by flanges. It is connected with the power output shaft of motor A; the middle part of the bottom of the kettle body is vertically provided with a lower stirring shaft and motor B, and the lower stirring shaft is connected with the power output shaft of motor B, and the end of the lower stirring shaft is provided with a Stirring paddle B. The bottom of the kettle body is provided with a bracket. This kind of chemical reaction kettle can make the materials fully react.
Description
Technical field
The utility model relates to a kind of chemical reaction still, belongs to technical field of chemical.
Background technology
The chemical reaction still is the reaction unit of often using during chemical industry is produced, and is typically provided with shaft and paddle in the agitated reactor, rotates the drive paddle through shaft material is mixed, and material is reacted under the state that mixes.But common chemical reaction still only possesses a shaft usually, and the interior material near sidewall or bottom of kettle can not be stirred oar and involve, and causes the uneven situation of mixing of materials to occur, and material can not fully be reacted.
Summary of the invention
Inhomogeneous in order to overcome the mixing of materials that the chemical reaction still exists in the above-mentioned prior art, the inadequate defective of material reaction, the utility model provides a kind of chemical reaction still of good mixing effect.
The utility model is realized through following technical scheme: a kind of chemical reaction still; Comprise kettle and kettle cover; Kettle is connected through flange with kettle cover, it is characterized in that, is arranged with a pair of shaft on the said kettle sidewall; Be respectively equipped with paddle A on the shaft, shaft is connected with the power output shaft of motor A; Said autoclave body bottom middle part vertically is provided with down shaft and motor B, and the power output shaft of following shaft and motor B is connected, and the said end of shaft down is provided with a paddle B.
The bottom of said kettle is provided with support.
Compared with prior art, the beneficial effect of the utility model is that this kind chemical reaction still through on the kettle sidewall, being arranged with a pair of paddle, can make near the mixing of materials of kettle sidewall even; Autoclave body bottom is provided with paddle, can make near the mixing of materials of autoclave body bottom evenly, and material can fully be reacted.
Description of drawings

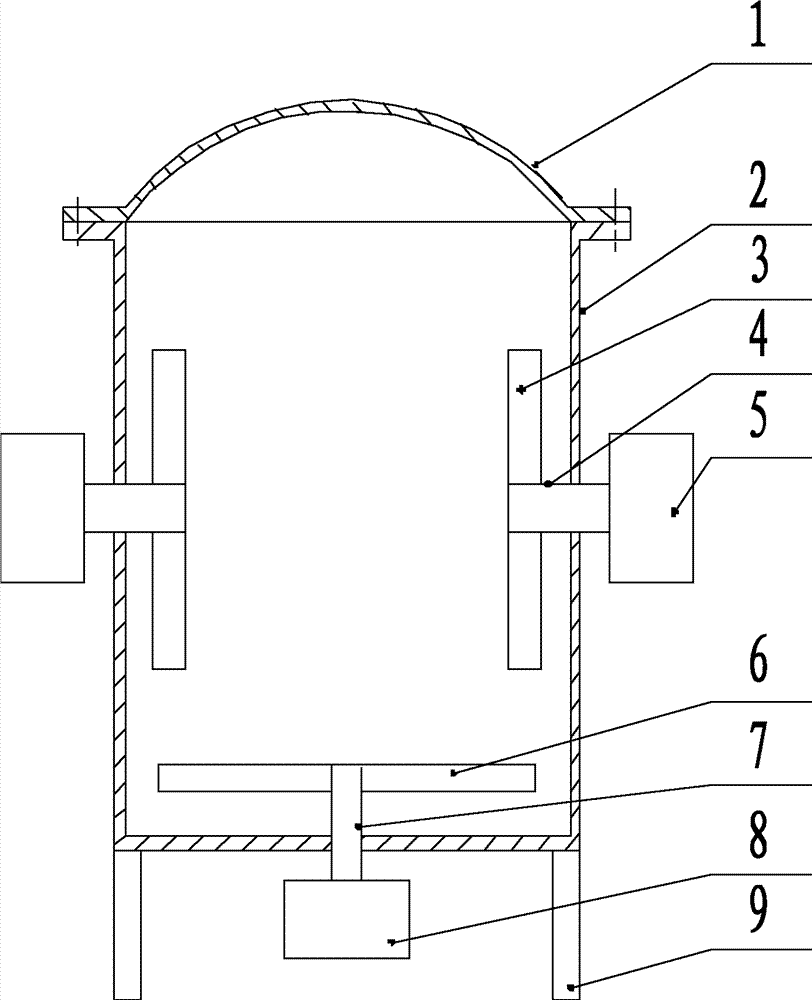

Fig. 1 is the structural representation of the utility model;
Among the figure, 1, kettle cover, 2, kettle, 3, paddle A, 4, shaft, 5, motor A, 6, paddle B, 7, shaft down, 8, motor B, 9, support.
The specific embodiment
Below in conjunction with accompanying drawing the utility model is described further:
As shown in Figure 1, this kind chemical reaction still comprises kettle 2 and kettle cover 1; Kettle 2 and kettle cover 1 are connected through flange; Be arranged with a pair of shaft 4 on said kettle 2 sidewalls, be respectively equipped with paddle A3 on the shaft 4, shaft 4 is connected with the power output shaft of motor A5; Middle part, said kettle 2 bottom vertically is provided with down shaft 7 and motor B8, and the power output shaft of following shaft 7 and motor B8 is connected, and the said end of shaft 7 down is provided with a paddle B6.The bottom of said kettle 2 is provided with support 9.
Claims (1)
1. chemical reaction still; Comprise kettle (2) and kettle cover (1); Kettle (2) is connected through flange with kettle cover (1), it is characterized in that, is arranged with a pair of shaft (4) on said kettle (2) sidewall; Be respectively equipped with paddle A (3) on the shaft (4), shaft (4) is connected with the power output shaft of motor A (5); Middle part, said kettle (2) bottom vertically is provided with down shaft (7) and motor B (8), and following shaft (7) is connected with the power output shaft of motor B (8), and the said end of shaft (7) down is provided with a paddle B (6).
