The utility model discloses a sterilization cleaning box, which mainly solves the problems that the ultraviolet mercury lamp tube is short in service life, is not environment-friendly and the like in the prior art. The toothbrush sterilization cleaning box comprises a box body, a sterilization device is arranged in the box body, a plurality of parallel hanging rods for hanging daily supplies are arranged on the wall of the box, the size of the clearance between the adjacent hanging rods is determined by the shape and the size of each daily supply, and the sterilization cleaning box is used for sterilizing and disinfecting the daily supplies. The sterilization cleaning box can be used for effective sterilization and cleaning, is convenient to place and low in energy consumption, and can hold a plurality of toothbrushes for a few family members and ensure using safety.
Description
Technical field
This utility model relates to a kind of articles for daily use to the usefulness of washing one's face and rinsing one's mouth and improve looks germ-resistant box of keeping a public place clean that can carry out disinfection, and is particularly a kind of with the LED deep ultraviolet chip lamp germ-resistant antibacterial box of keeping a public place clean that carries out disinfection.
Background technology
As the daily toothbrush of scrubbing articles for use is cleaning teeth, the important daily apparatus that keeps oral health, and common used toothbrush is to open wide in the cup that is placed on toilet, washroom in or be suspended on the toothbrush holder: owing to toilet, washroom ventilate usually, daylighting is bad; The intensive layout in hairbrush position of toothbrush; Relatively moister again after use, breed bacteria is added the bacterium source in toilet, the washroom easily; Toothbrush is very easily produced secondary pollution. the rapid breeding to antibacterial provides control environment; The user re-uses the toothbrush of such placement, very easily will be harmful to pathogenic bacteria and bring the oral cavity into, and the harm people's is healthy.There is this type of puzzlement too as daily shaver and some cosmetic products of scrubbing articles for use.
The current toothbrushes antibacterial box of keeping a public place clean can carry on the market, supplies the several members of family to use in the room but be inappropriate for being placed on; And adopt the ultraviolet mercury lamp pipe to come toothbrush is carried out disinfection more; The light decay of ultraviolet mercury lamp is bigger, and the life-span had only about 8000 hours, and hydrargyrum has severe toxicity; Not only easily environment is polluted, and have potential safety hazard.
The utility model content
The purpose of this utility model is to provide the antibacterial box of keeping a public place clean, and is convenient for carrying, and it is convenient to place, and effectively disinfection does not have potential safety hazard, and energy consumption is little, and can place and manyly supply toothbrush several members to use.
A kind of articles for daily use that are used for the usefulness of washing one's face and rinsing one's mouth and improve looks germ-resistant antibacterial box of keeping a public place clean that to carry out disinfection; It is characterized in that, comprising: box body is contained in the intravital sterilizing unit of box; Be fixed on a plurality of pegs on the inwall of box body; Wherein, the size in the gap between the adjacent peg depends on the shape and the size of articles for daily use, and sterilizing unit carries out sterilizing to articles for daily use.
Further, this utility model antibacterial box of keeping a public place clean can also have such characteristic: sterilizing unit comprise a plurality of LED deep ultraviolet chip lamps that are used for sterilizing, for sterilizing unit provide electric energy power supply, connect the switches of LED deep ultraviolet chip lamp and power supply.
Further, this utility model antibacterial box of keeping a public place clean can also have such characteristic: used switch can be a touch switch.
Further; This utility model antibacterial box of keeping a public place clean can also have such characteristic: articles for daily use are toothbrush; Sterilizing unit is to the toothbrush antibacterial that carries out disinfection, and the gap between the adjacent peg is slightly less than the width of head toothbrushes of toothbrush again greater than the brush holder of the toothbrush width at narrow position.
Further; This utility model antibacterial box of keeping a public place clean can also have such characteristic: articles for daily use are shaver; Sterilizing unit is to the shaver antibacterial that carries out disinfection, and the razor head that the gap between the adjacent peg is slightly less than shaver is slightly larger than the narrowest position of the handle of shaver again.
Further, this utility model antibacterial box of keeping a public place clean can also have such characteristic: articles for daily use are cut for plucking eyebrows, and sterilizing unit is cut the antibacterial that carries out disinfection to plucking eyebrows, and the gap between the adjacent peg is slightly less than the handgrip of cutting of plucking eyebrows and is slightly larger than the shearing blade of plucking eyebrows and cutting again.
Further; This utility model antibacterial box of keeping a public place clean can also have such characteristic: articles for daily use are toothbrush and shaver; Sterilizing unit is to the antibacterial that carries out disinfection of toothbrush and shaver; Hang the width of head toothbrushes that gap between the peg that the peg of toothbrush is adjacent is slightly less than this toothbrush from above again greater than the brush holder of this toothbrush width at narrow position, this toothbrush is fastened between the adjacent peg; Hang the width of razor head that gap between the peg that the peg of shaver is adjacent is slightly less than shaver from above again greater than the width at narrow position of the handle of shaver, this shaver is fastened between the adjacent peg.
Further, this utility model antibacterial box of keeping a public place clean can also have such characteristic: box body is by isolating ultraviolet lucite fully or plastics are processed.
Utility model effect and effect
This utility model antibacterial box of keeping a public place clean adopts the keep a public place clean box body and the peg of box of sterilizing unit with LED ultraviolet chip lamp and antibacterial to combine, thereby makes the antibacterial of this utility model box of keeping a public place clean have the little light weight of volume, environmental protection; Noiselessness disturbs, the low in energy consumption and saving energy, and the life-span is very long; Sterilizing rate is high, removes abnormal flavour in the box, non-secondary pollution; Noresidue keeps the advantage of cleaning in the box, and has realized toothbrush and the effective sterilizing of shaver and do not have potential safety hazard.
Description of drawings

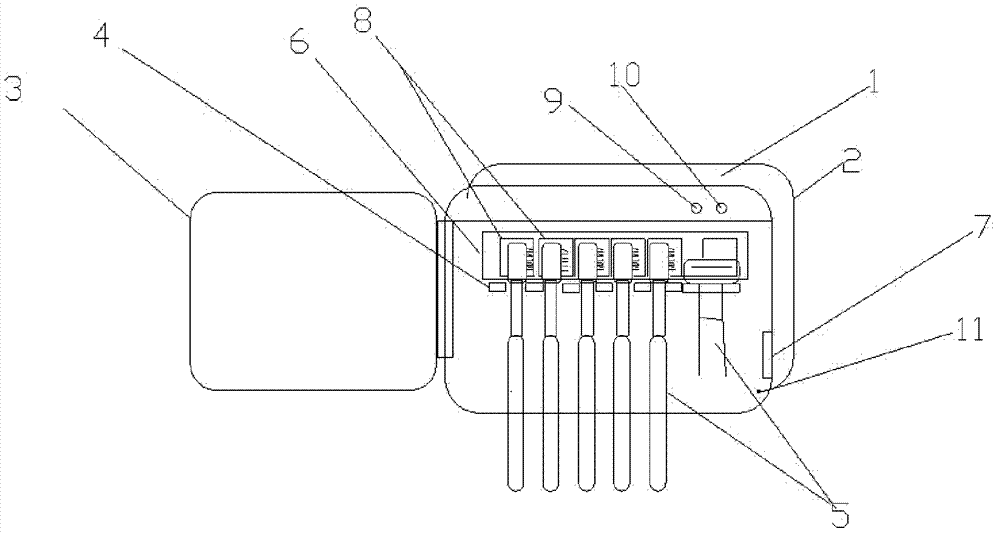

Fig. 1 is the keep a public place clean perspective view of box of the antibacterial among the embodiment.
The specific embodiment
The antibacterial box of keeping a public place clean is elaborated to this utility model with the toothbrush in the articles for daily use and shaver in the present embodiment, but present embodiment is not limited to the scope of this utility model.
The antibacterial that a kind of articles for daily use to the usefulness of washing one's face and rinsing one's mouth and improve looks can the be carried out sterilizing box of keeping a public place clean contains box body 1, and sterilizing unit 6 is housed in the box body 1.Be furnished with 6 LED deep ultraviolet chip lamps on the sterilizing unit 6, fixing eight pegs 4 on the inwall of box body, toothbrush and shaver are hung on the different pegs, and are fastened between the adjacent peg.Gap between the adjacent peg of engaging toothbrush is slightly less than the width of the head toothbrushes of toothbrush; But the brush holder that is slightly larger than toothbrush is the width at narrow position, and the razor head that the gap between the adjacent peg of engaging shaver is slightly less than shaver is slightly larger than the narrowest position of the handle of shaver again.
Contain back seat 2, lid 3 on the box body 1; A plurality of pegs 4 just are arranged on the inwall of back seat 2; The safety button 11 that fastens upper box cover and back seat is arranged on the back seat 2, and this box body is processed by lucite, can isolate ultraviolet fully; The eyes and the person that guarantee the user preserve from, and have guaranteed user's security more.
Place the centre on the correspondence position top of toothbrush and shaver 5 at peg 4; On the promptly corresponding position with toothbrush head and razor head 5; Sterilizing unit is housed; This sterilizing unit comprise 6 LED deep ultraviolet chip lamps that are used for sterilizing, for whole said sterilizing unit provide electric energy power supply, connect the switch of LED deep ultraviolet chip lamp and power supply, the three forms the loop.Wherein, LED deep ultraviolet chip lamp is that a very little wafer is encapsulated in epoxy resin the inside, the little light weight of volume; Environmental protection, noiselessness disturbs, the low in energy consumption and saving energy; Life-span is very long, is about 50000 hours, when it is in the forward duty (two ends add forward voltage); When electric current flowed to negative electrode from the LED anode, semiconductor crystal can send the deep UV that wavelength is 253.7nm, and this wavelength sterilizing rate is the highest.Sterilizing rate under certain environment is 100%, but antibacterial and remove abnormal flavour in the box keeps cleaning in the box, and this antibacterial is pure physical sterilization mode. non-secondary pollution. and noresidue and other side effect, clean environment firendly; These 6 LED deep ultraviolet chip lamps be positioned at hang from above many in the middle of the gap of the top of the peg of toothbrush and shaver and adjacent peg and over against answering toothbrush head and razor head, thereby reach closely effectively antibacterial; Switch 7 is a touch switch, and it is arranged on the outer wall of box body, only closes back actuating type switch fully at upper box cover and just connects circuit, delay start.
This antibacterial is kept a public place clean and the in running order power supply indicator of display power supply 9 also is housed in the box, is shown that sterilizing unit is in the sterilization operation lamp 10 of sterilizing state.
The keep a public place clean box body of box of the antibacterial of this utility model can also be processed by isolating ultraviolet plastics fully.
The antibacterial of this utility model is kept a public place clean in the box:
Articles for daily use can be toothbrush, and the antibacterial box of keeping a public place clean carries out sterilizing to toothbrush, and the head toothbrushes that the gap between the adjacent peg is slightly less than toothbrush is slightly larger than the brush holder of toothbrush.Articles for daily use can be shaver, and the antibacterial box of keeping a public place clean carries out sterilizing to shaver, and the cutter head that the gap between the adjacent peg is slightly less than shaver is slightly larger than the handgrip of shaver.Articles for daily use can be cut for plucking eyebrows, and the antibacterial box of keeping a public place clean is cut plucking eyebrows and carried out sterilizing, and the gap between the adjacent peg is slightly less than the handgrip of cutting of plucking eyebrows and is slightly larger than the shearing blade of plucking eyebrows and cutting.Articles for daily use can also be the articles for daily use of single other usefulness of washing one's face and rinsing one's mouth and improve looks, and also can be the combination in any of each articles for daily use.
Peg can make gap between two longer, adjacent pegs according to the shape and the size of articles for daily use, and an extension is caught up with and can be hung a plurality of articles for daily use from above.
The antibacterial of this utility model box of keeping a public place clean can also have a timely controller, shows the working time of sterilizing unit, and when the disinfecting time that is provided with in advance finishes, closes switch automatically, thus energy-conserving and environment-protective.
Claims (10)
1. articles for daily use that are used for the usefulness of washing one's face and rinsing one's mouth and the improve looks germ-resistant antibacterial box of keeping a public place clean that can carry out disinfection is characterized in that, comprising:
Box body; Be contained in the intravital sterilizing unit of said box; Be fixed on a plurality of pegs on the inwall of said box body,
Wherein, the size in the gap between the adjacent said peg depends on the shape and the size of said articles for daily use,
Said sterilizing unit carries out sterilizing to said articles for daily use.
2. the antibacterial according to claim 1 box of keeping a public place clean is characterized in that:
Wherein, said sterilizing unit comprises a plurality of LED deep ultraviolet chip lamps that are used for sterilizing; The power supply of electric energy is provided for said sterilizing unit; And the switch that connects said LED deep ultraviolet chip lamp and said power supply.
3. the antibacterial according to claim 2 box of keeping a public place clean is characterized in that:
Wherein, said switch is a touch switch.
4. the antibacterial according to claim 1 box of keeping a public place clean is characterized in that:
Wherein, said articles for daily use are toothbrush, and said sterilizing unit is to the antibacterial that carries out disinfection of said toothbrush, and the gap between the adjacent said peg is slightly less than the width of head toothbrushes of said toothbrush again greater than the brush holder of the said toothbrush width at narrow position.
5. the antibacterial according to claim 1 box of keeping a public place clean is characterized in that:
Wherein, said articles for daily use are shaver, and said sterilizing unit is to the antibacterial that carries out disinfection of said shaver, and the razor head that the said gap between the adjacent said peg is slightly less than said shaver is slightly larger than the narrowest position of the handle of said shaver again.
6. the antibacterial according to claim 1 box of keeping a public place clean; It is characterized in that: said articles for daily use are cut for plucking eyebrows; Said sterilizing unit is cut the antibacterial that carries out disinfection to said plucking eyebrows, and the said gap between the adjacent said peg is slightly less than the said handgrip of cutting of plucking eyebrows and is slightly larger than the said shearing blade of plucking eyebrows and cutting again.
7. the antibacterial according to claim 1 box of keeping a public place clean is characterized in that:
Said articles for daily use are toothbrush and shaver; Said sterilizing unit is to the antibacterial that carries out disinfection of said toothbrush and said shaver; Hang the width of head toothbrushes that gap between the said peg that the said peg of said toothbrush is adjacent is slightly less than said toothbrush from above again greater than the brush holder of the said toothbrush width at narrow position, said toothbrush is fastened between the said adjacent peg; Hang the width of razor head that gap between the said peg that the said peg of said shaver is adjacent is slightly less than said shaver from above again greater than the width at narrow position of the handle of said shaver, said shaver is fastened between the said adjacent peg.
8. the antibacterial according to claim 1 box of keeping a public place clean is characterized in that:
Wherein, said box body is processed by isolating ultraviolet lucite fully.
9. the antibacterial according to claim 1 box of keeping a public place clean is characterized in that:
Wherein, said box body is processed by isolating ultraviolet plastics fully.
10. the antibacterial according to claim 1 box of keeping a public place clean is characterized in that:
The said antibacterial box of keeping a public place clean also has and is used to show that said power supply is in the power supply indicator of on-state and shows that sterilizing unit is in the sterilization operation lamp of sterilizing state.
