The utility model relates to a high-bar solar energy street lamp with capability of effectively reducing wind resistance and good stability. The high-bar solar energy street lamp comprises a lamp post, a control box, a storage battery, a light source and solar energy panels, wherein the light source is arranged on a lamp bracket on one side of the lamp post, and the solar energy panels are stacked on a panel bracket on the other side of the lamp post. According to the novel solar energy street lamp with capability of effectively reducing wind resistance and good stability, the solar energy panels are stacked, the light-collecting effect of the solar energy panel is not influenced, the wind resistance is reduced, the balance weight is uniform and the risk coefficient is lowered.
Description
Technical field
The utility model relates to solar street light, especially a kind of new type solar energy street lamp that effectively reduces windage, good stability.
Background technology
China's solar energy resources is abundant, and 2/3 area year amount of radiation is greater than 20MJ/ square metre, and year sunshine time is more than 2200 hours, and the development and use of solar energy have great potentiality.
Solar street light is developed as a kind of brand-new new forms of energy lighting system fast, and occupies one seat in the field of urban construction, town and country illumination.
Mostly solar street light design in the market is that a solar panel, this design cause a whole set of Solar Street Lighting System generating efficiency low, and counterweight is inhomogeneous.
The utility model content
In order to overcome the deficiency of technique scheme, the purpose of the utility model is that a kind of modern design is provided, can effectively reduces the high bar solar street light of windage, good stability.
This patent is realized through following technical scheme:
Can effectively reduce the high bar solar street light of windage, good stability; Comprise lamppost, control cabinet, battery, light source and solar panel; Said light source is installed on the lamp bracket of lamppost one side, and said solar panel stacks and is installed on the lamppost opposite side battery board bracket.
The said a kind of high bar solar street light that effectively reduces windage, good stability of this patent stacks solar panel, when not influencing solar panel daylighting effect, has reduced windage, and counterweight is even, has reduced risk factor.
Description of drawings
According to accompanying drawing and embodiment this patent is described further below:

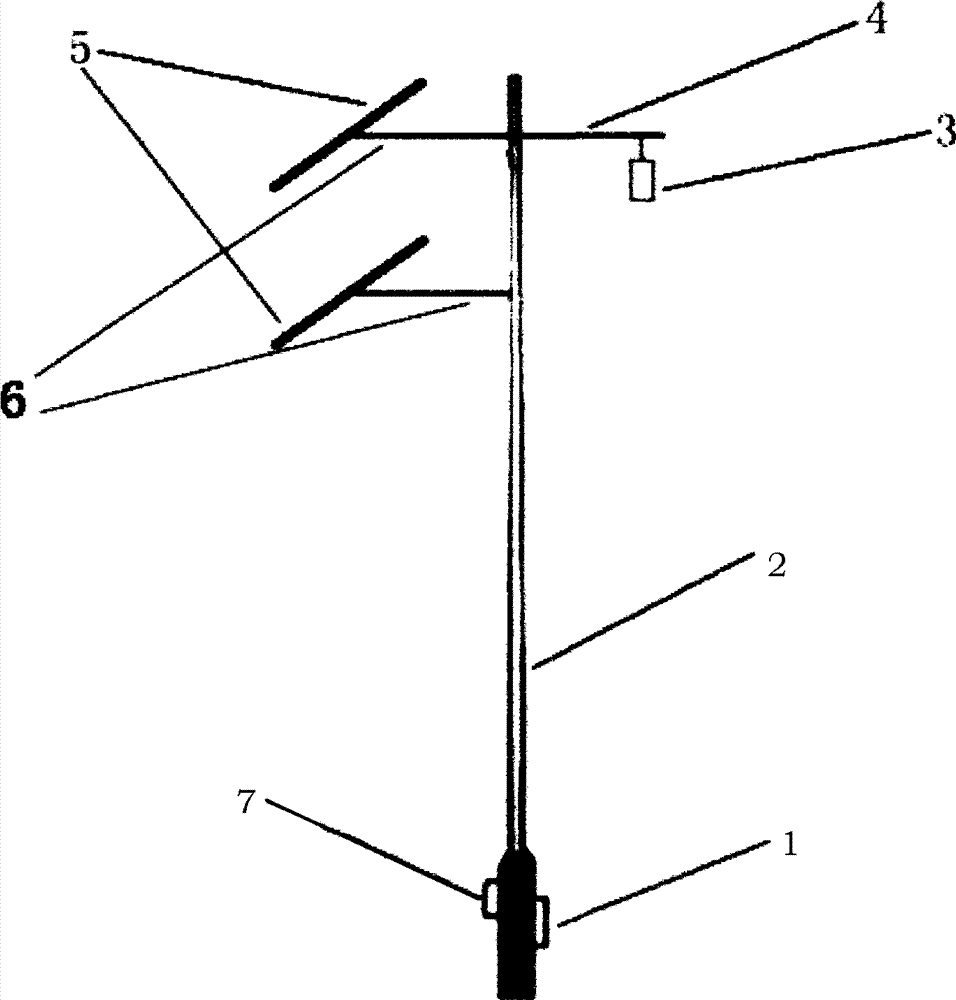

Fig. 1 is a this patent overall structure sketch map
Among the figure: 1, control cabinet; 2, lamppost; 3, light source; 4, lamp bracket; 5, solar panel; 6, battery board bracket; 7, battery.
The specific embodiment
As shown in Figure 1; Can effectively reduce the high bar solar street light of windage, good stability; Comprise lamppost, control cabinet, battery, light source and solar panel, said light source is installed on the lamp bracket of lamppost one side, and said solar panel stacks and is installed on the lamppost opposite side battery board bracket.
The said a kind of new type solar energy street lamp that effectively reduces windage, good stability of this patent stacks solar panel, when not influencing solar panel daylighting effect, has reduced windage, and counterweight is even, has reduced risk factor.
Person skilled in the art should be familiar with; The above embodiment only is the purpose that is used for explaining the utility model; And be not with the qualification of doing the utility model; As long as in the essential scope of the utility model, variation, modification that the foregoing description is done all will drop in the claim scope of the utility model.
Claims (1)
1. can effectively reduce the high bar solar street light of windage, good stability; It is characterized in that; Comprise lamppost, control cabinet, battery, light source and solar panel; Said light source is installed on the lamp bracket of lamppost one side, and said solar panel stacks and is installed on the lamppost opposite side battery board bracket.
