Abstract

The utility model discloses a machining clamp of a large-sized printer perforating needle. The machining clamp comprises a pedestal (1), wherein a plurality of bumps (2) are formed on the pedestal (1); bosses (21) are formed on the middle parts of two edges of the bumps (2); a perforating needle (3) is clamped between two bumps (2); the bosses (21) are inserted into grooves (31) of the perforating needles (3); and a pressing plate (4) is fixedly connected to the bumps (2) through bolts and is pressed against the perforating needle (3). According to the machining clamp, a plurality of perforating needle (3) can be assembled and clamped at one time, and the surface layers of the perforating needle (3) are not easily damaged during assembly and clamping.

Description

A kind of clamp for machining of large-scale printer perforating needle
Technical field:
The utility model relates to printer perforating needle technical field of processing equipment, more specifically to a kind of clamp for machining of large-scale printer perforating needle.
Background technology:
The existing printer perforating needle work in-process heart adds man-hour, generally all be manually fixedly the clamping work in-process and do not have the special fixture clamping in the heart, damage easily at the clamping mesexine, and once can only clamping and one of processing, efficient is low.
The utility model content:
The purpose of the utility model is exactly the deficiency to prior art, and a kind of clamp for machining of large-scale printer perforating needle is provided, and it can be processed by a plurality of perforating needles of clamping, and the hole of having an injection is not fragile at the clamping mesexine.
The technological solution of the utility model is following:
A kind of clamp for machining of large-scale printer perforating needle comprises base, forms a plurality of projections on the said base, and the middle part, both sides of projection forms convexity, and perforating needle is clamped between two projections, and protruding sleeve is in the groove of perforating needle; Pressing plate is connected on the projection through bolt, and pressing plate is pressed against on the perforating needle.
Form nine rectangular-shaped projections on the said base, clamping has the hole of having an injection between per two projections.
In said nine projections, whenever on the projection of a projection, form screw.
Form fixing threaded hole on the said base.
The beneficial effect of the utility model is:
1, it is clamped in perforating needle between two projections, and protruding sleeve is in the groove of perforating needle, and assurance perforating needle top layer when clamping can not damaged.
2, it can be processed by a plurality of perforating needles of clamping, has improved efficient.
Description of drawings:

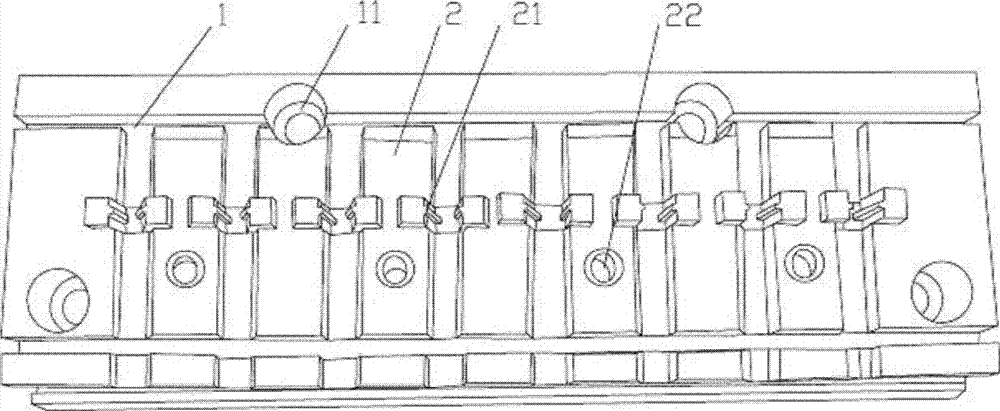

Fig. 1 is the structural representation of the utility model;
Fig. 2 is the structural representation of the clamping perforating needle of the utility model;
Fig. 3 is the structural representation of perforating needle.
Among the figure: 1, base; 11, fixing threaded hole; 2, projection; 21, convexity; 22, screw; 3, perforating needle; 31, groove; 4, pressing plate.
The specific embodiment:
Embodiment: see Fig. 1 to shown in Figure 3, a kind of clamp for machining of large-scale printer perforating needle comprises base 1; Form a plurality of projections 2 on the said base 1; The middle part, both sides of projection 2 forms convexity 21, and perforating needle 3 is clamped between two projections 2, and protruding 21 sleeves are in the groove 31 of perforating needle 3; Pressing plate 4 is connected on the projection 2 through bolt, and pressing plate 4 is pressed against on the perforating needle 3.
Form nine rectangular-shaped projections 2 on the said base 1, clamping has the hole 3 of having an injection between per two projections 2.
In said nine projections 2, whenever on the projection 2 of a projection 2, form screw 22.
Form fixing threaded hole 11 on the said base 1.
Operation principle: perforating needle 3 is clamped in two projections 2, and protruding 21 sleeves are in the groove 31 of perforating needle 3, and then, pressing plate 4 is connected on the projection 2 through bolt, and pressing plate 4 is pressed against on the perforating needle 3.Install successively, 8 perforating needles 3 can be installed altogether in these anchor clamps, these anchor clamps are connected to through bolt on the workpiece clamping table of machining center process then.

Claims (4)

1. the clamp for machining of a large-scale printer perforating needle; Comprise base (1); It is characterized in that: form a plurality of projections (2) on the said base (1); The middle part, both sides of projection (2) forms convexity (21), and perforating needle (3) is clamped between two projections (2), and protruding (21) sleeve is in the groove (31) of perforating needle (3); Pressing plate (4) is connected on the projection (2) through bolt, and pressing plate (4) is pressed against on the perforating needle (3).
2. the clamp for machining of a kind of large-scale printer perforating needle according to claim 1 is characterized in that: form nine rectangular-shaped projections (2) on the said base (1), clamping has the hole of having an injection (3) between per two projections (2).
3. the clamp for machining of a kind of large-scale printer perforating needle according to claim 1 is characterized in that: in said nine projections (2), whenever on the projection (2) of a projection (2), form screw (22).
4. the clamp for machining of a kind of large-scale printer perforating needle according to claim 1 is characterized in that: form fixing threaded hole (11) on the said base (1).
